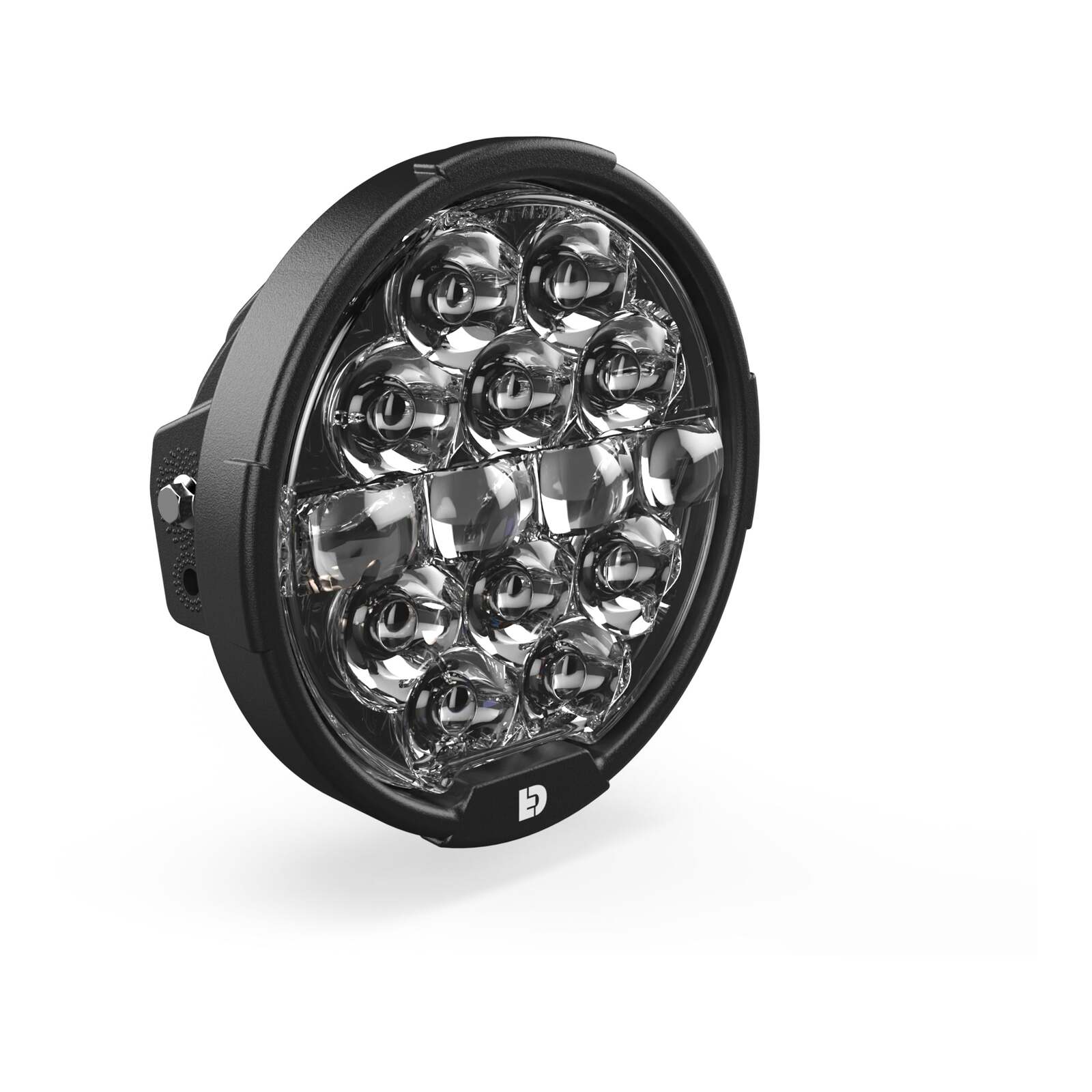

Denali D-14 Destroyer DOT/SAE ECE Modular Headlight (Single)

Destroy the dark and seize the day with unmatched style and insane performance. The Destroyer headlight features multiple industry-first innovations, making it the brightest and most feature-rich headlight ever released.

Imagine a super rugged 12,900 lumen DOT headlight with unmatched beam performance, then add a stylish linear low beam, two different high beam intensity options, and a modular lens system that lets you change the colour of your low beam on the fly. Denali did, and it just destroyed the status quo.

Like no other headlight before, the Destroyer features two different high beam intensities, allowing riders to choose between a maximum allowable DOT high beam or the Destroyer high beam that doubles your output, delivering an insane driving beam over 200 feet wide and 1500 feet long.

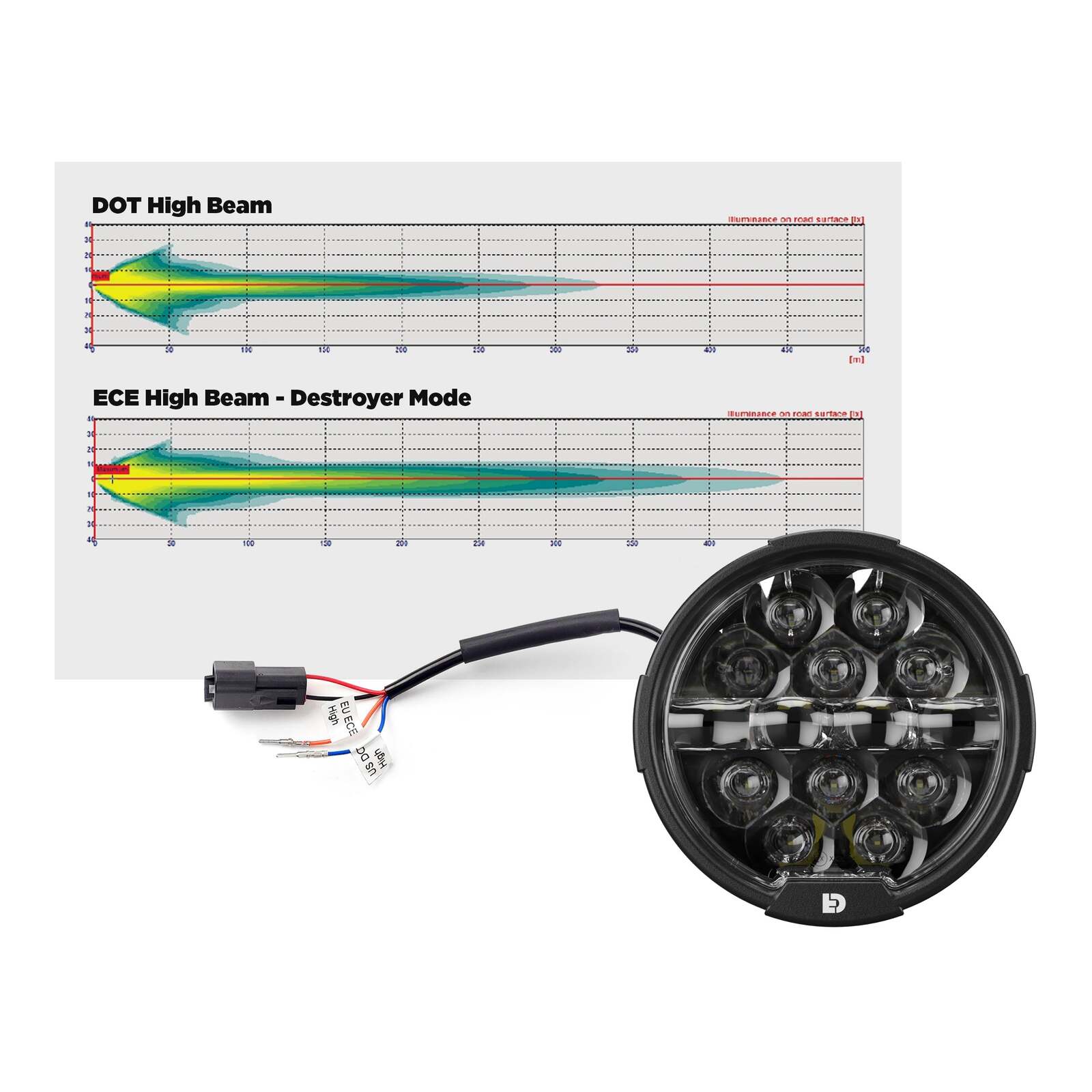

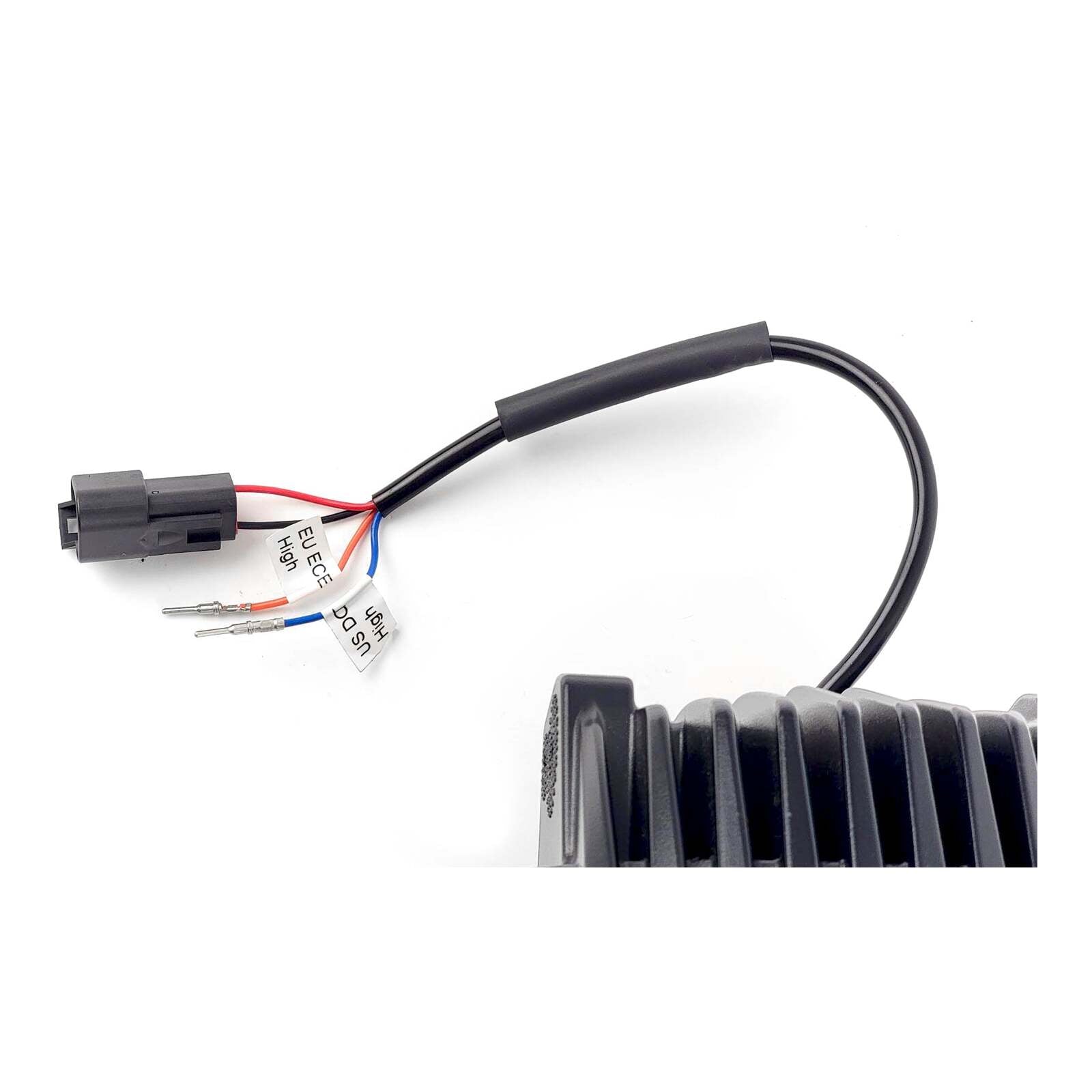

DOT approved if you want it, or a 1500-foot destroyer beam if you don't - how is this possible? Thanks to our advanced experience with optical design and beam regulations (and some clever innovation), Denali was able to provide two user-selectable high beam wires pre-pinned and labelled for either USA DOT or European ECE performance. How is that possible? Simply push your selected high beam wire into the waterproof DT connector and use the pre-applied heat shrink to secure and conceal the unused wire. Our DOT beam reaches the maximum allowable candela for North America, while our destroyer high beam is purposefully designed to meet the much higher candela values allowed by the ECE regulations! The result is the world's first motorcycle headlight system that can deliver maximum performance and unmatched versatility to the global market!

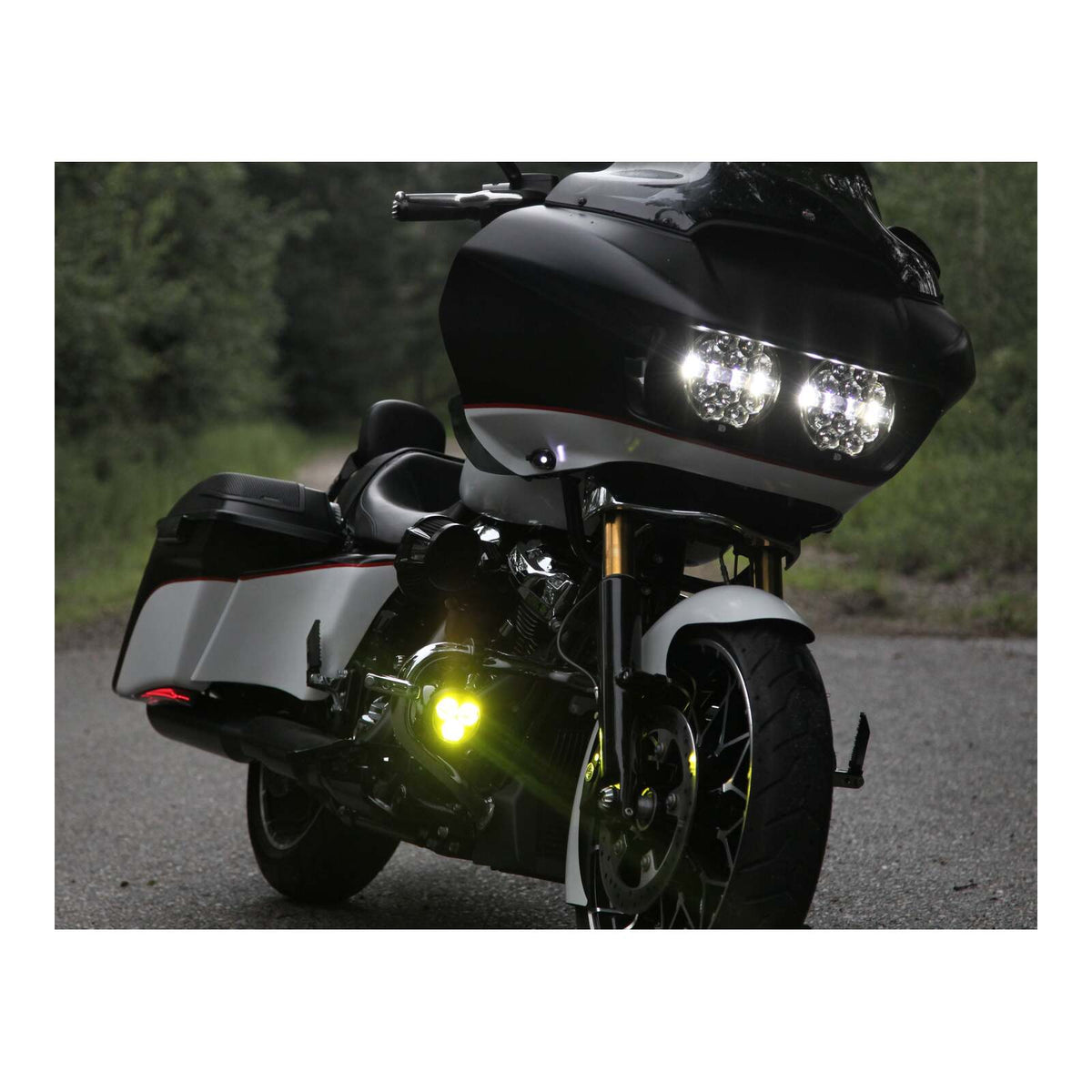

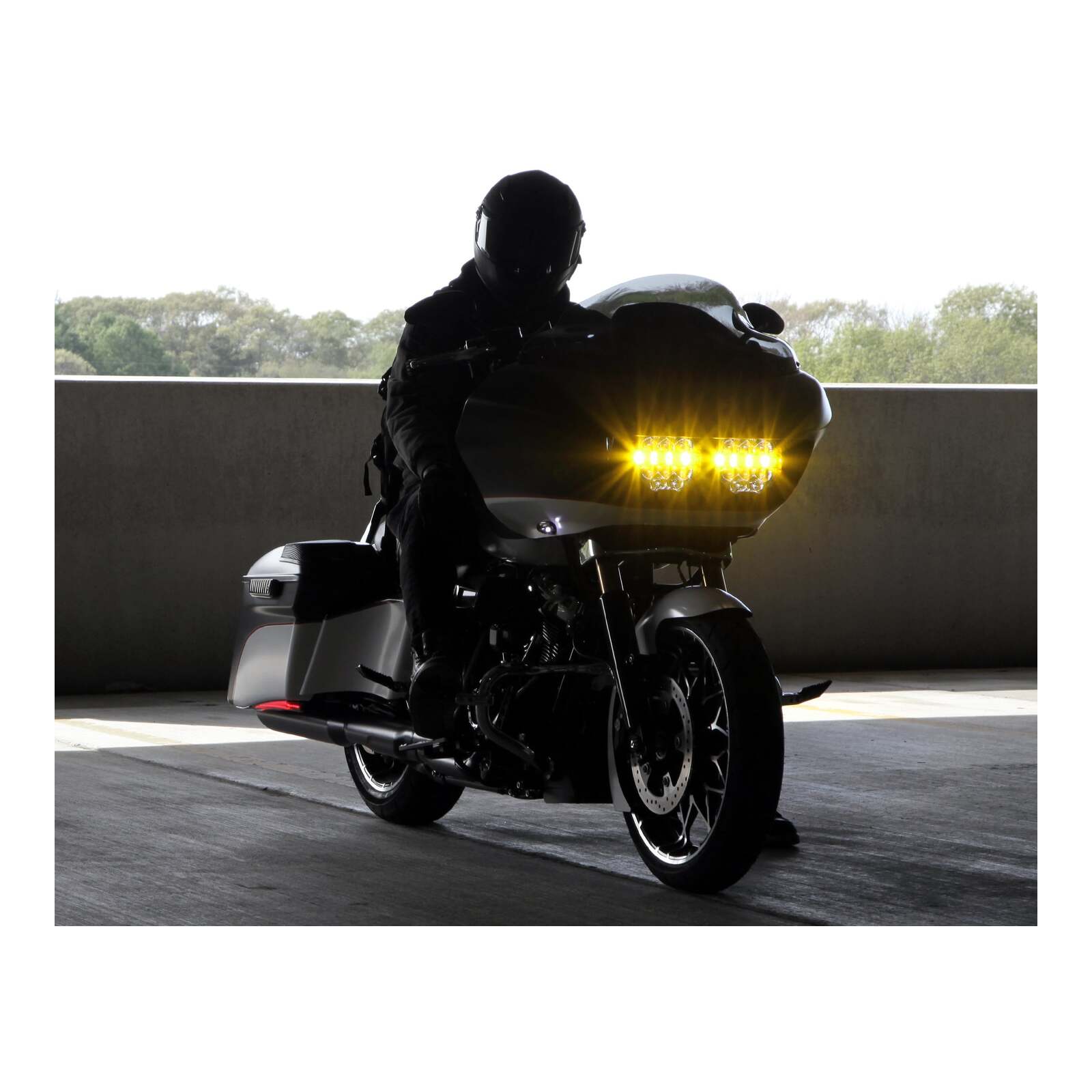

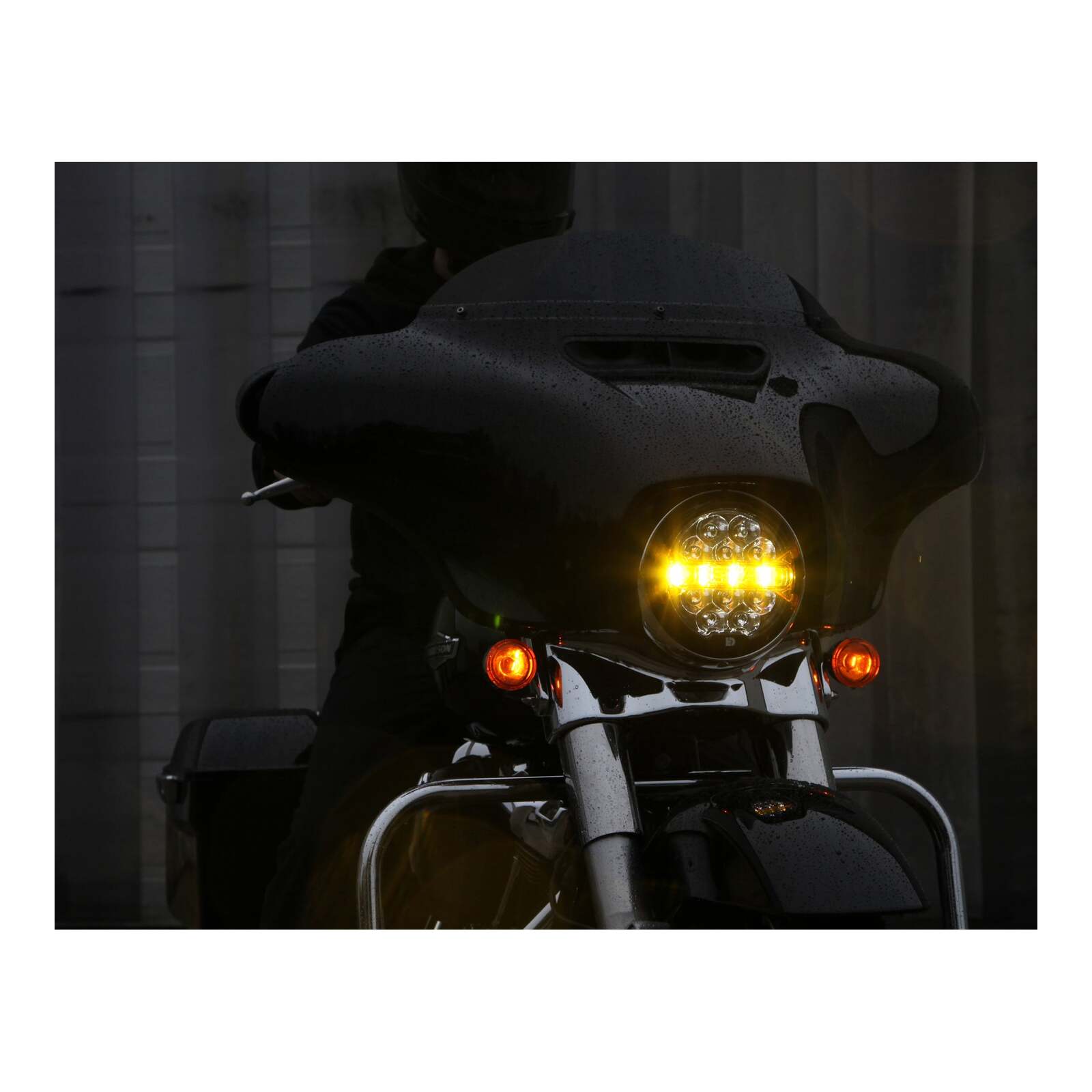

Our unique multi-mount housing design allows for effortless mounting in universal applications (without the need for a headlight bucket) but also seamlessly integrates into the H-D Road Glide and Street Glide with our easy-to-install plug-and-play bracket and wiring kits.

Features:

• Dual High Beam Design - Choose DOT high beam or Destroyer high beam
• DOT/SAE street-legal high/low - in all 50 states
• ECE steel-legal high/low - Option for EU and global markets
• Insane 25,800 raw lumens - Per pair all-on high/low

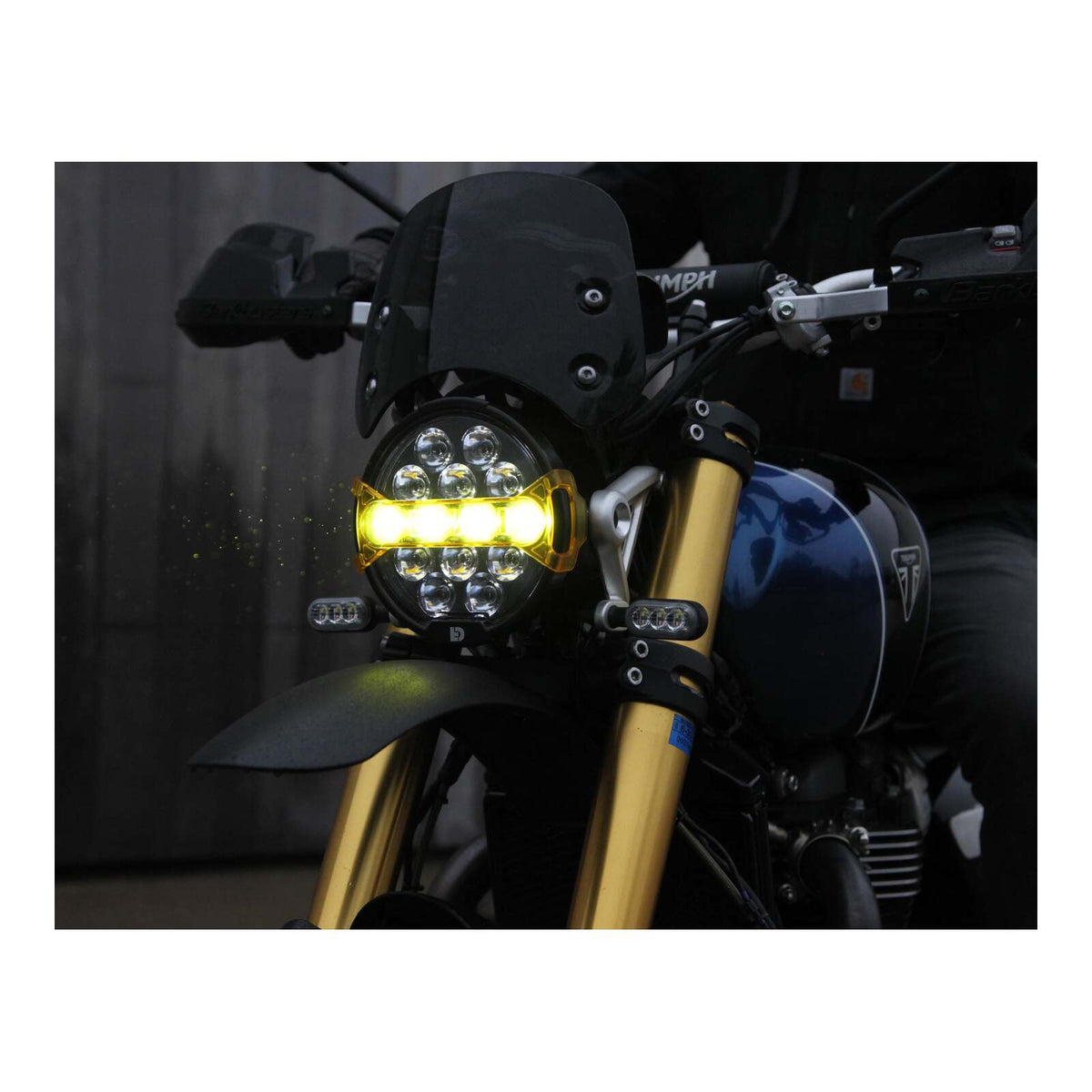

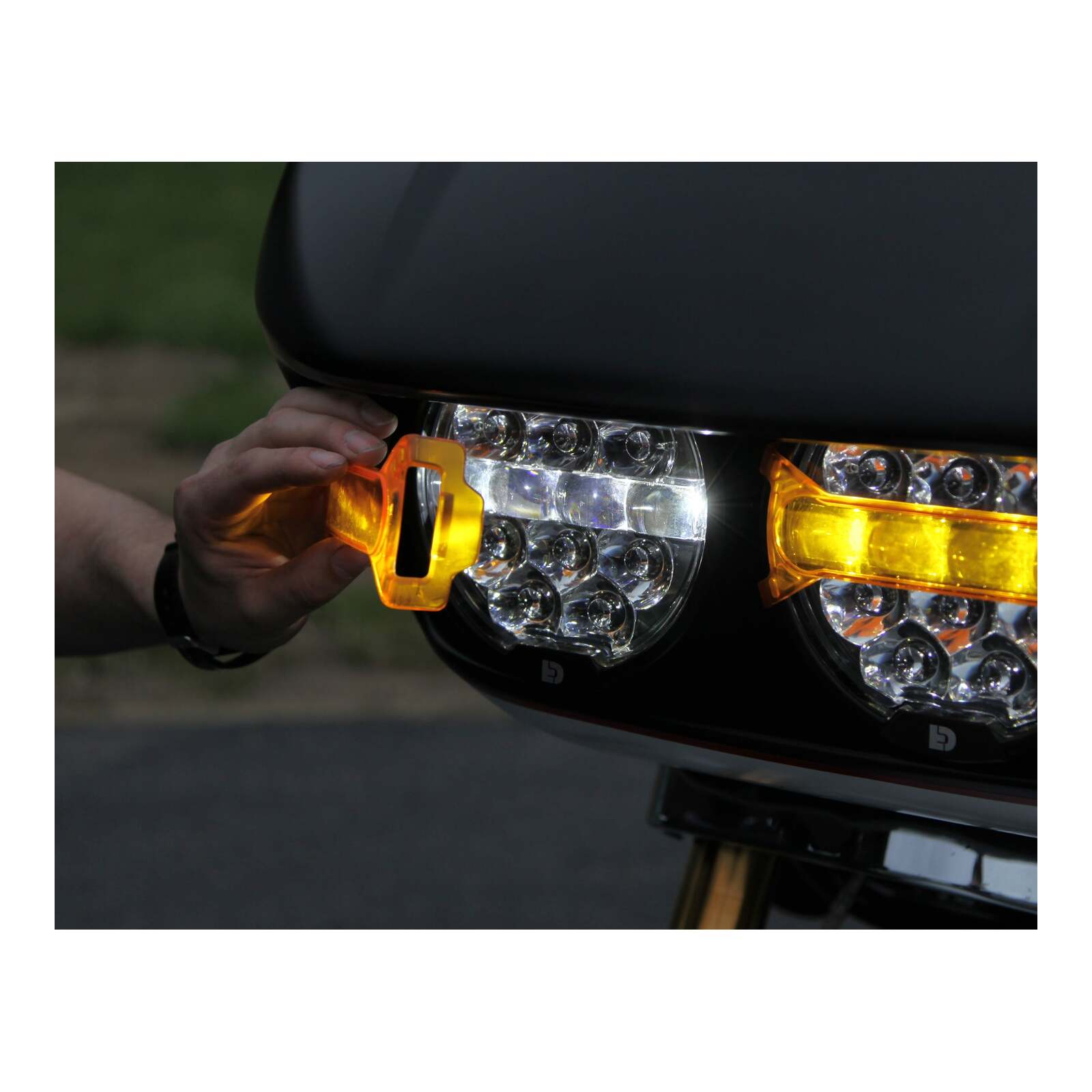

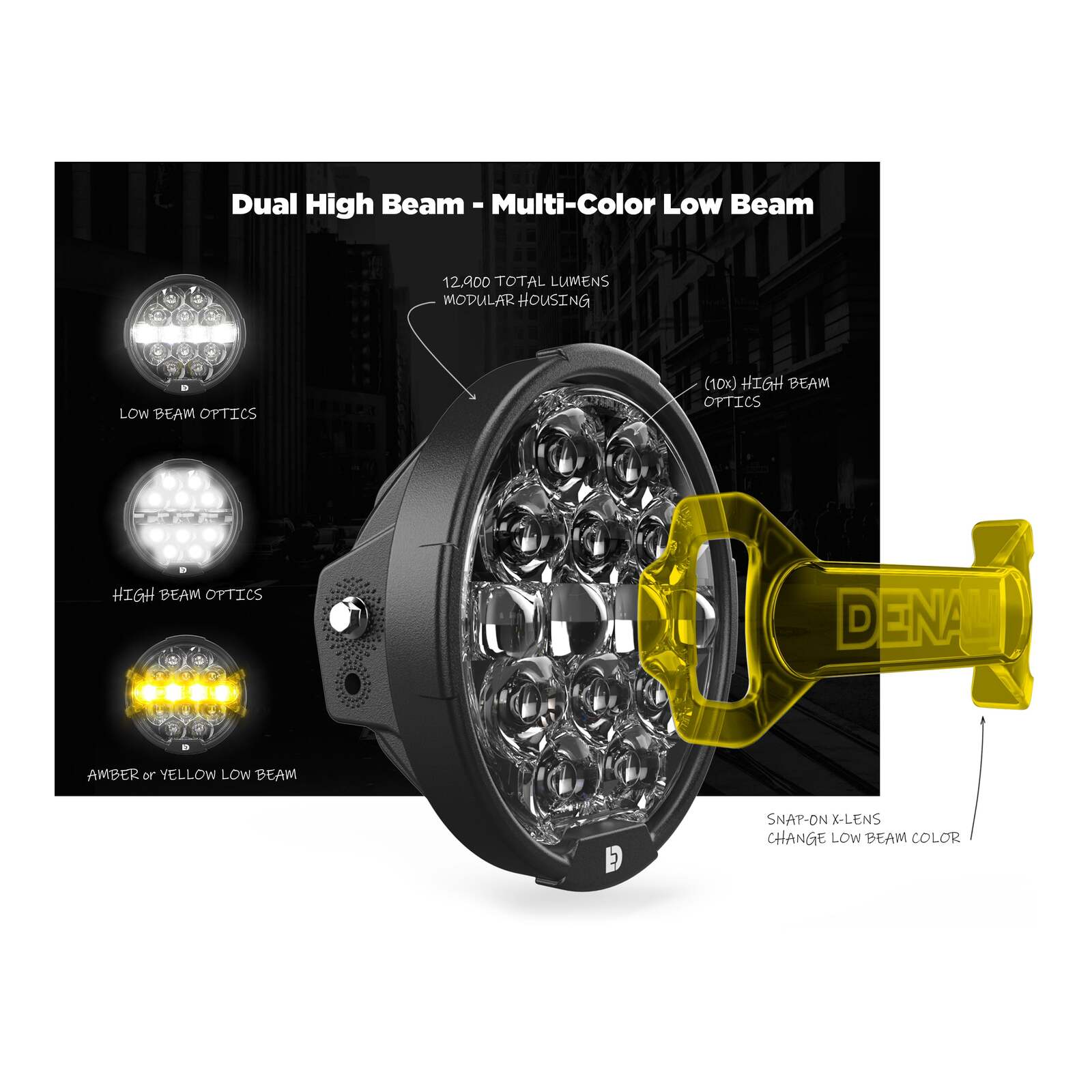

• Modular X-Lens System - Change low beam colour on-the-fly to amber or yellow

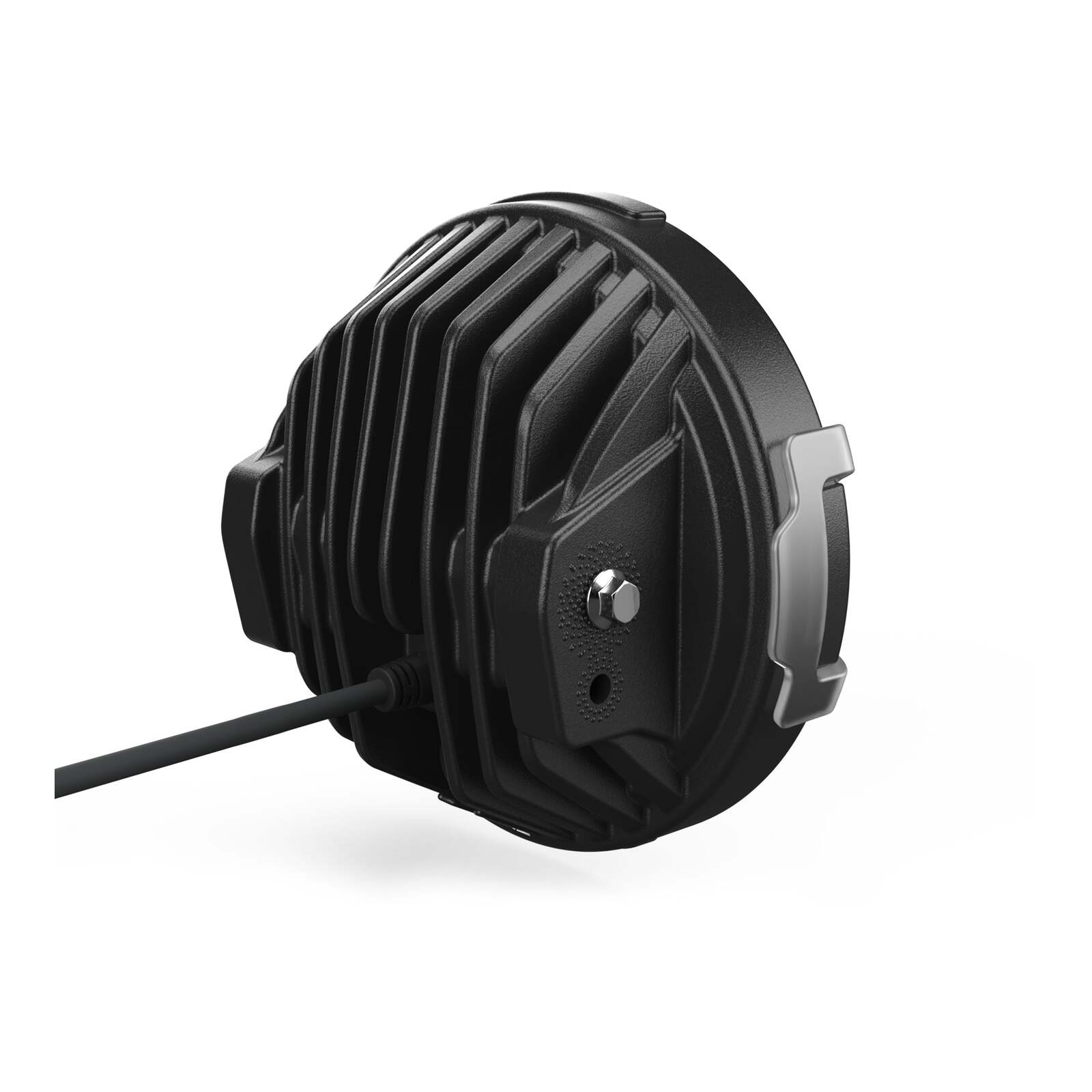

• Multi-Mount Housing Design - Enables universal or integrated mounting with or without a headlight bucket
• Ultra-slim Profile - Enables effortless mounting in tight Harley-Davidson applications
• Hassle-Free EMC Protection - CISPR25 ensures no interference with radios or controllers
• Easy-Adjust Design - Allows headlight adjustment on-the-fly without taking the bike apart
• DrySeal Waterproof Construction - IP69K with internally stripped and potted cable entry
• Complete Plug-and-Play Headlight Upgrade Kits - Available for select Harley-Davidson models
• Limited Lifetime Warranty

D14 LED Headlight Specs

• LEDs: (14x) 8-Watt High Intensity LED
• Max Power Draw: 105 Watts / 8 Amps
• Raw Lumens: 12,900
• Operating Voltage: 9-32 VDC
• Pod Size: 6.75" Round x 3" Deep
• Pod Weight: 2 lbs
• EMC R10 and CISPR 25
• IP68 and 69K Waterproof, Submersible, and High-pressure Spray
• DOT/SAE Compliant and ECE R149 Approved Low Beam
• DOT/SAE Compliant High Beam (Blue Wire)
• ECE R149 Approved High Beam (Orange Wire)
• Mounting: Two M8x1.25 thread pitch holes across the centre horizontal axis of lamp spaced 120mm apart. 15mm - 20mm thread penetration recommended for each bolt. Fits original headlight mounts with at least 120mm between mounting points.

Beam Specs

• Destroyer Mode: ECE High + Low
  • Raw Lumens: 12,900
  • Power Draw: 105 Watts
  • Beam Distance: 1500 ft
  • Beam Width: 230 ft
• DOT High Beam Mode DOT High + Low
  • Raw Lumens: 7,675
  • Power Draw: 55 Watts
  • Beam Distance: 850 ft
  • Beam Width: 230 ft
• DOT and ECE Low Beam Only
  • Raw Lumens: 3,362
  • Power Draw: 32 Watts
  • Beam Distance: 530 ft
  • Beam Width: 230 ft

What's Included - D14 Universal Headlight

• (1x) D14 LED Headlight
• (4x) M8x20mm Stainless Mounting Bolts (1.25 Thread Pitch)
• X-Lenses Sold Separately
• 3-pin Deutsch Female Pigtail (P-DEUTSCHCONPT3) Sold Separately

Neither a trunnion nor spacers and bolts required for installation on original headlight mounts spaced wider than 120mm are included.
