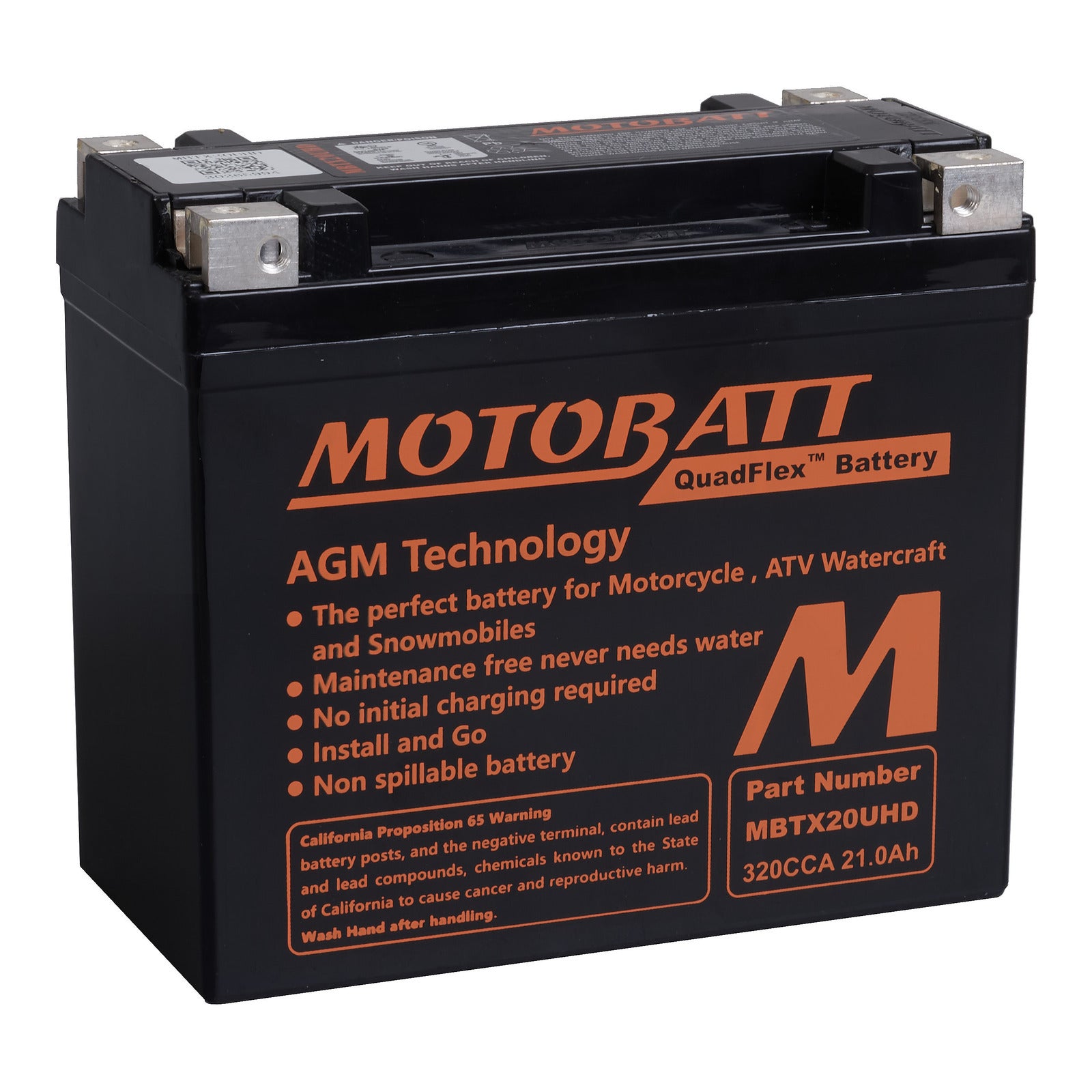

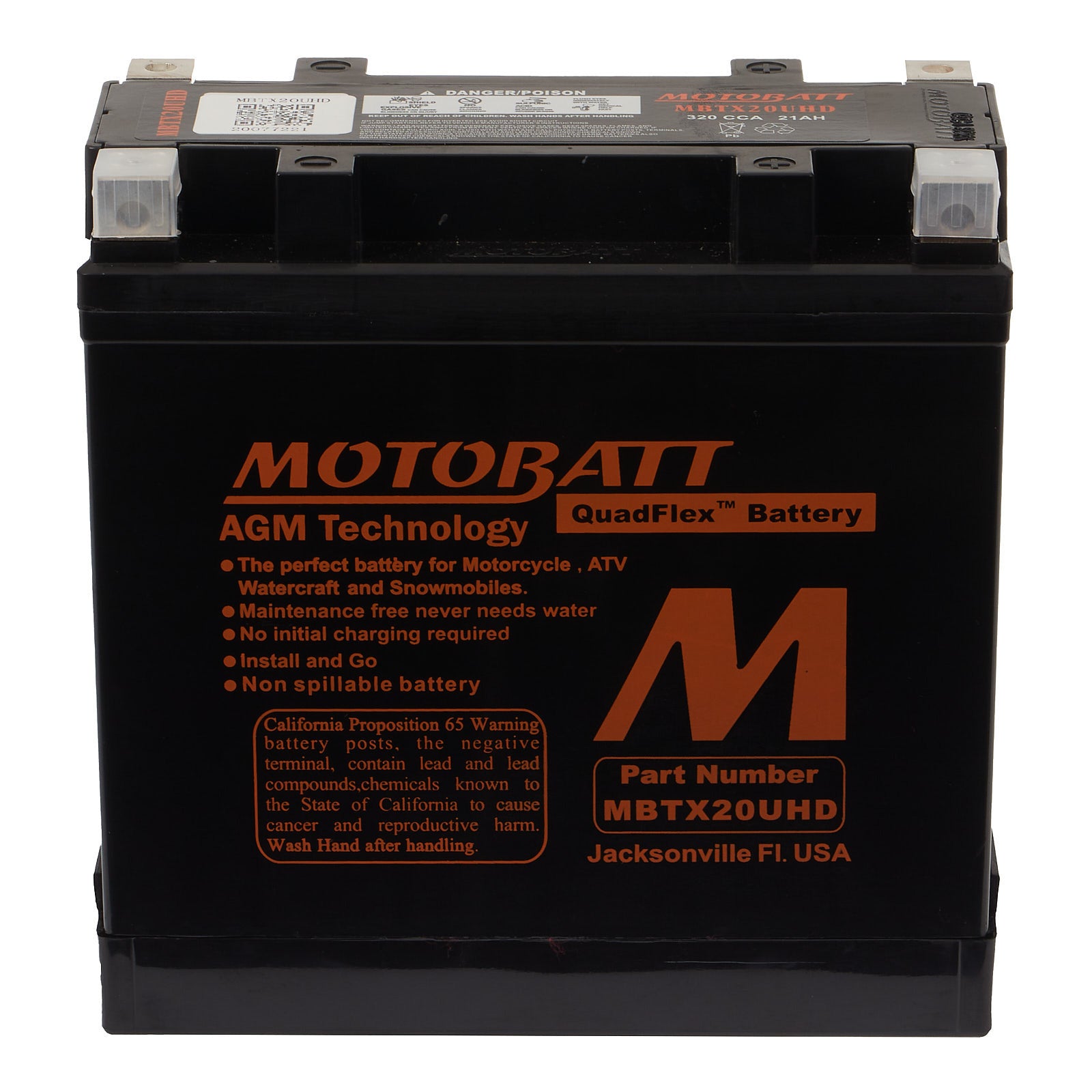

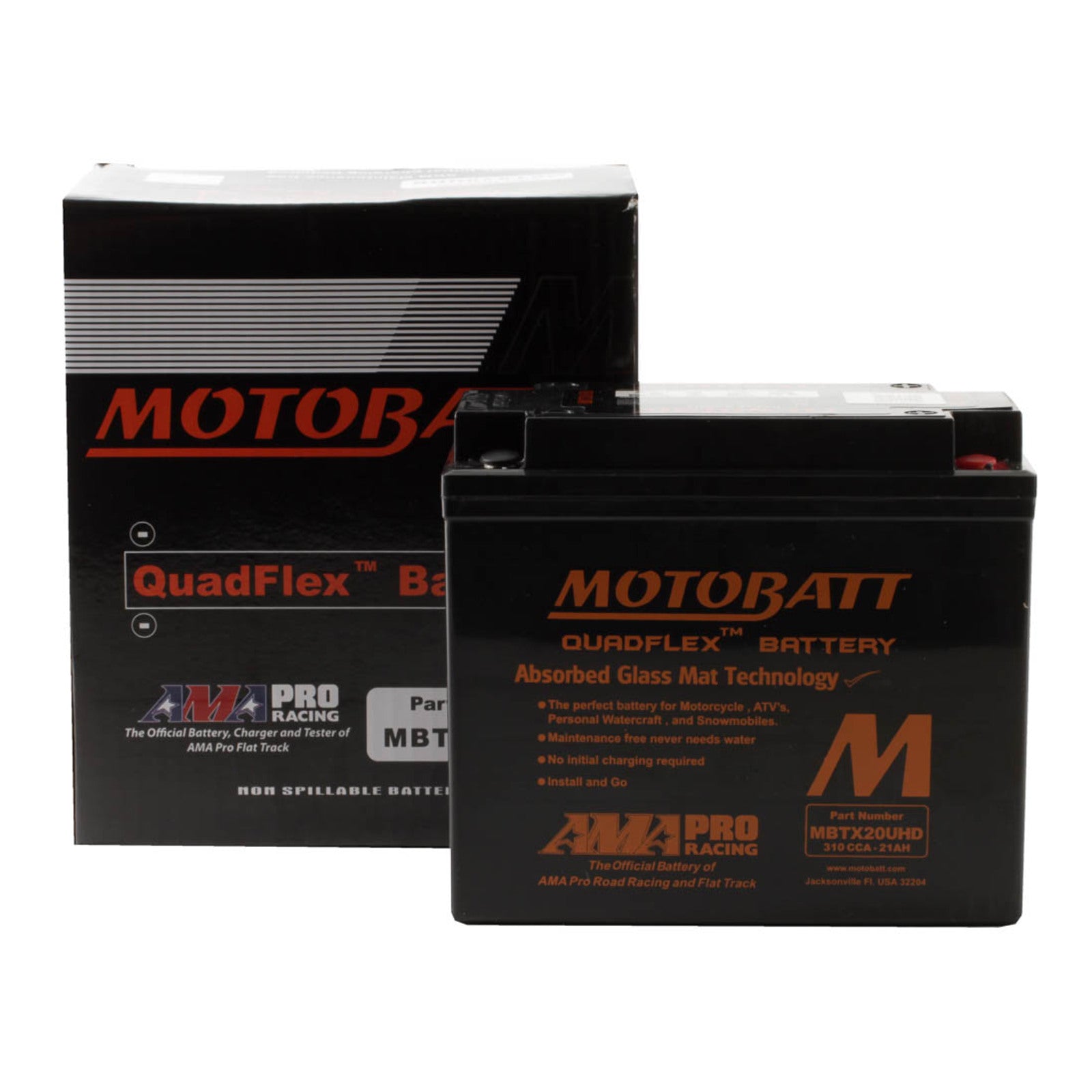

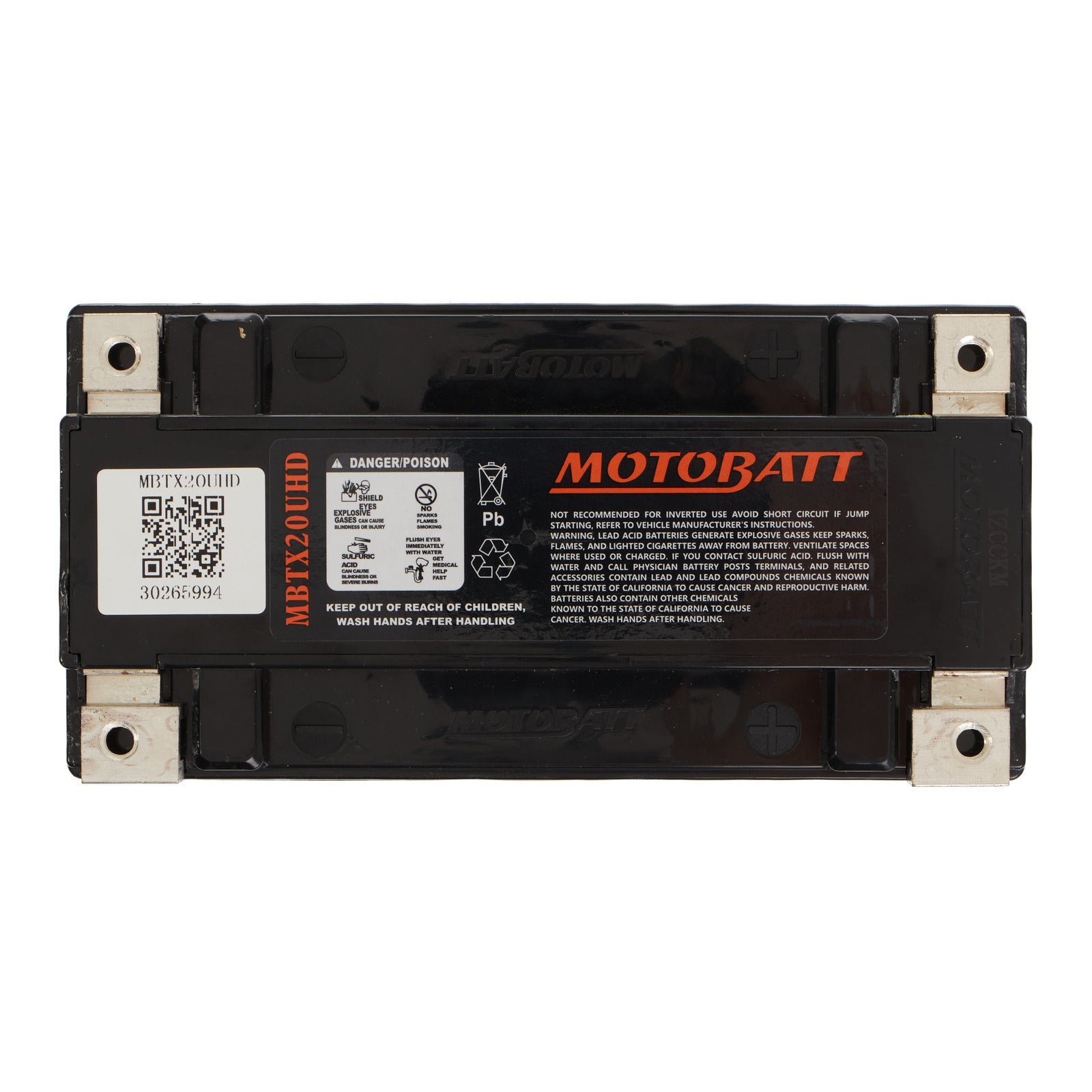

Motobatt Battery Quadflex AGM - MBTX20UHD

Motobatt Quadflex delivers the optimal balance between ampere-hours (AH) and cold cranking amps (CCA) at -18°C.

This is achieved by expanding the size of the internal plates and utilizing unused space found in conventional batteries. Our globally patented, innovative cell connection system makes this possible. Additionally, we increase the grid thickness, enhance paste density, and maximize the active material content to fully optimize the battery’s capacity within its size. A true revolution in the battery market.

Features:

• Power: Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design.
• Safe: No need to add acid and risk any accidental spillages.
• Durable: Thanks to its technology and high-quality AGM, it is extremely resistant to vibrations or weld breakages.
• Maintenance-free: Fully sealed and factory-activated, requiring no maintenance other than keeping it charged in storage.
• Ready to go: With a voltage of over 12.5V, the battery is ready to use right away.
• New improved solid-mounted terminals with threaded inserts.

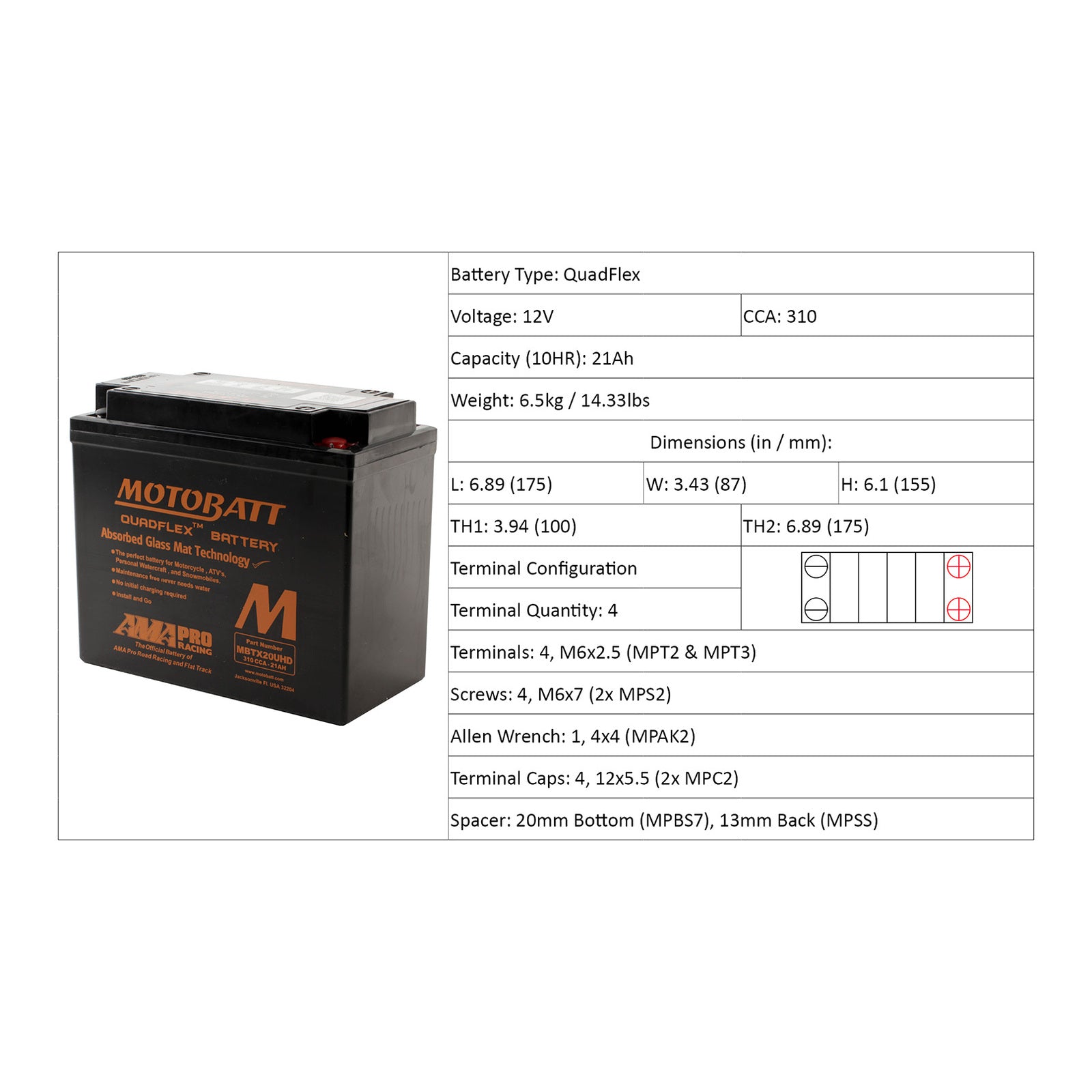

Specifications:

• Battery Type: MBTX20UHD
• Voltage: 12V
• Cold Cranking Amps (CCA): 335A
• Marine Cranking Amps (MCA): 395A
• Pulse Hot Cranking Amps (PHCA): 605A
• Capacity (10HR): C10 - 22.5Ah, C20 - 23.5Ah
• Weight: 6.50kg / 14.33lbs
• Dimensions (in / mm):
  • Length: 6.89" (175mm)
  • Width: 3.43" (87mm)
  • Height: 6.10" (155mm)
  • Terminal Width (TW): 3.94" (100mm)
  • Total Height (TH): 6.89" (175mm)
• Assembly Figure Terminal Locations: 4
• Terminals: 2x Blocknut M6 (PART MPN2)
• Screws: 2x M6x12 (PART MPS4)
• Terminal Caps: 2 Black, 2 Red (PART MPC3)
• Spacer:
  • 2x 20mm Bottom (Part# MPBS7)
  • 1x 13mm Back (Part# MPSS)
