Generator Stator - Yamaha WR250F '05–'13

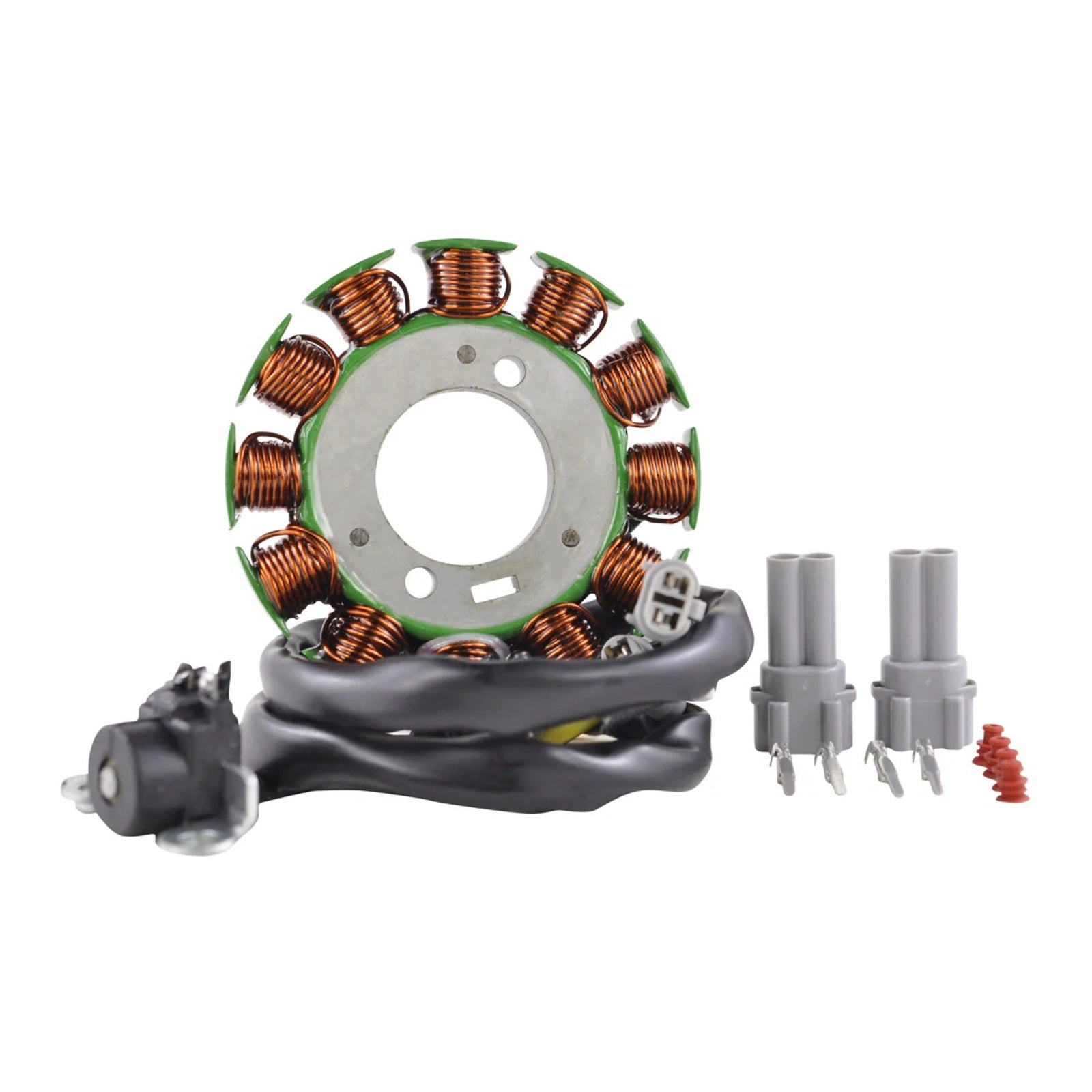

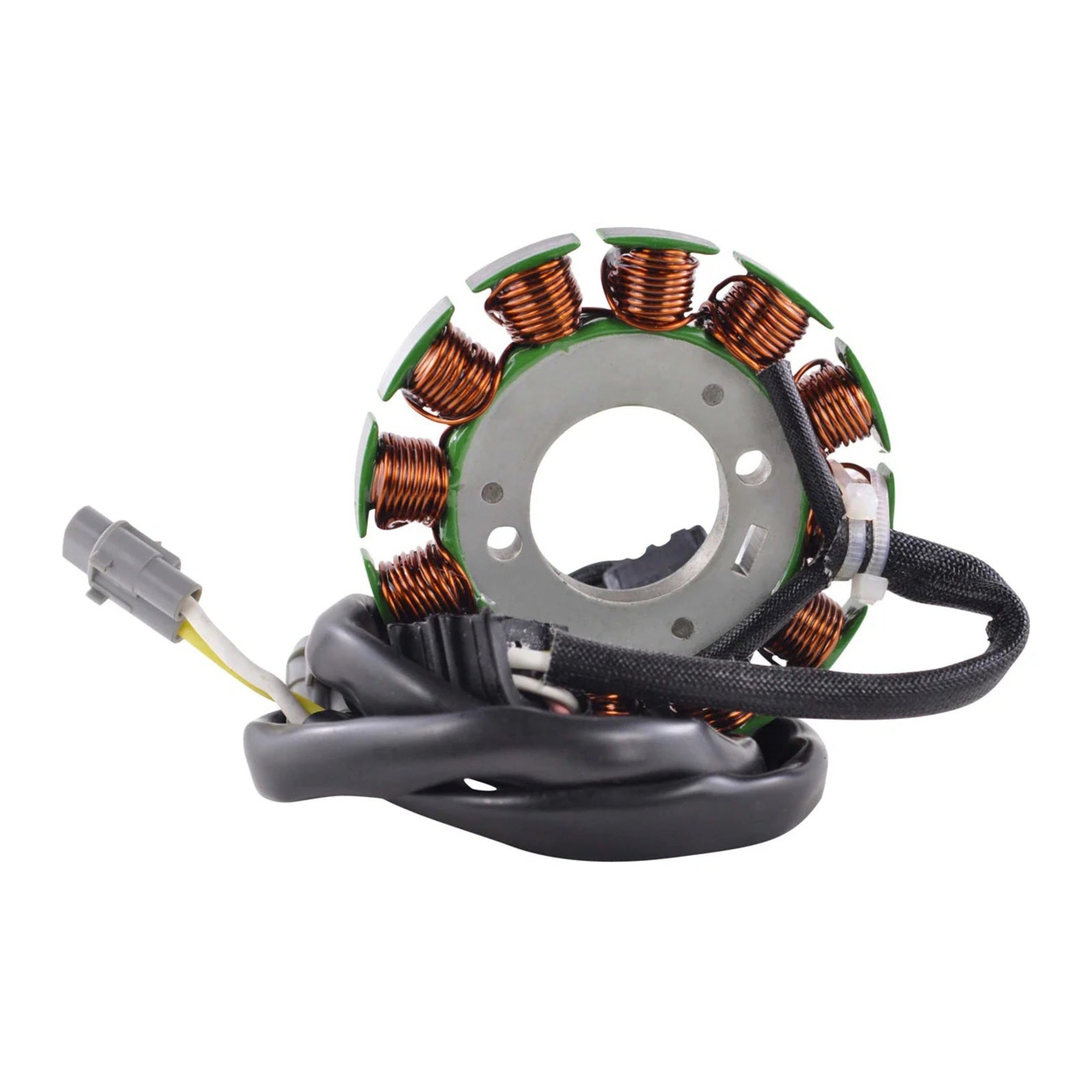

Brand new aftermarket stator.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation.

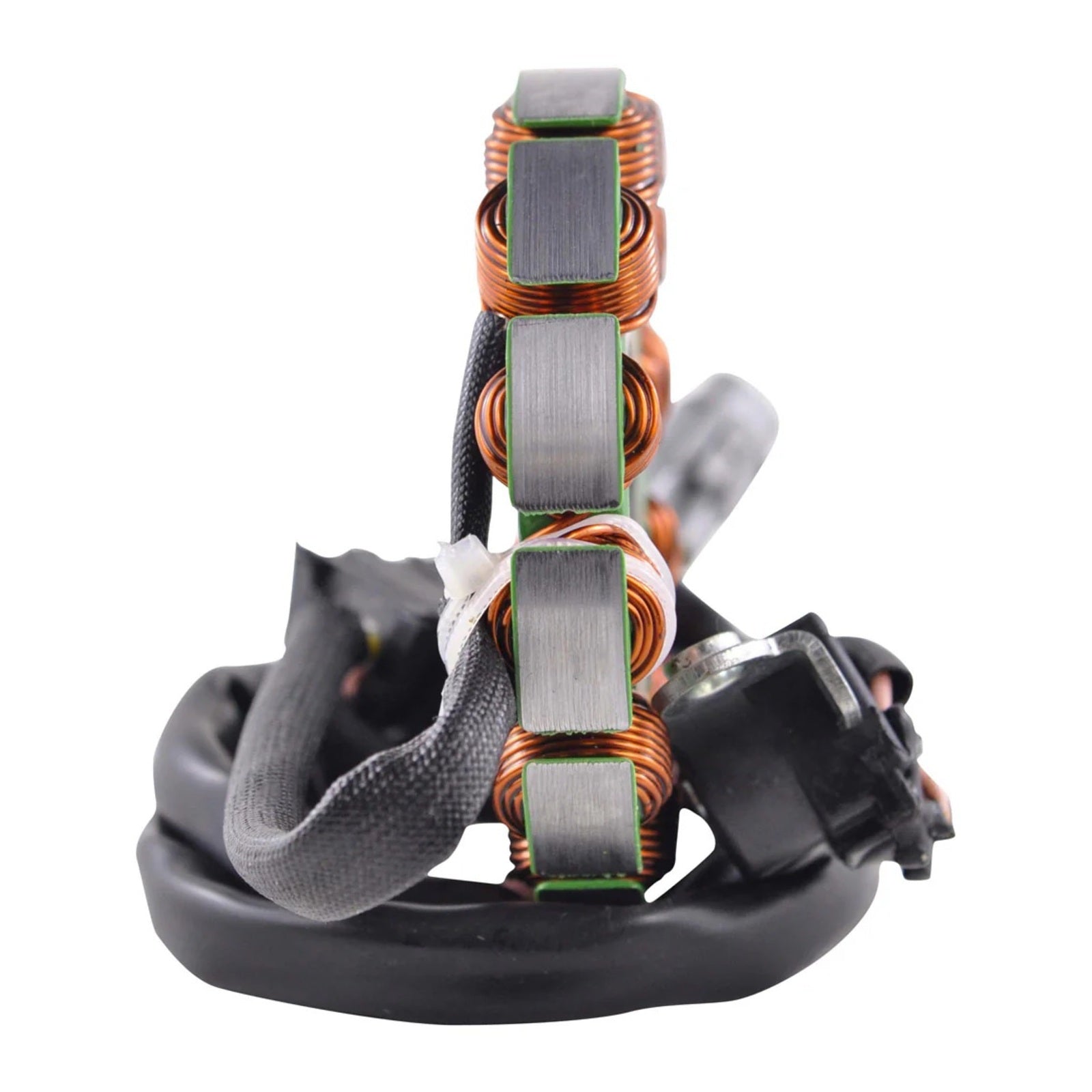

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

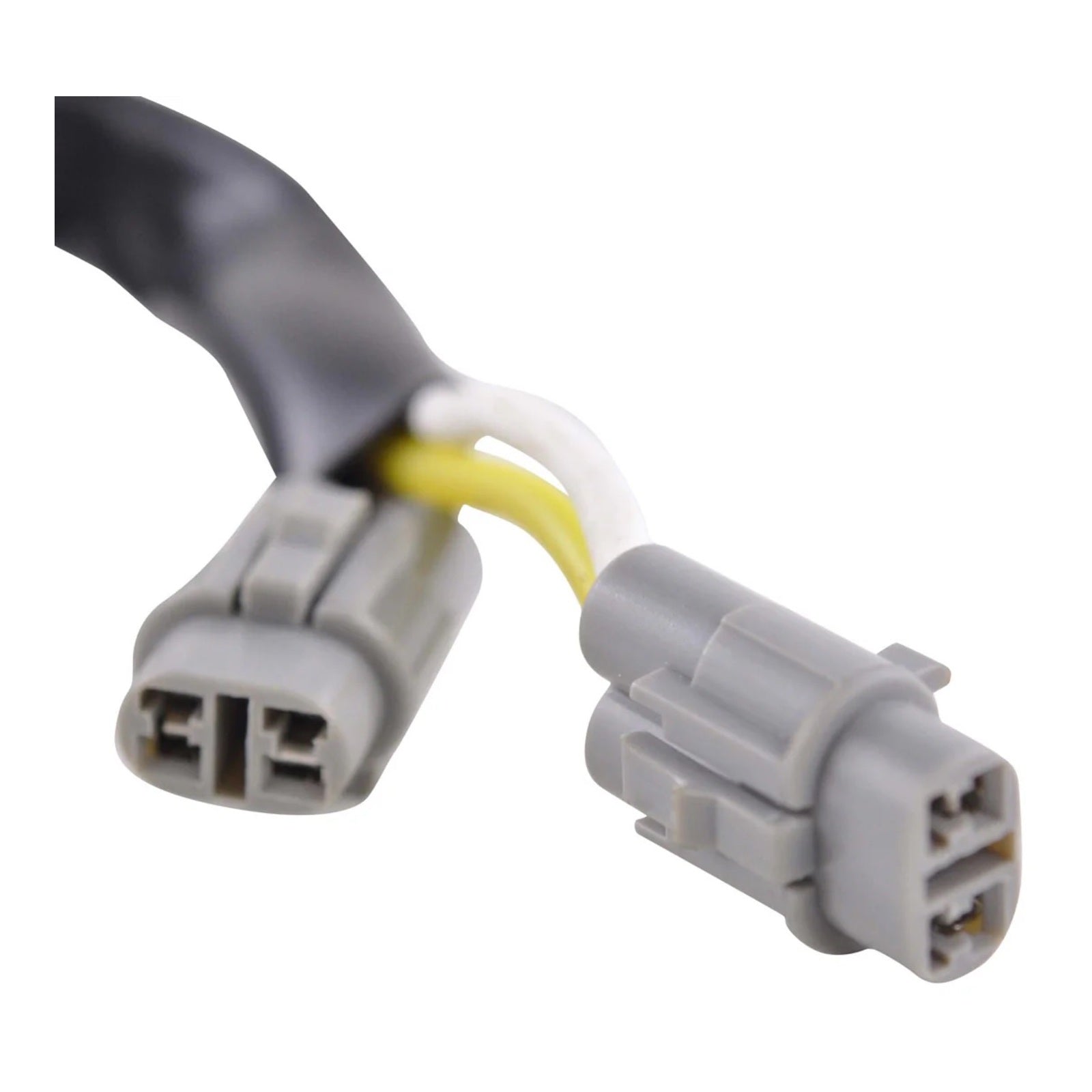

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.

Before Installing the New Stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter : 30 mm
• Exterior diameter : 84 mm
• Thickness : 9 mm
• Length of wires stator to grommet : 110 mm
• Length of wires grommet to plug : 545 mm
• Length of pickup coil's wire to grommet : 90 mm

Other Specifications:

• Number of wires : 4
• Number of plugs : 2
• Wire to wire resistance :
• Alternator : Yellow To White = 0.4 ohms ±20%
• Pickup : Pink To White = 280 ohms ±20%
