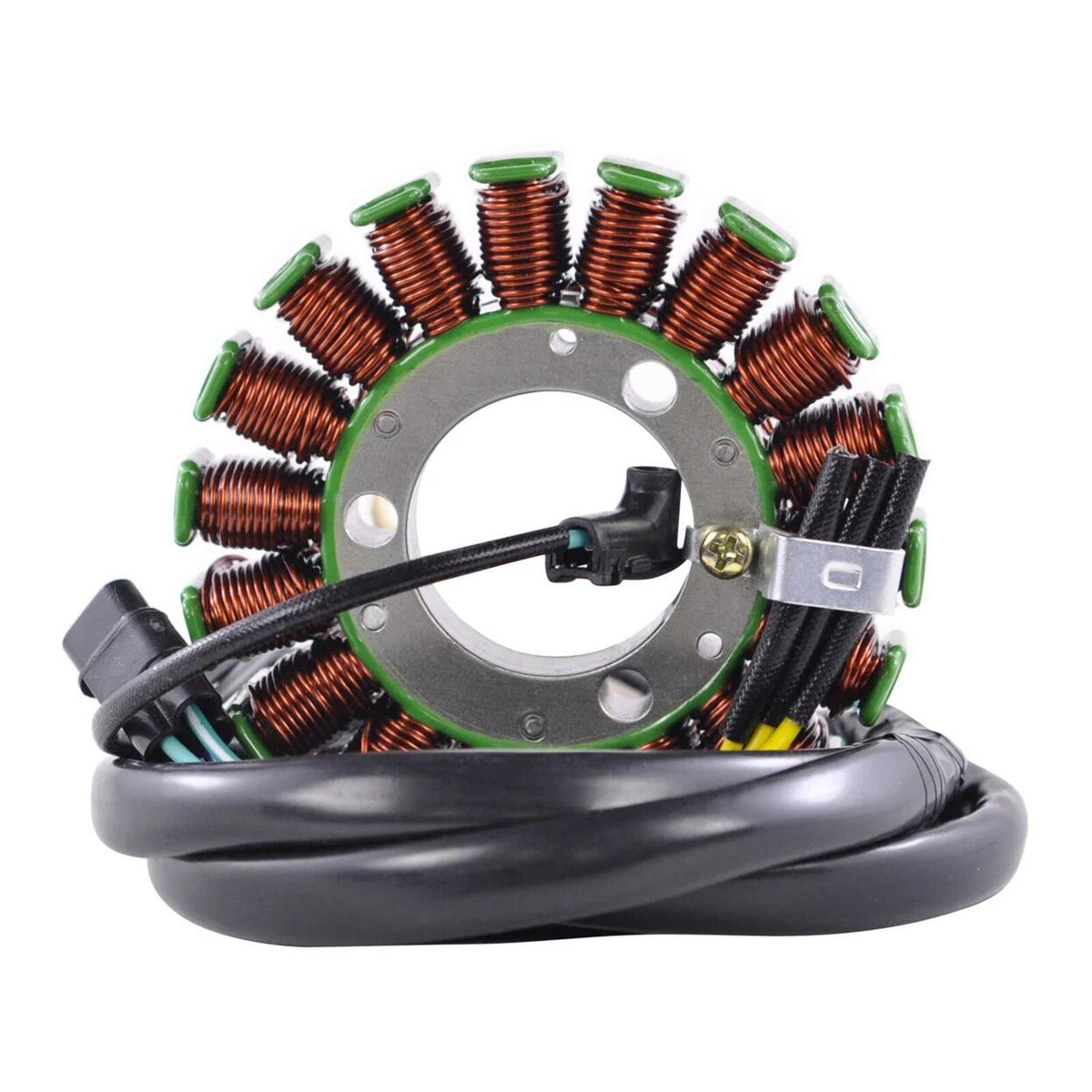

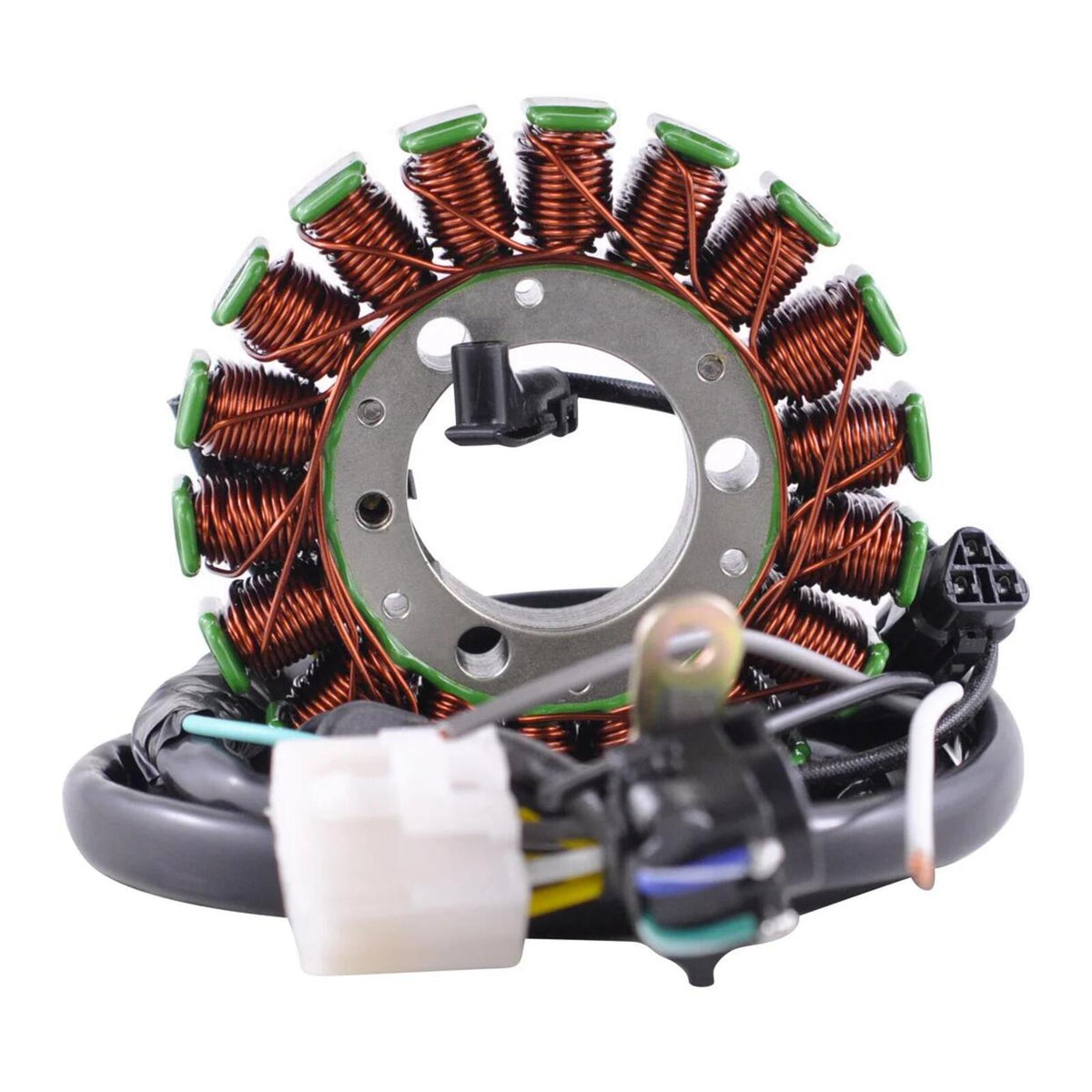

Stator - Kawasaki KLX250S / KLX250SF '09-'14 (RMS010-101405)

Brand new aftermarket stator.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.
• Highest grade copper windings, resistant to 200 degrees Celsius.

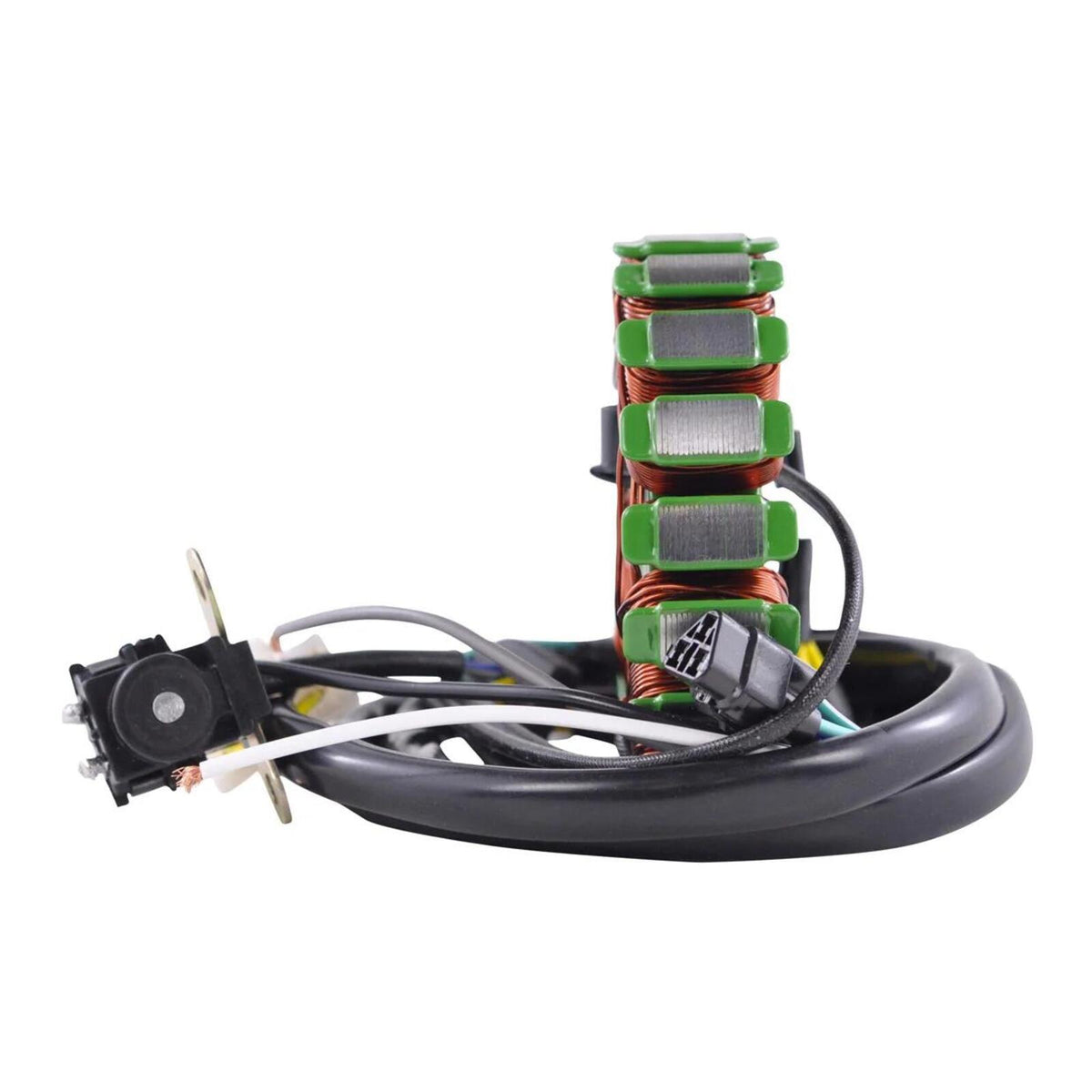

• Pick up pulsar coil included.
• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Specifications:

• Interior diameter: 35 mm
• Exterior diameter: 93 mm
• Thickness: 18 mm
• Stator wire length to grommet 1: 155 mm
• Wire length from grommet to plug 1: 505 mm
• Wire length from grommet to plug 2: 810 mm
• Wire length from grommet to pickup coil plug: 72 mm
• Pickup coil wire length to grommet: 60 mm
• 13 wires

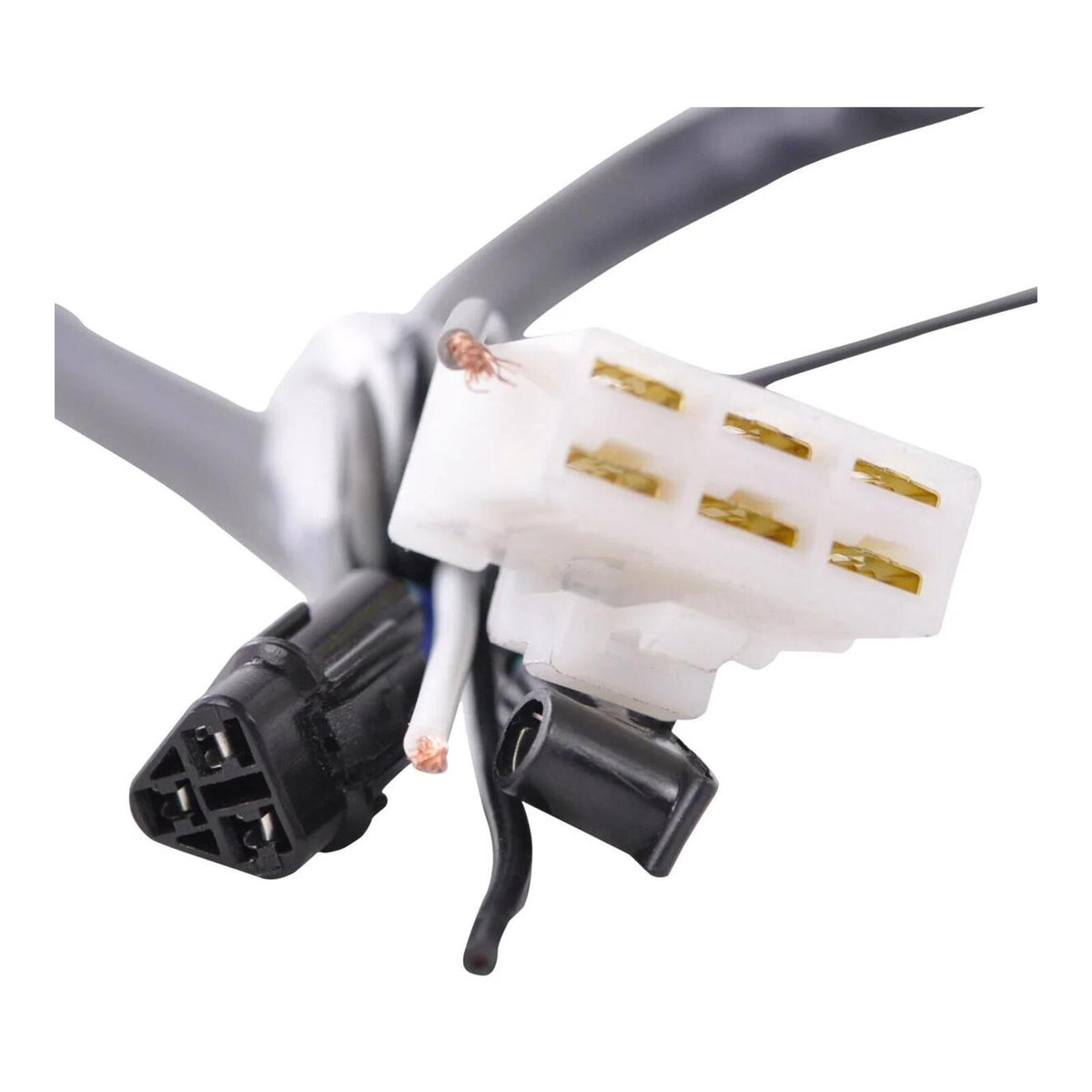

• 4 plugs
• 13 pins
• Alternator resistance (Yellow to Yellow): 0.9 Ω ±20%
• Pickup coil resistance (Blue/White to Green/White): 244 Ω ±20%
