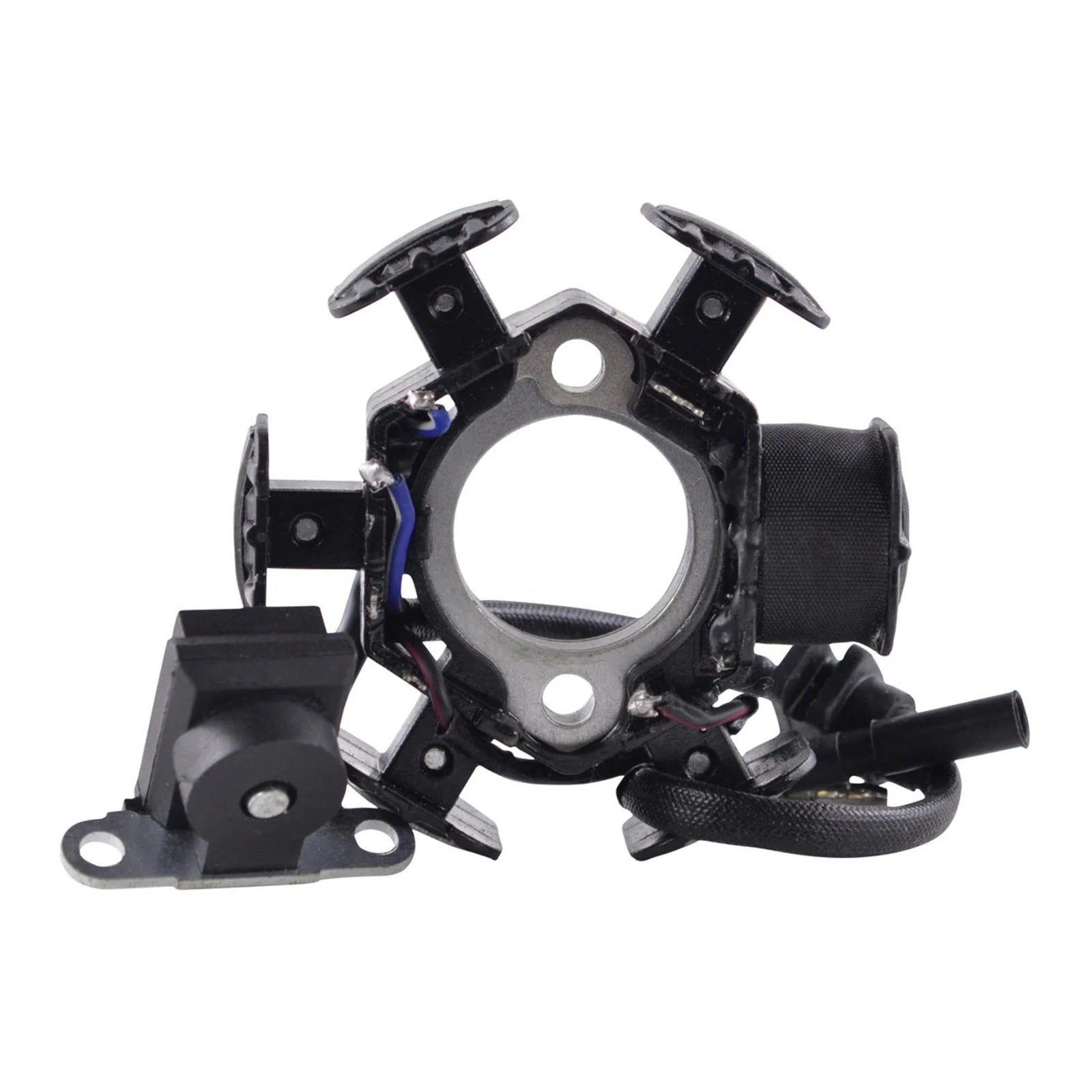

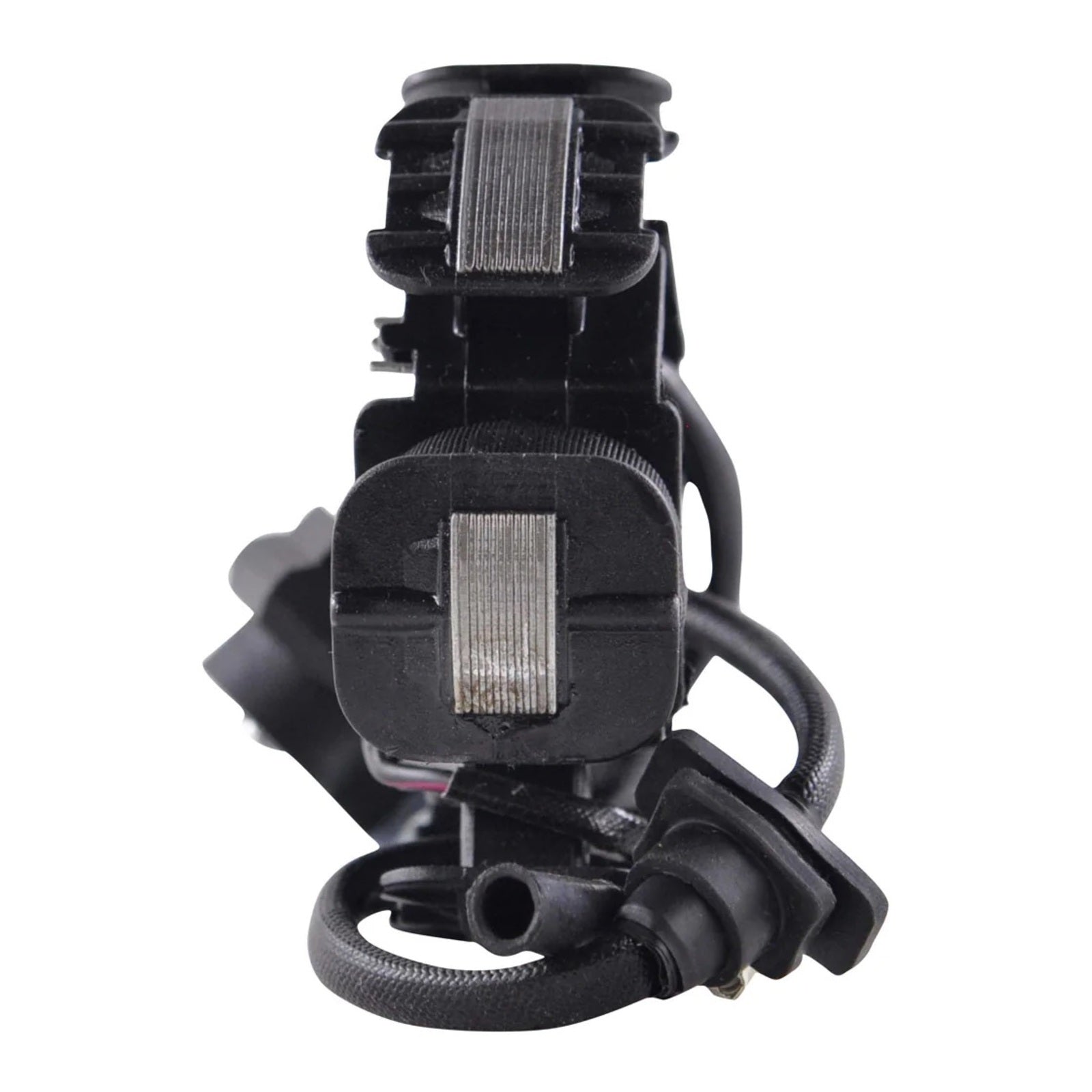

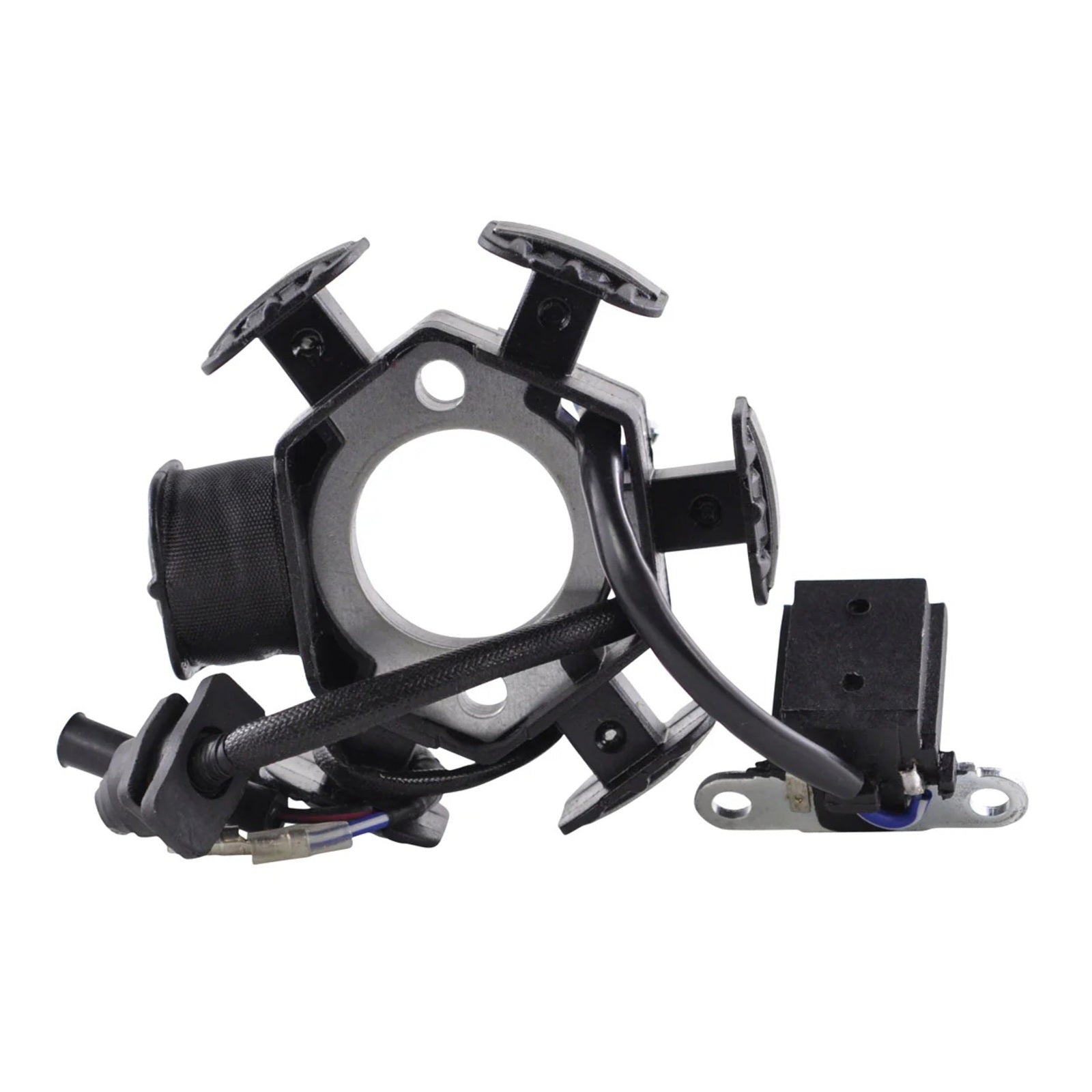

Stator for Honda CRF50F XR50R / Z50R / XR70R '88-'24

Brand new aftermarket stator.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

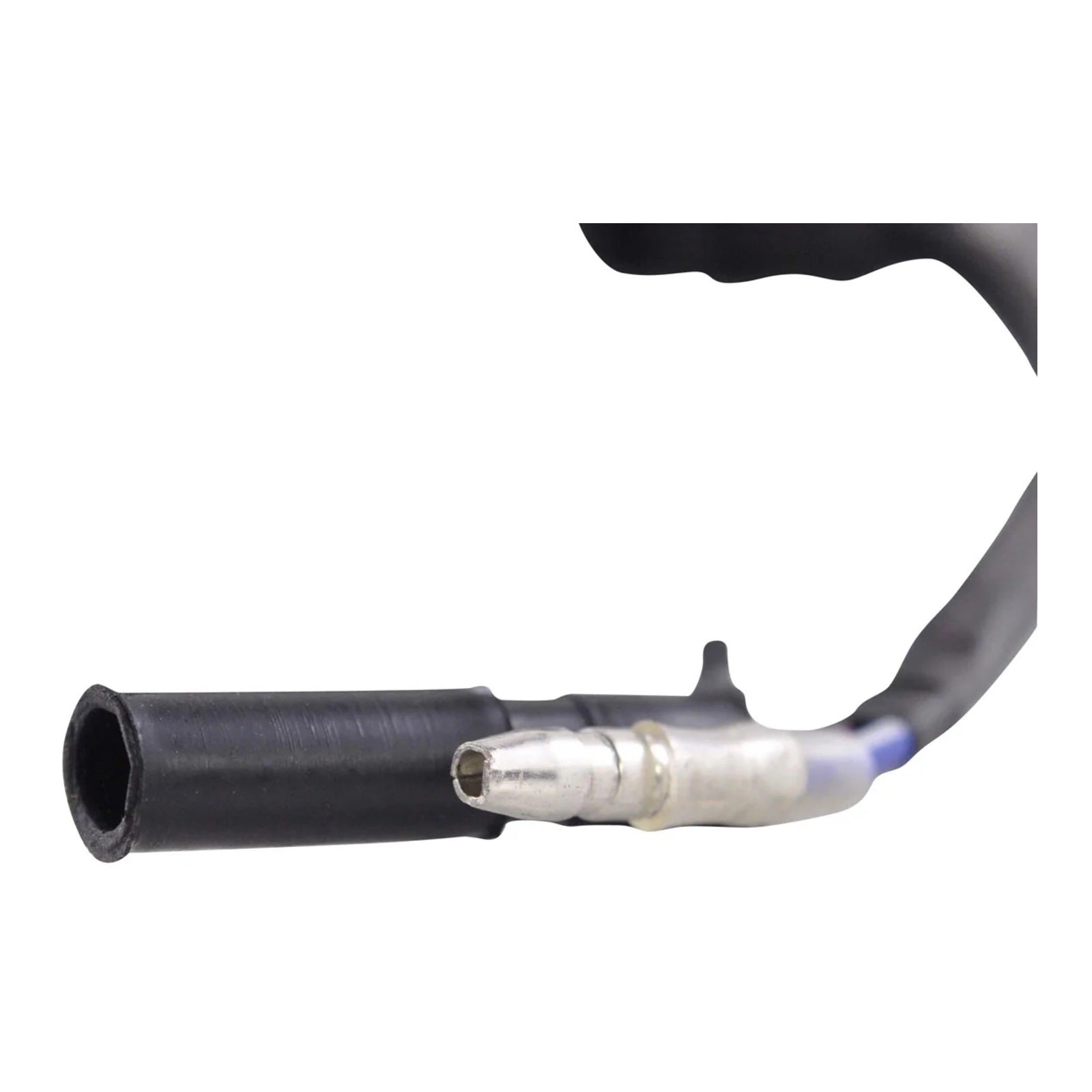

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.

Before Installing the New Stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter : 29 mm
• Exterior diameter : 83 mm
• Thickness : 9 mm
• Length of wires stator to grommet : 40 mm
• Length of wires grommet to plug : 130 mm
• Length of pickup coil's wire to grommet : 60 mm

Other Specifications:

• Number of wires : 2
• Number of plugs : 2
• Number of pins : 2
• Wire to wire resistance :
• Pickup : Blue/Yellow to Bracket = 120 ohms ±20%
• Source : Black/Red to Ground = 715 ohms ±20%
