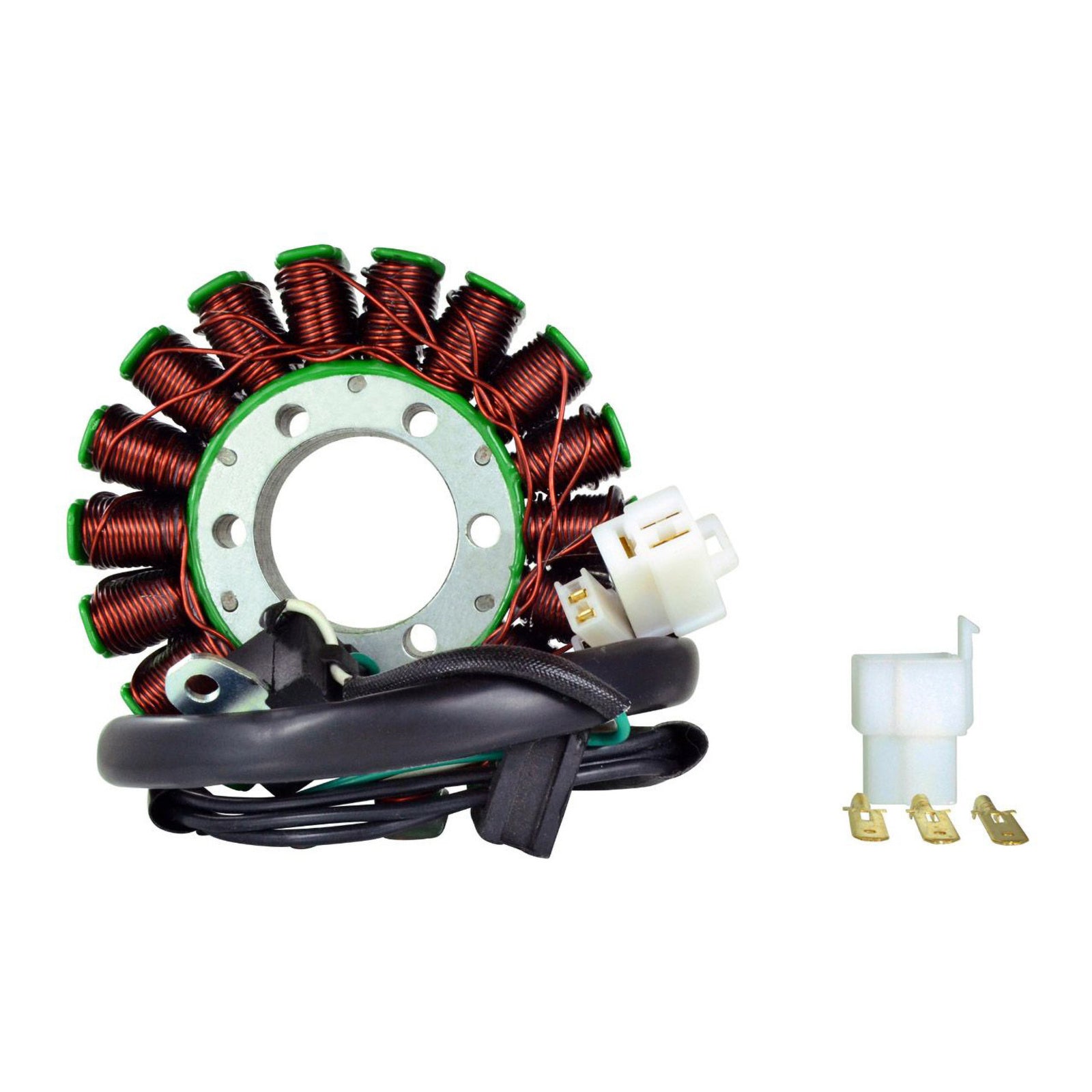

GENERATOR STATOR SUZ SV650 03-09 (RMS010-102166)

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 108 mm
• Thickness: 19 mm
• Length of wires stator to grommet: 120 mm
• Length of wires grommet to plug: 550 mm
• Length of pickup coil's wire to grommet: 59 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5

Wire-to-wire resistance:

• Alternator: Black to Black = 0.5 ohms +-20%
• Pickup: Green to White = 194 ohms +-20%
