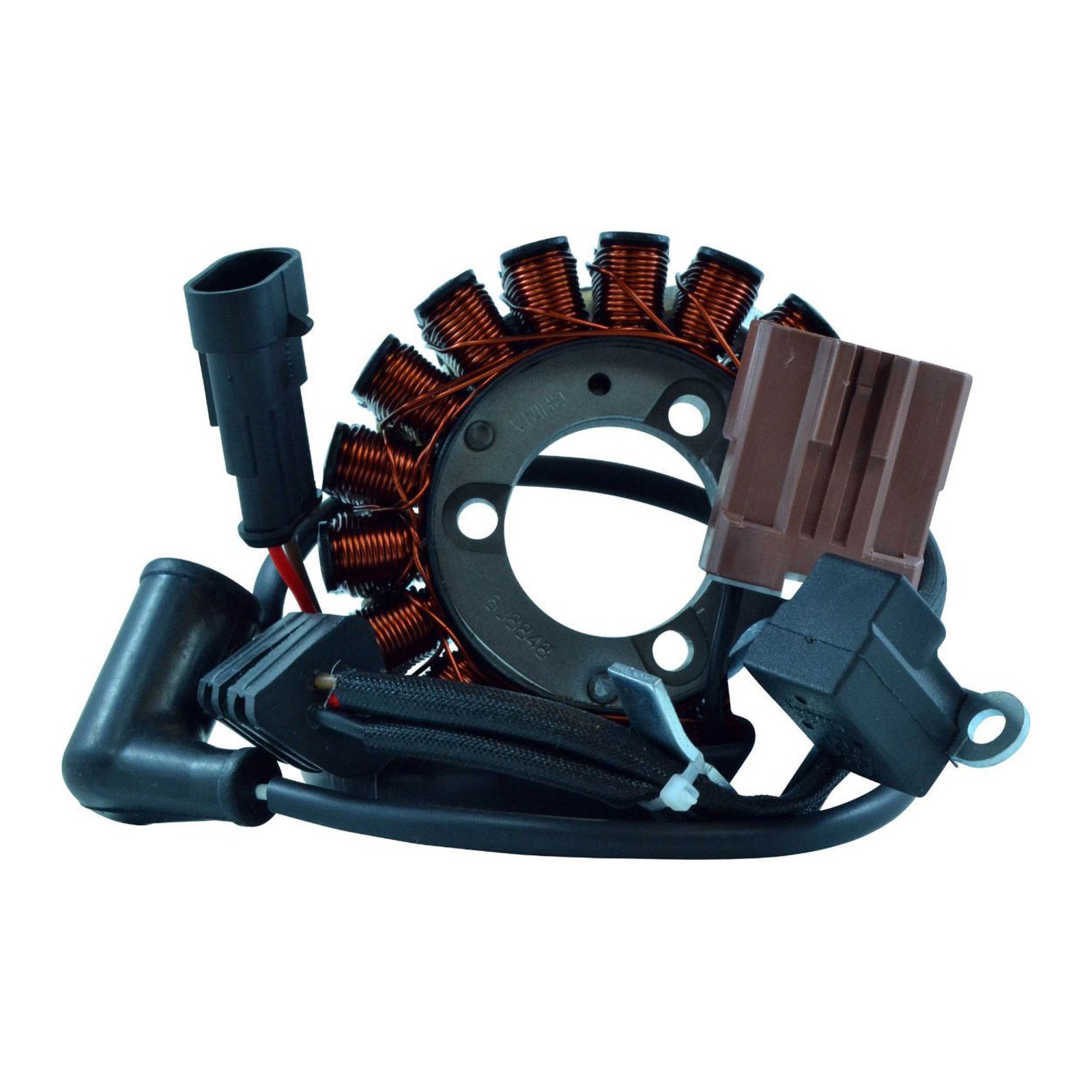

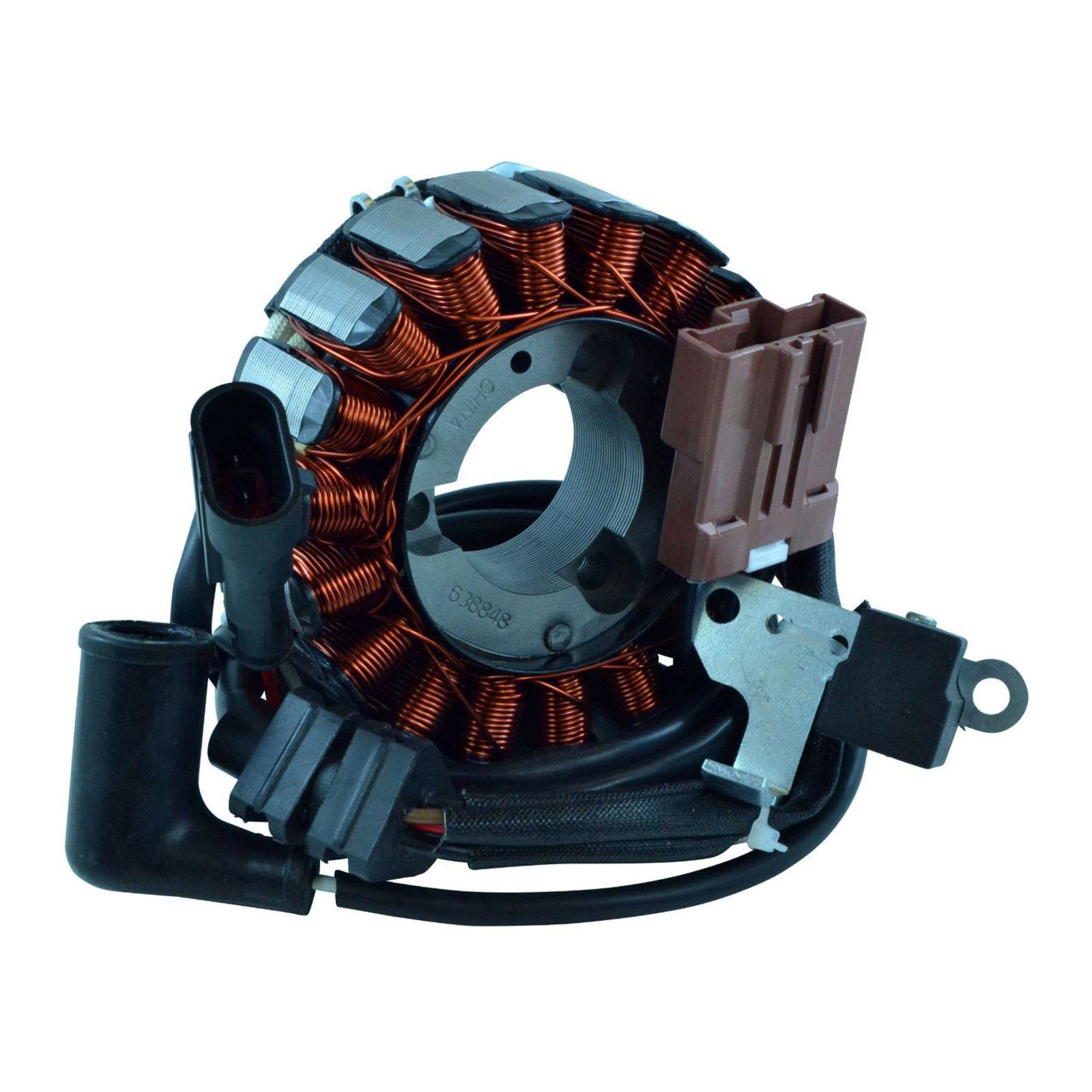

STATOR ASSTD SCOOTERS 2003-2017 (RMS010-104193)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 6
• Number of plugs: 3
• Number of pins: 6
• Number of poles: 18

Wire-to-wire resistance:

• Alternator :Yellow between each Yellow = 0.4 ohms +-20%
• Pickup: Green/White to Yellow/White = 125 ohms +-20%
• Source: Black/Red to Ground = 210 ohms +-20%
