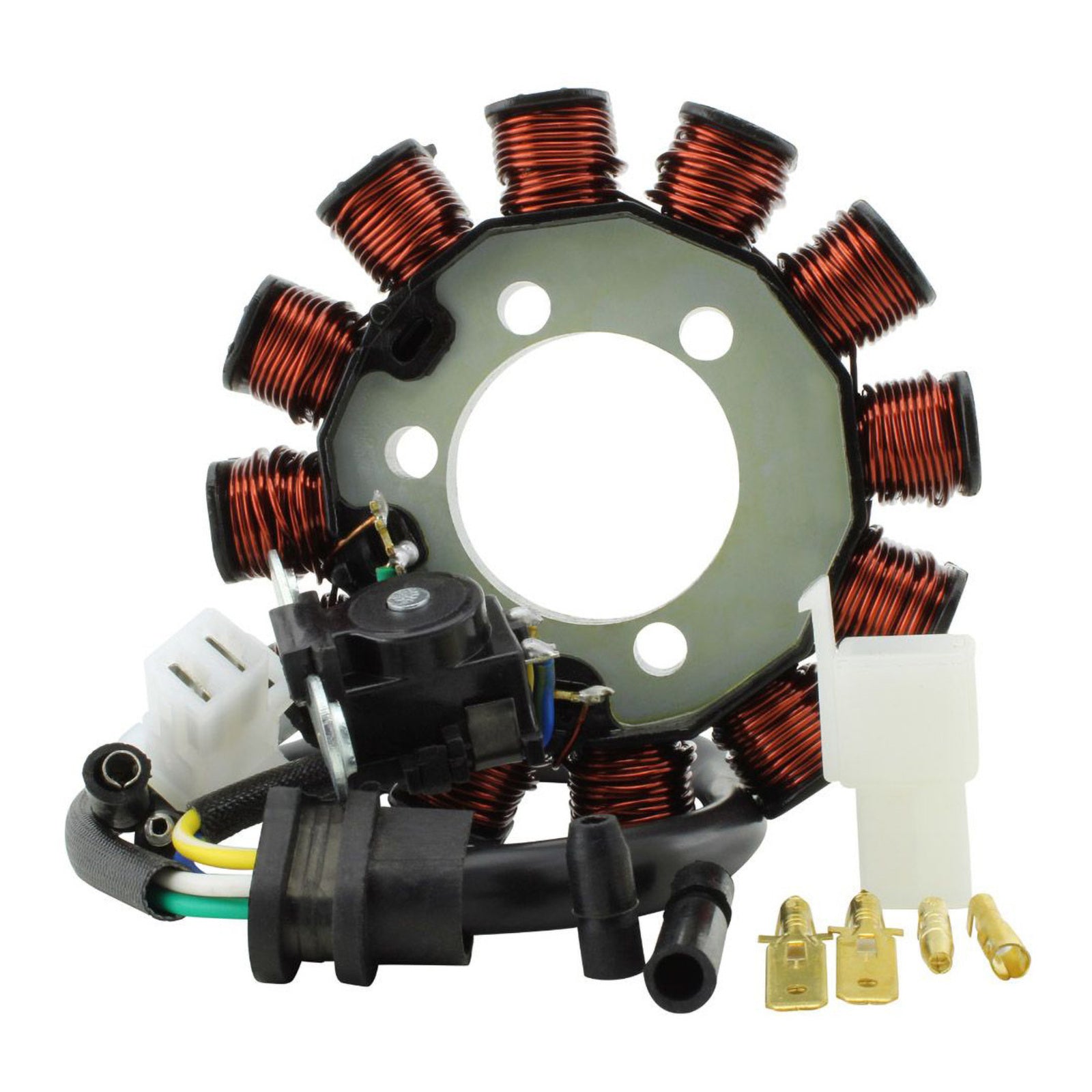

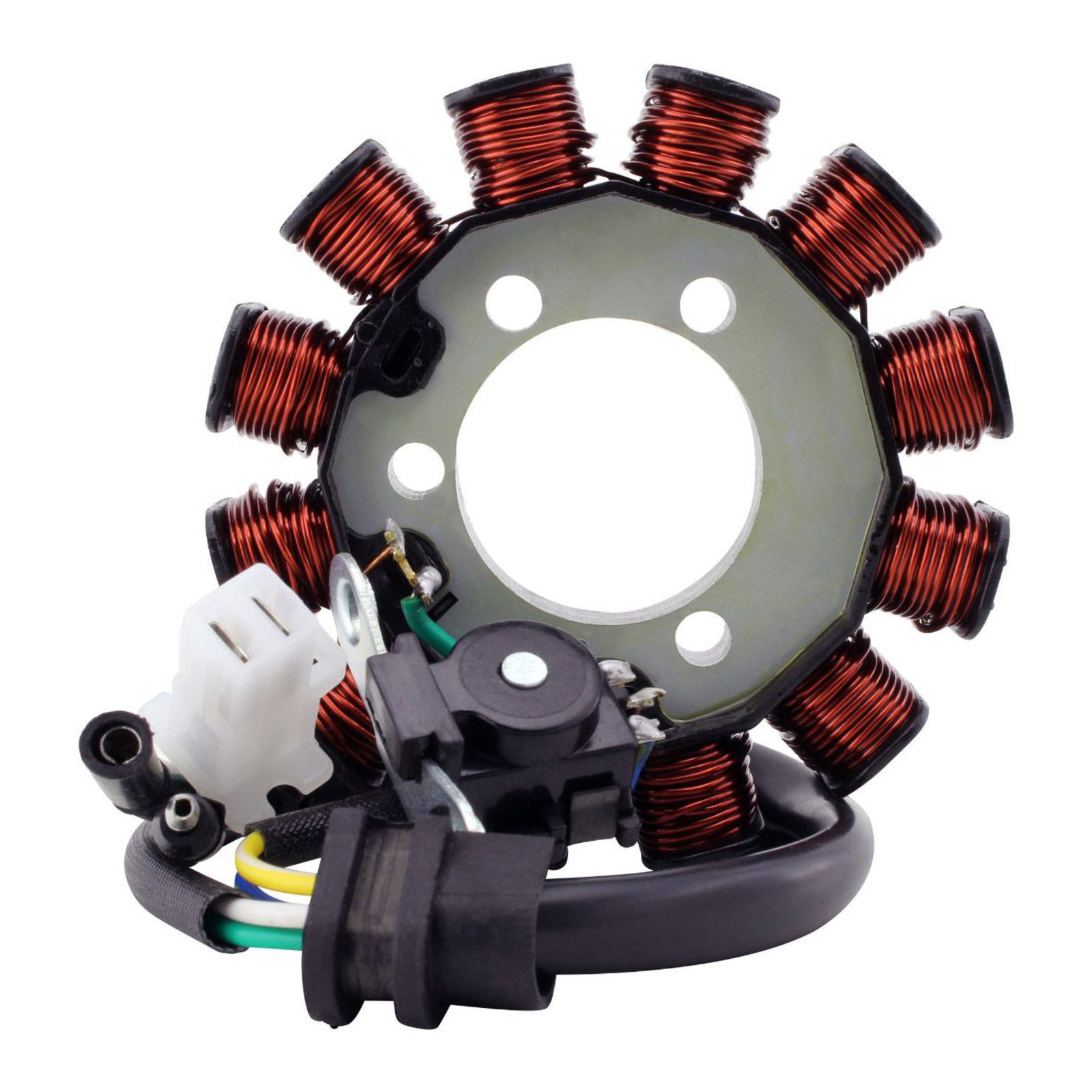

STATOR HON CRF110F 2013-2018 (RMS010-106333)

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 35mm
• Exterior diameter: 93mm
• Thickness: 9mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 230mm
• Length of pickup coil's wire to grommet: 30mm

Other specifications:

• Number of wires: 3
• Number of plugs: 3
• Number of pins: 3
• Number of poles: 12

Wire to wire resistance:

• Alternator: Green to White = 1.2 ohms +-20%
• Pickup: Green to Blue/Yellow = 263 ohms +-20%
• Source: Green = Ground

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
