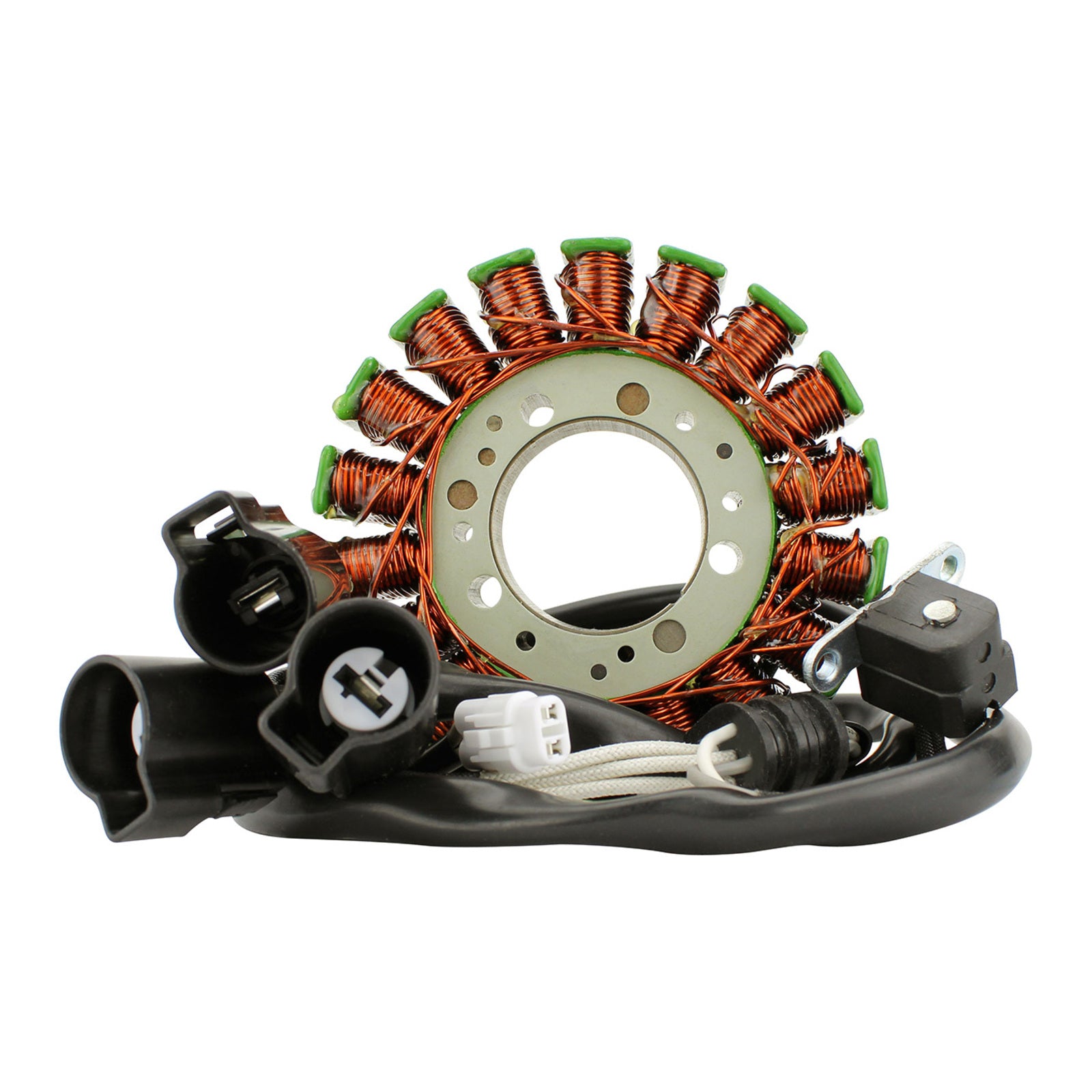

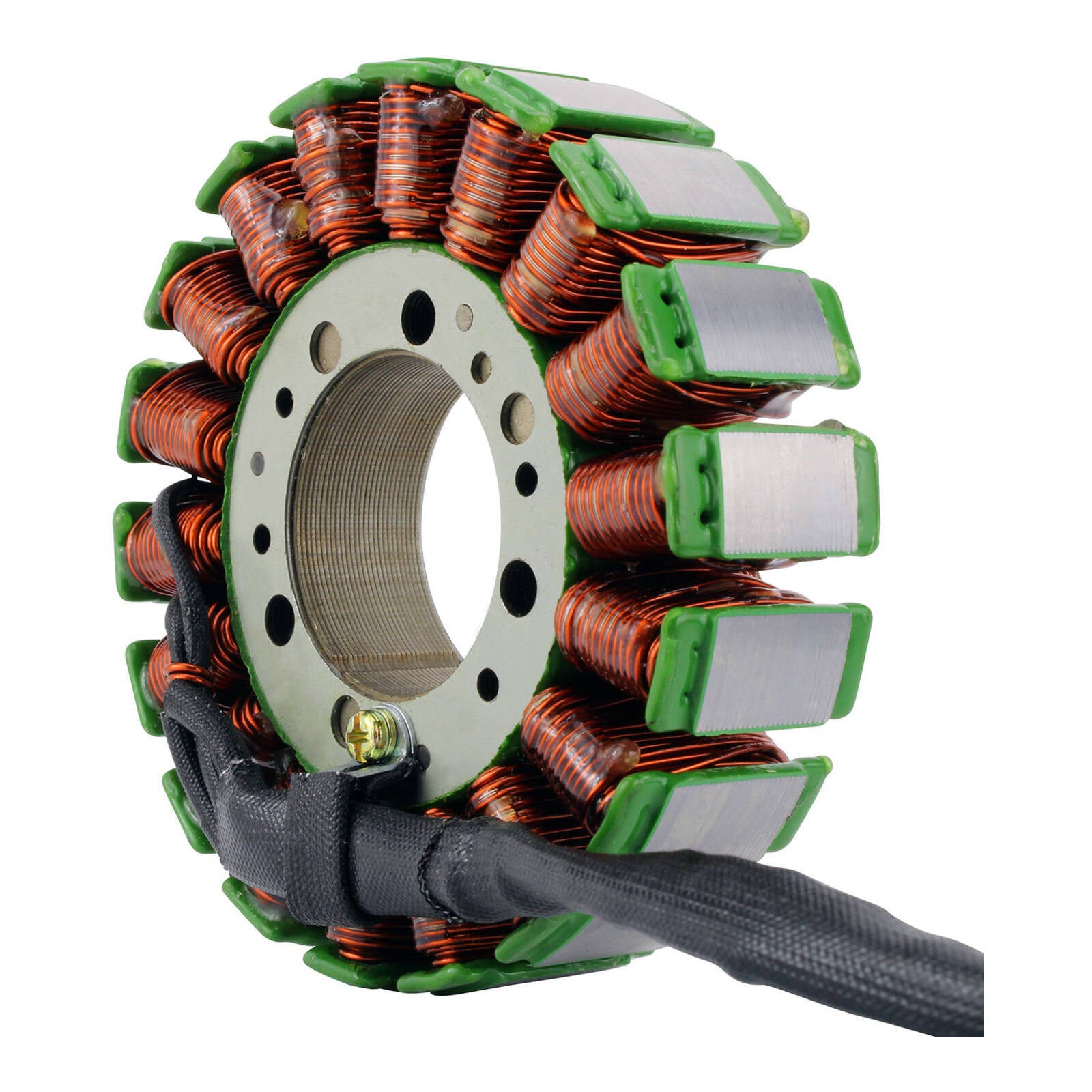

GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 5
• Number of plugs: 4
• Number of pins: 5
• Number of poles: 18

Wire-to-wire resistance:

• Alternator: White to White = 0.5 ohms +-20%
• Pickup: Black to Grey = 512 ohms +-20%
