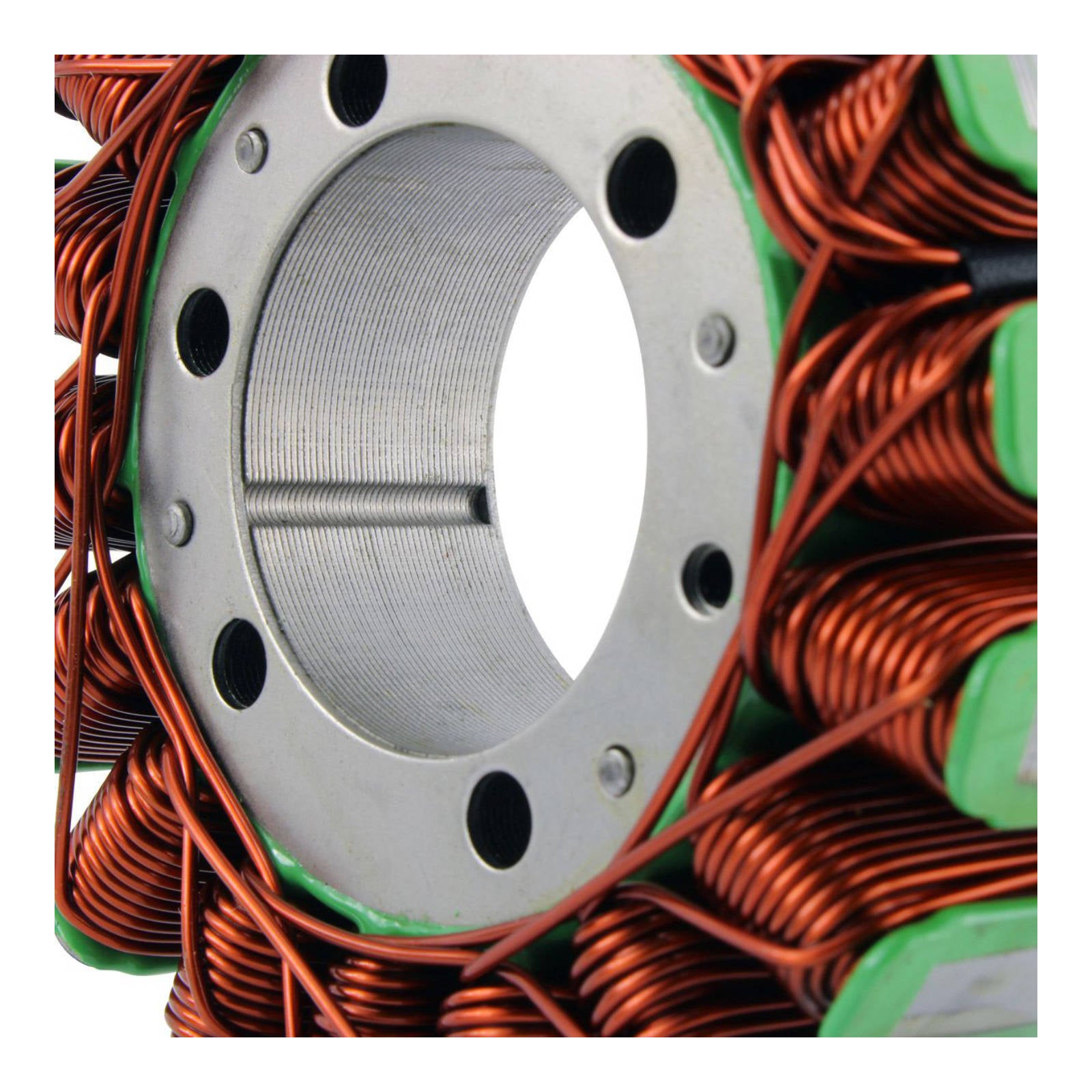

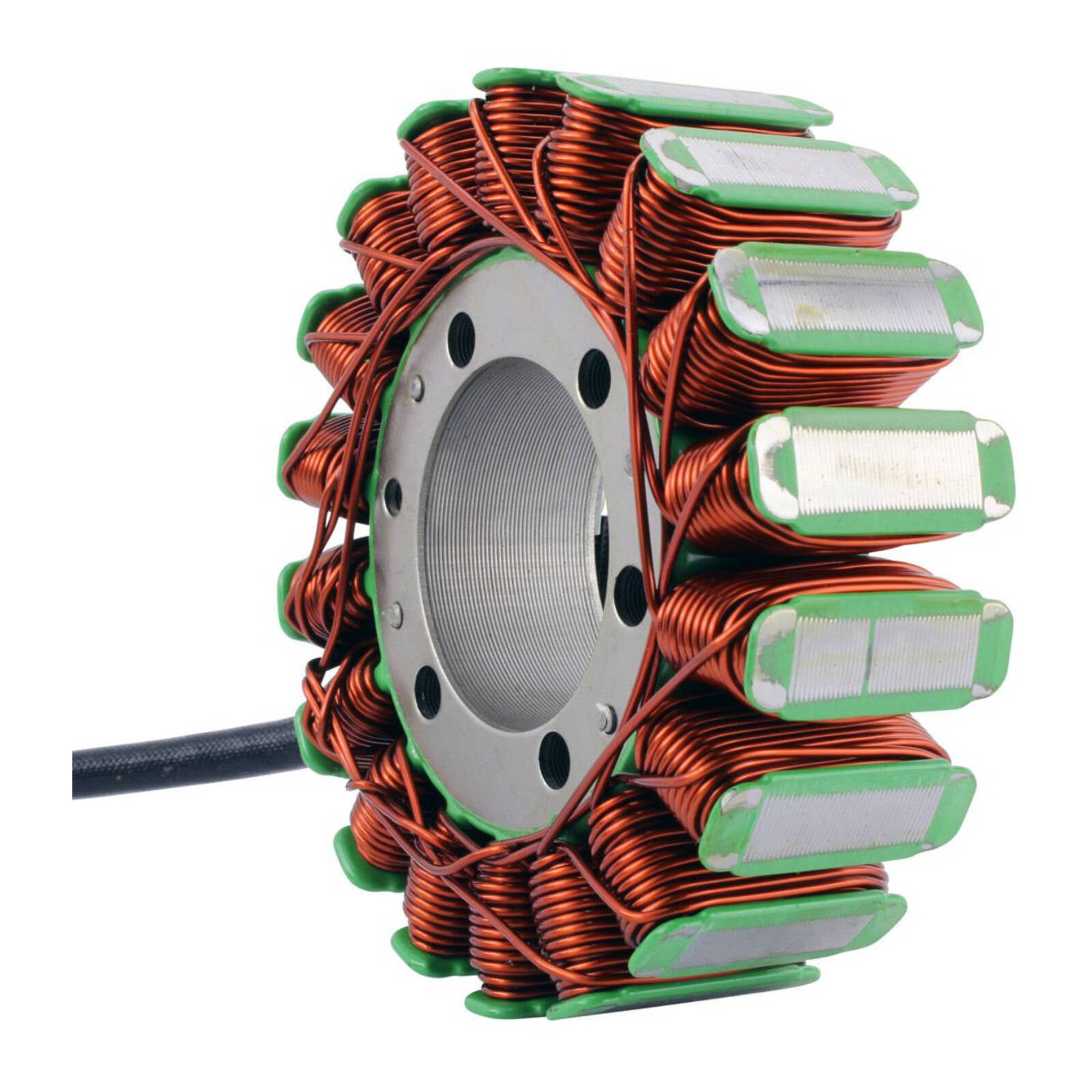

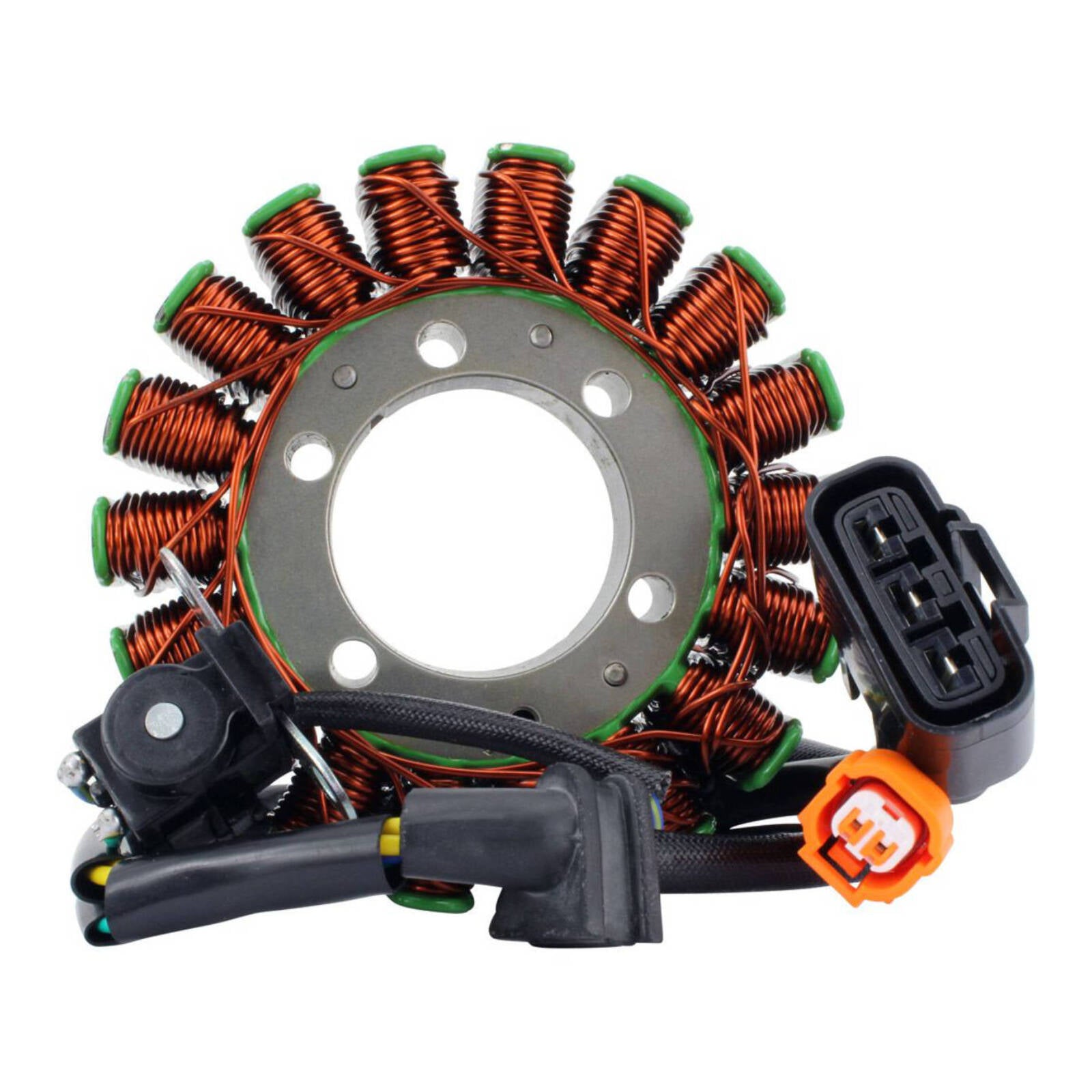

GENERATOR STATOR HONDA POINEER 500 15-21 (RMS010-107118)

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 107 mm
• Thickness: 26 mm
• Length of wires stator to grommet: 105 mm
• Length of wires grommet to plug: 275 mm
• Length of pickup coil's wire to grommet: 75 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
• Alternator: Between each Yellow = 0.5 ohms +-20%
• Pickup: Blue/Yellow to Green = 232 ohms +-20%

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested
