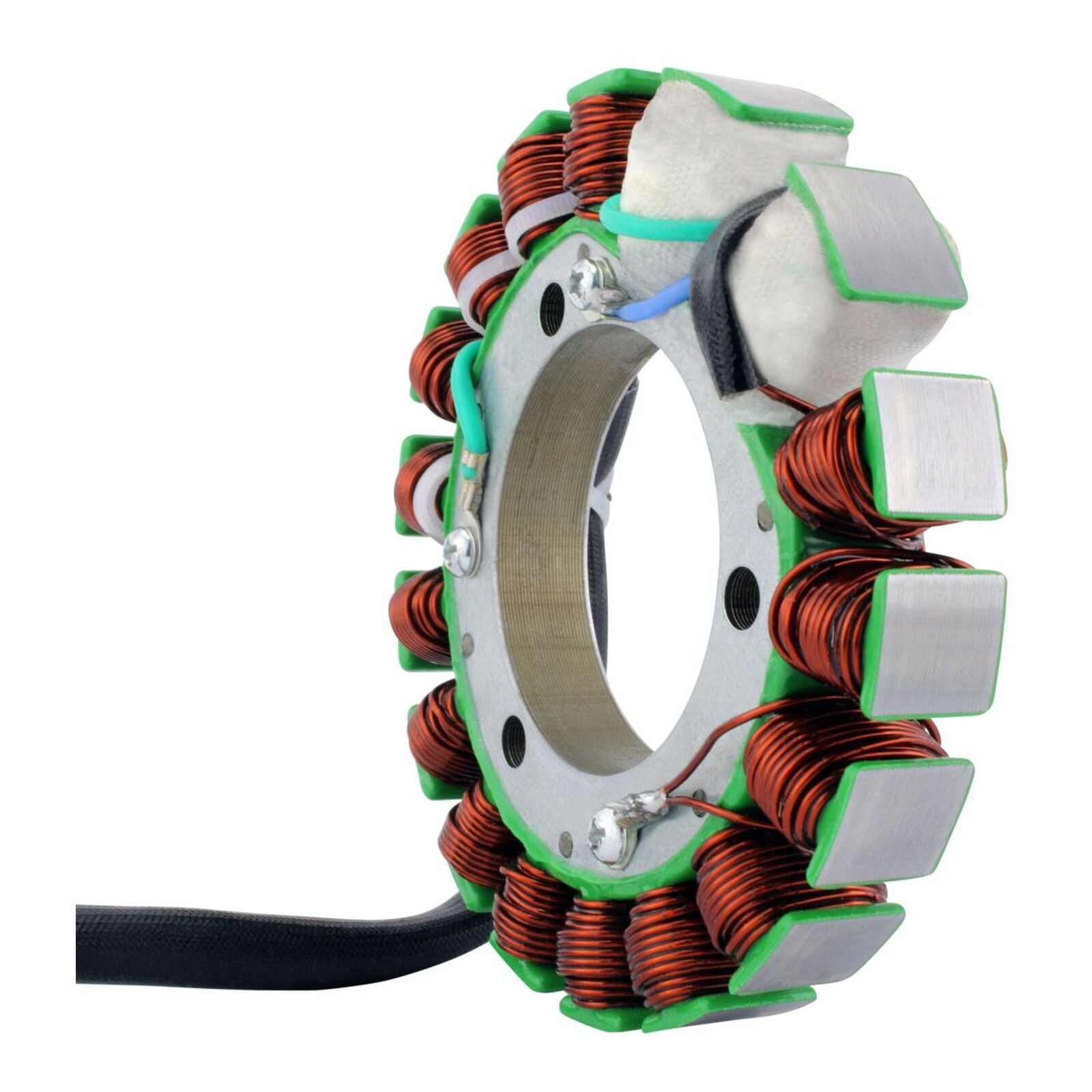

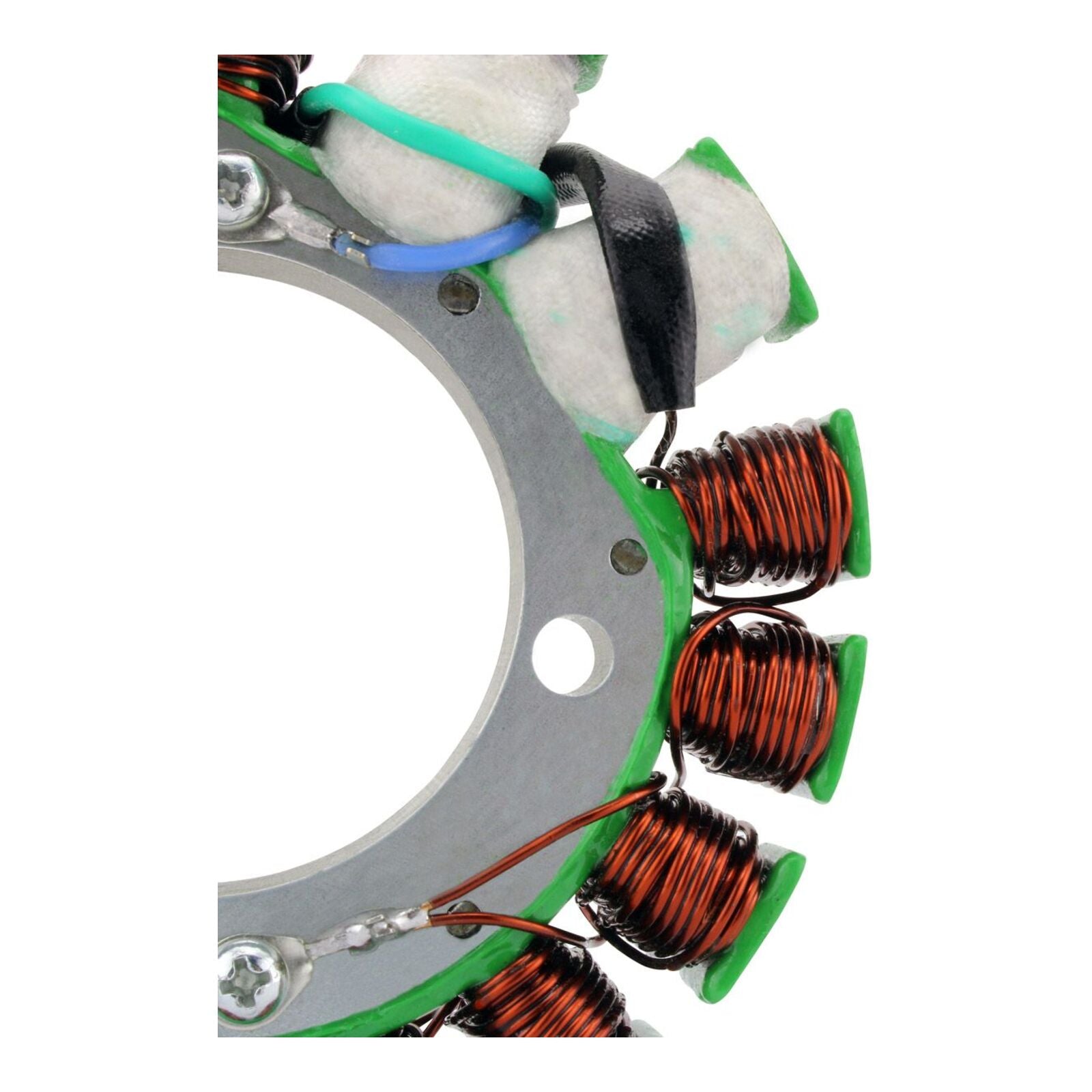

STATOR HON XR 600 R 1985-2000

SKU: RMS010107205

Regular price $319.99
Out of stock
  • Free shipping on orders over $149
  • Most orders ship same day before 2pm AEST
  • Questions? Call 0424 388 401
Qty
Other ways to pay
  • Google Pay
  • Apple Pay
  • Afterpay
  • Shop Pay
Description

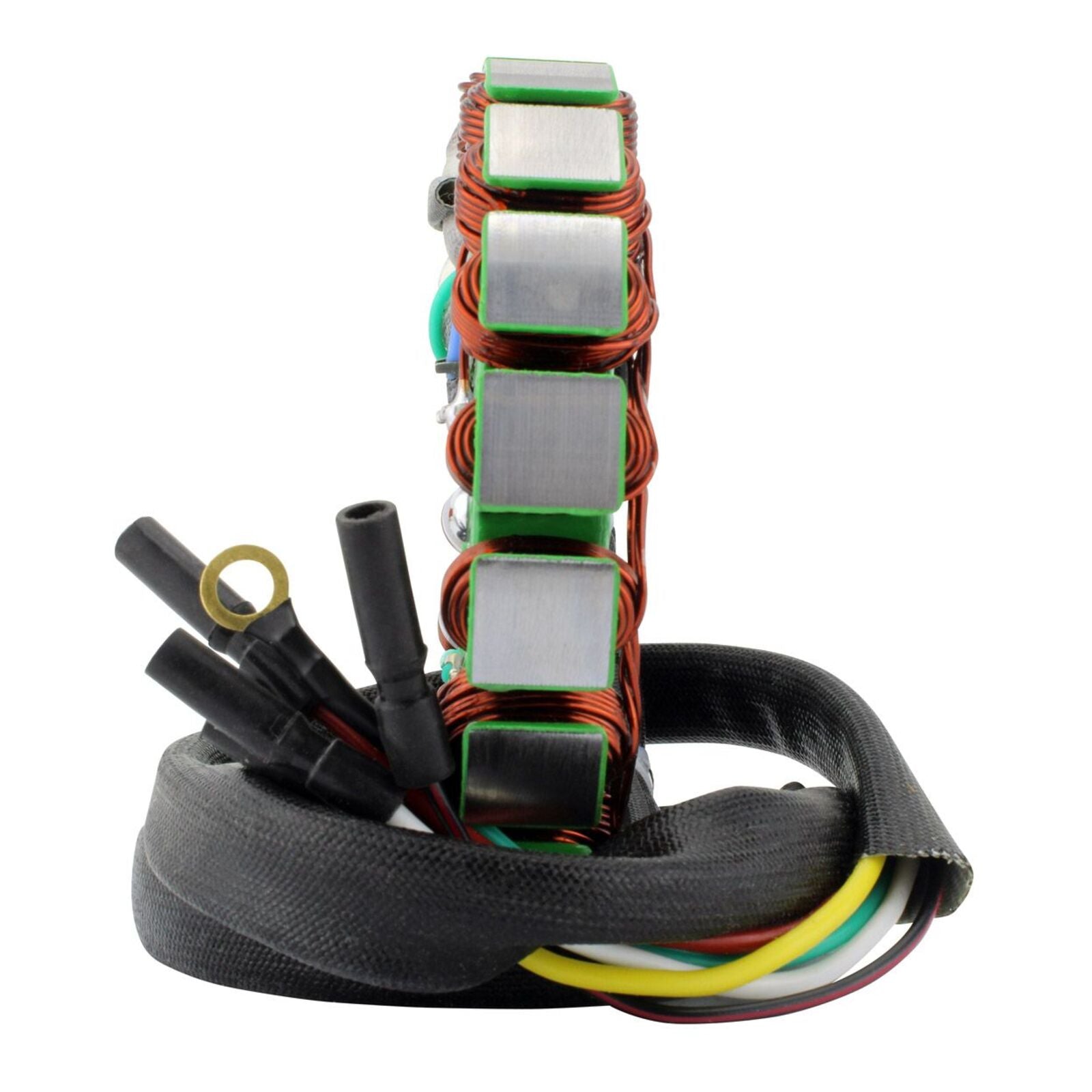

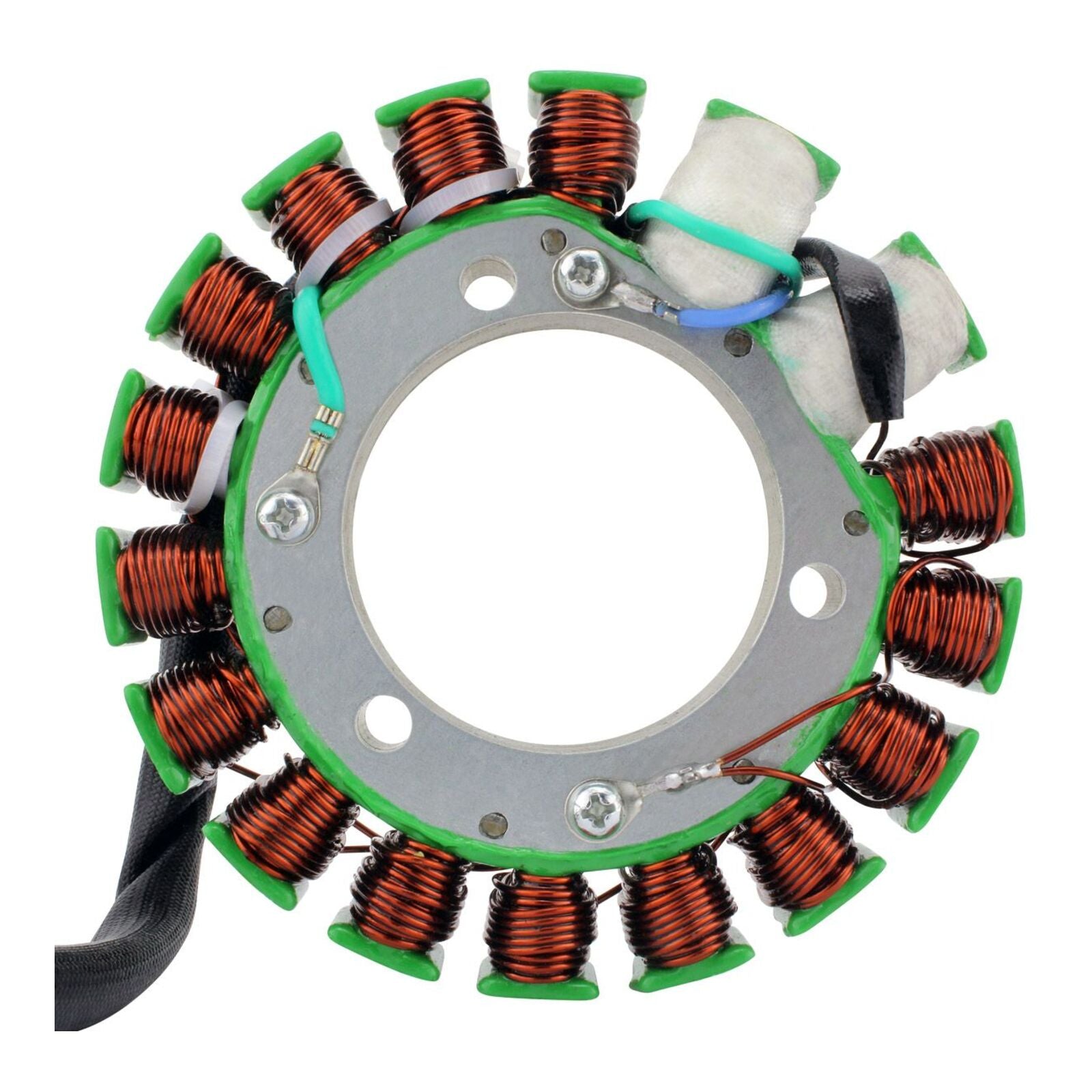

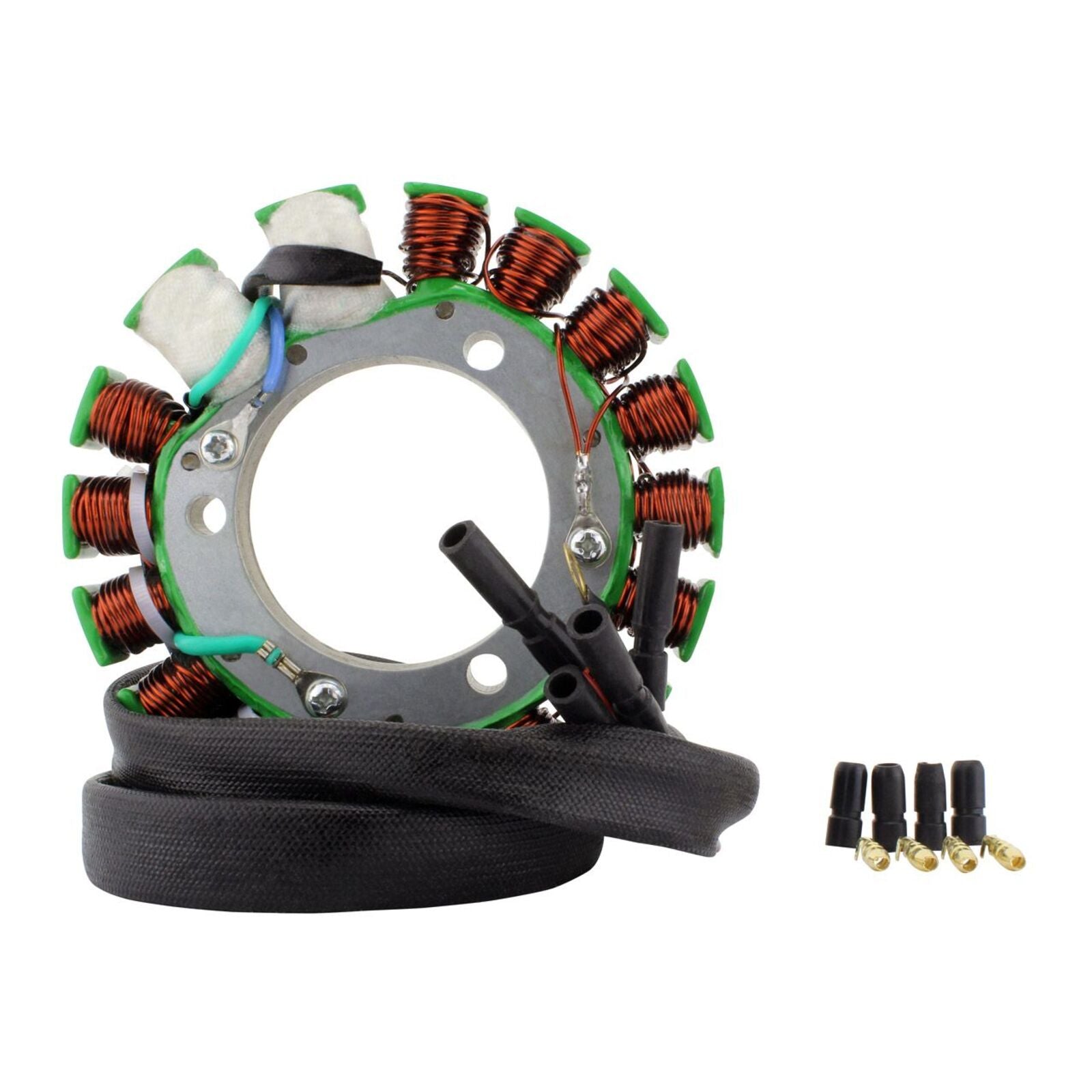

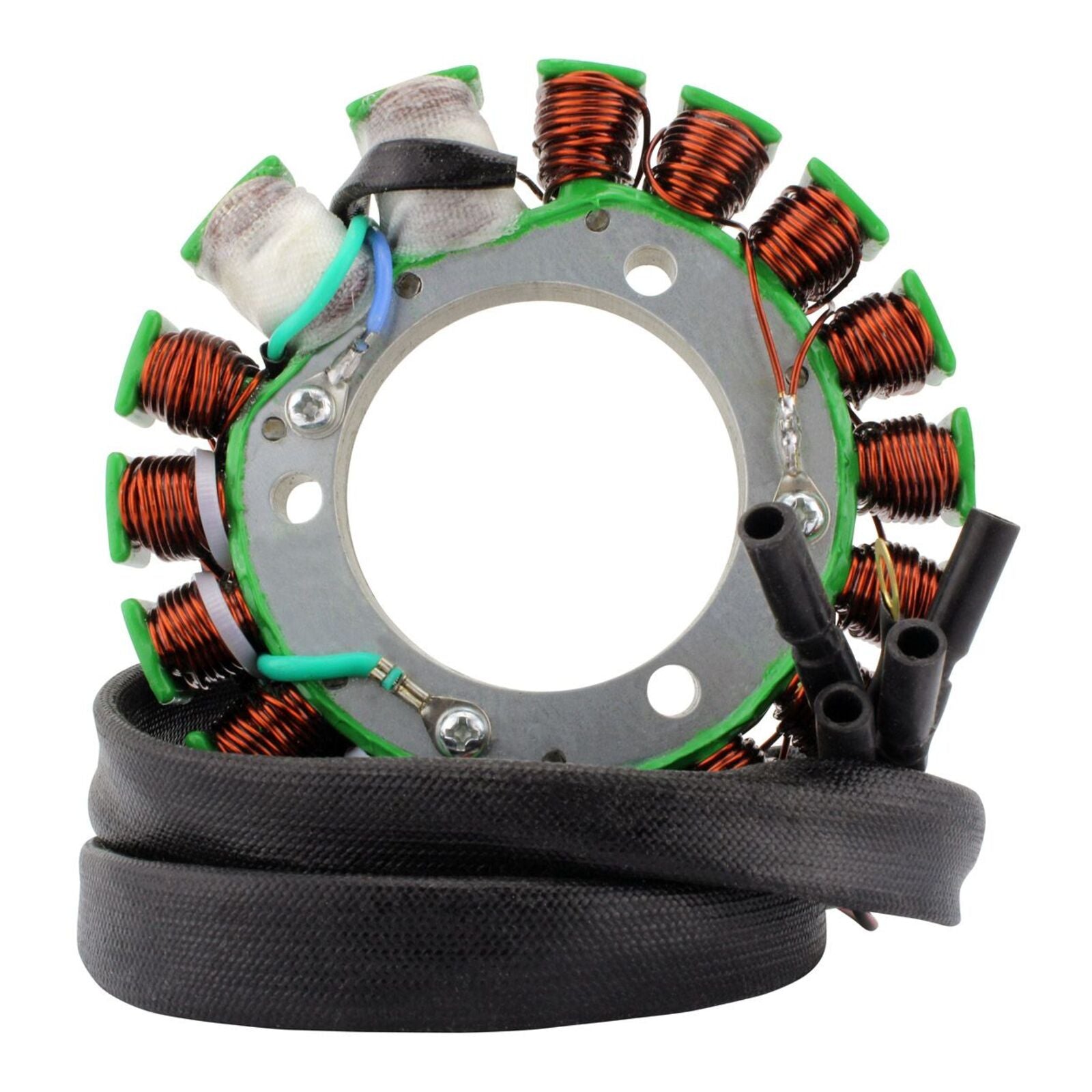

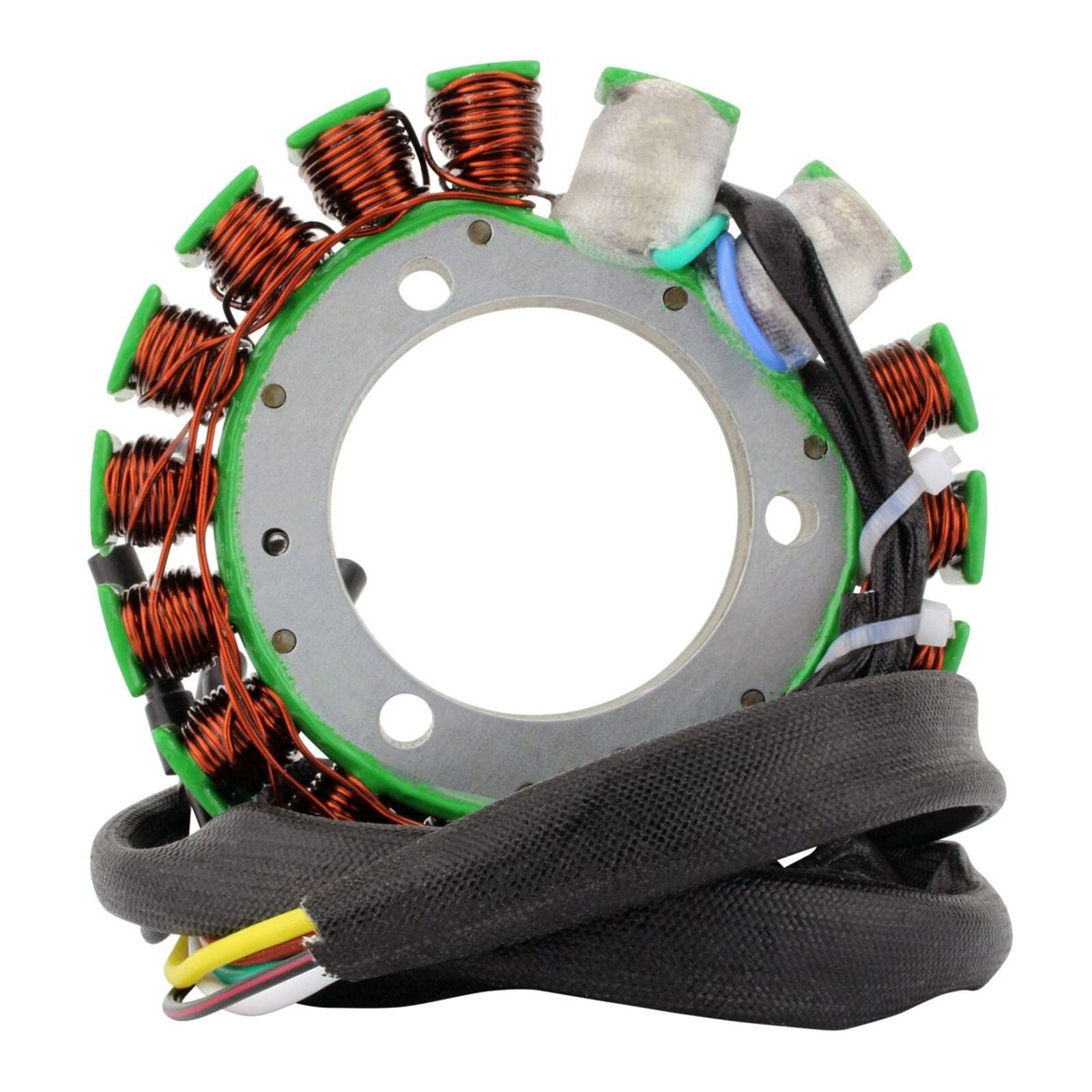

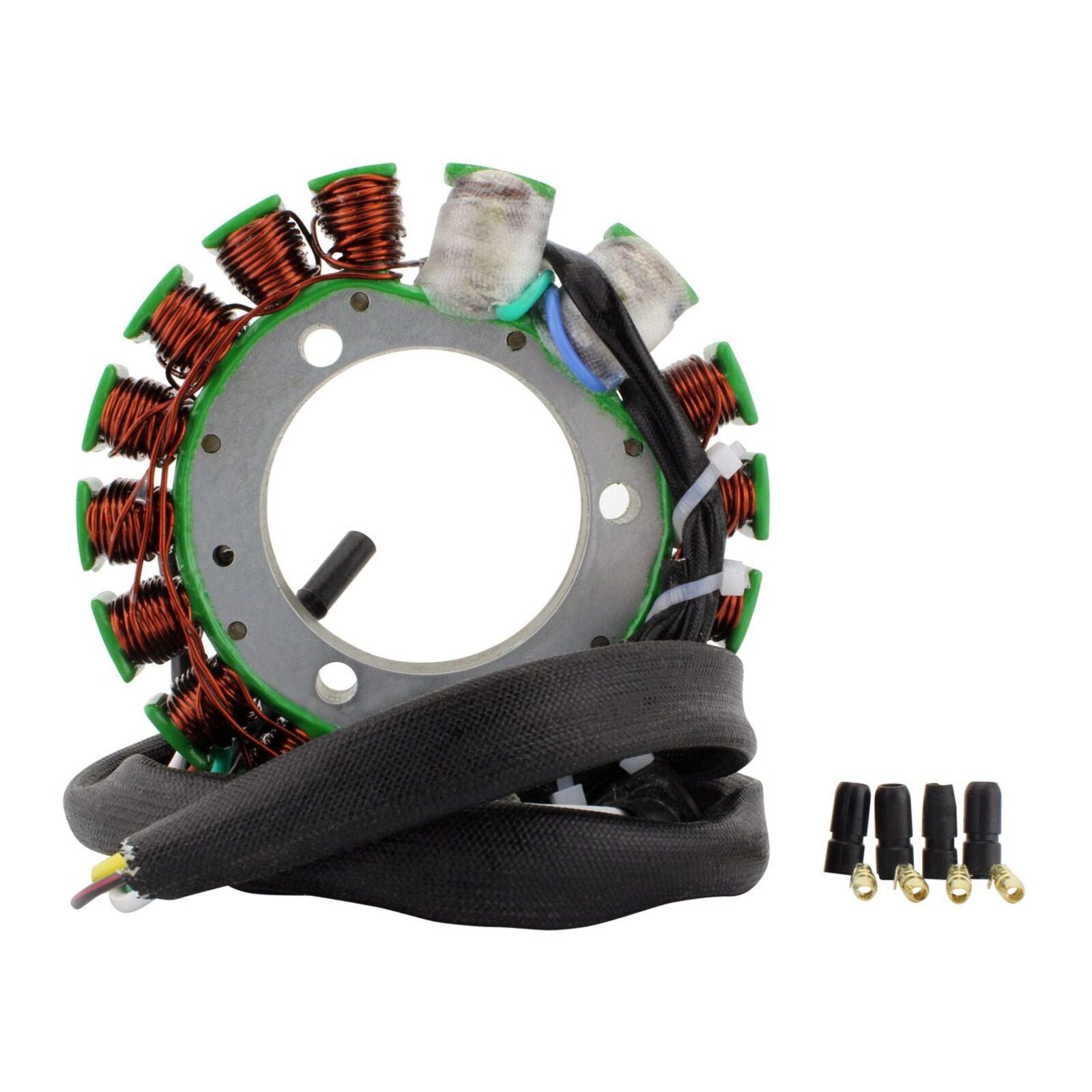

Brand new aftermarket High Output Stator 200W.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • 2 x 100W

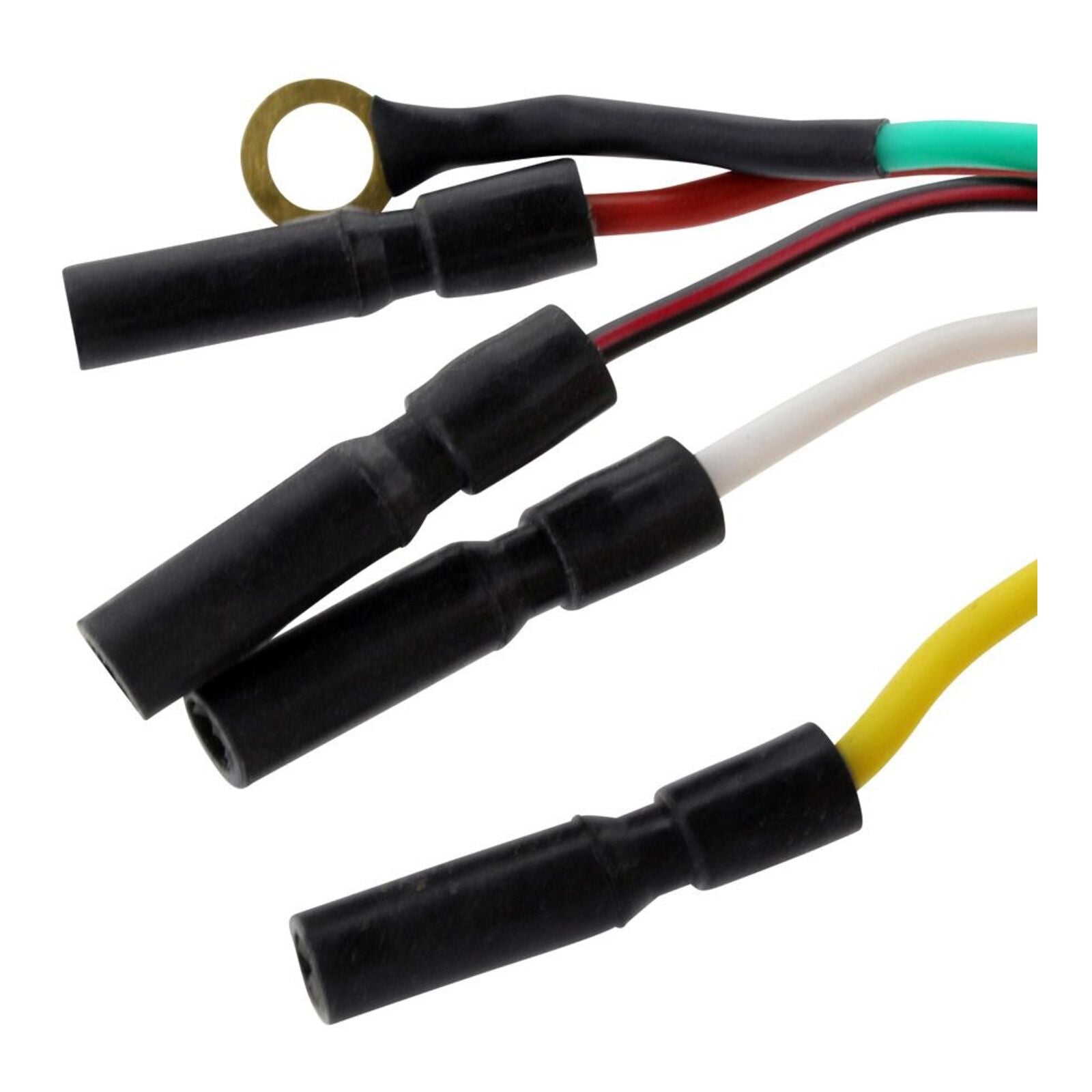

  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

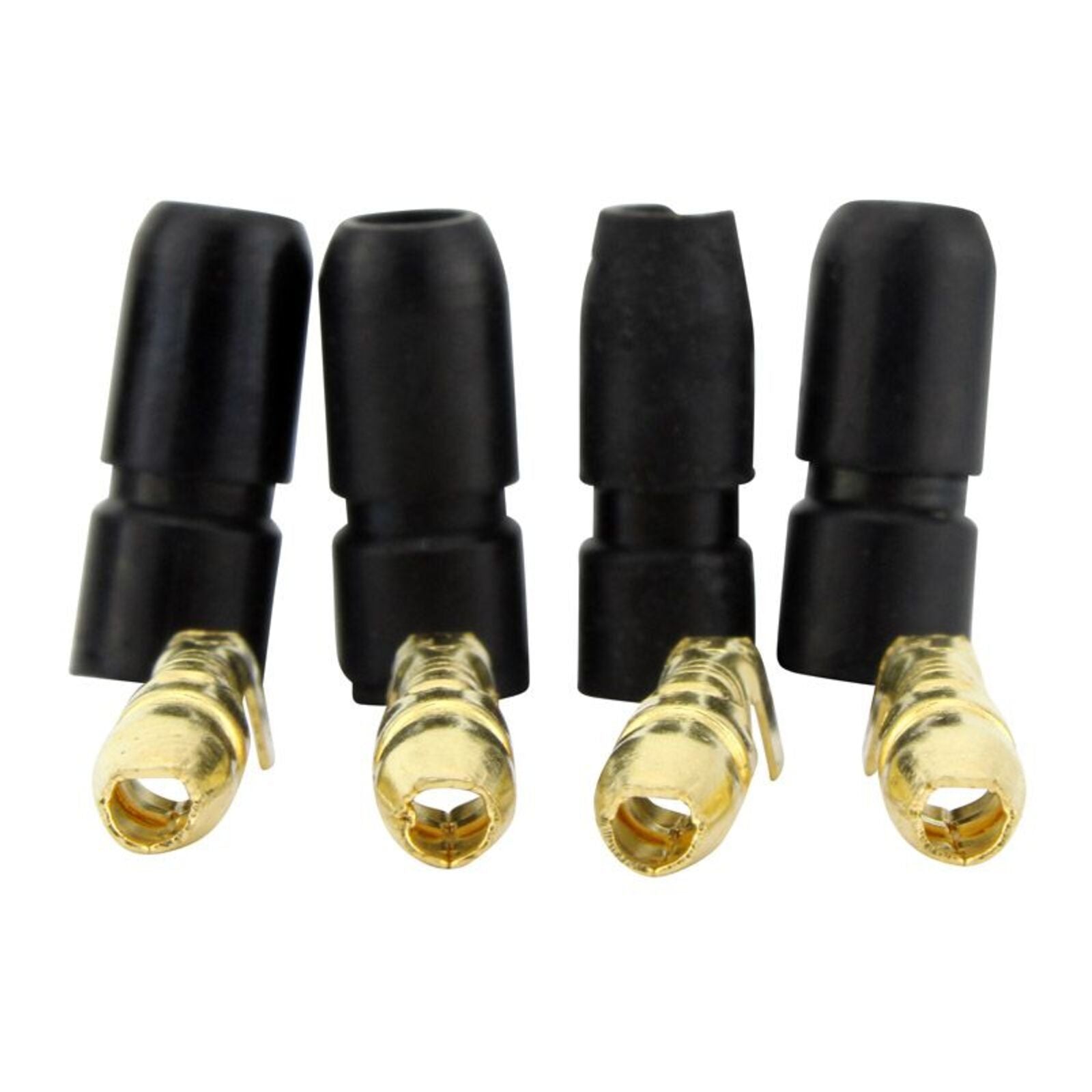

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before Installing the New Stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 700 mm

Other Specifications:

  • Number of wires: 5
  • Number of plugs: 5
  • Number of pins: 3
  • Number of poles: 17
  • Wire to wire resistance:
  • Alternator: White to Green = 0.4 ohms ±20%
  • Alternator: Yellow to Red = 0.4 ohms ±20%
  • Source: Black/Red to Green = 140 ohms ±20%
