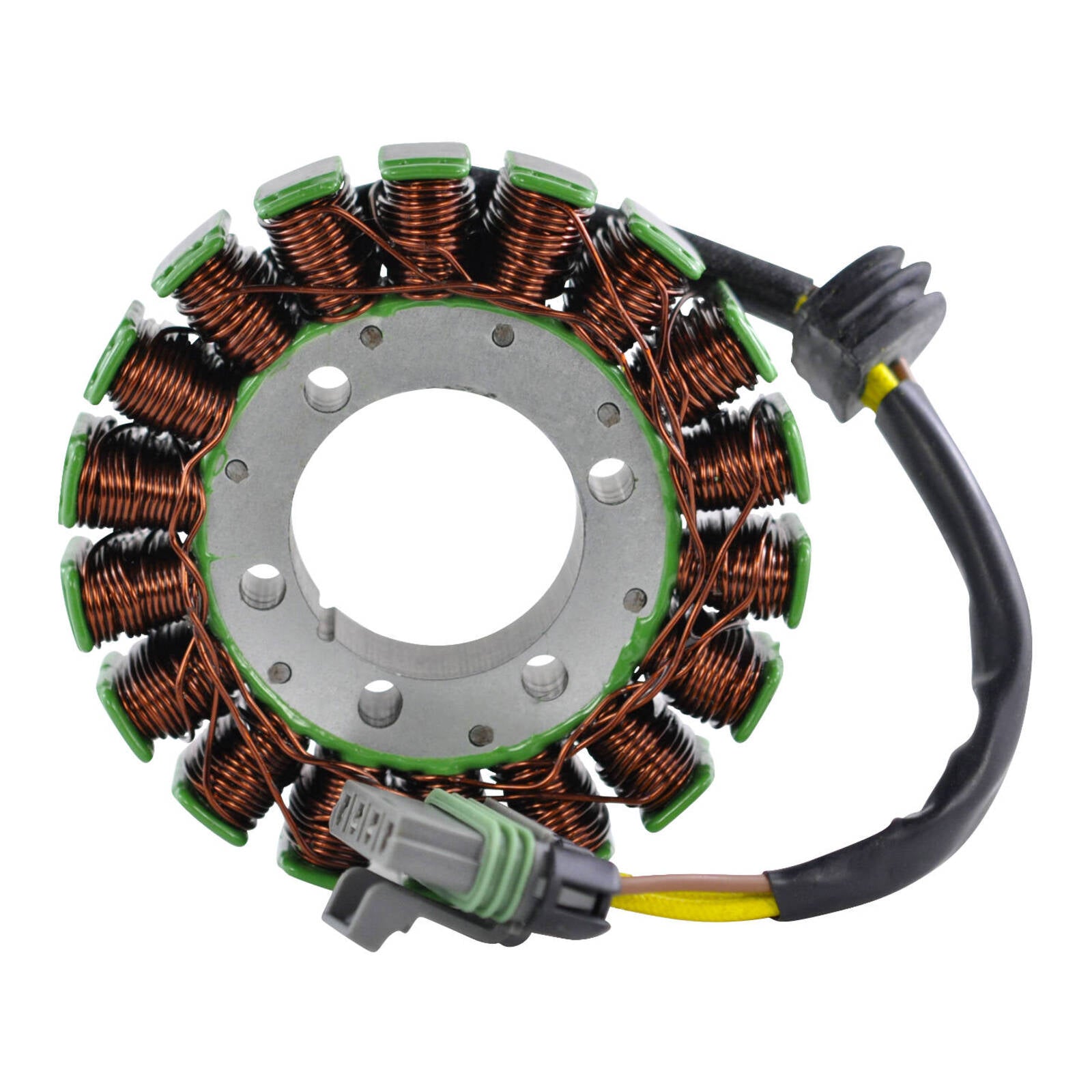

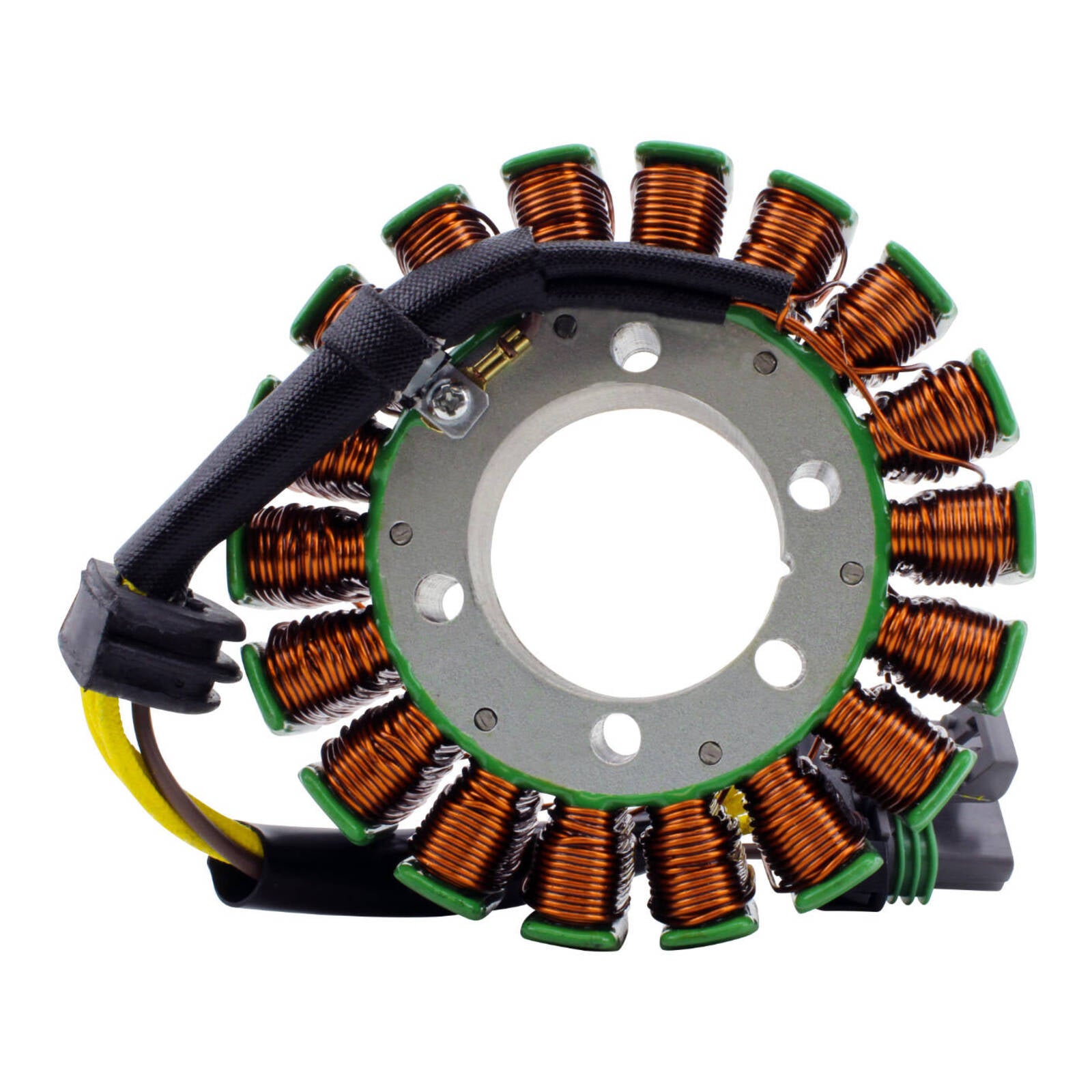

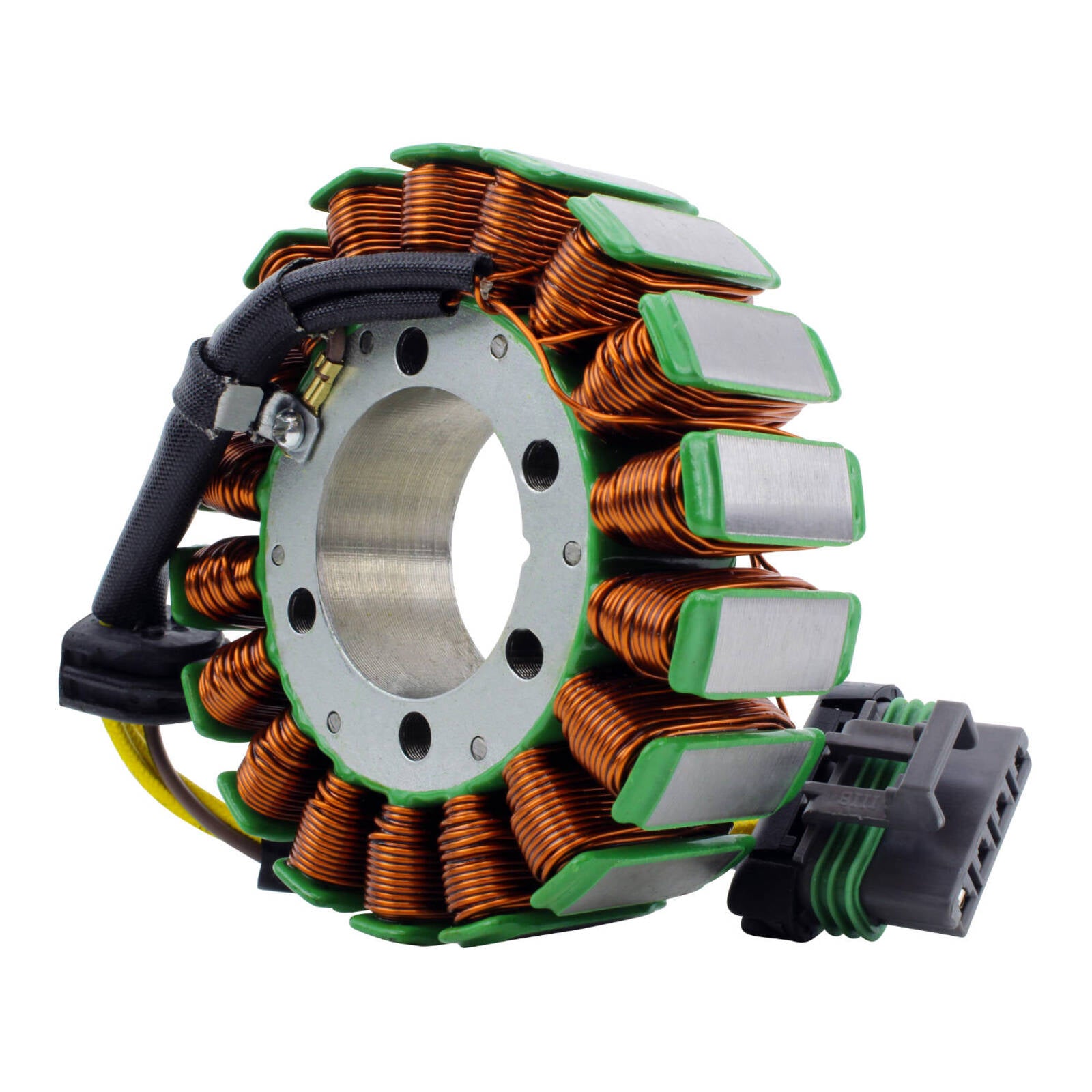

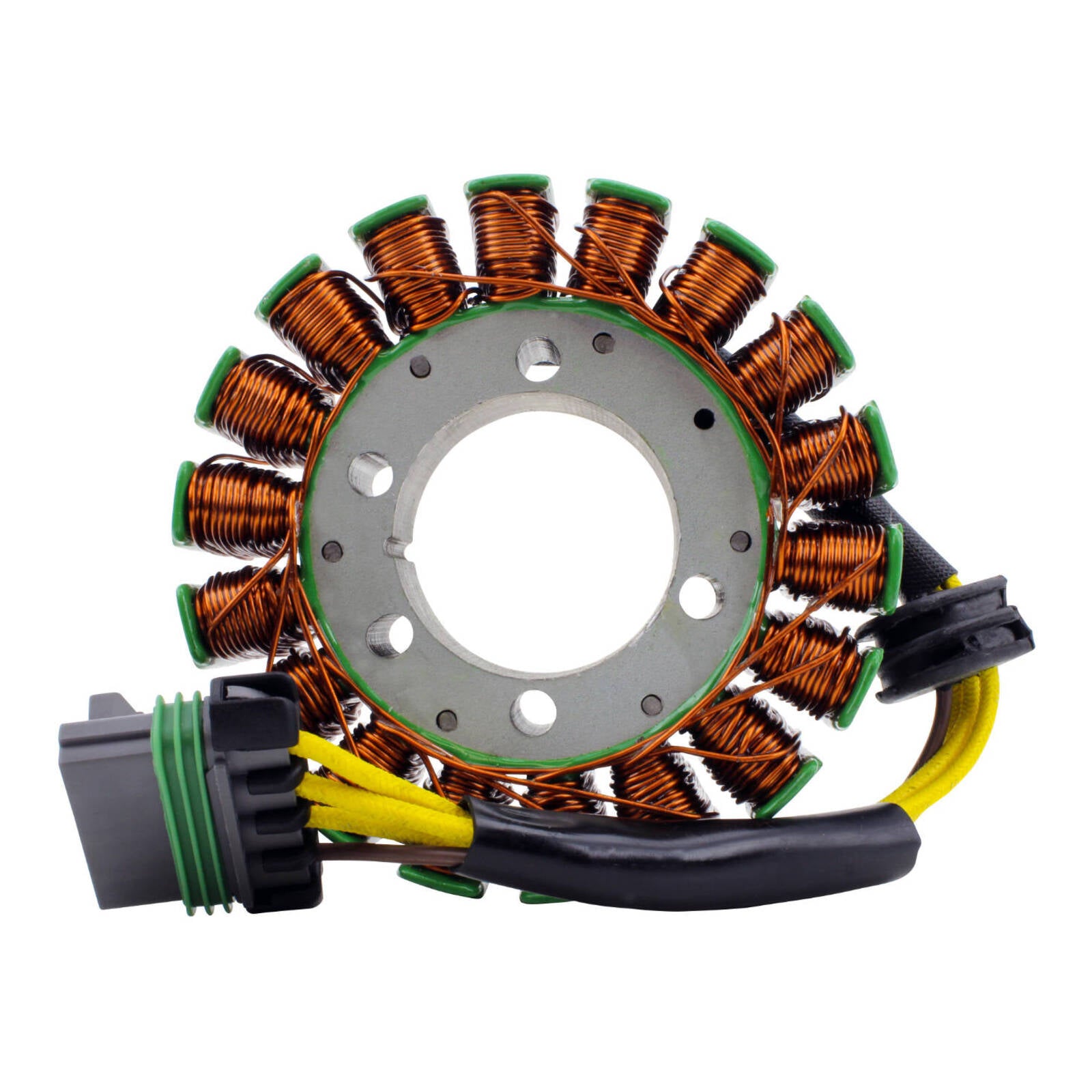

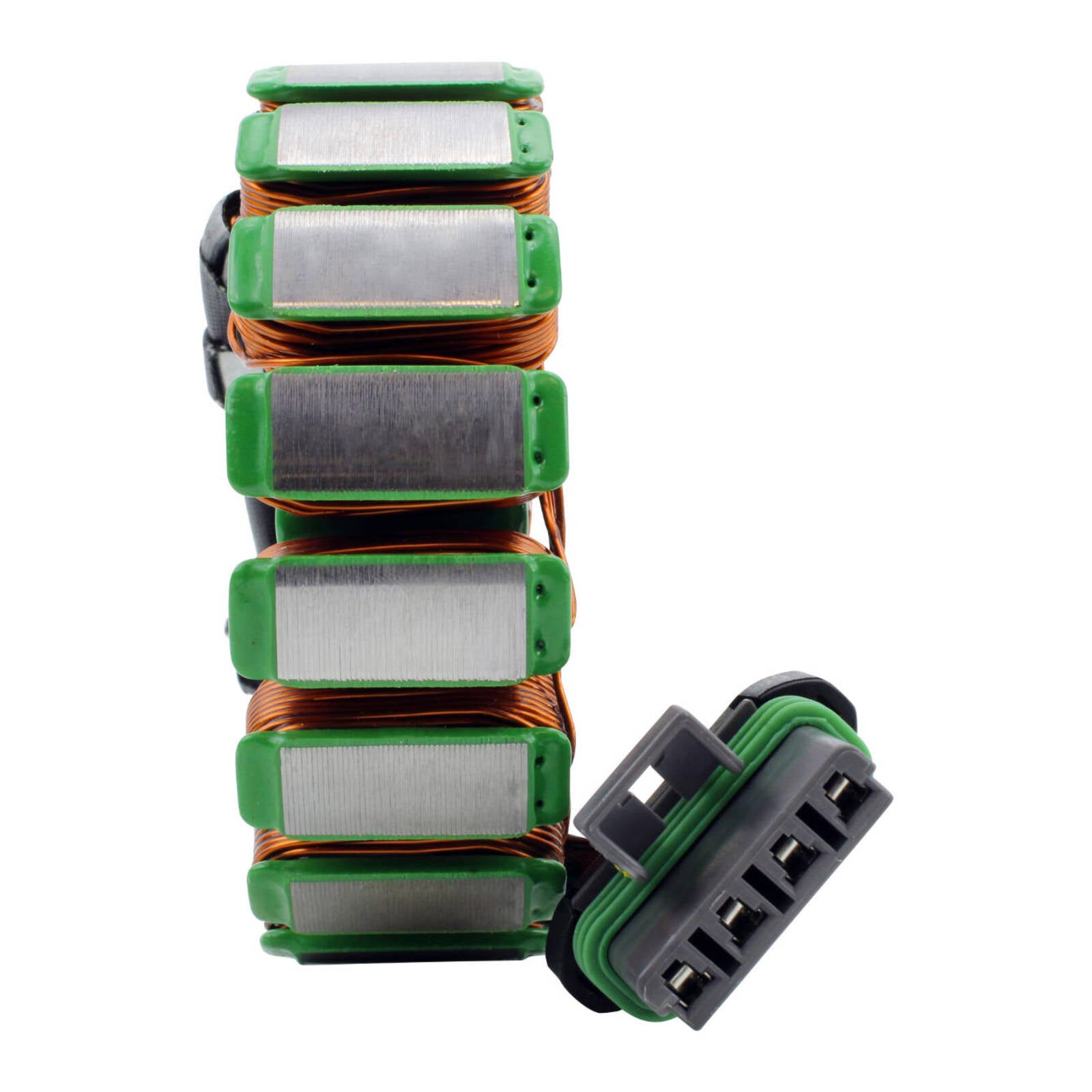

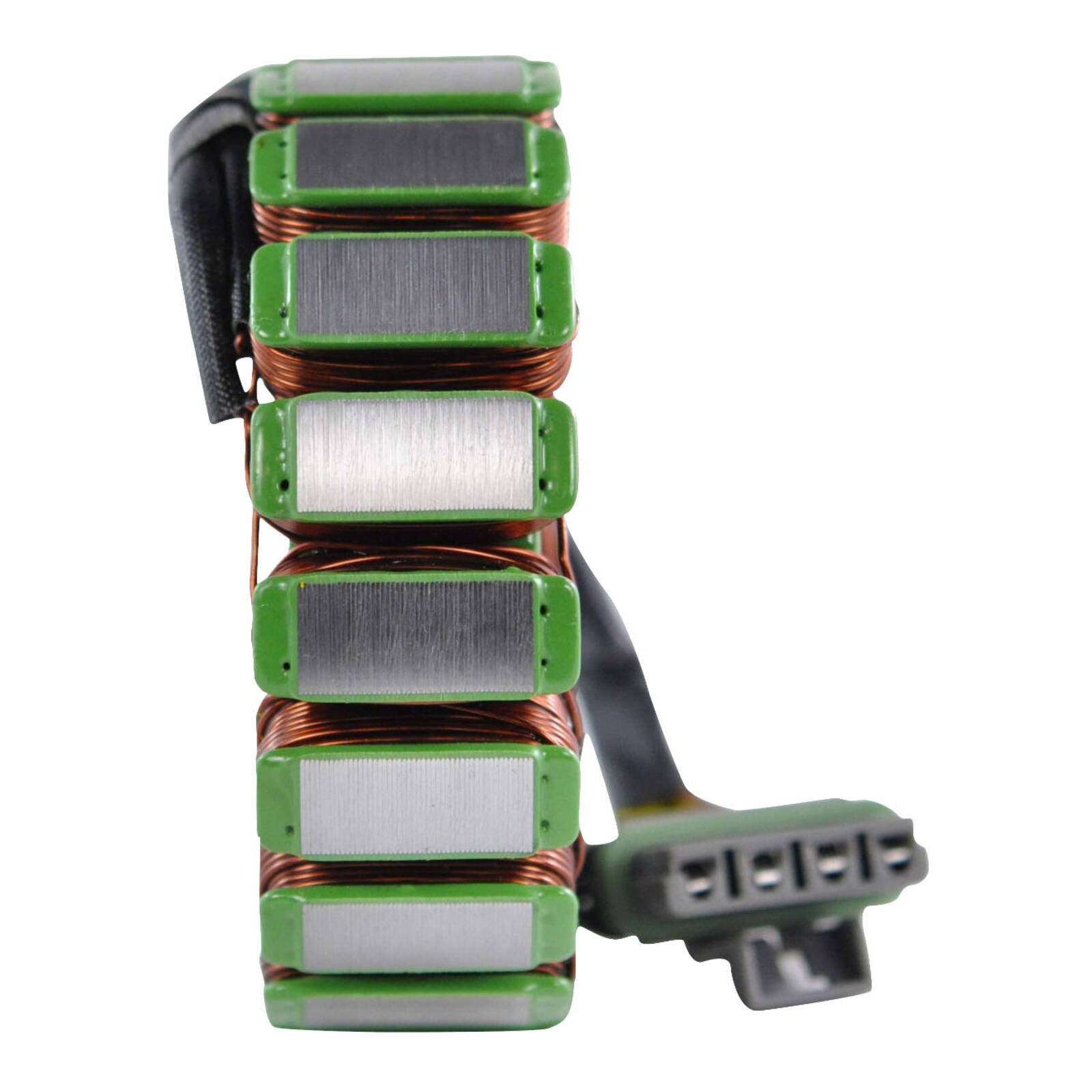

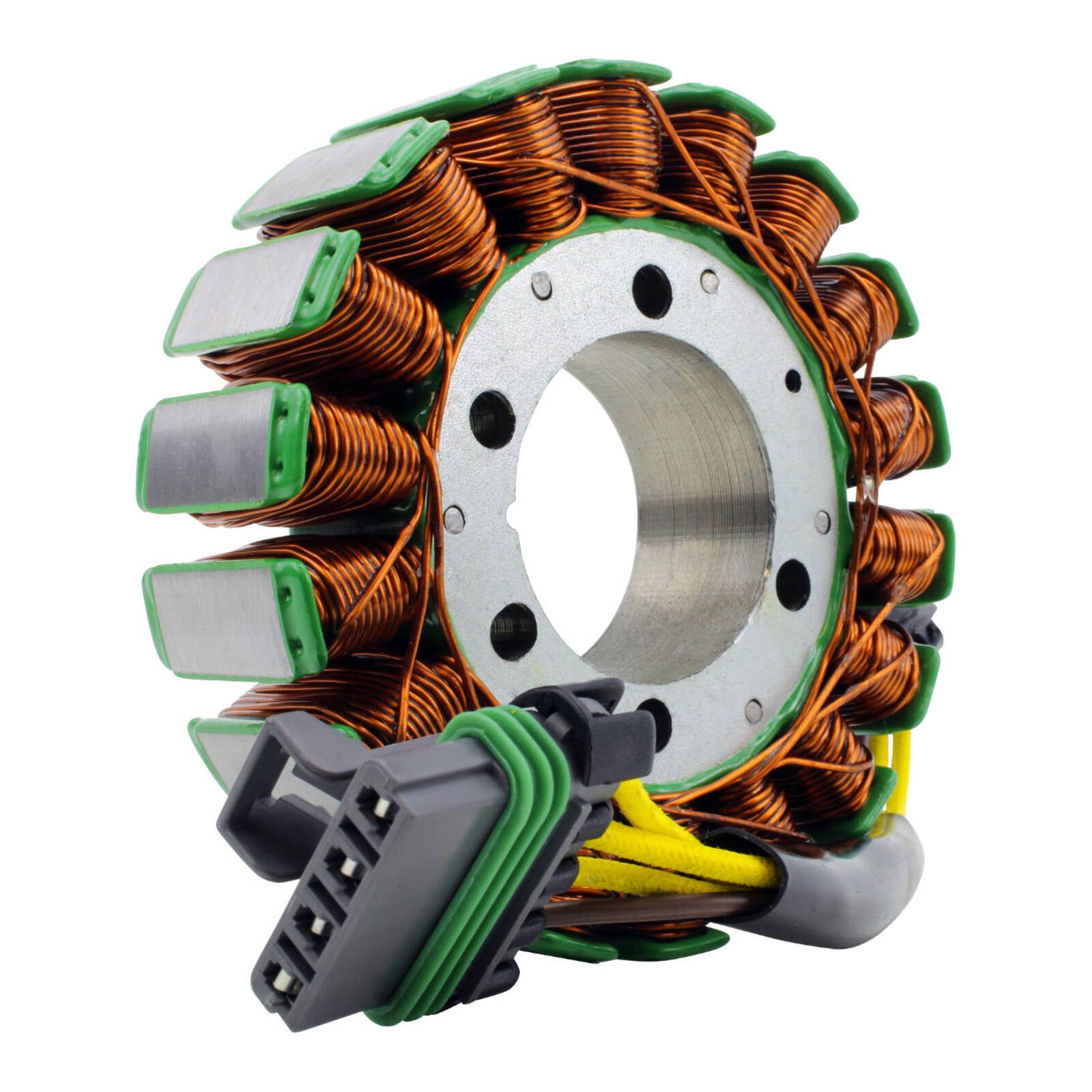

STATOR POLARIS RANGER RZR 4

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 40 mm
• Exterior diameter: 106 mm
• Thickness: 24 mm
• Length of wires stator to grommet: 45 mm
• Length of wires grommet to plug: 100 mm

Other specifications:

• Number of wires: 4

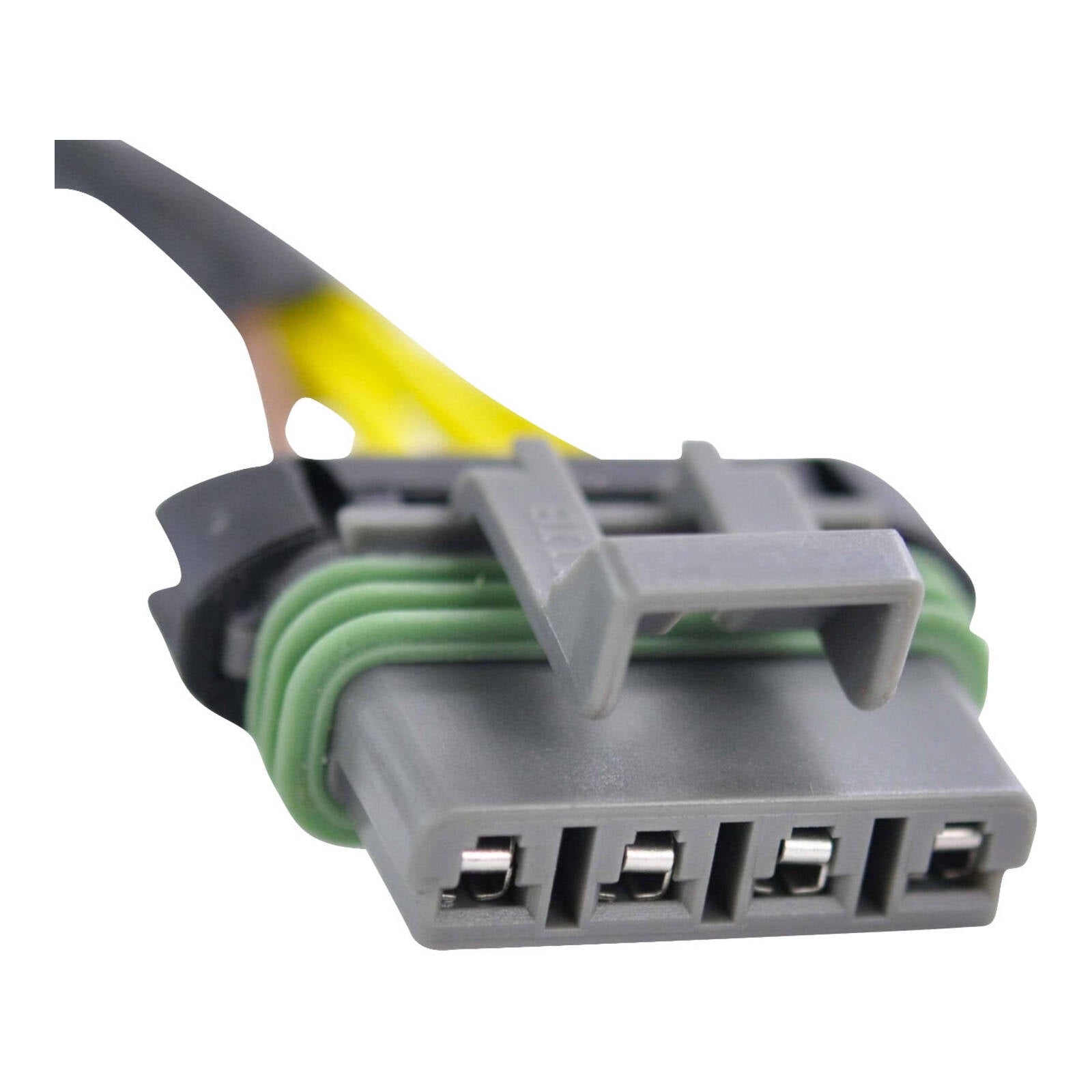

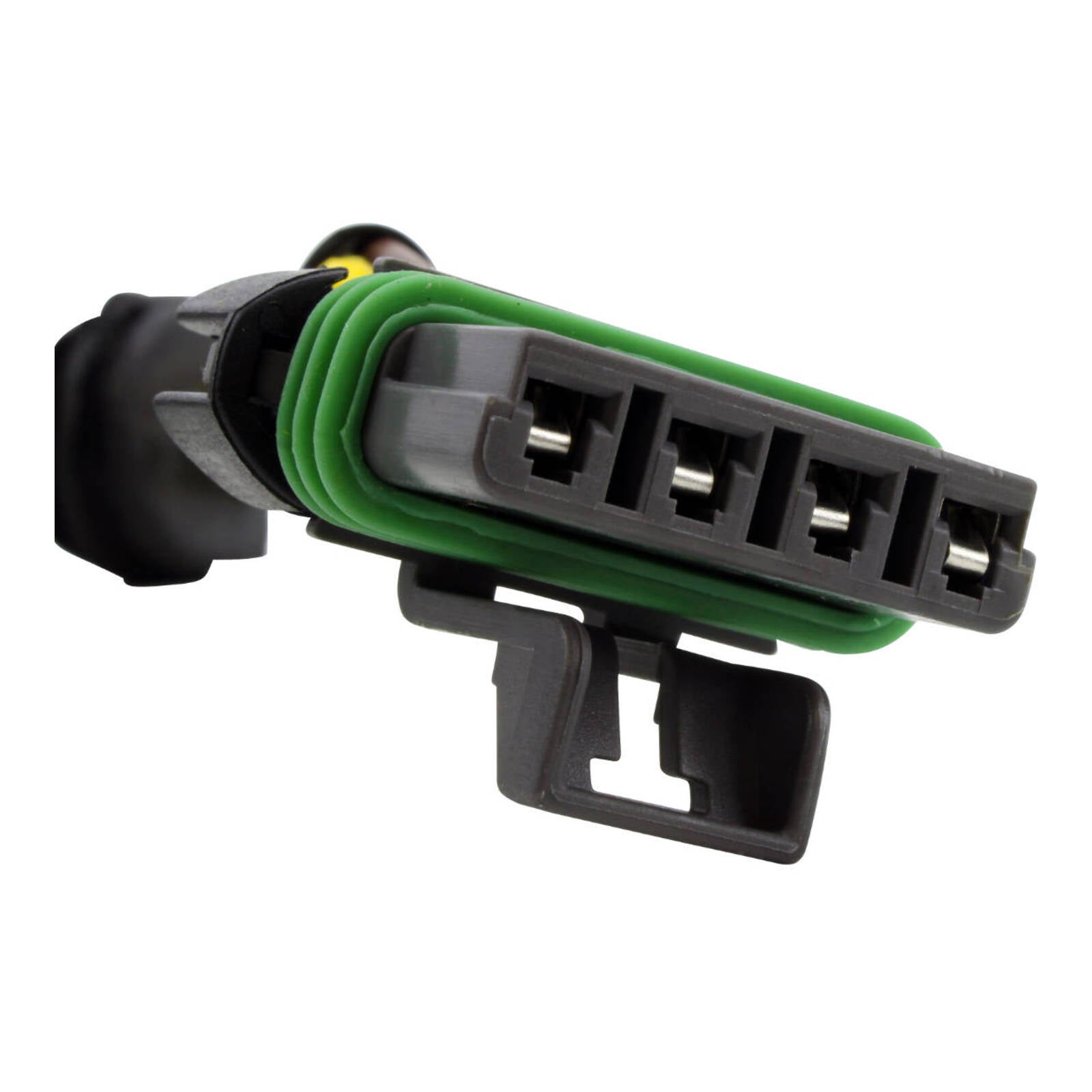

• Number of plugs: 1
• Number of pins: 4
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.4 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

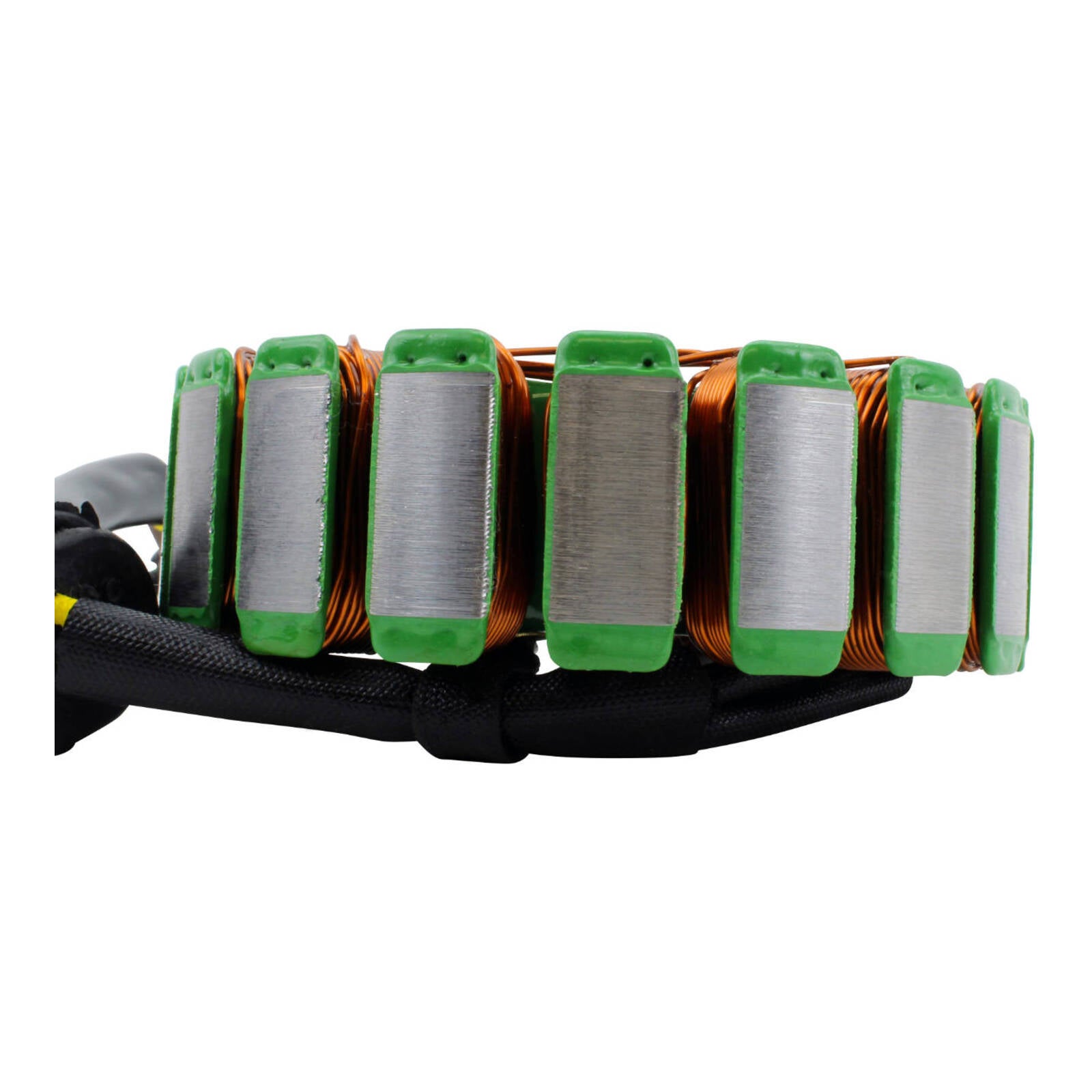

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested
