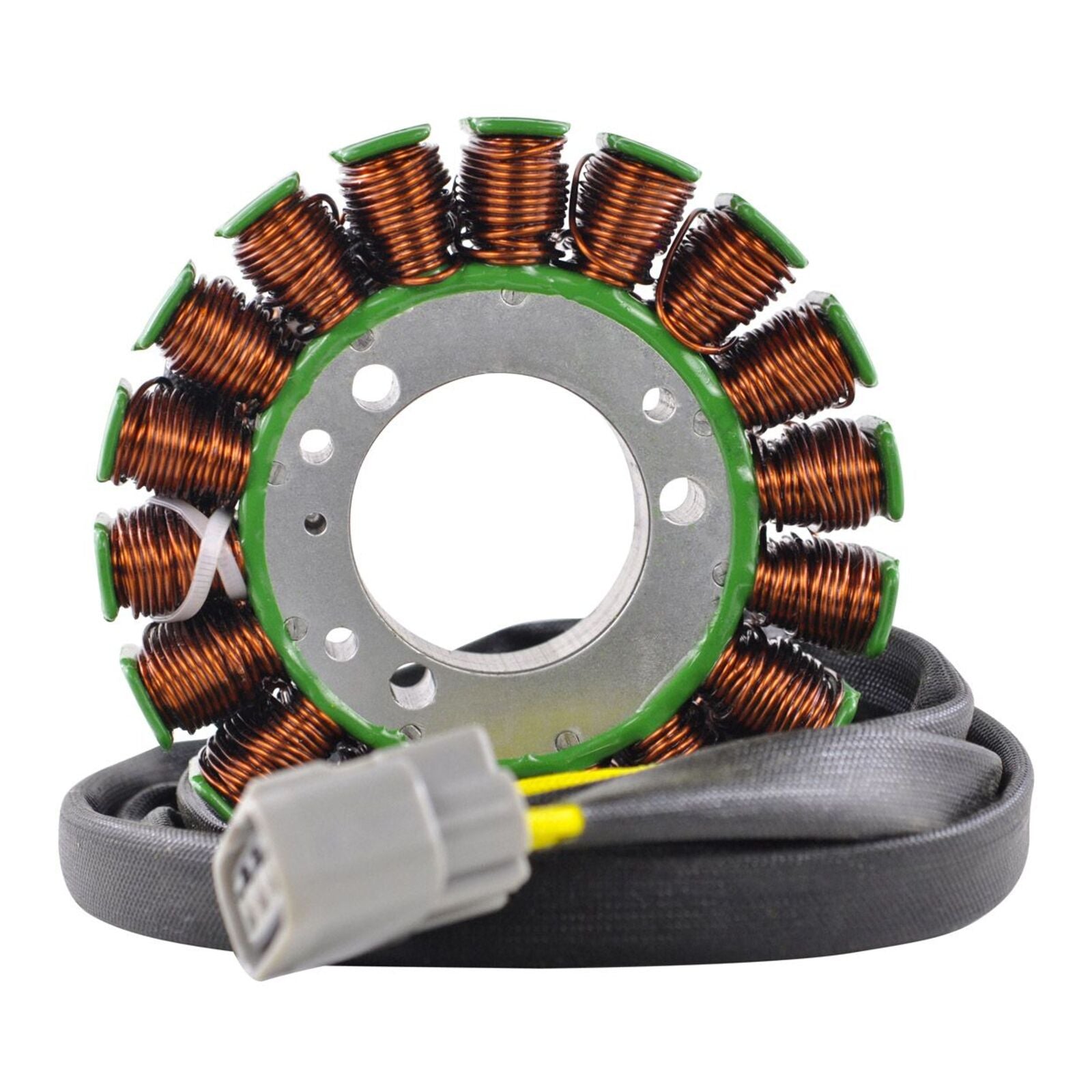

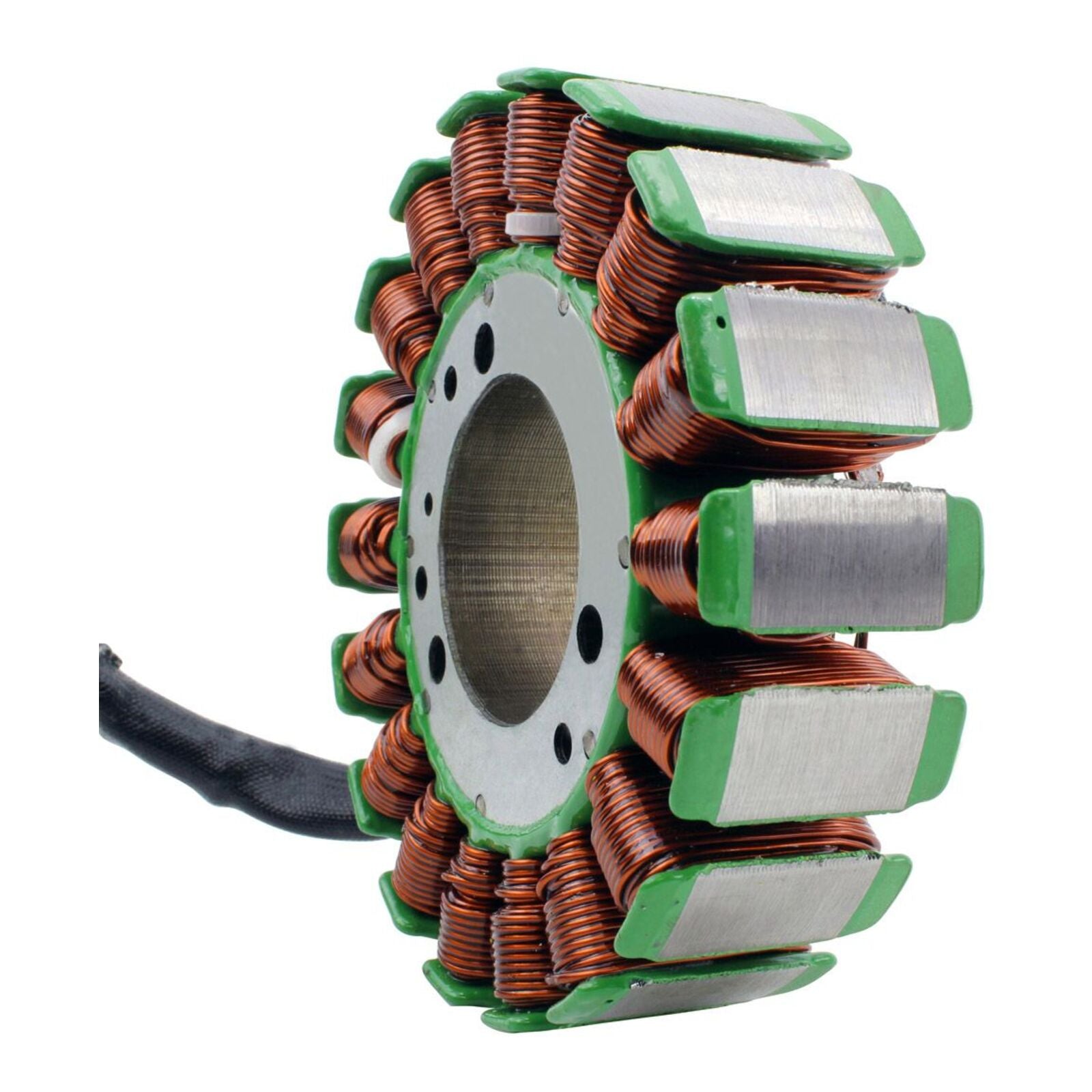

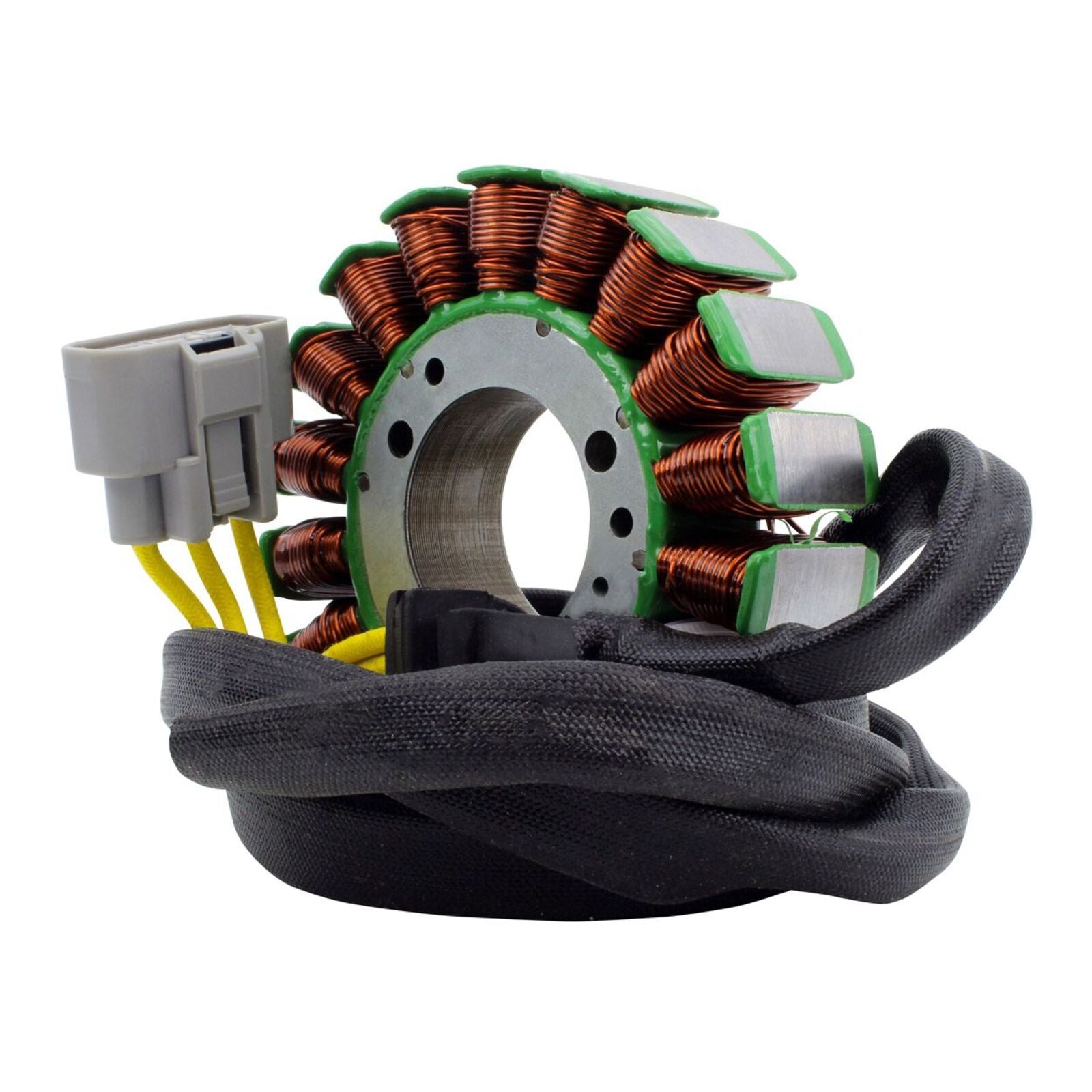

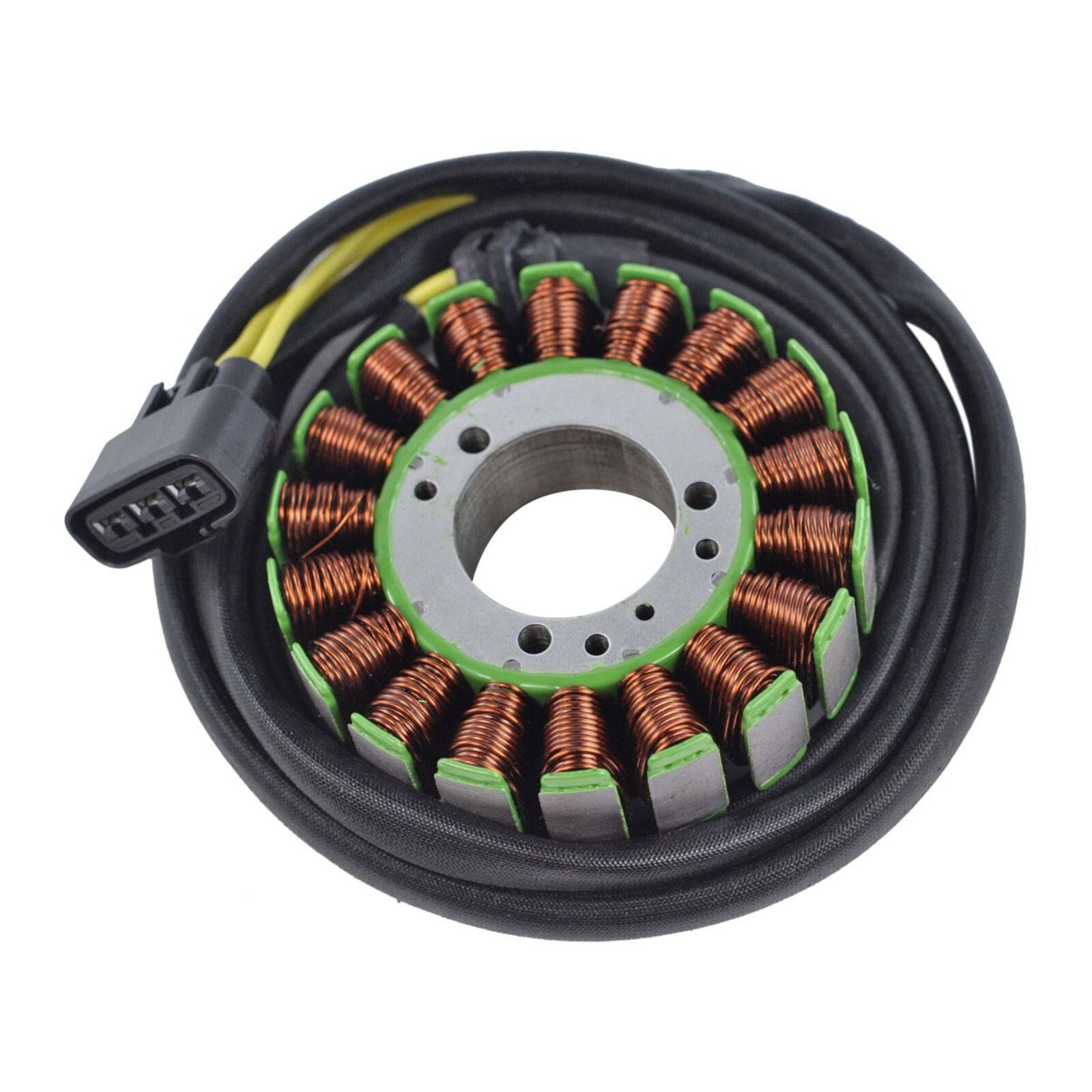

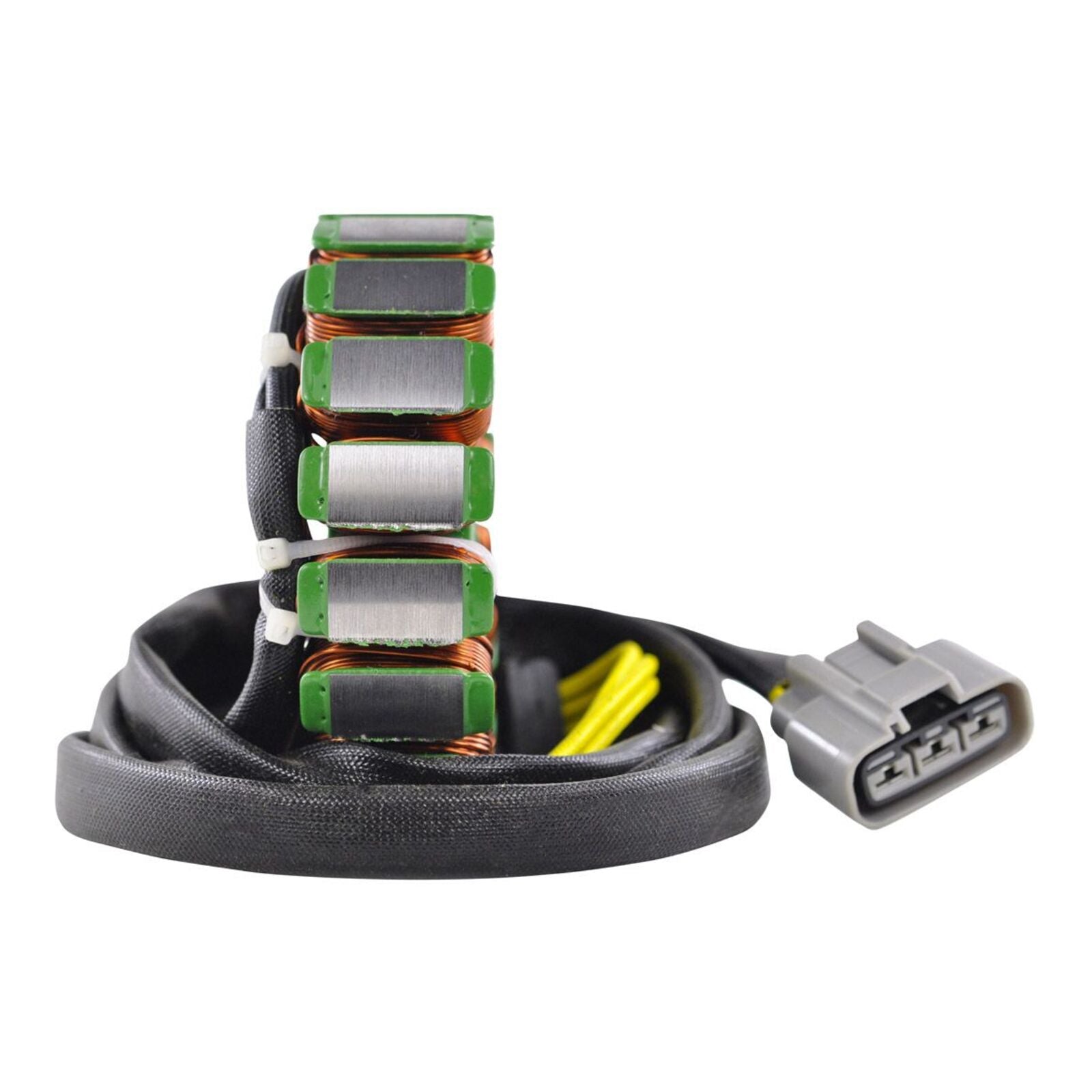

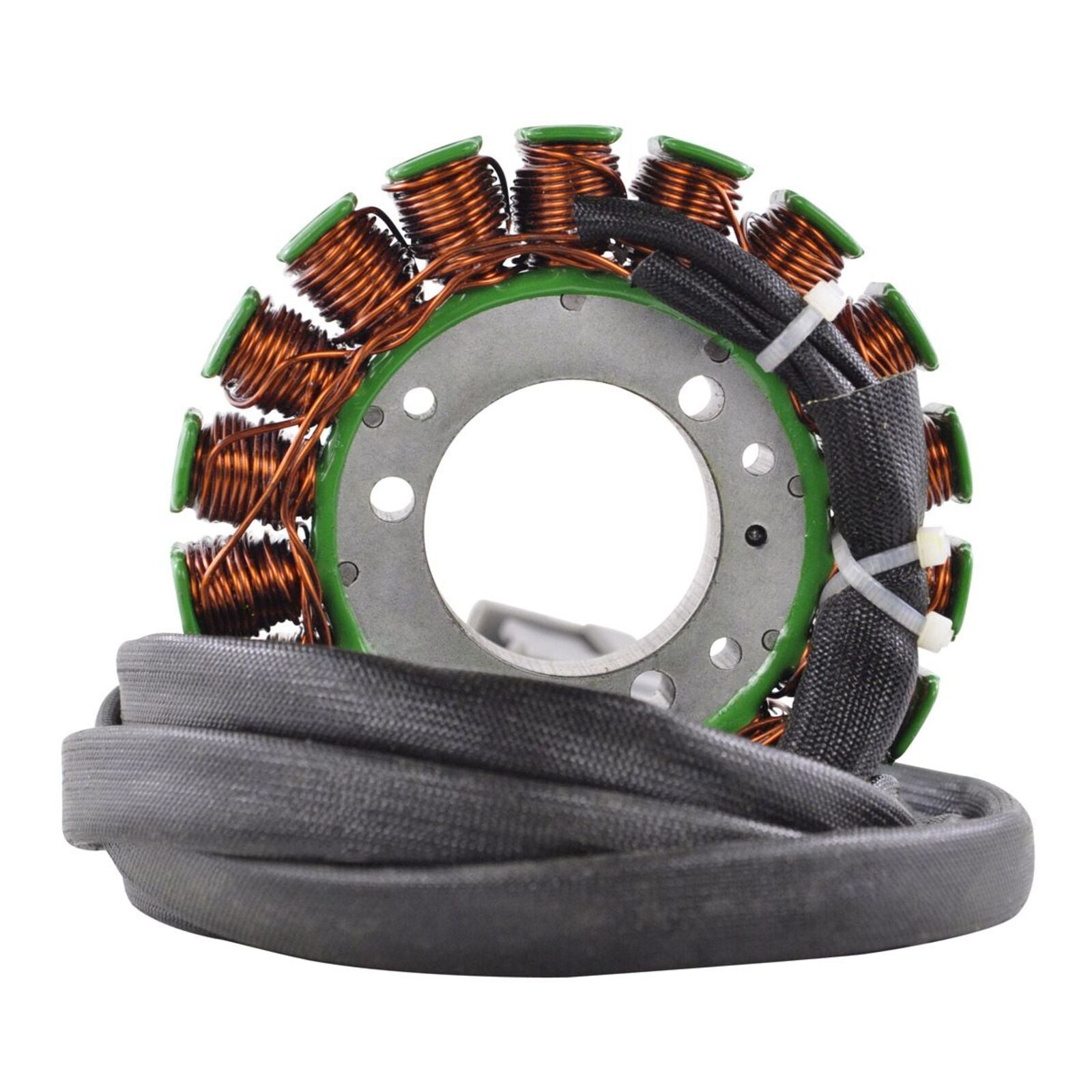

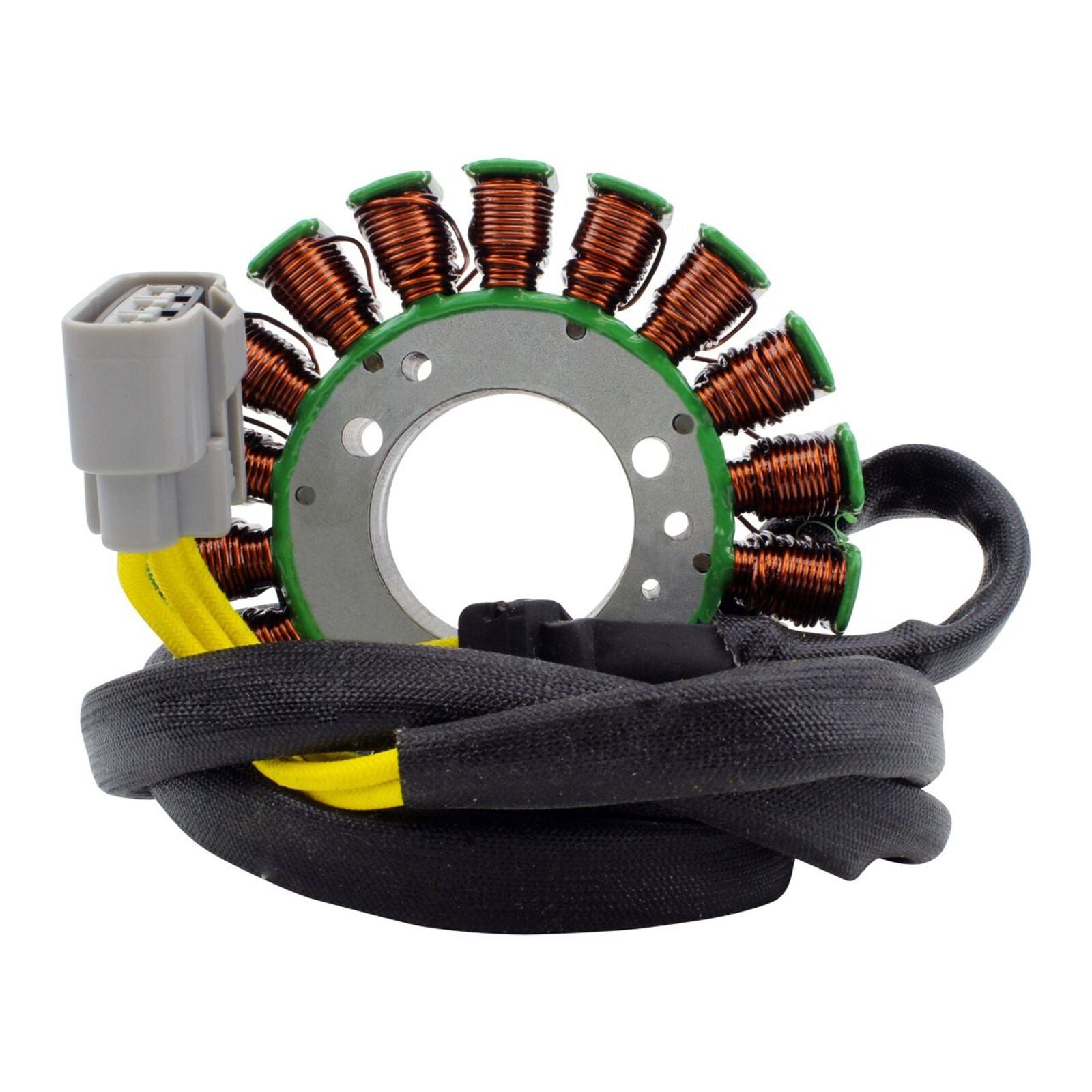

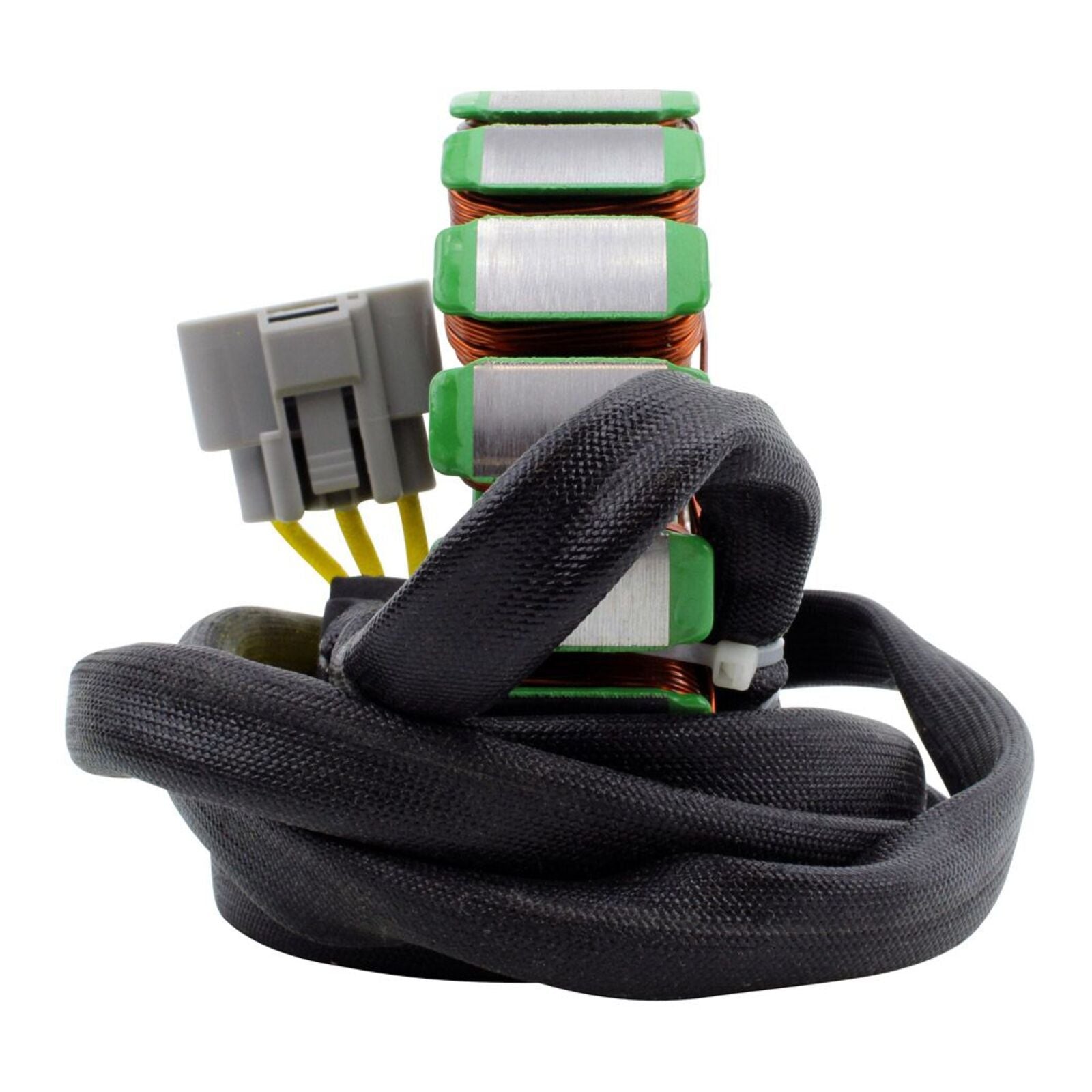

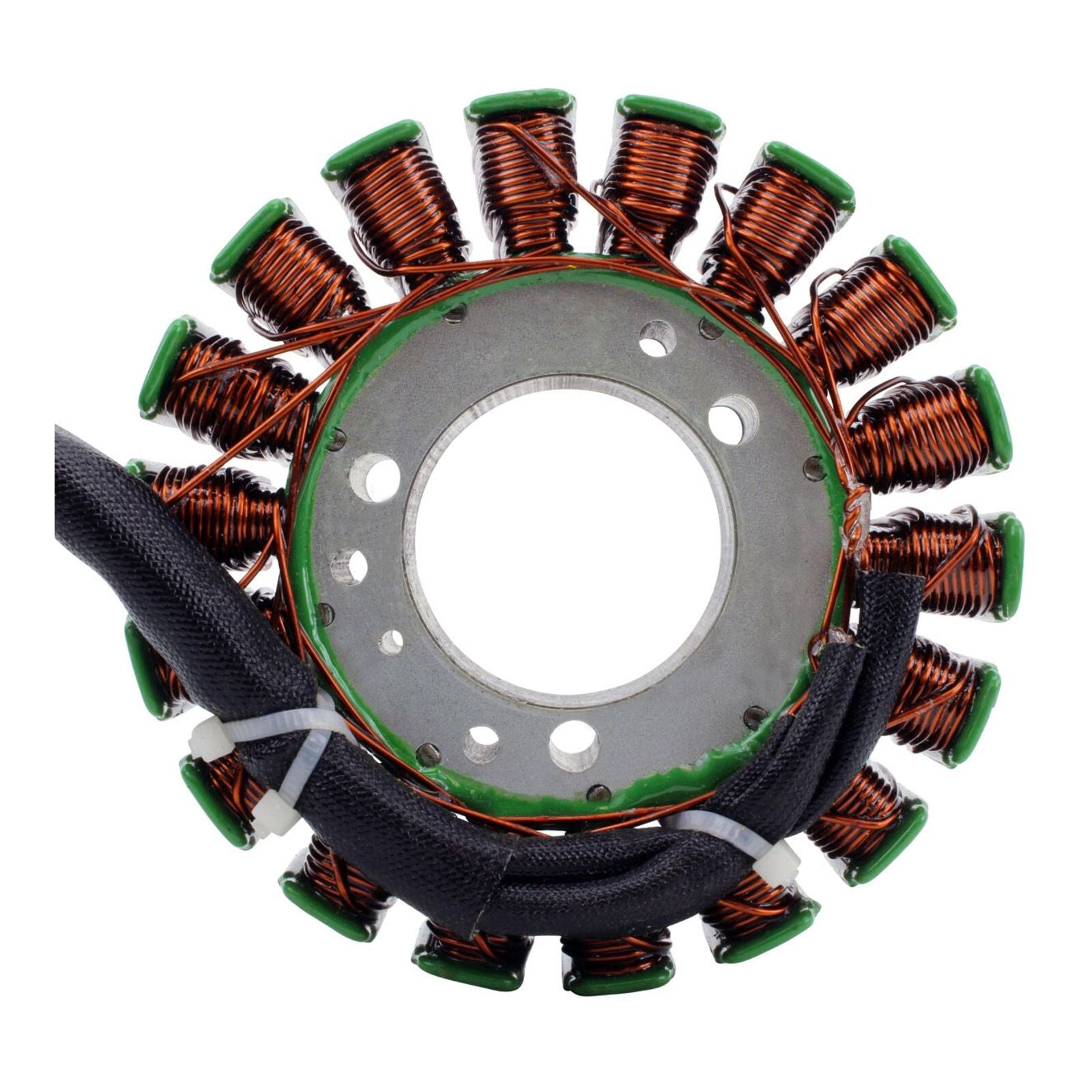

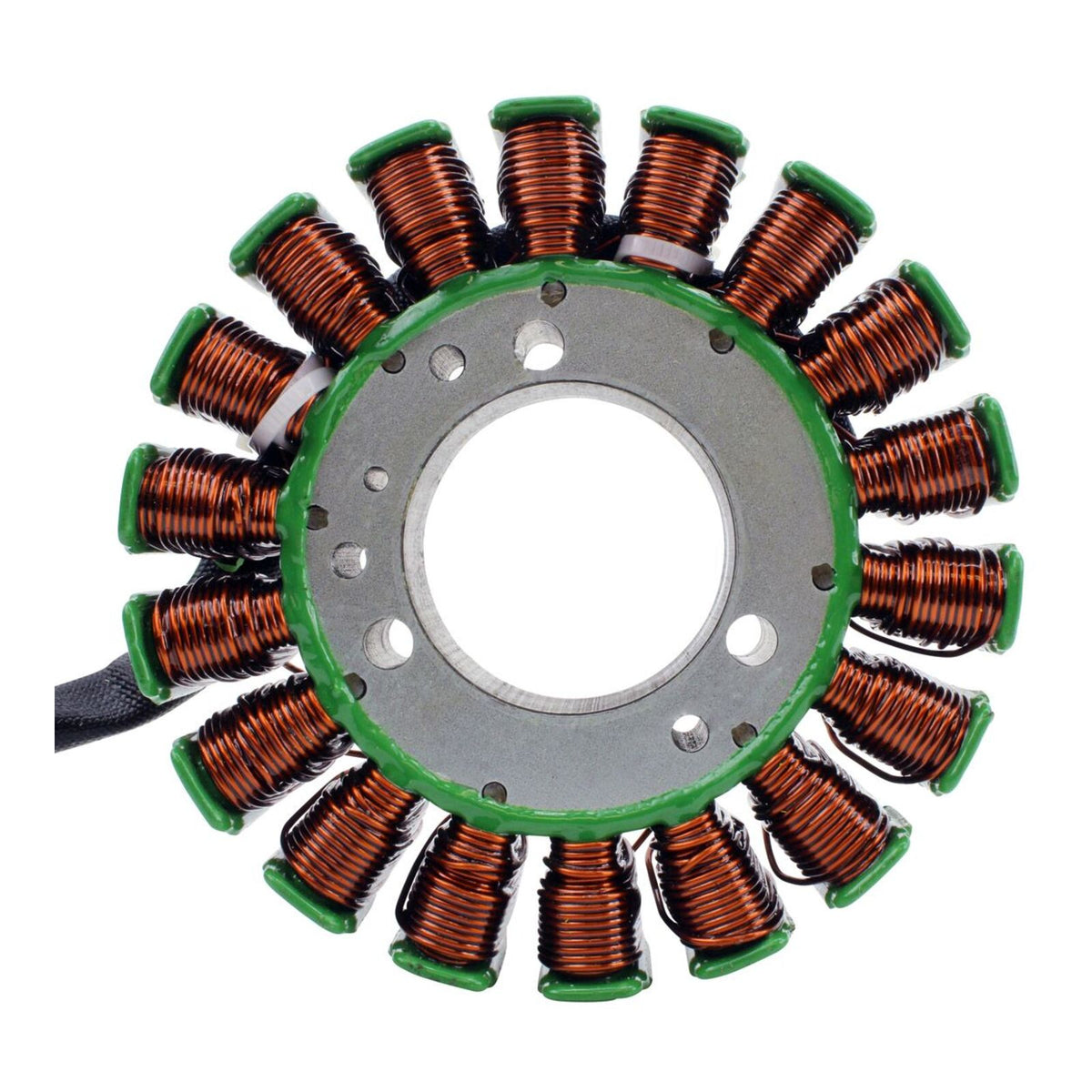

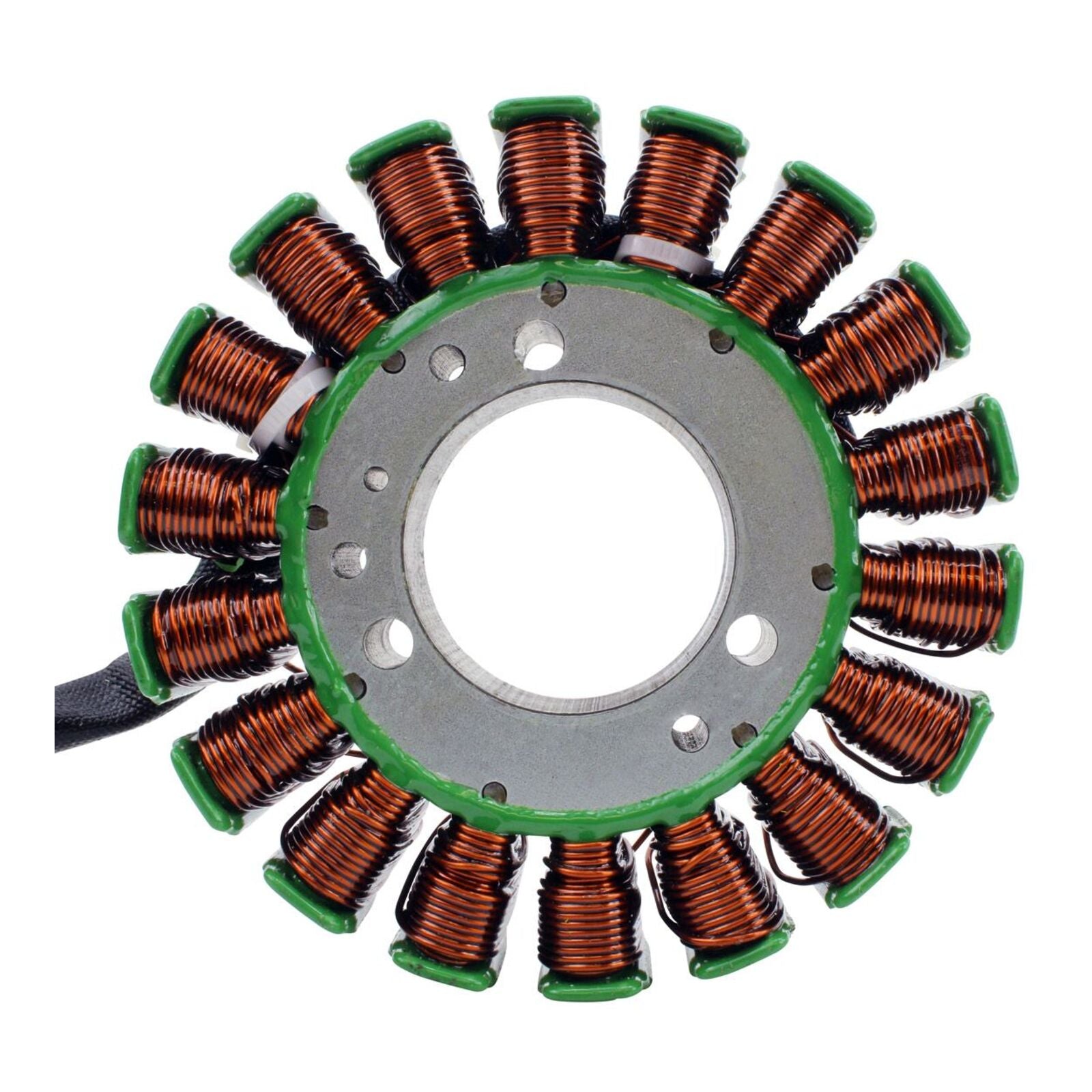

GENERATOR STATOR CAN-AM COMMANDER MAVERICK OUTLANDER

Features:

• 650W
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.
• Highest grade copper windings, resistant to 200 degrees Celsius.

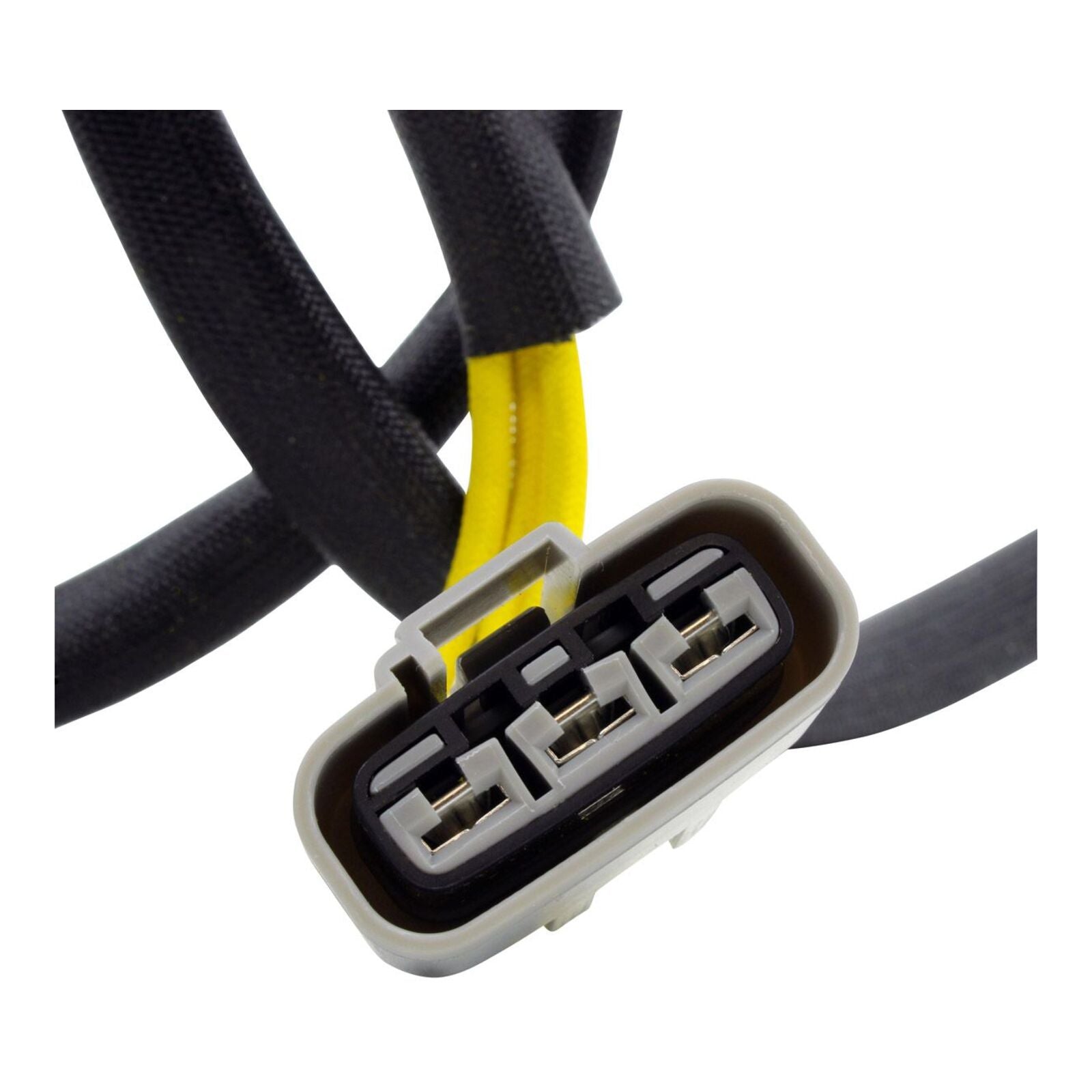

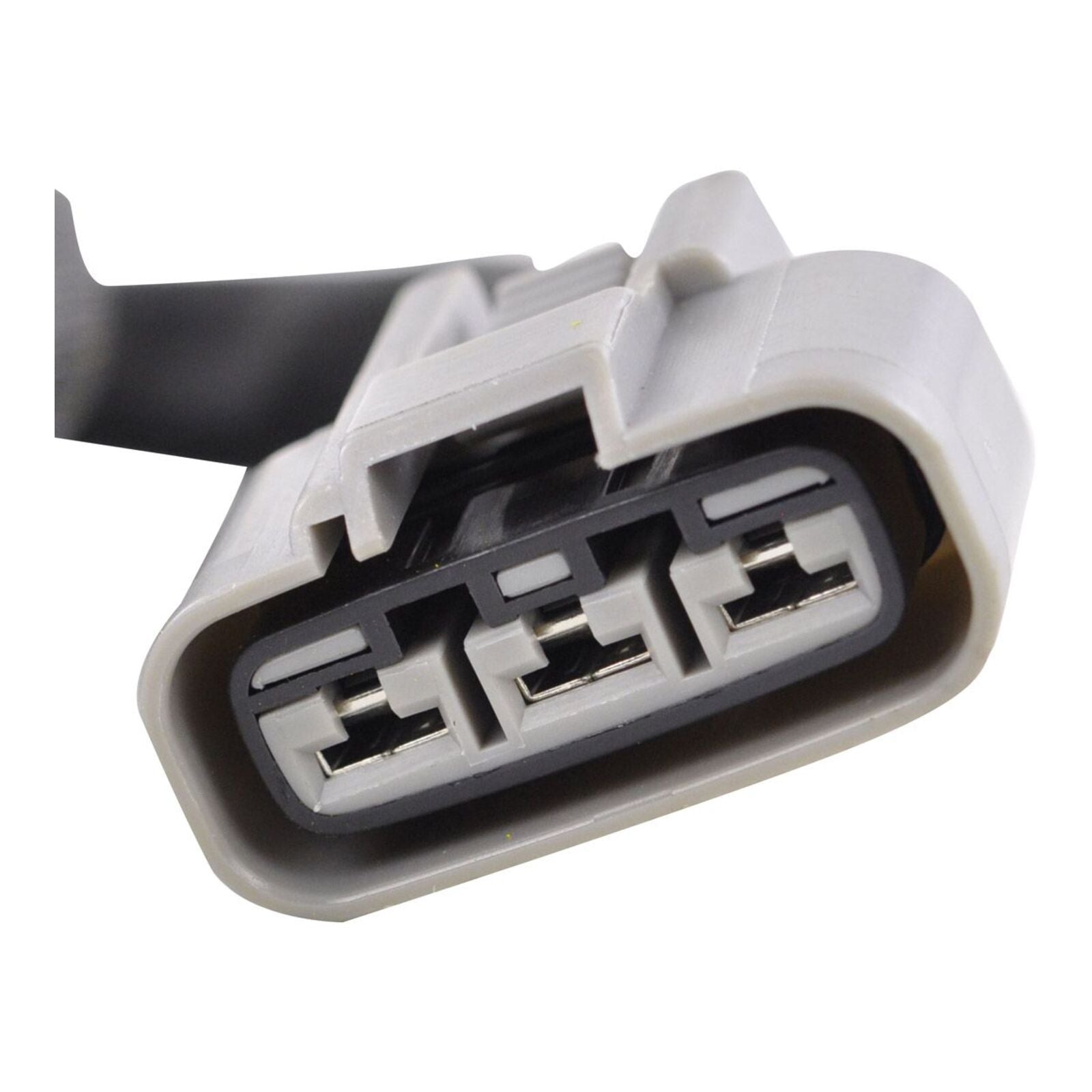

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Specifications:

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 24 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 1470 mm

Other specifications:

Wattage: 650
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +/-20%

Before installing your new stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi- temp dielectric grease on all connectors

The new stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If the new stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010’’.
