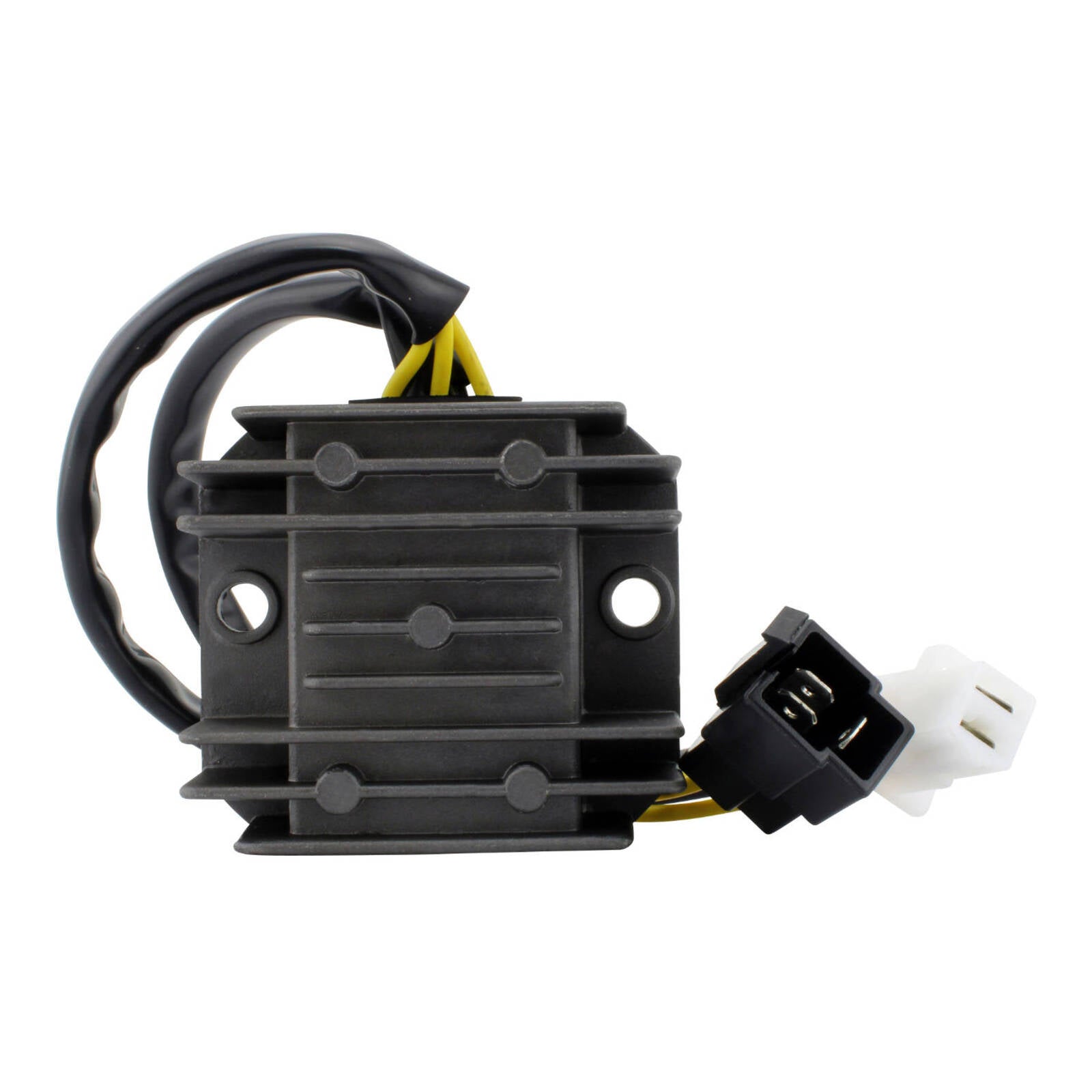

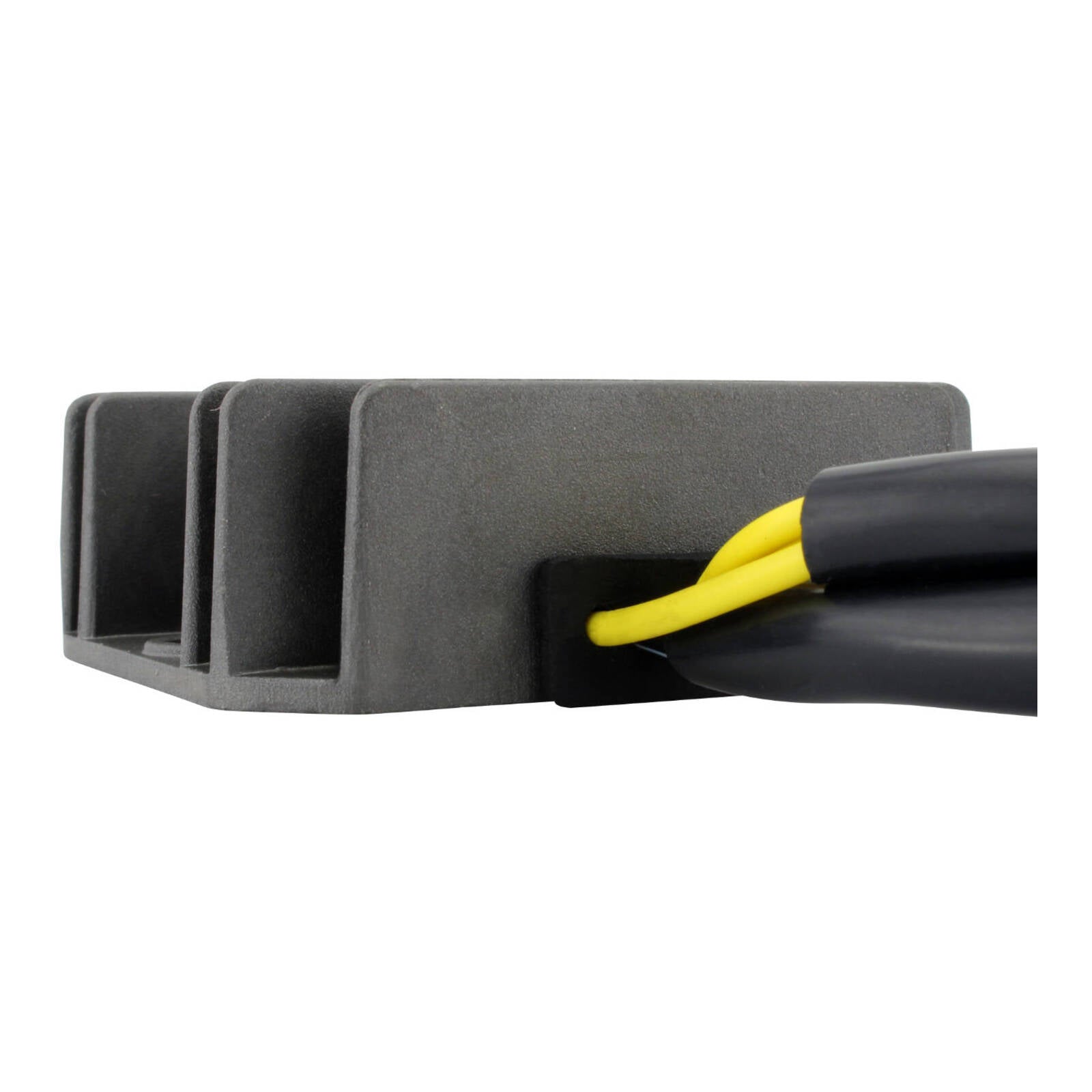

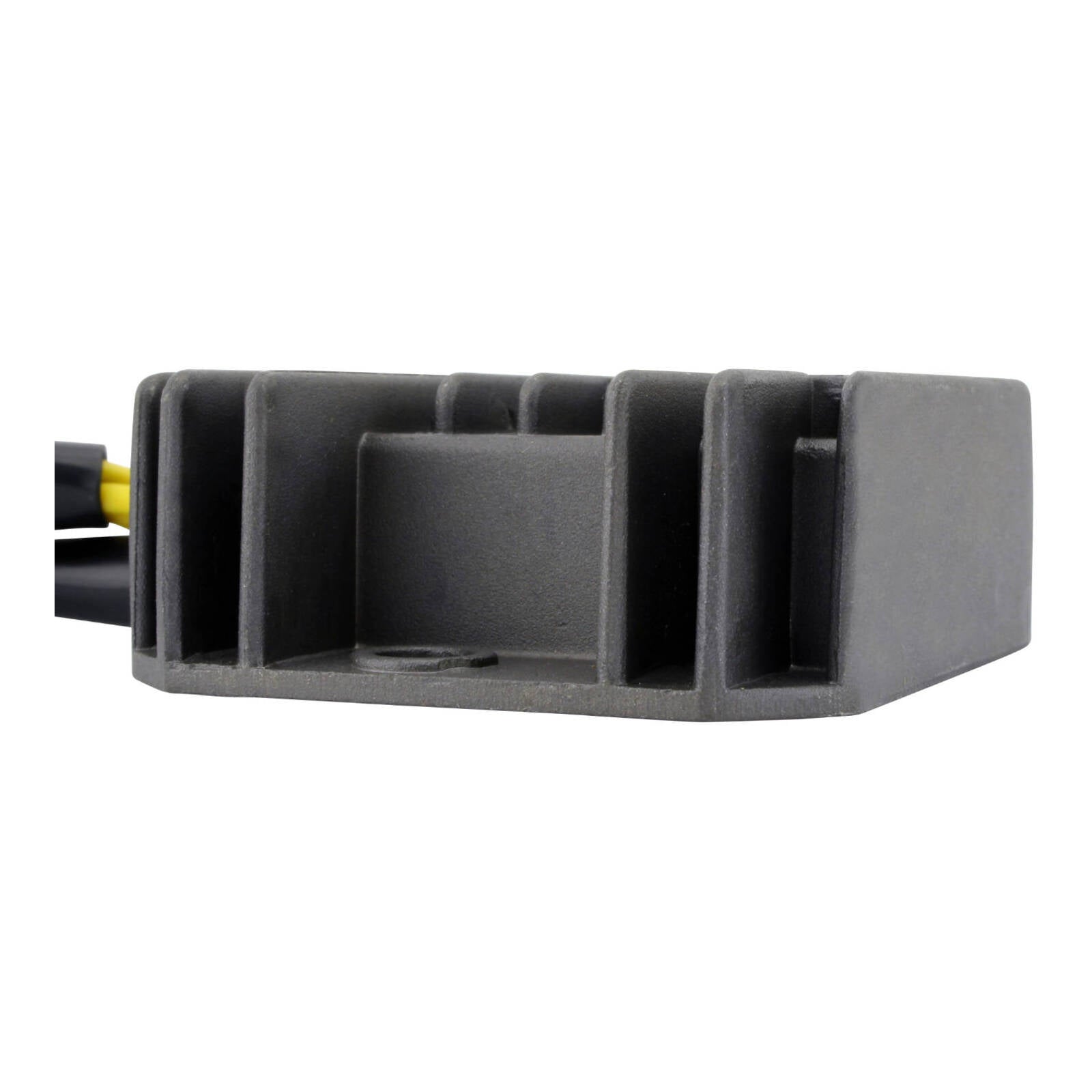

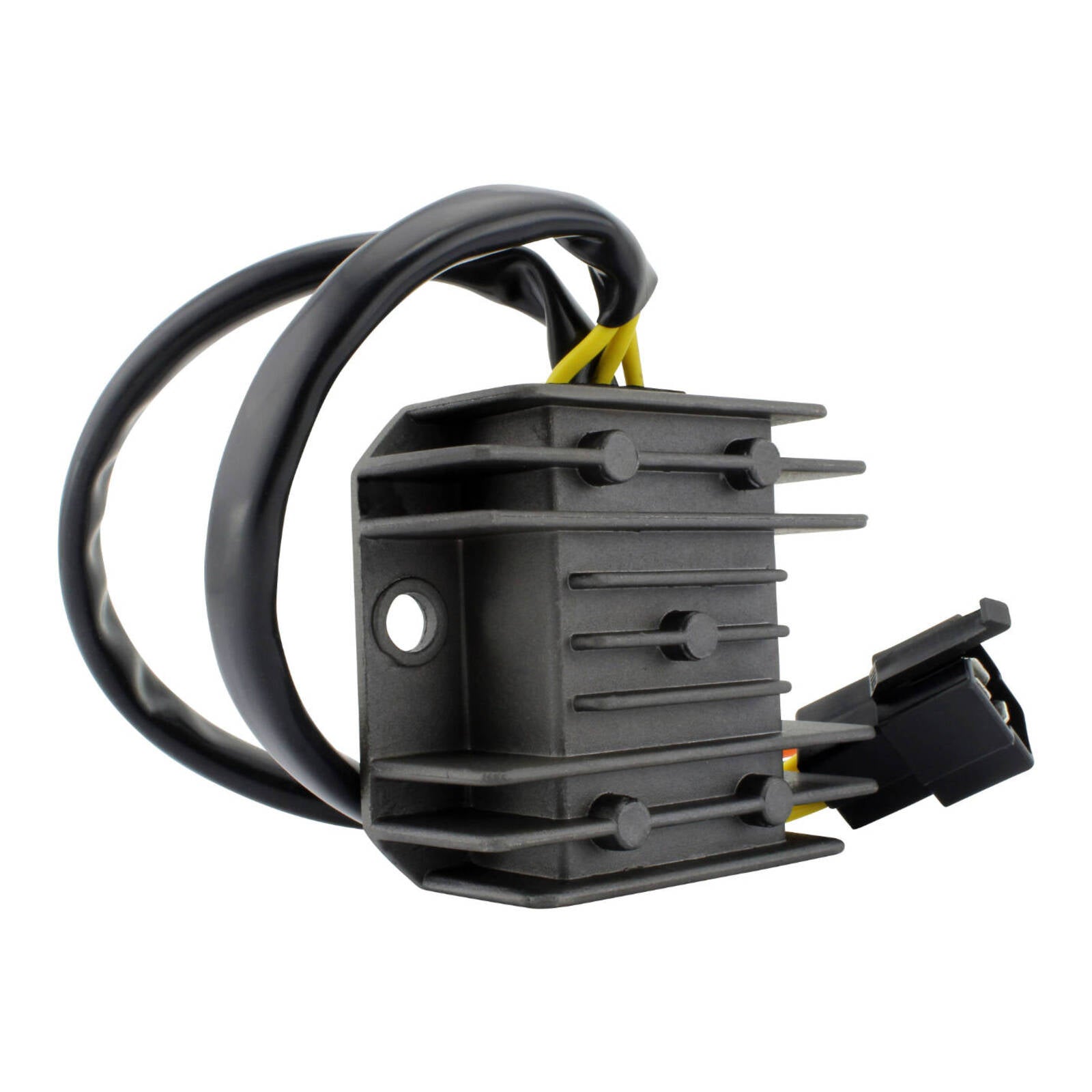

Voltage Regulator - Suzuki DR-Z
Regular price
$219.99
Product Details
- Type Regulator / Rectifiers
- Vendor RMSTATOR
- SKU RMS020107313

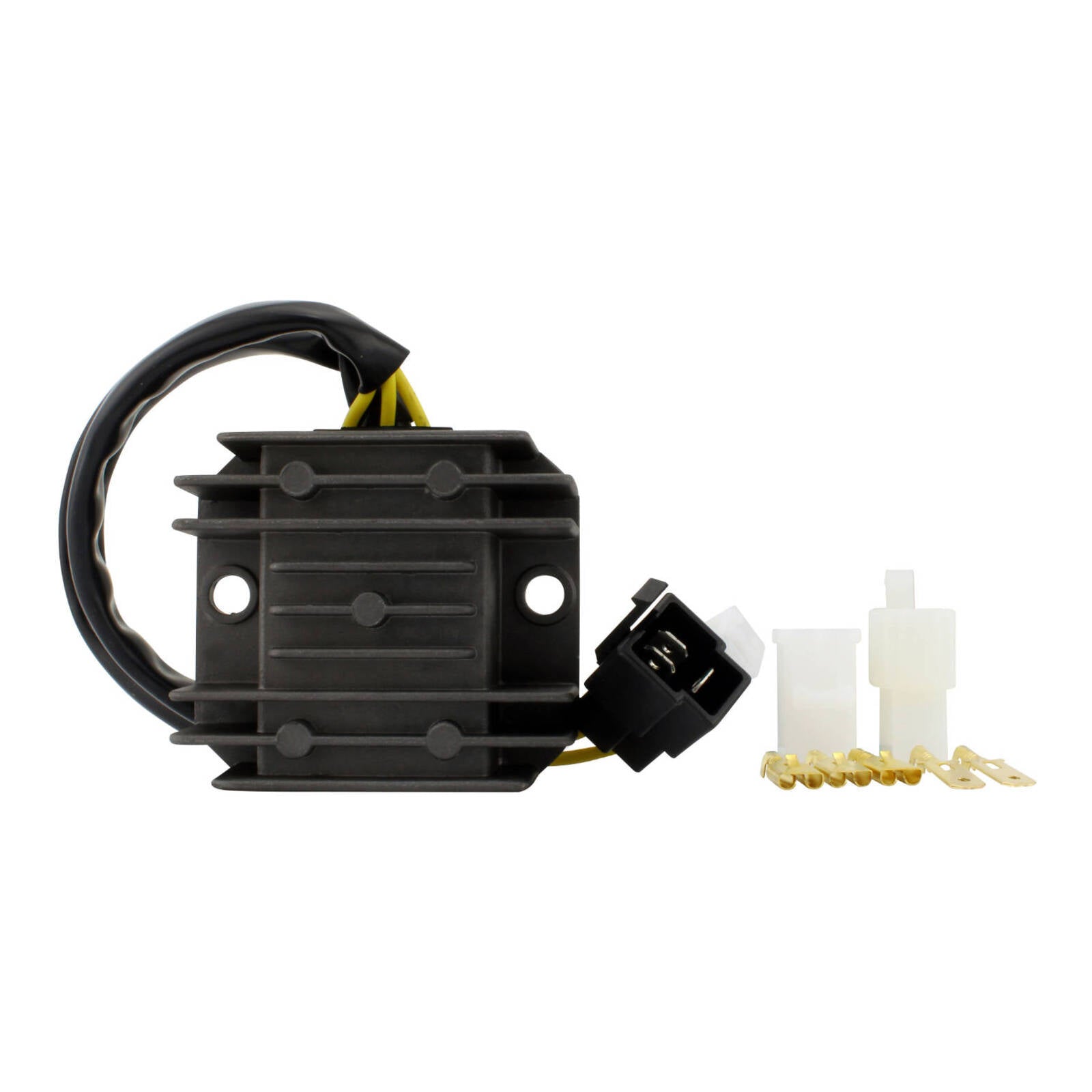

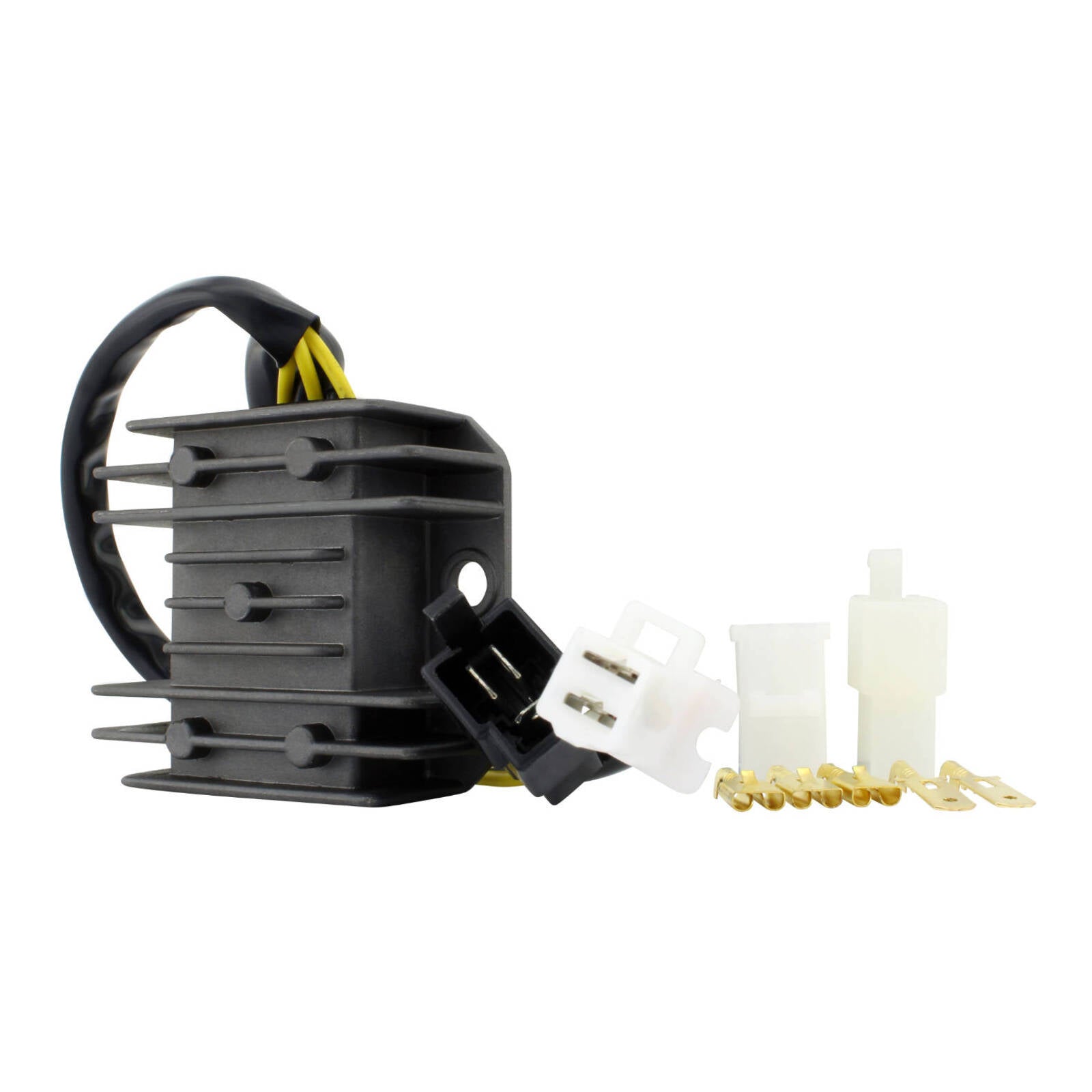

Brand new aftermarket Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested

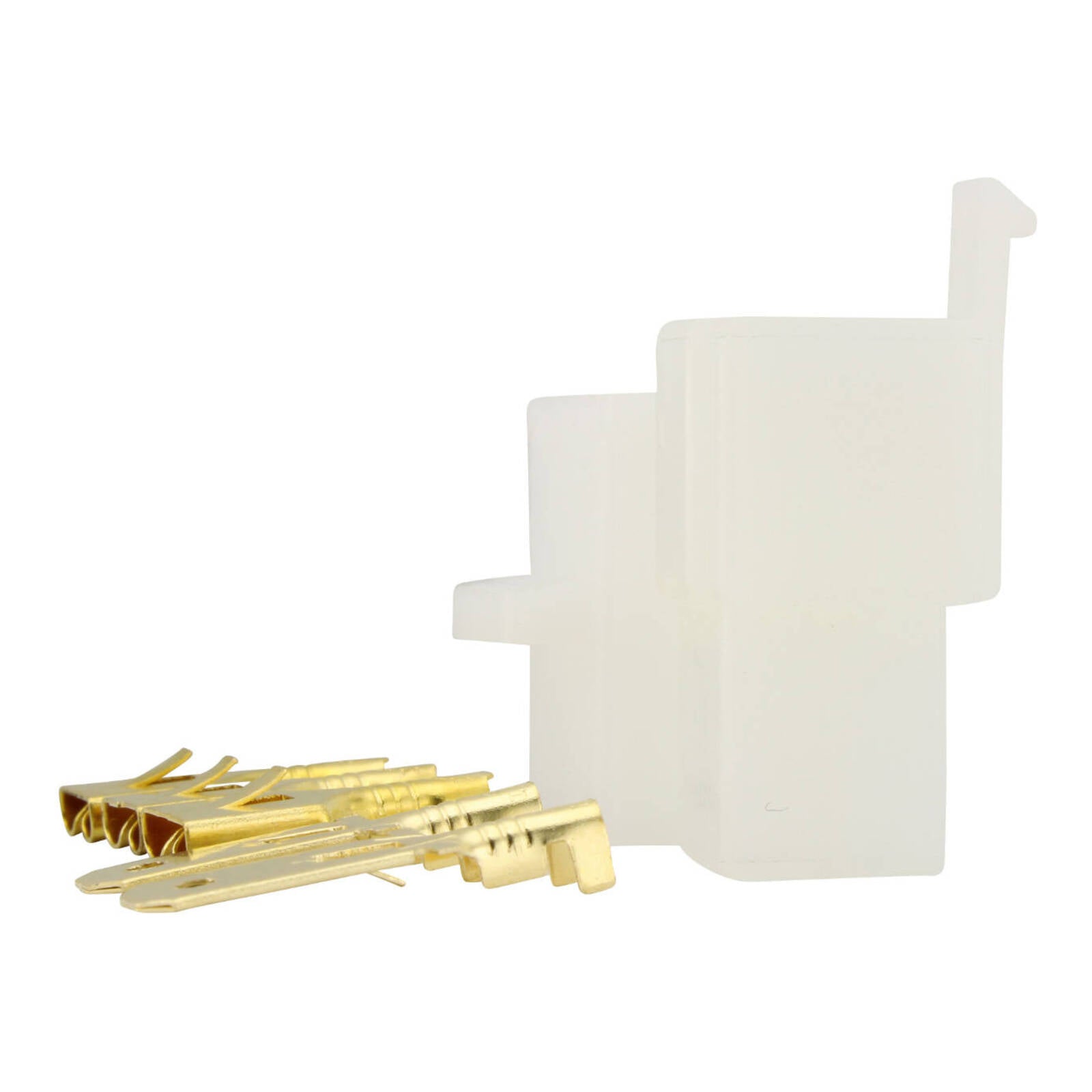

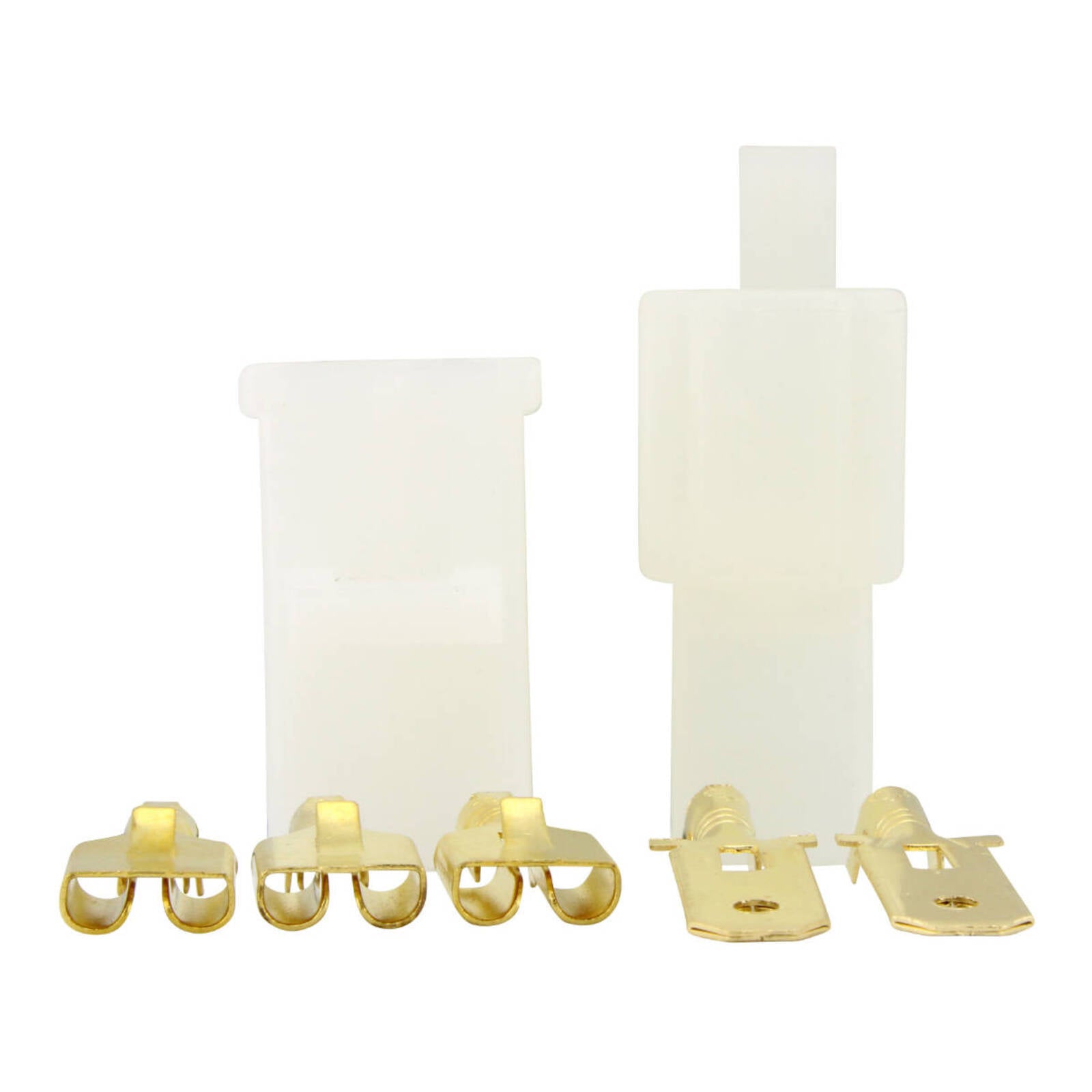

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.
Specifications:
Dimensions: p>
- Width: 53 mm
- Length: 70 mm
- Height: 23 mm
- Stator Wire length: 210 mm
- Battery Wire length: 250 mm
- Distance between fixation holes center to center: 55 mm
Other specifications:

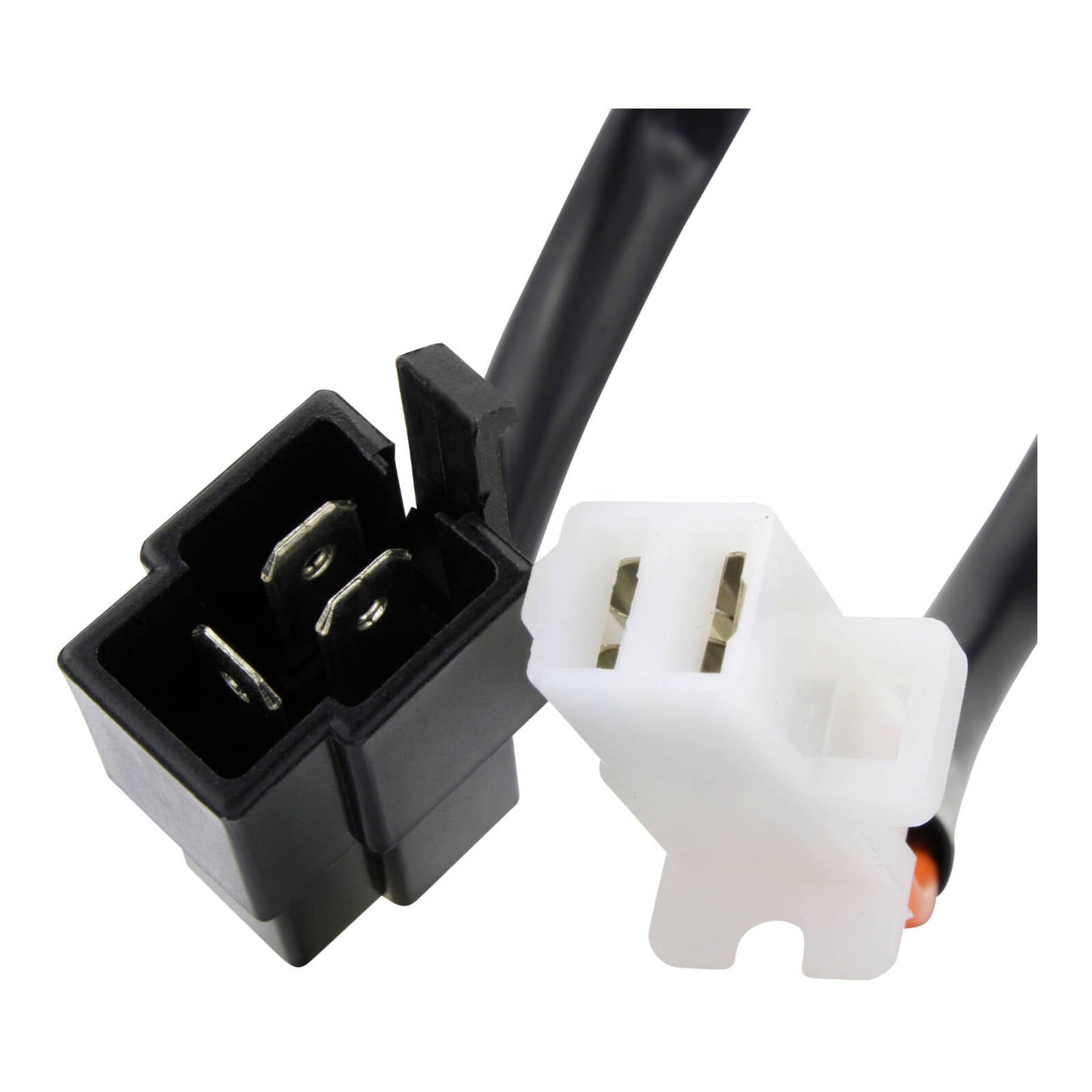

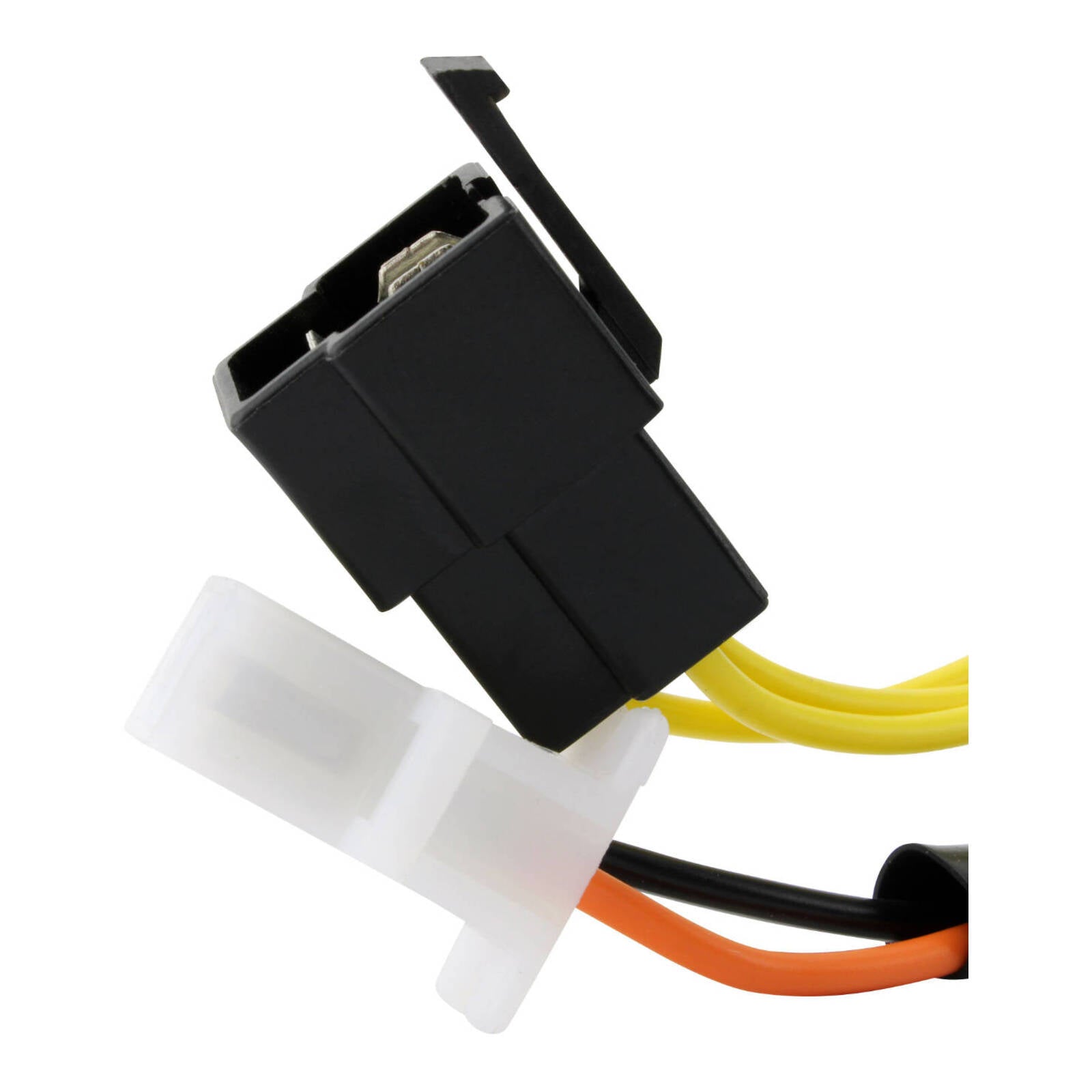

- Number of plugs: 2
- Number of pins: 5
- Number of wires: 5
- Minimum Charging Voltage: 14.5 V +- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
