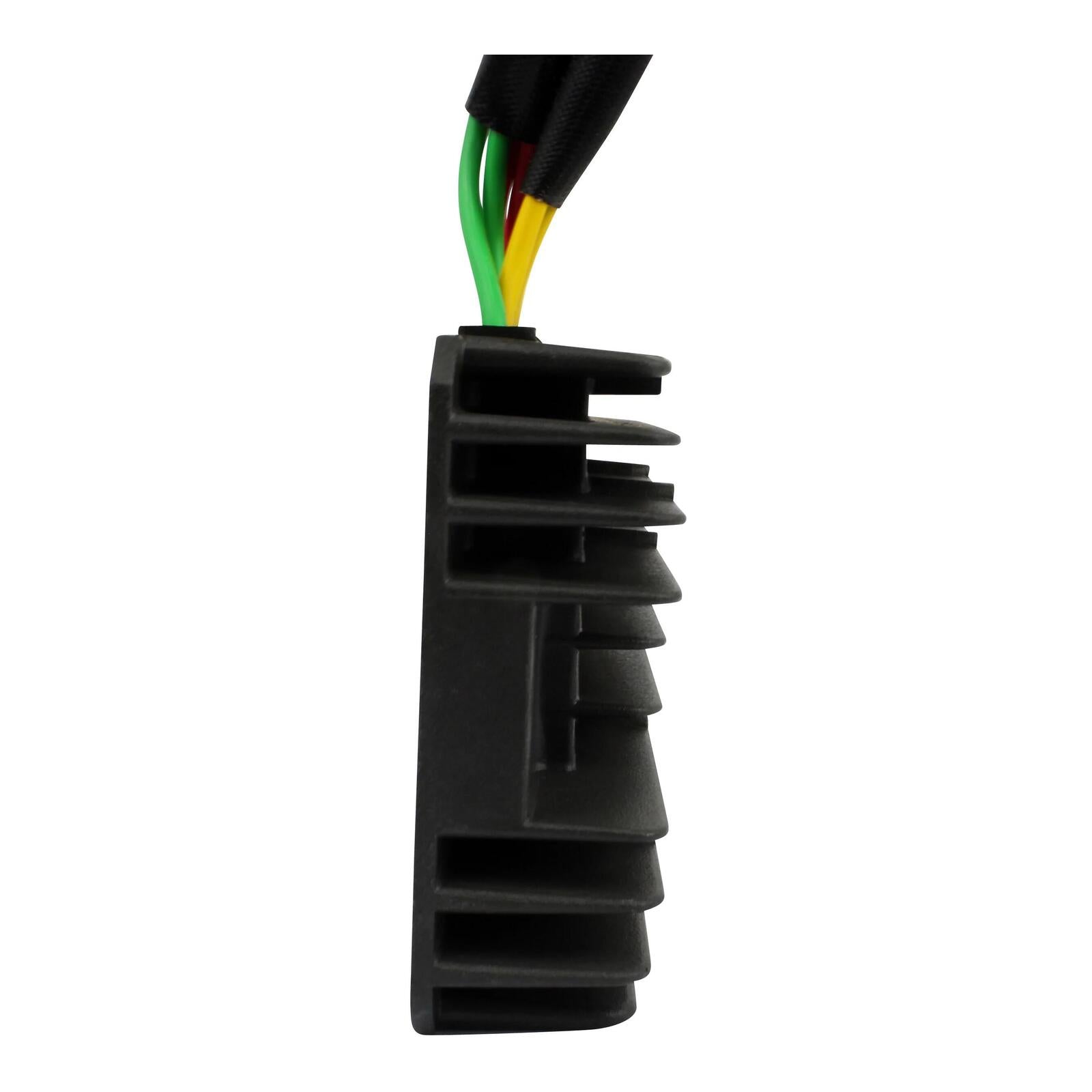

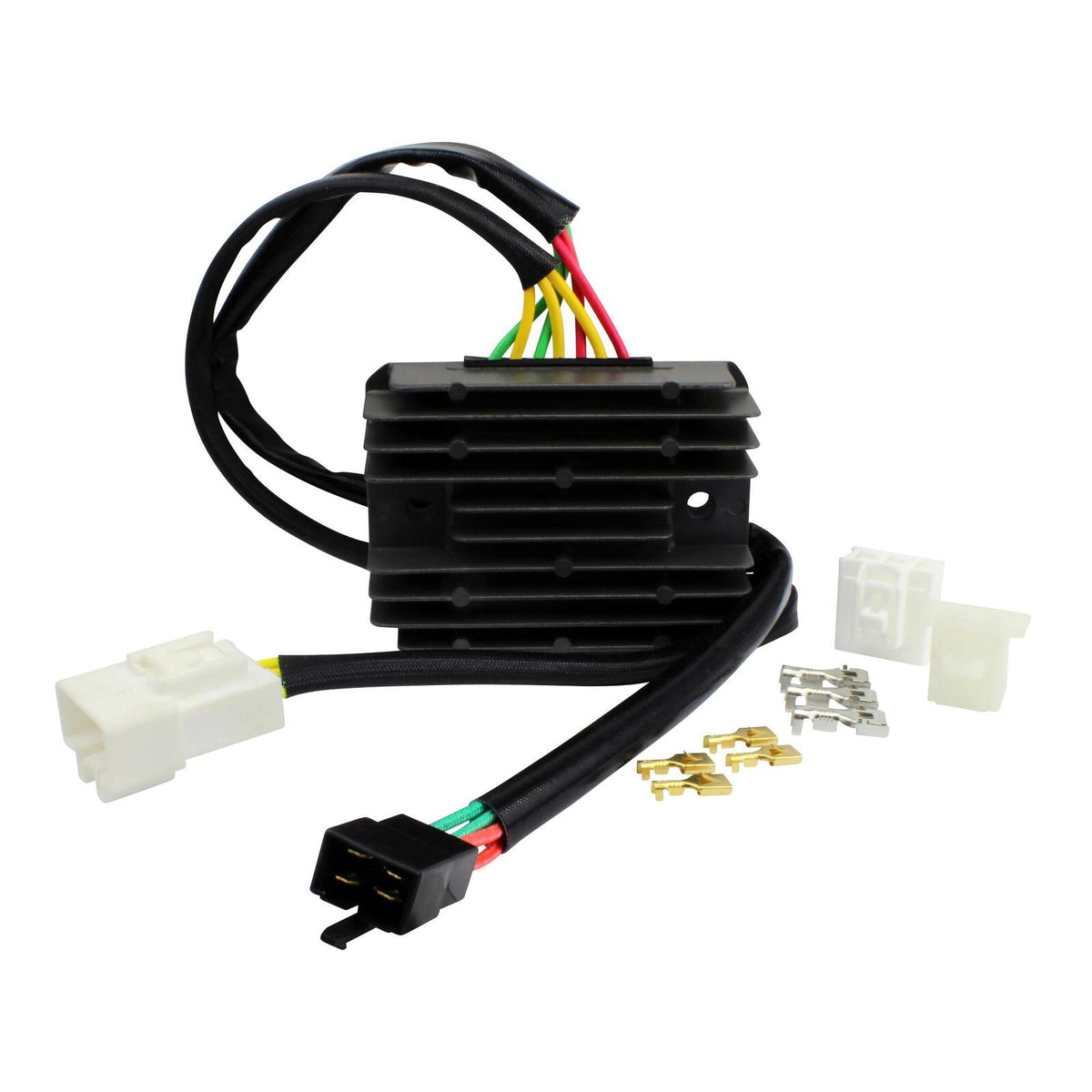

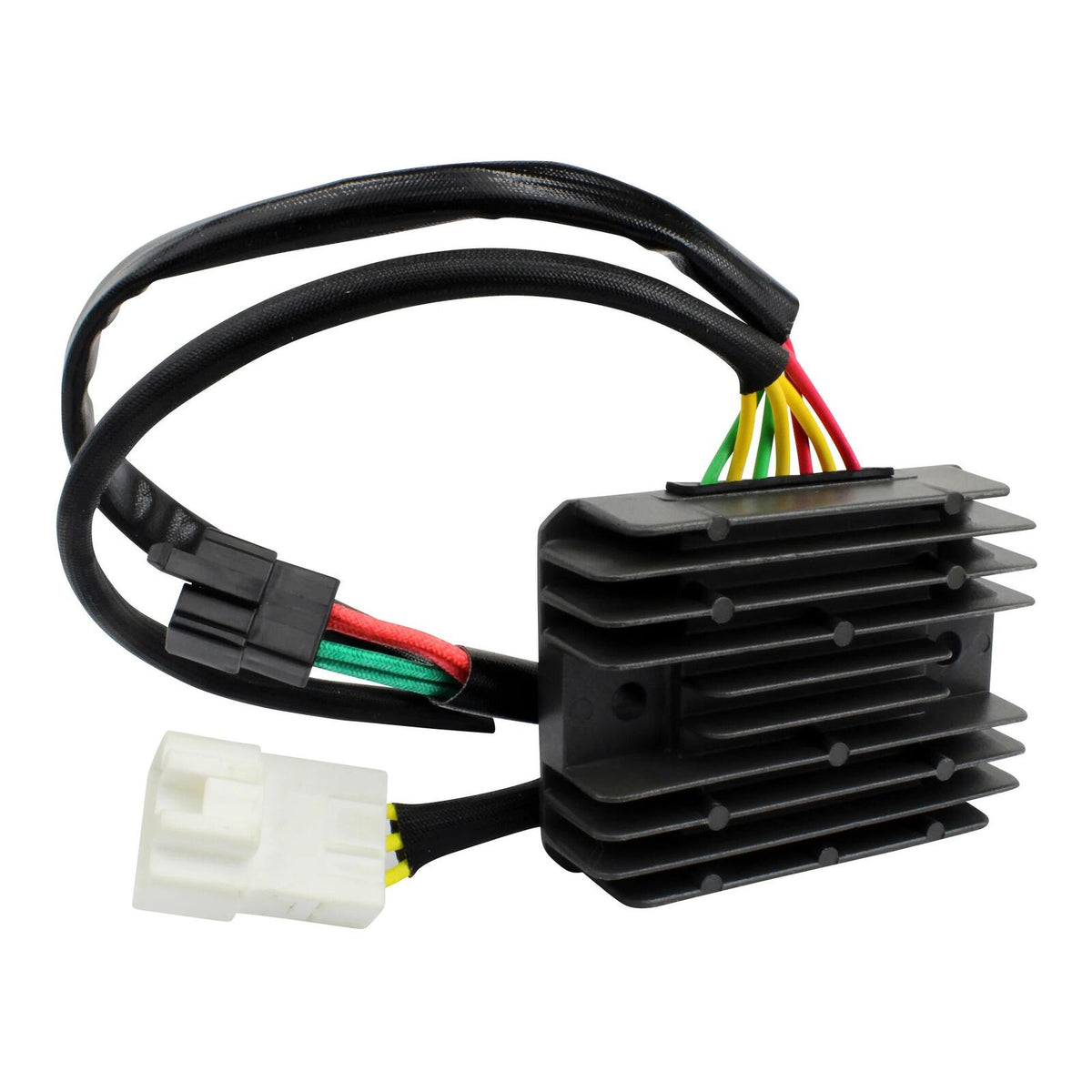

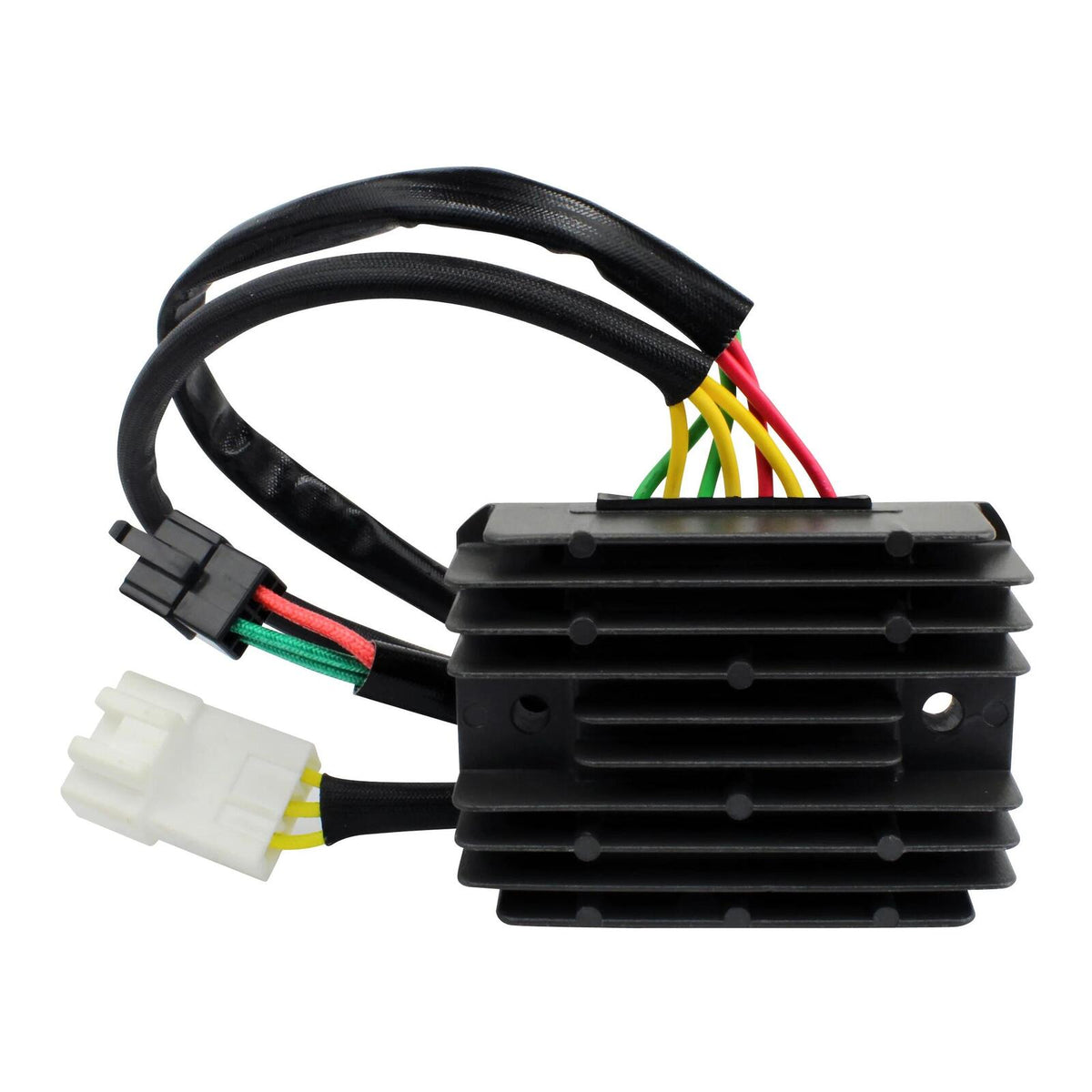

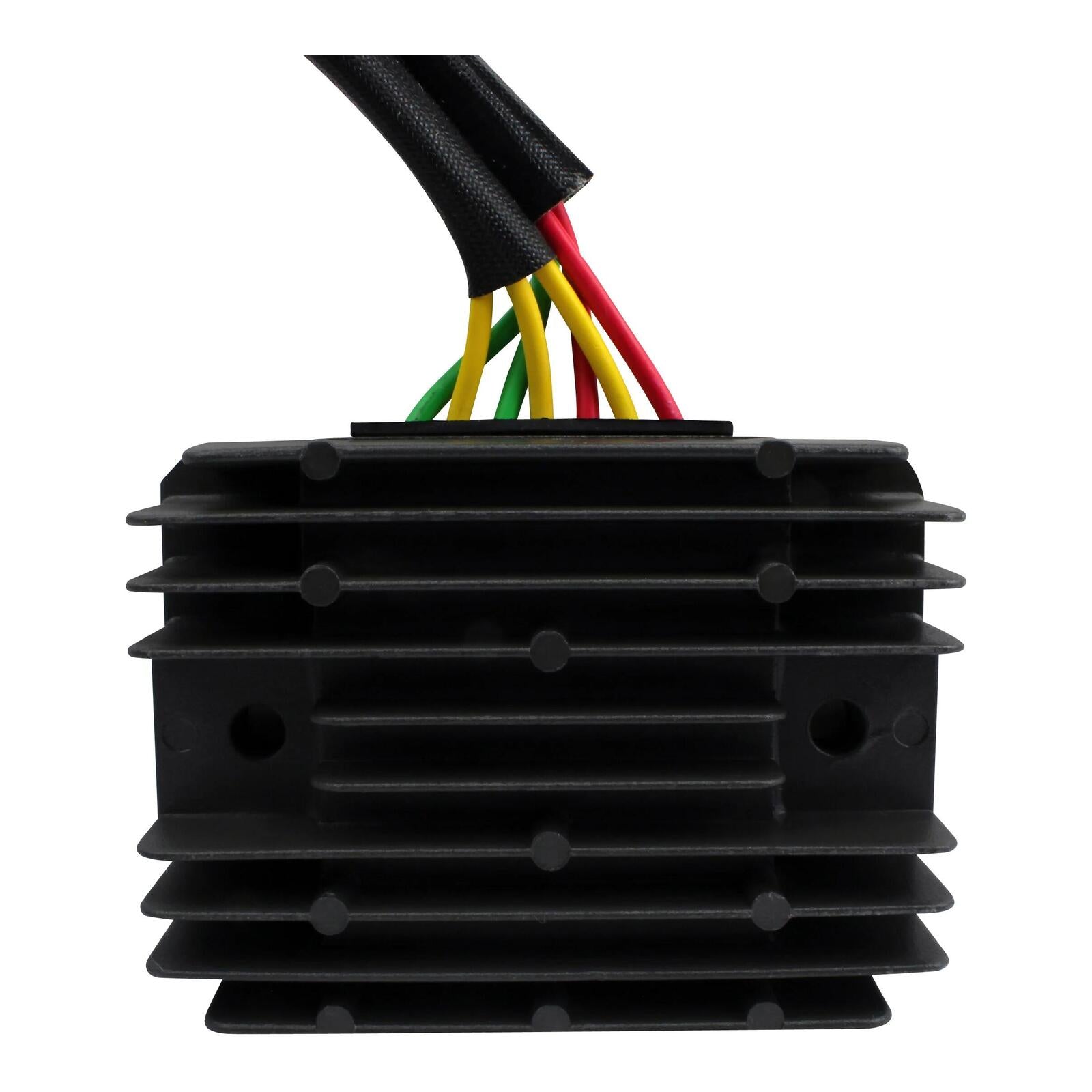

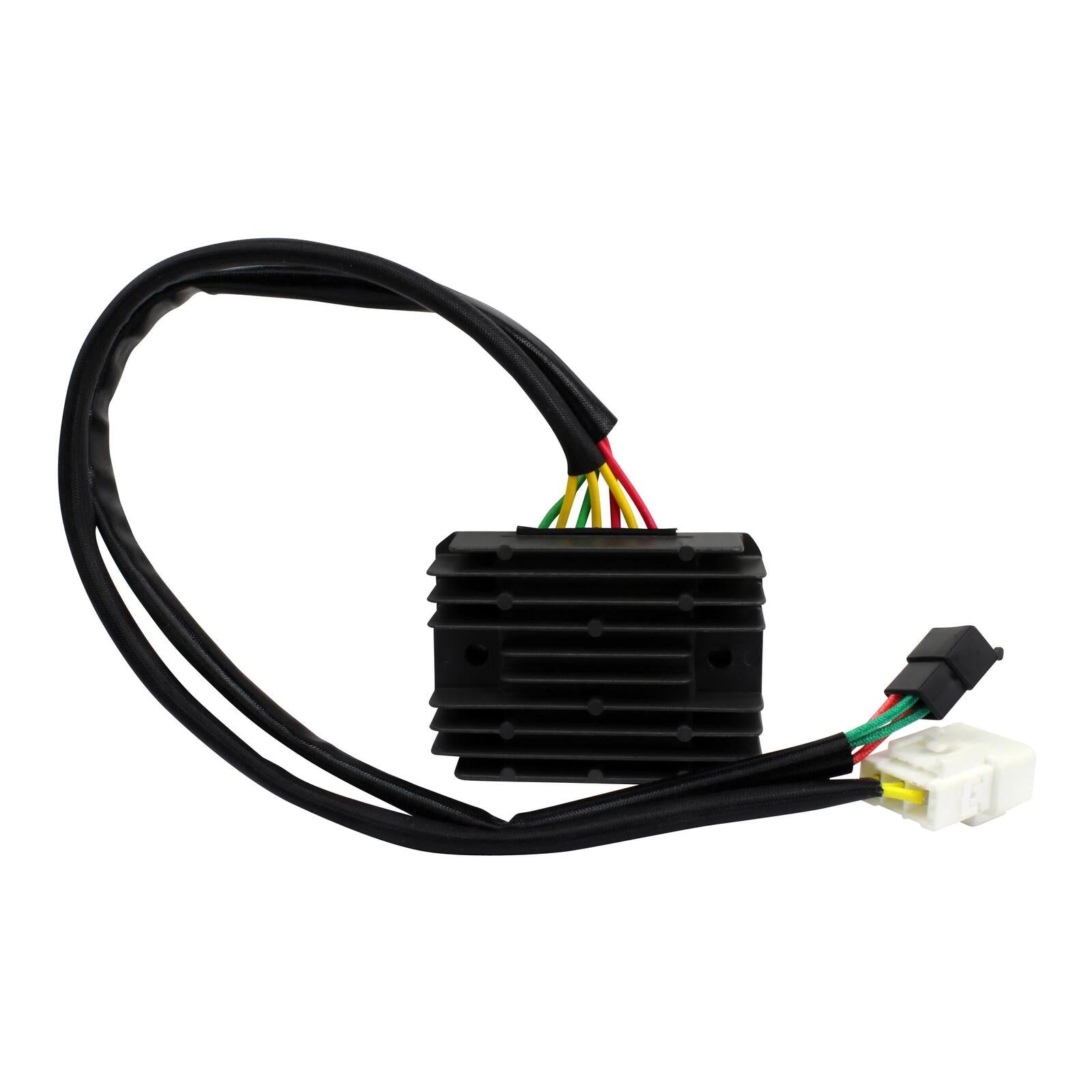

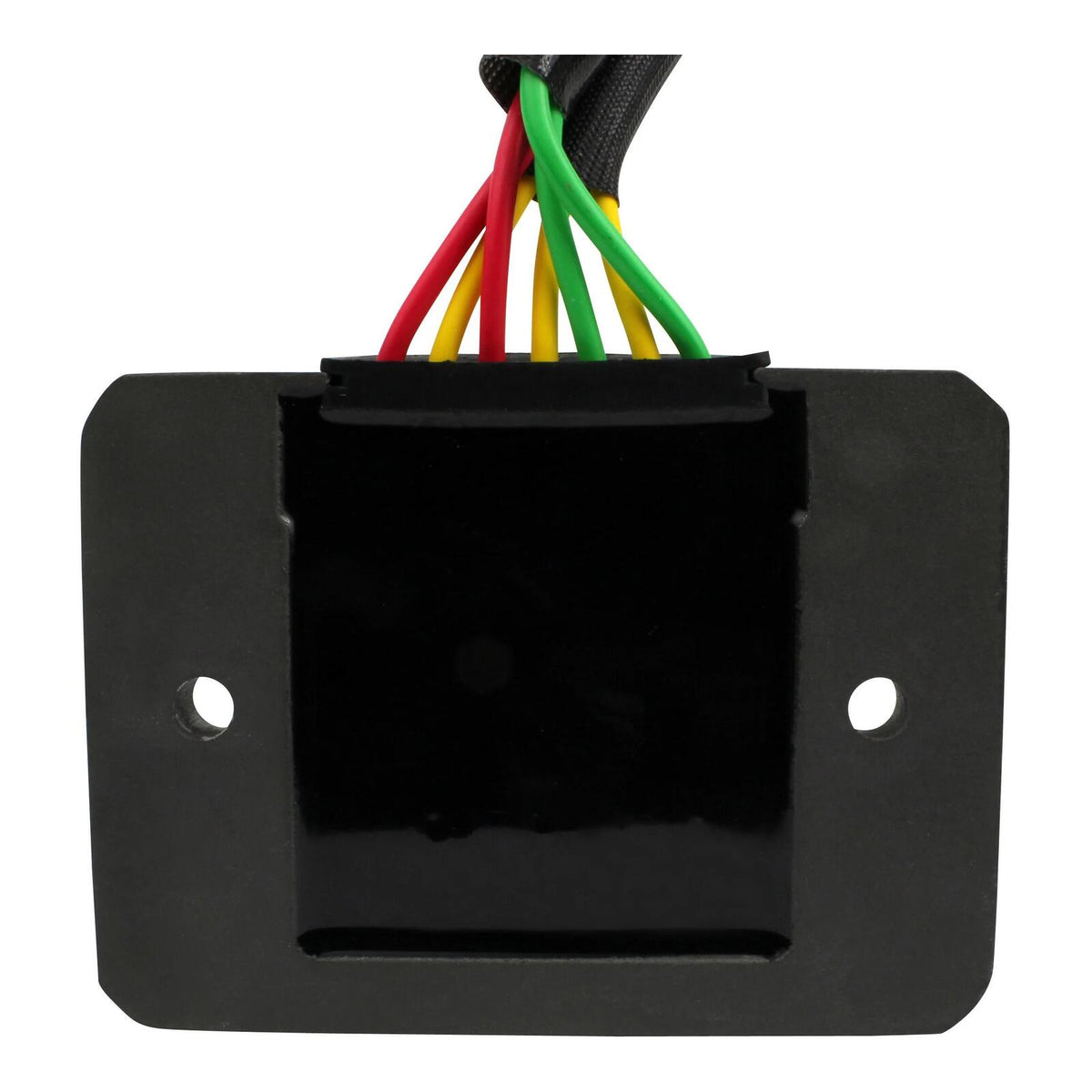

RM Stator Voltage Regulator Aprilia Piaggio Models
Regular price
$139.99
Product Details
- Type Regulator / Rectifiers
- Vendor RMSTATOR
- SKU RMS020108440
Direct replacement to your original unit.
Features:
- Plug-and-play, direct fit, easy installation.
- No assembly required.
- Higher grade of electric components.
- Improved heat sink and charging capabilities.
- The quality exceeds the OEM equipment.
- All products shipped are tested.
Specifications:
- Width: 79 mm
- Length: 109 mm
- Height: 28 mm
- Wire Length: 540 mm
- Mounting Hole Centre-to-Centre Distance: 80 mm

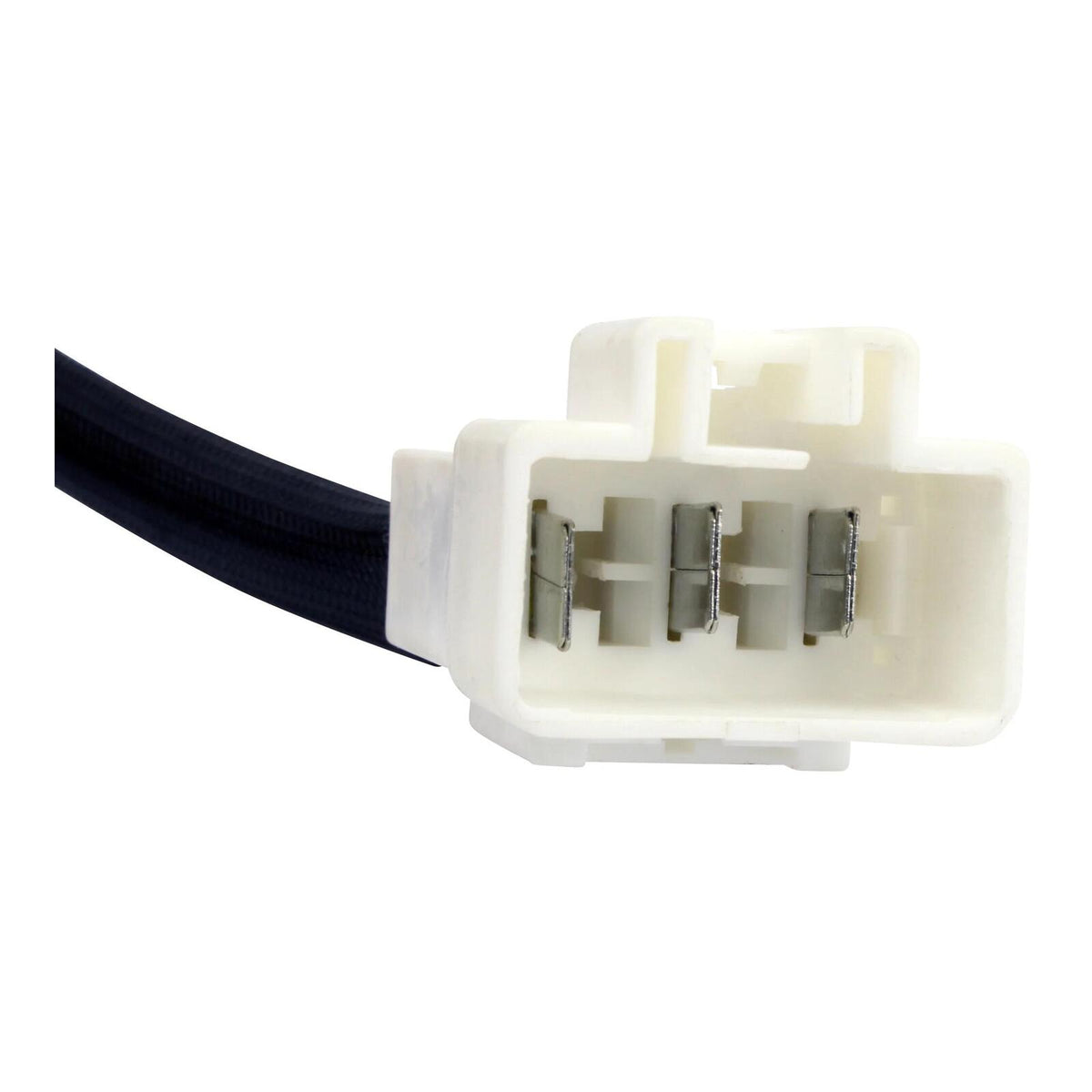

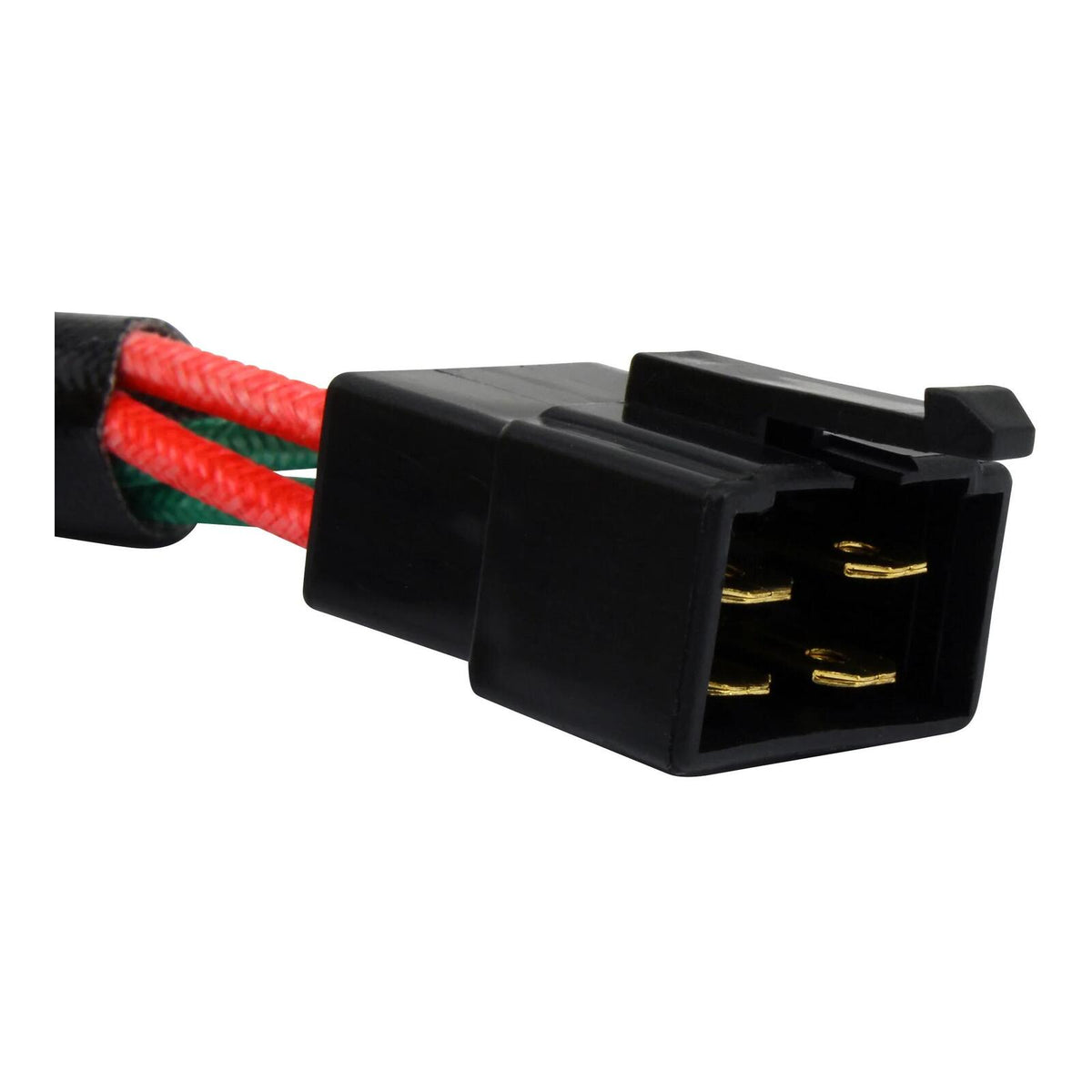

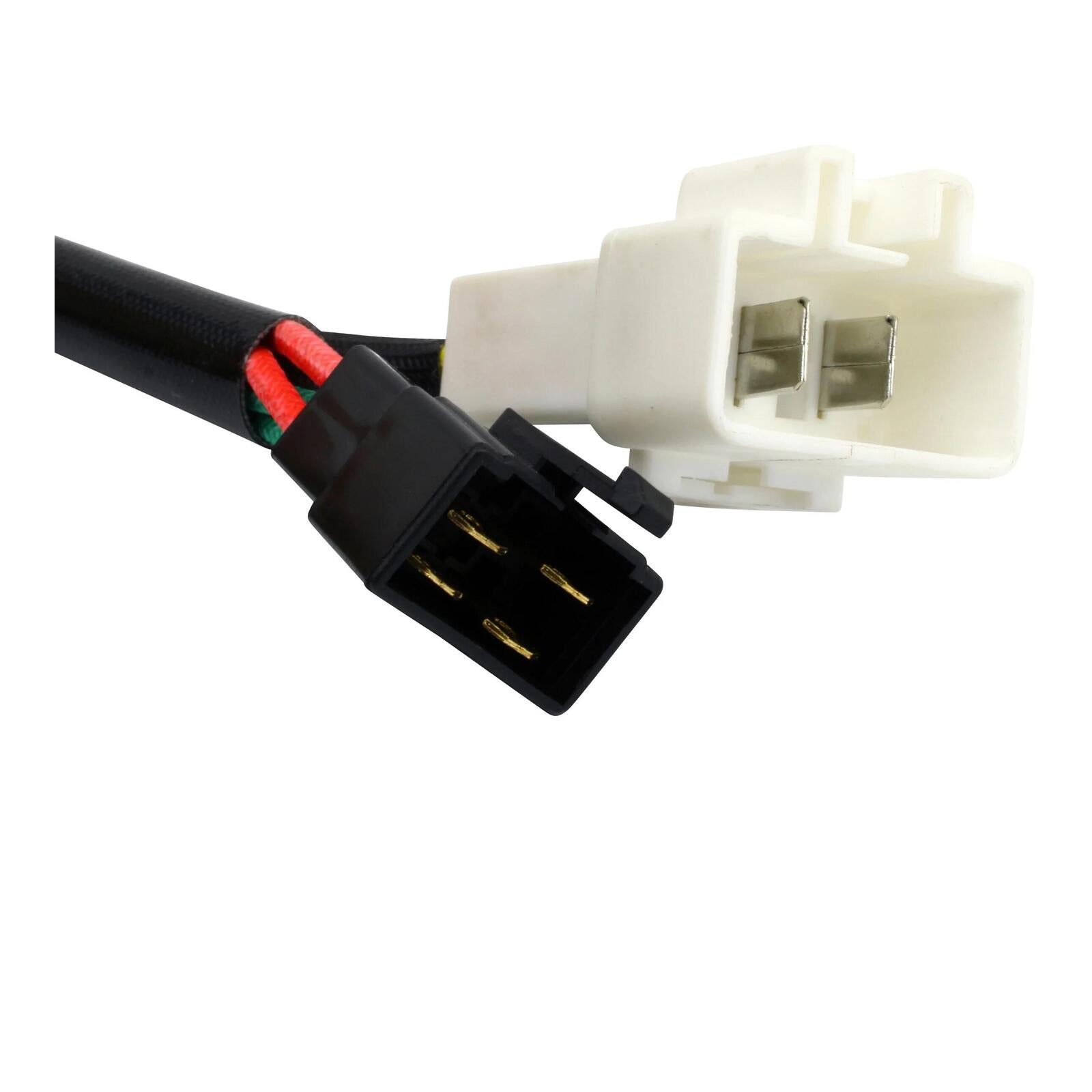

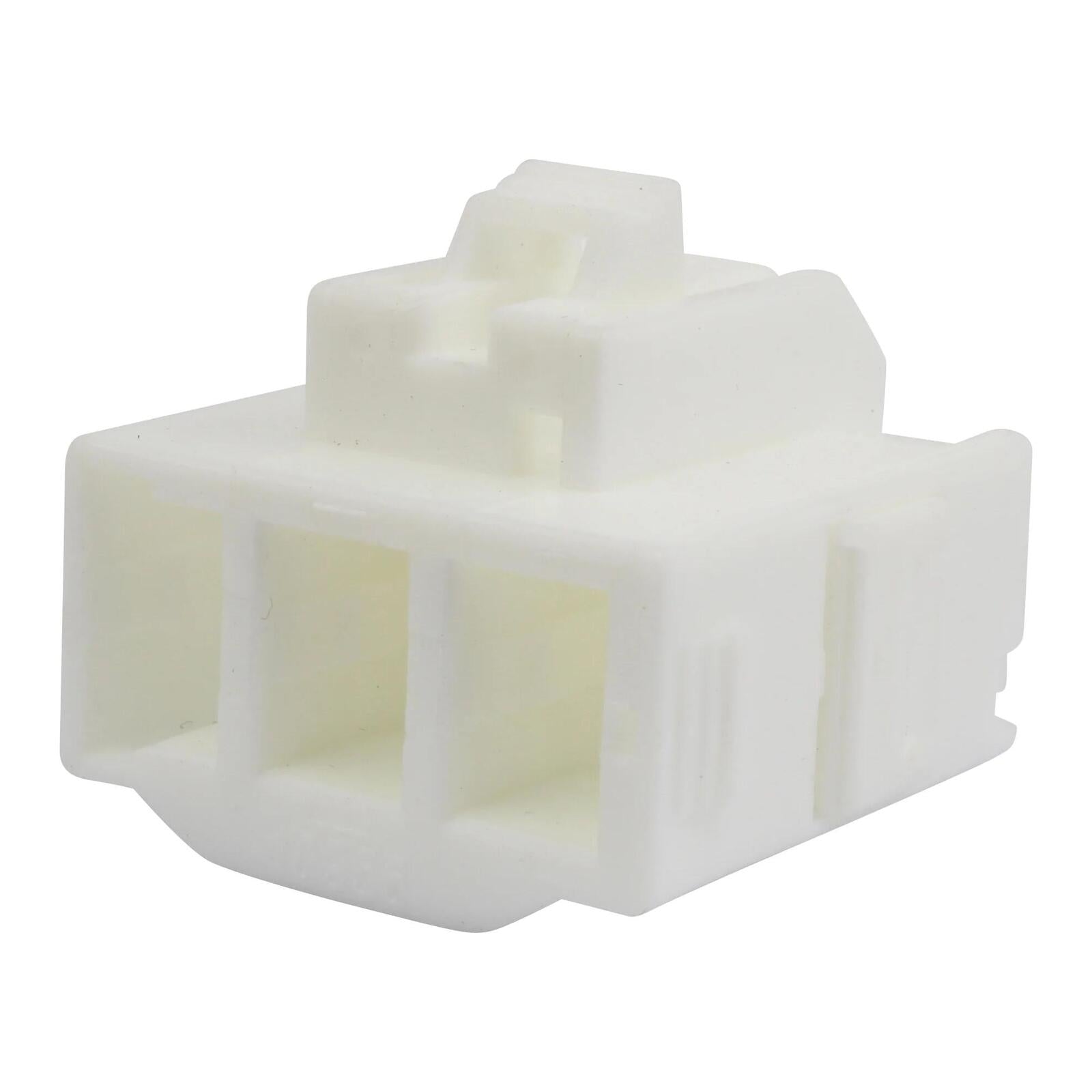

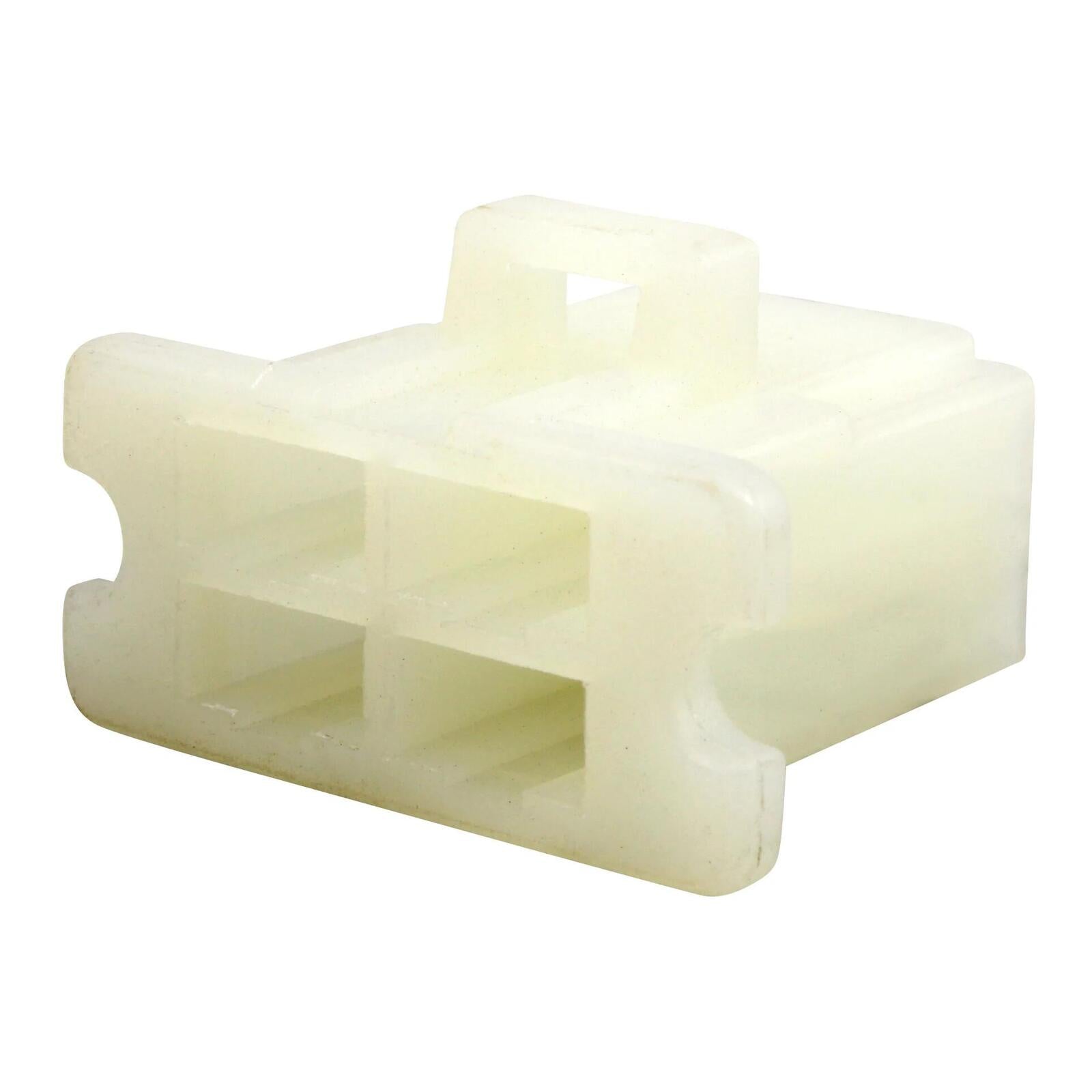

- Number of Plugs: 2
- Number of Pins: 7
- Number of Wires: 7
- Minimum Charging Voltage: 14.5 V ± 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operating Temperature: -20°C to 85°C
