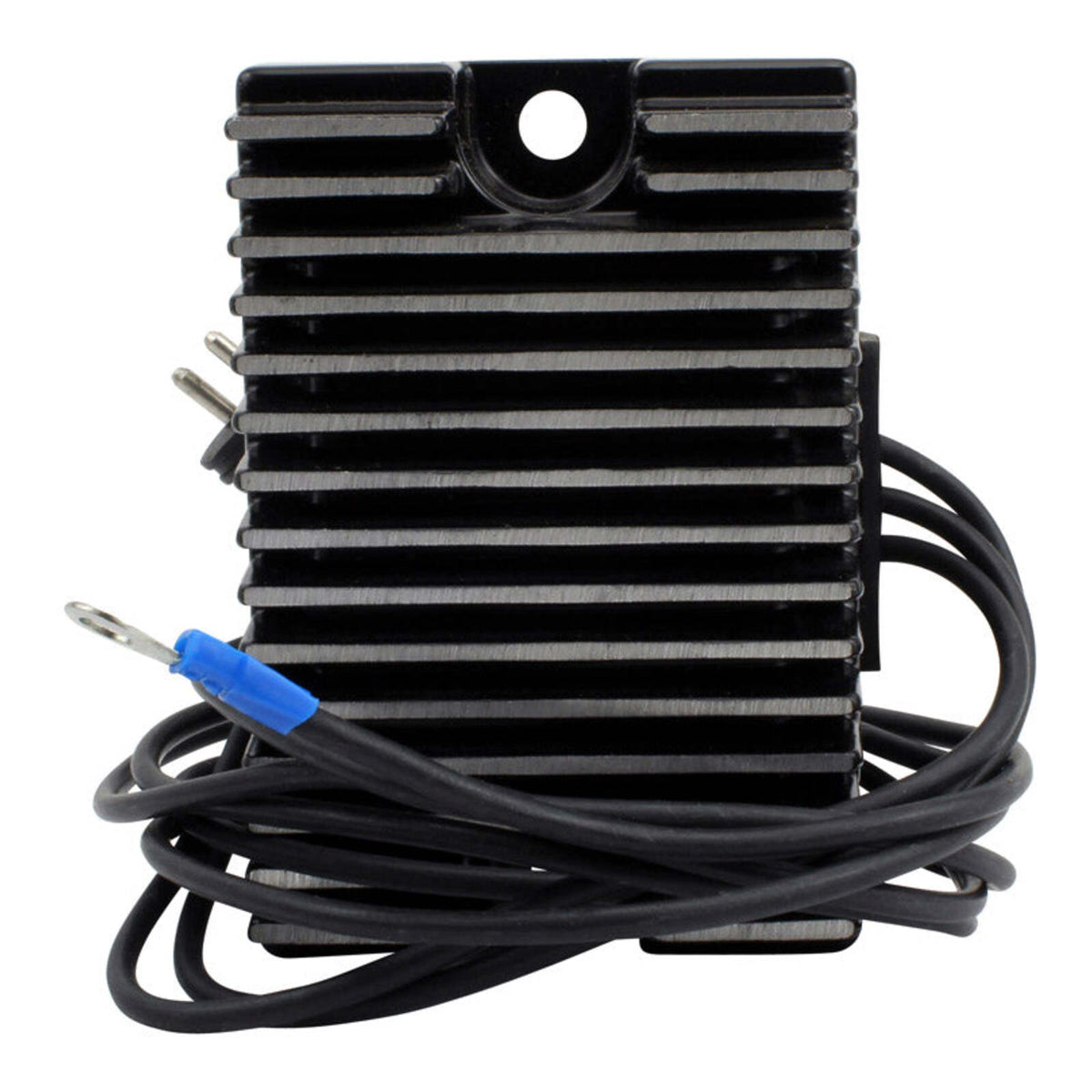

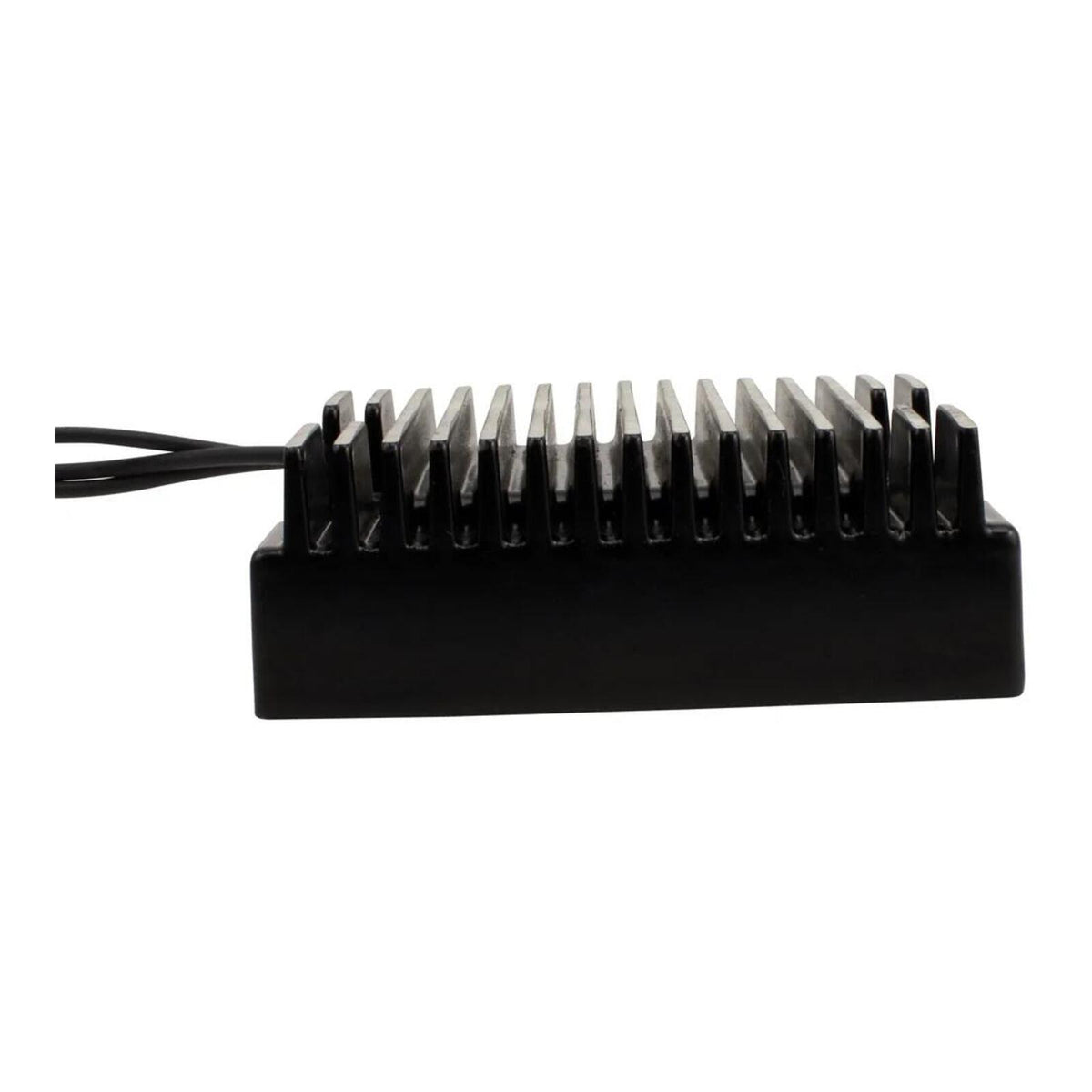

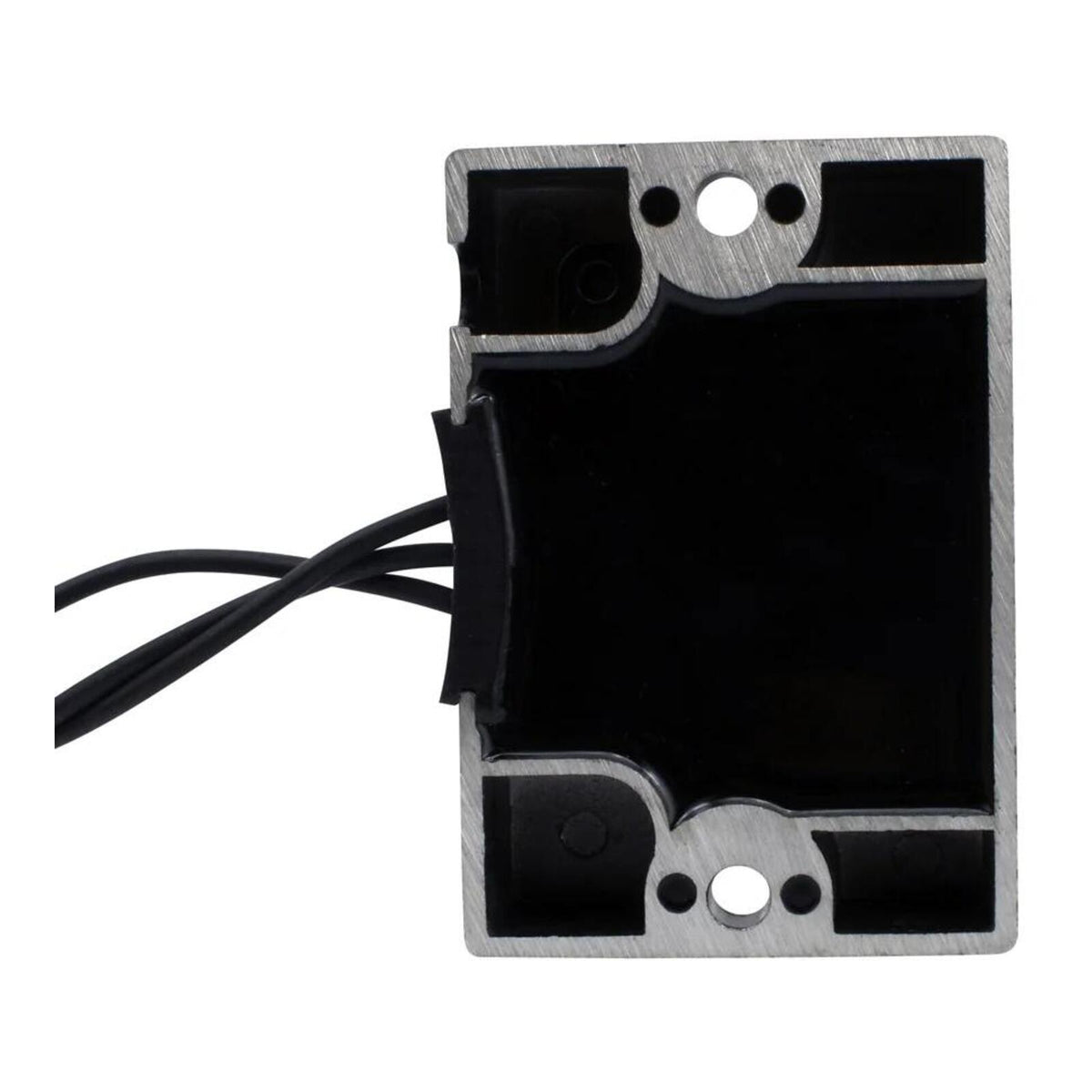

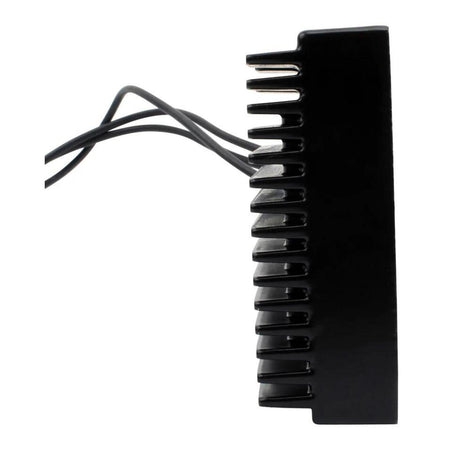

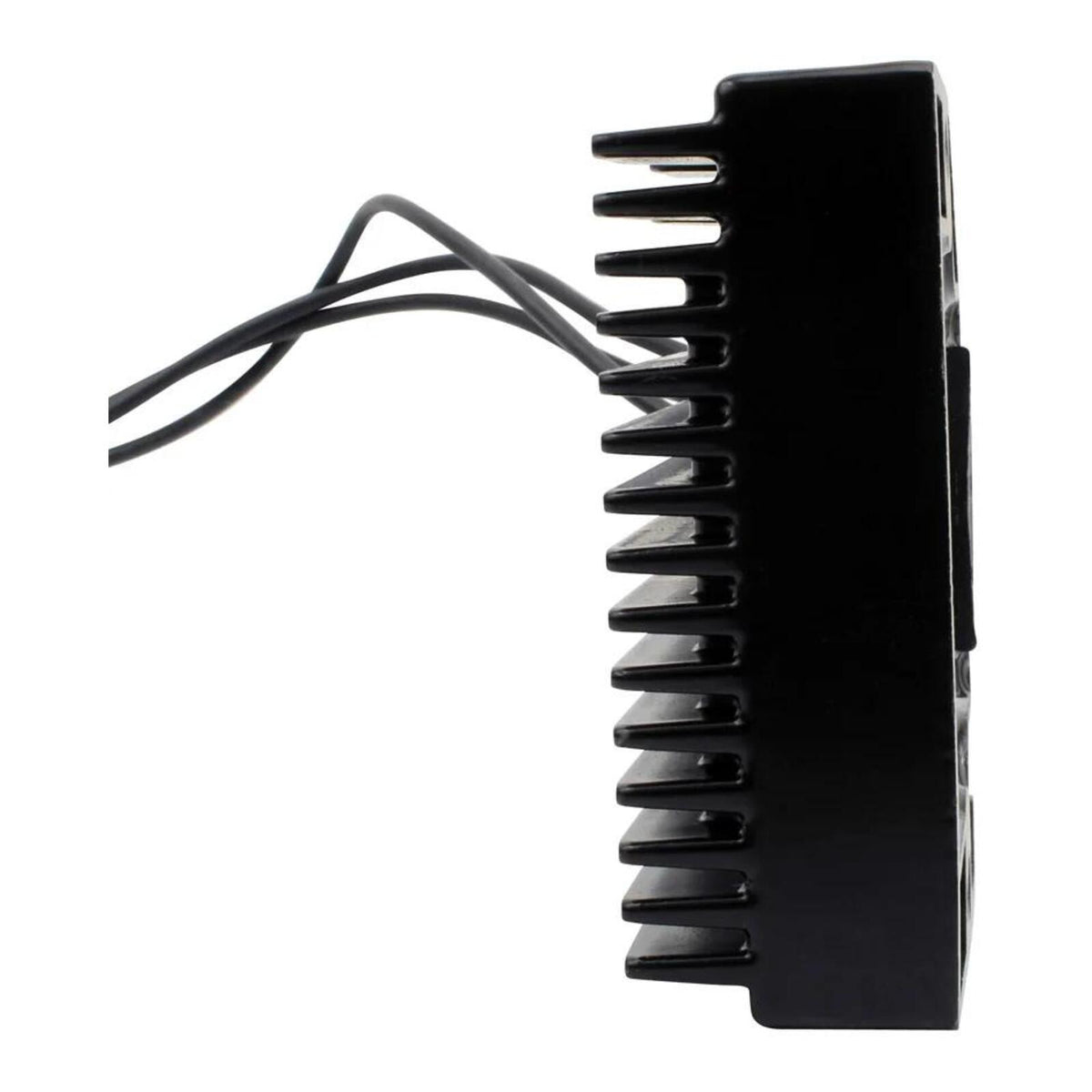

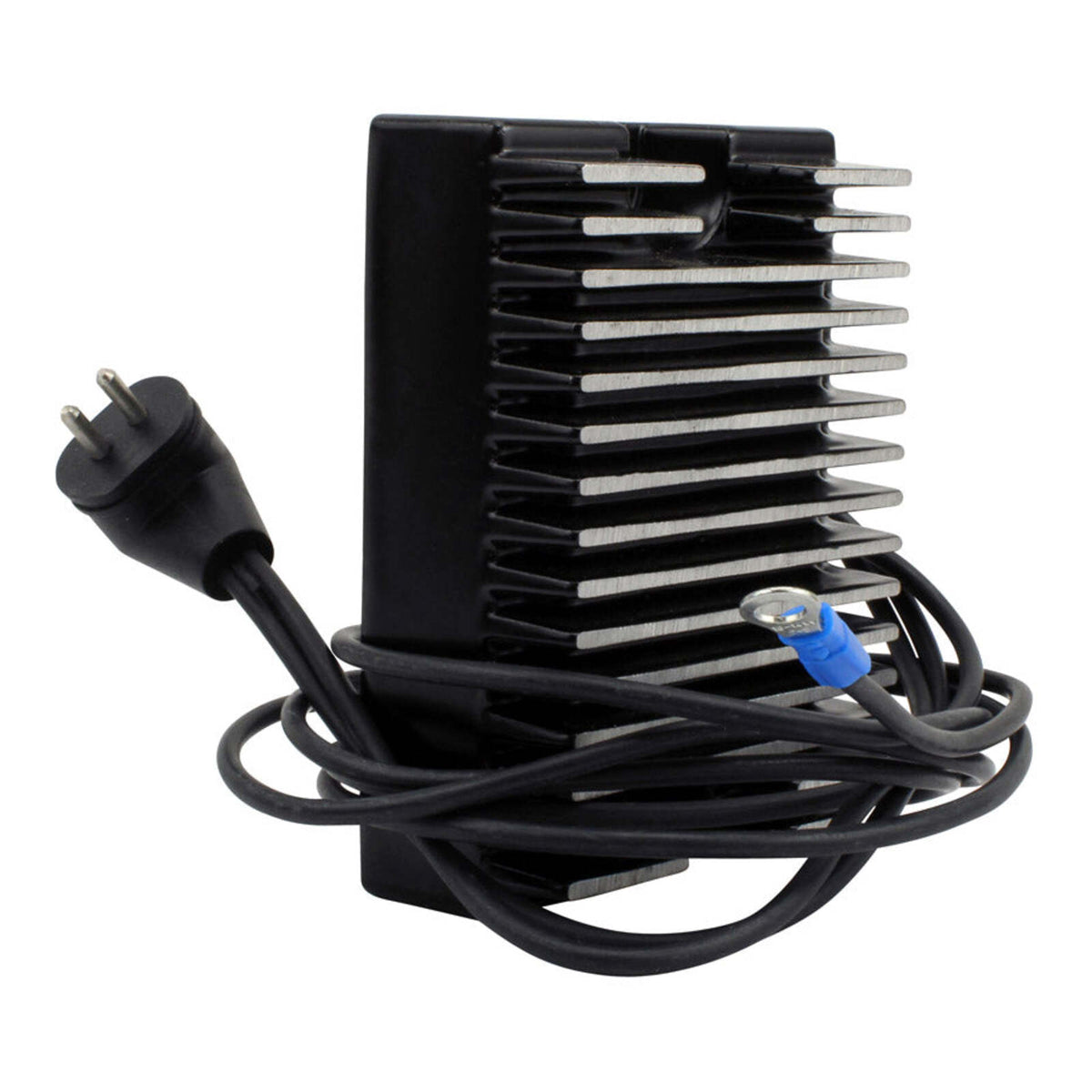

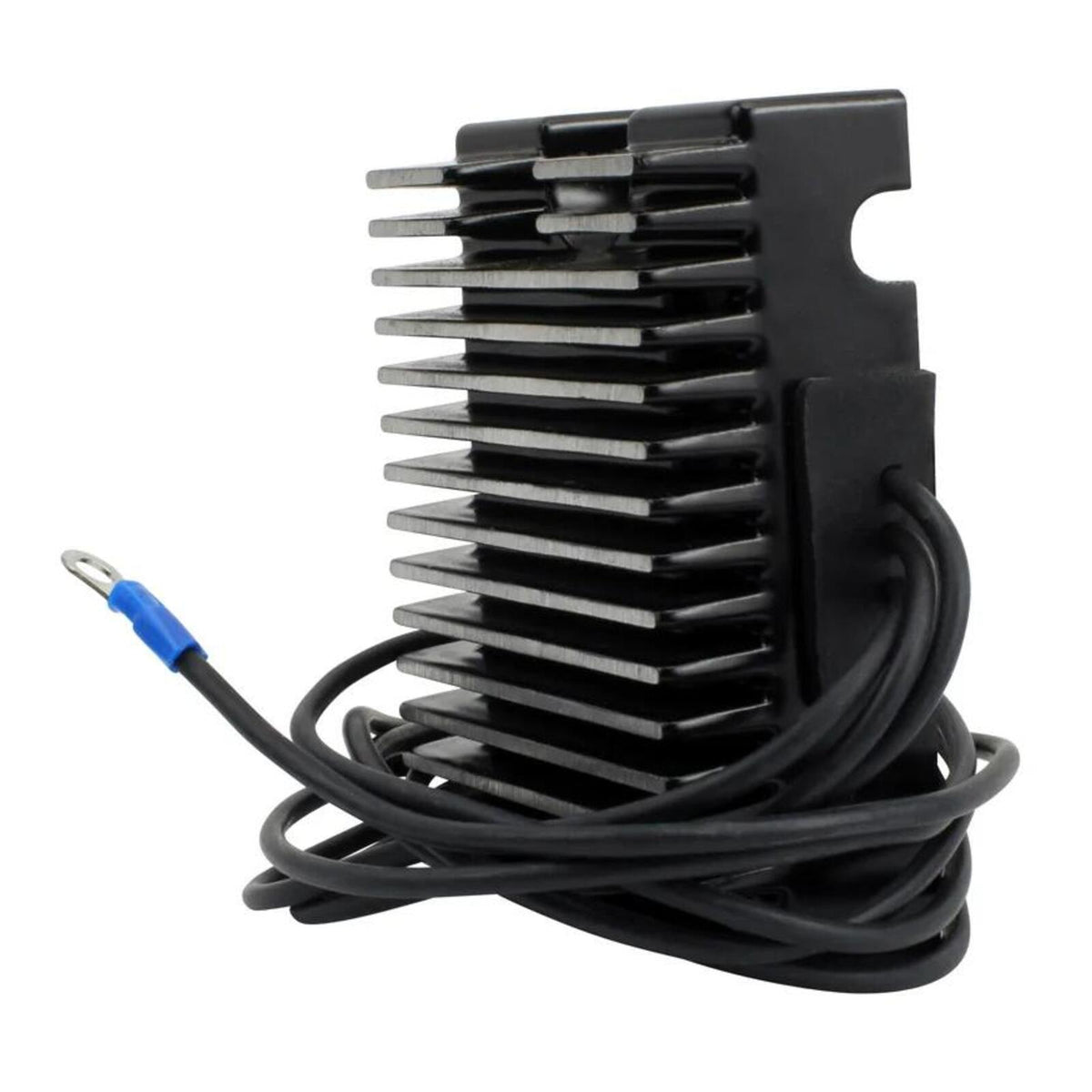

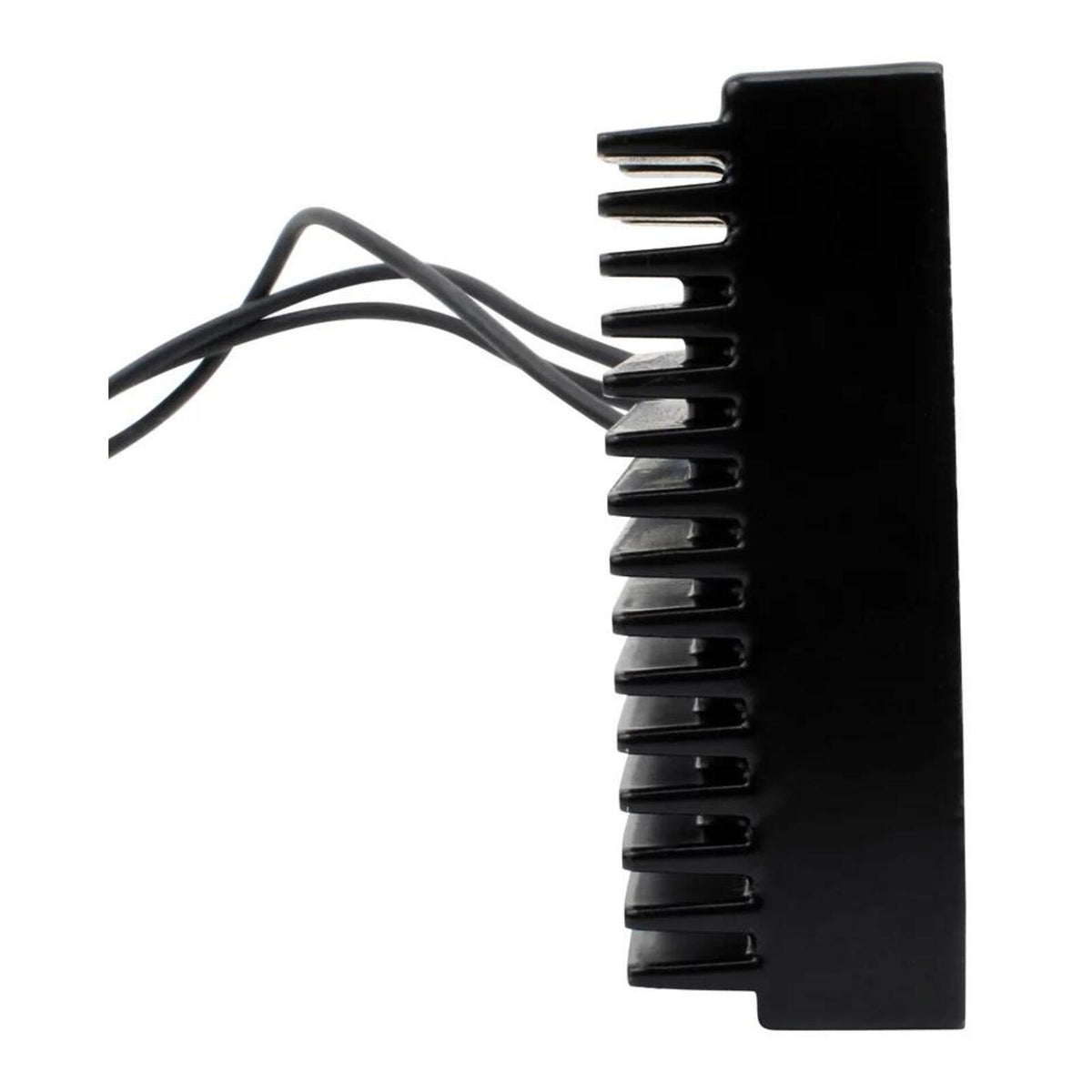

MOSFET Regulator Rectifier - Assorted Harley-Davidson Models (RMS021-108810)

Brand new Mosfet voltage rectifier regulator. It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection; rather than burn up it will simply turn off for a while and cool off.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• The quality exceeds the OEM equipment.
• Higher grade of electric components.
• All shipped products are tested.

Specifications:

• Width: 66 mm
• Length: 97 mm
• Height: 35 mm

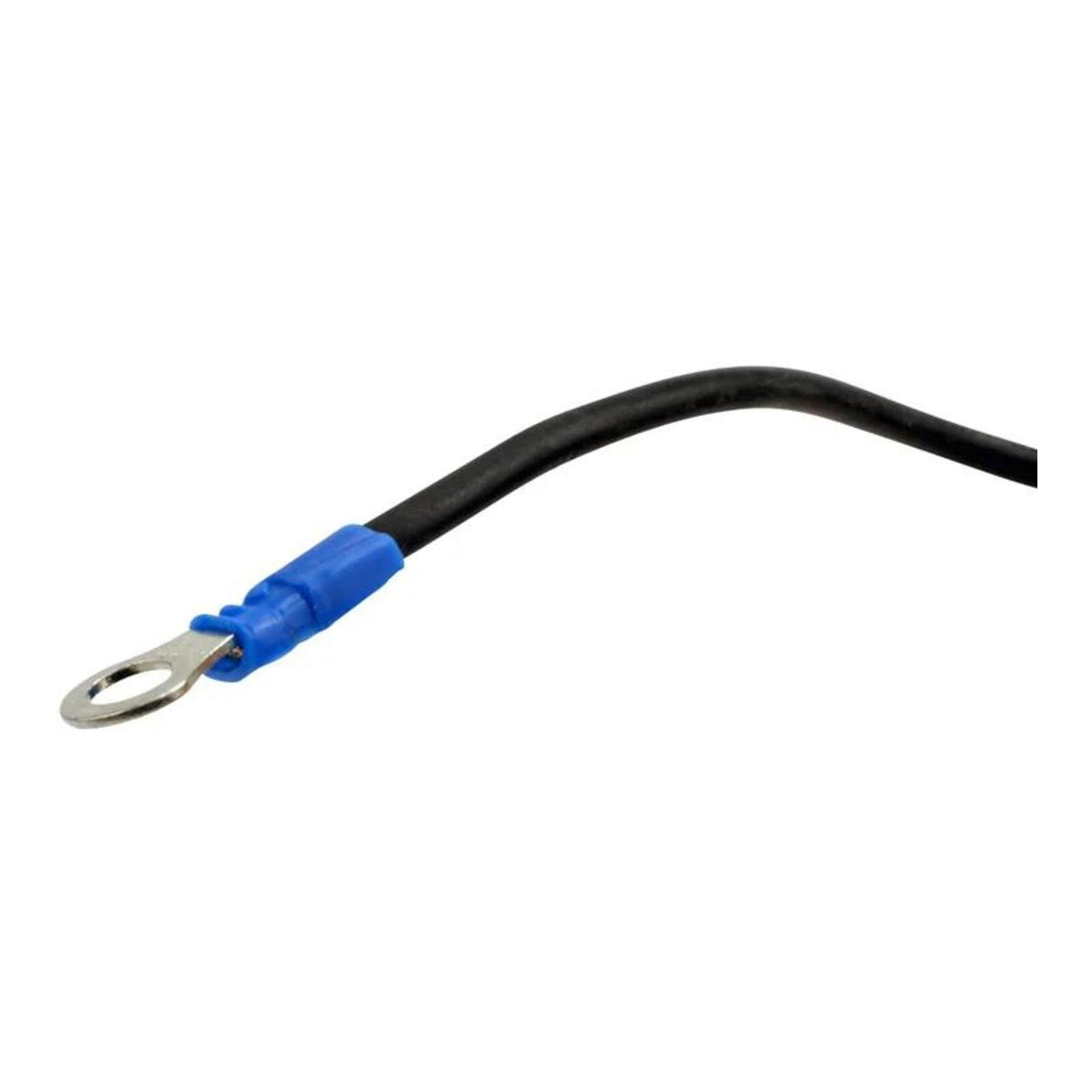

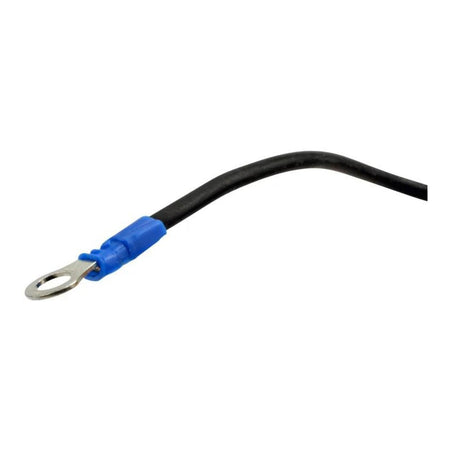

• Wire lengths: 220 mm and 1450 mm

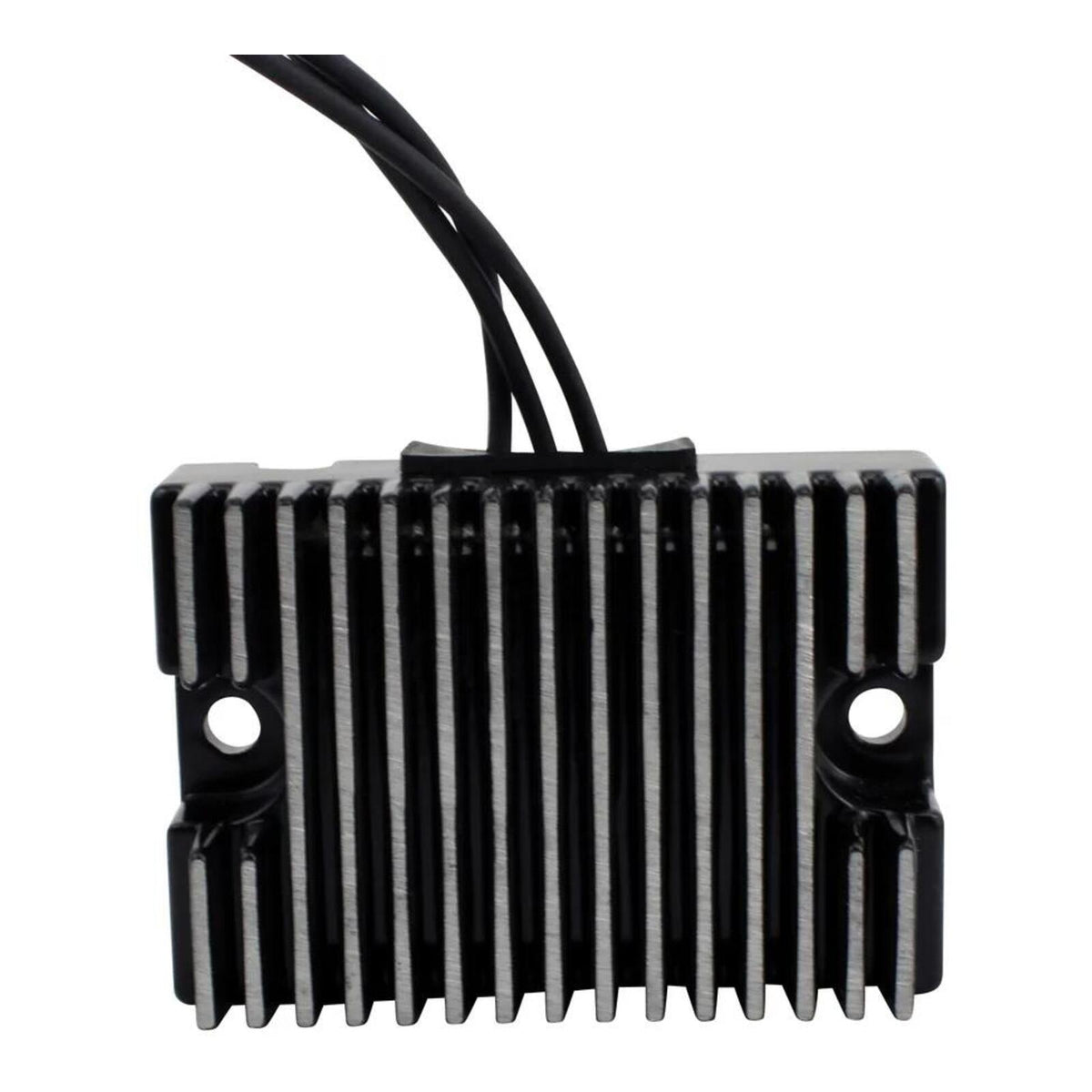

• Mounting hole centres: 82 mm

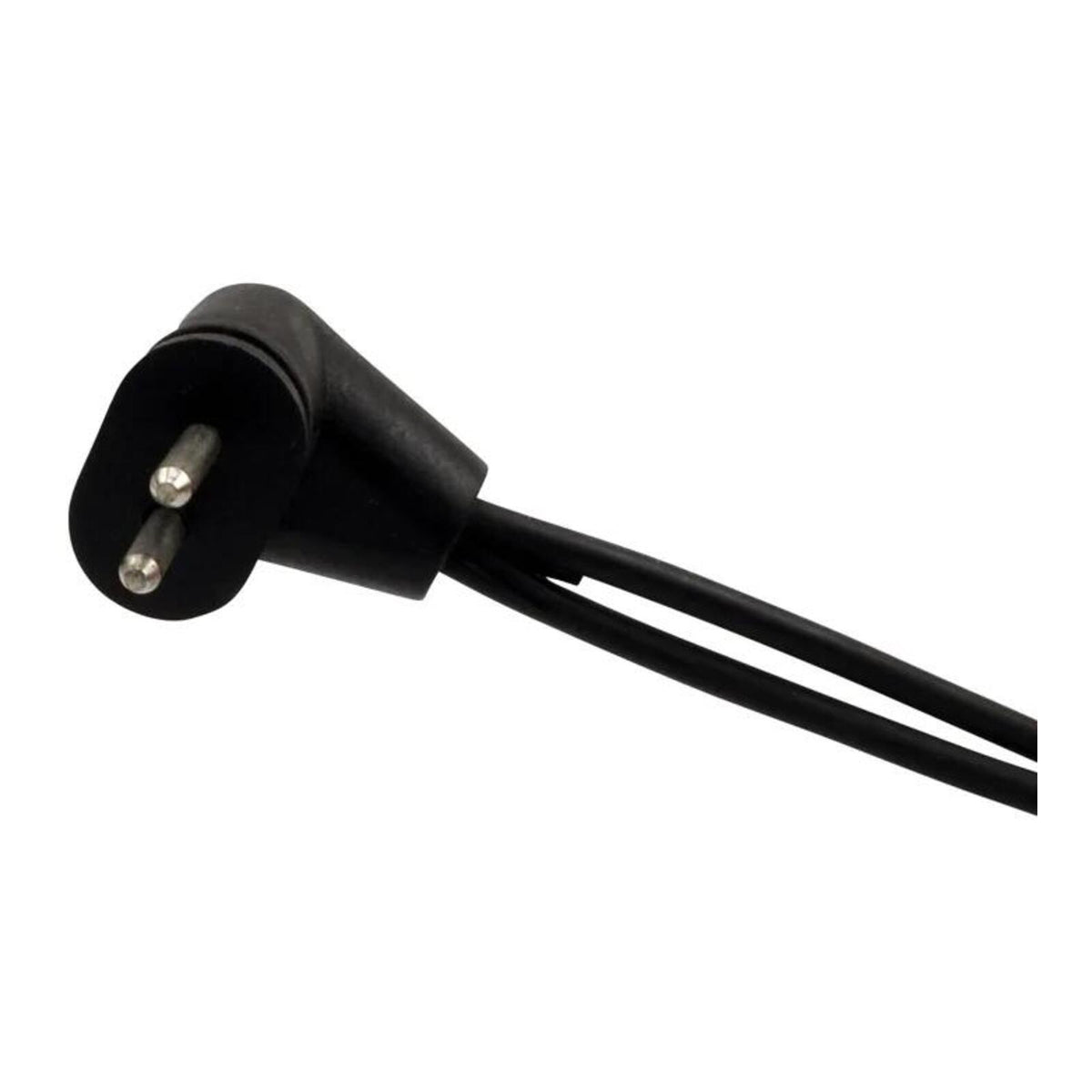

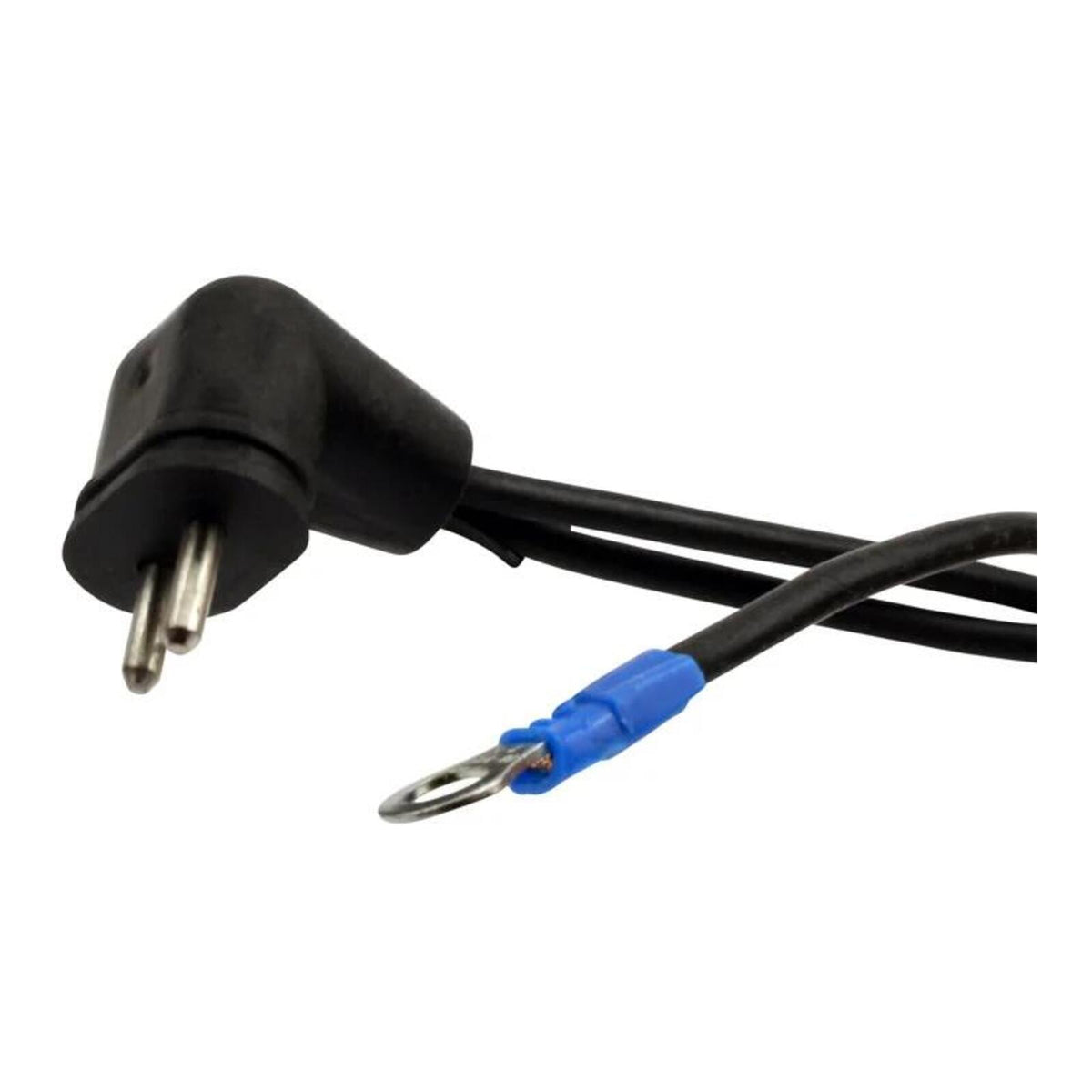

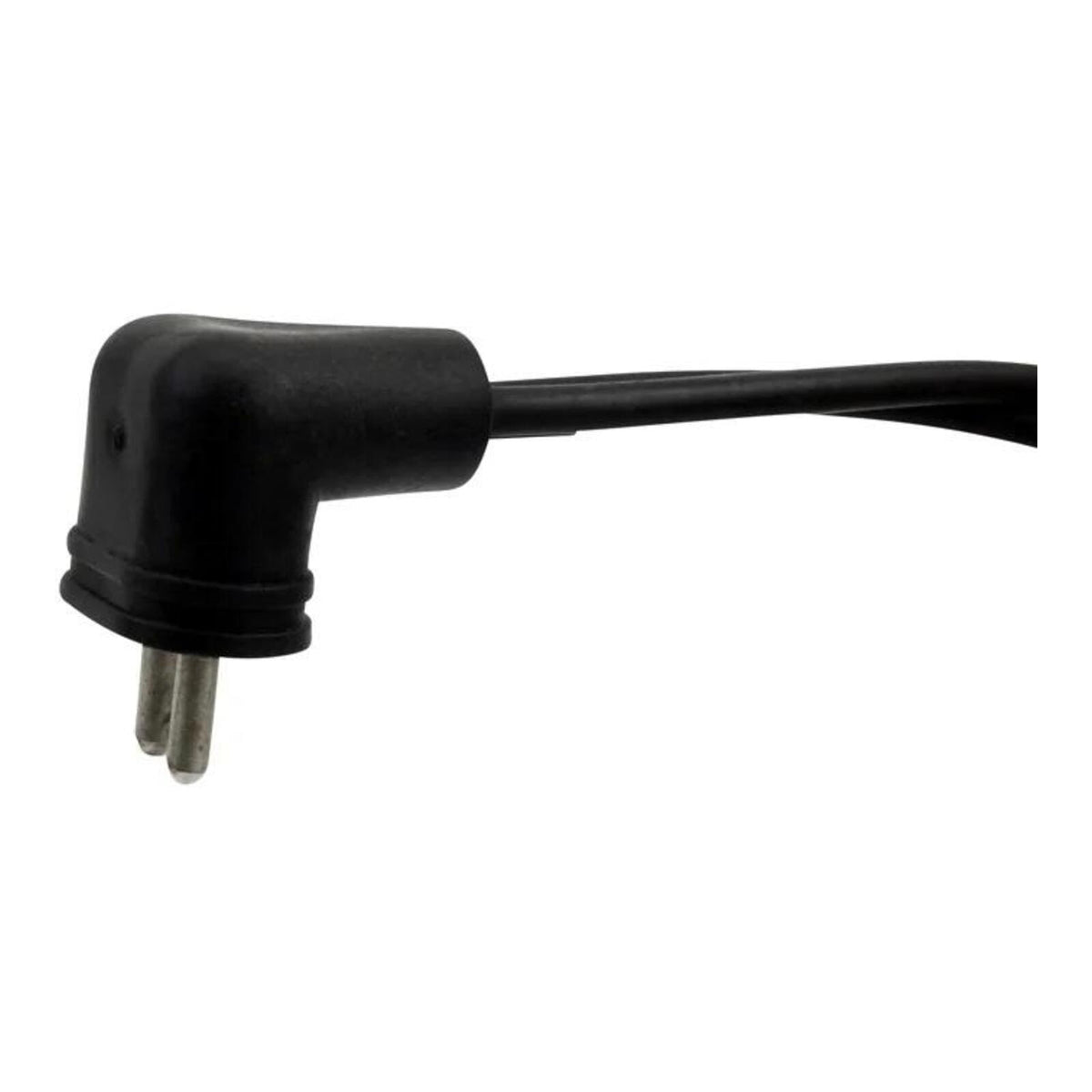

• 2 plugs
• 3 pins
• 3 wires
• Minimum charging voltage: 14.5 V ±0.5 V
• Maximum charging current: 50 A / 500 W
• Open circuit voltage: <15 V
• Operating temperature: -20°C to 85°C
