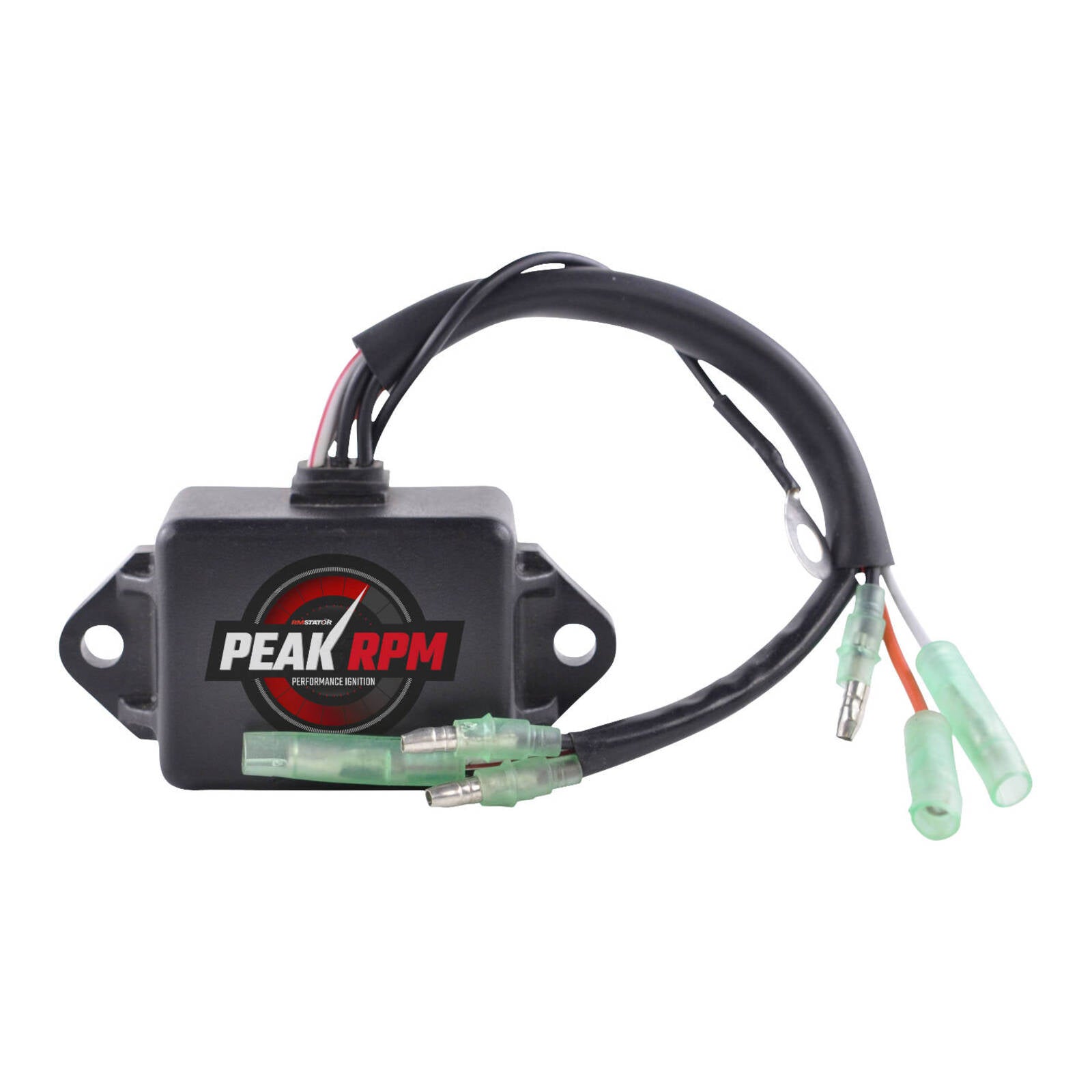

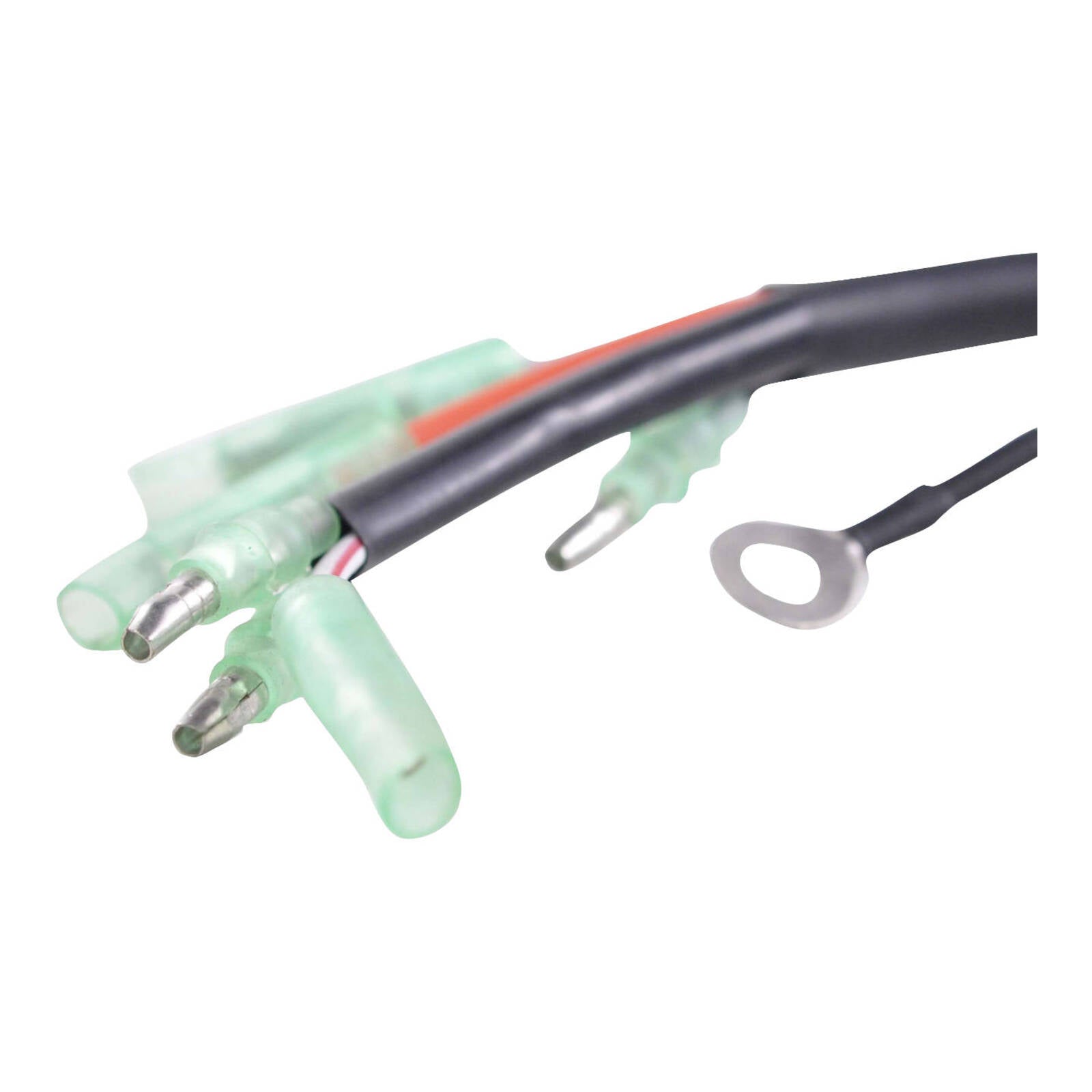

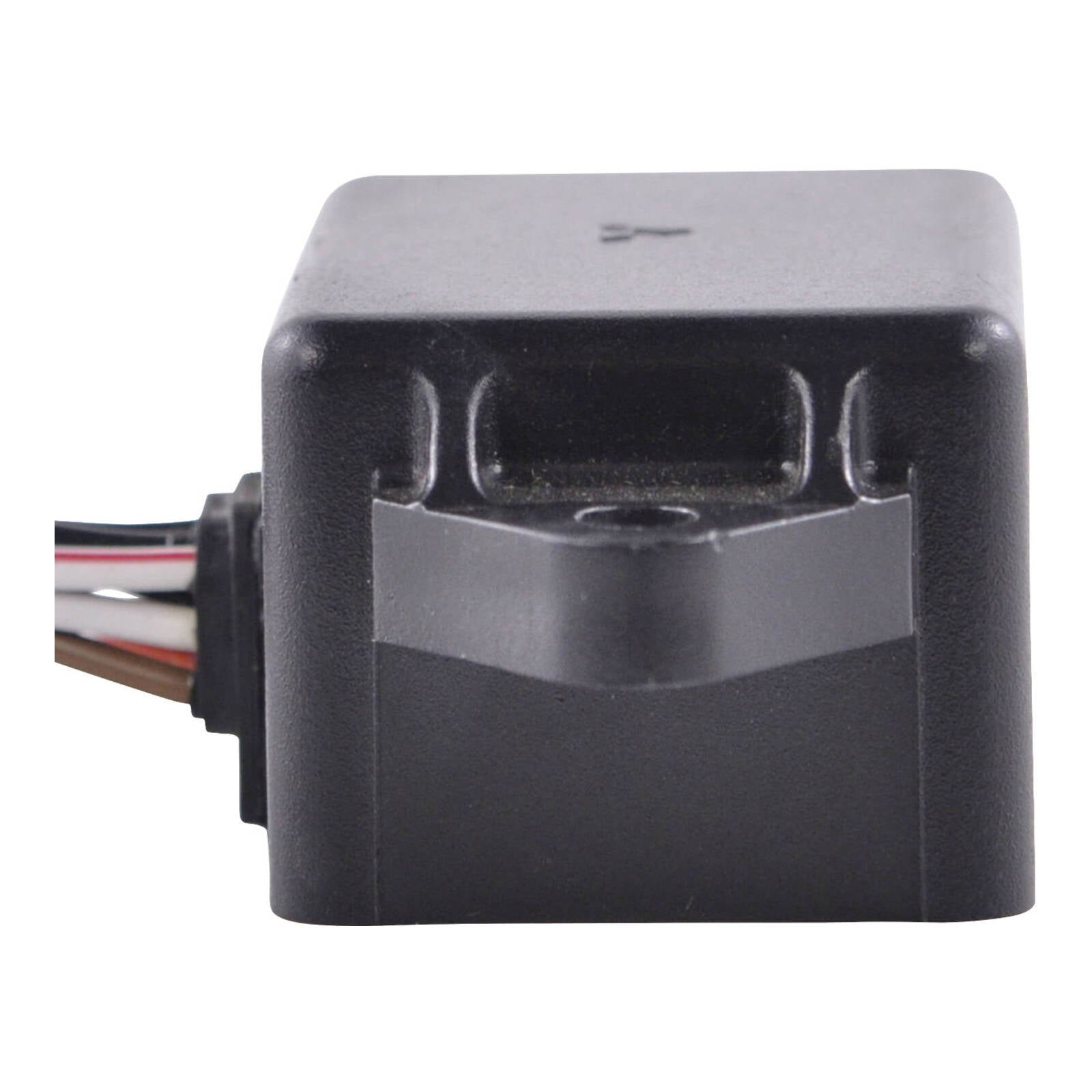

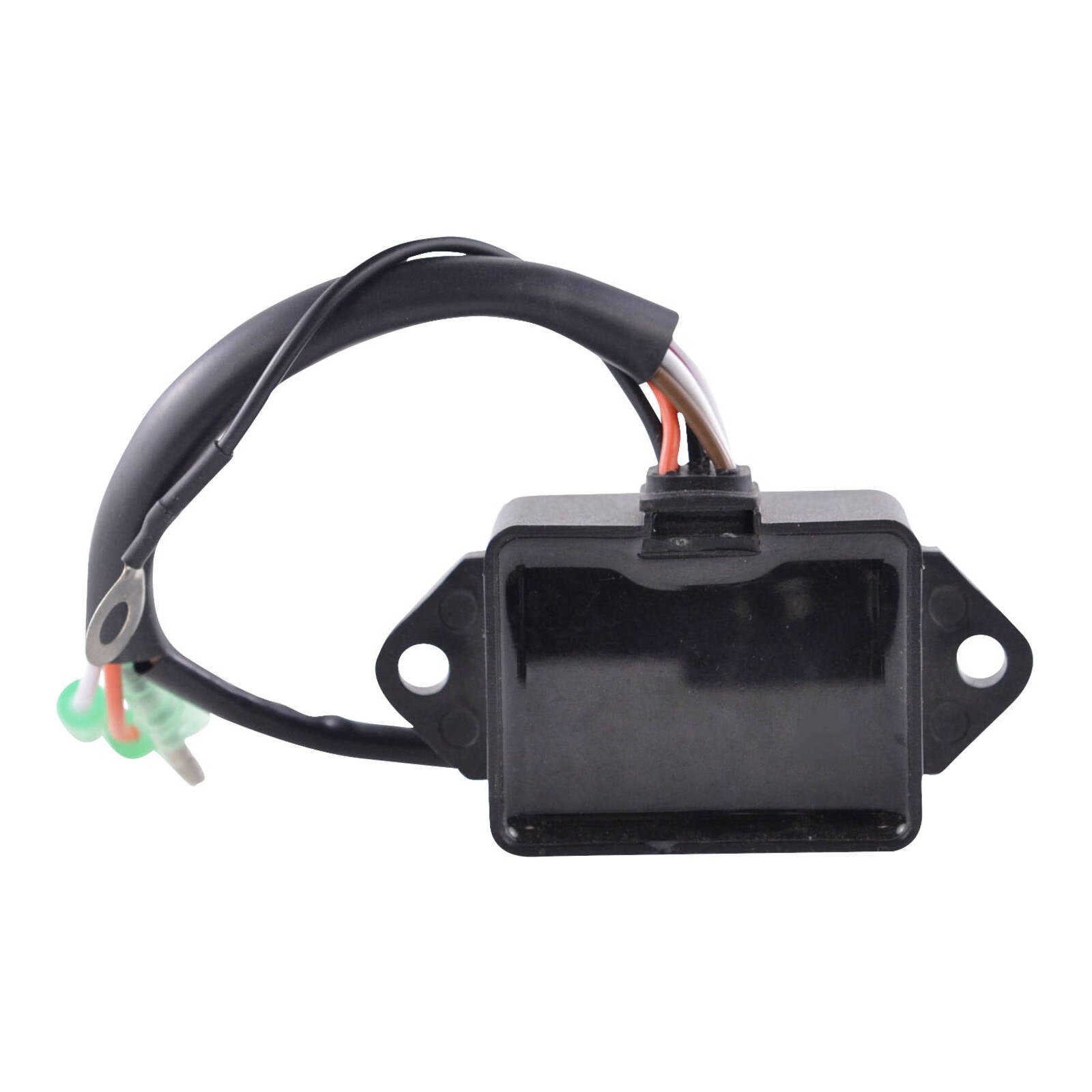

CDI Box – Yamaha Outboard (Refer to Fitments) (RM02244)

Plug-and-play, aftermarket replacement CDI box for Yamaha outboard motors from RM Stator. Refer to fitment guide for models.

Dimensions:

• Height: 40 mm
• Length: 54 mm
• Width: 35 mm

Other specifications:

• Number of plugs: 7
• Number of pins: 7
• Fixation holes center to center: 75 mm
• Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

Details:

• RM Stator's PeakRPM technology provides a more aggressive timing curve for increased throttle response
• Ride at full throttle with their application-specific CDI box that raises the rev limiter by 1000 RPM
• Enjoy fast and easy installation with their plug and play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying
