RM Stator & MOSFET Regulator Assorted Tri (Refer to Fitments) (RMS900-107634)

Only 1 left

No reviews

$599.99

Product variants

Product Details

Type Regulator / Rectifiers

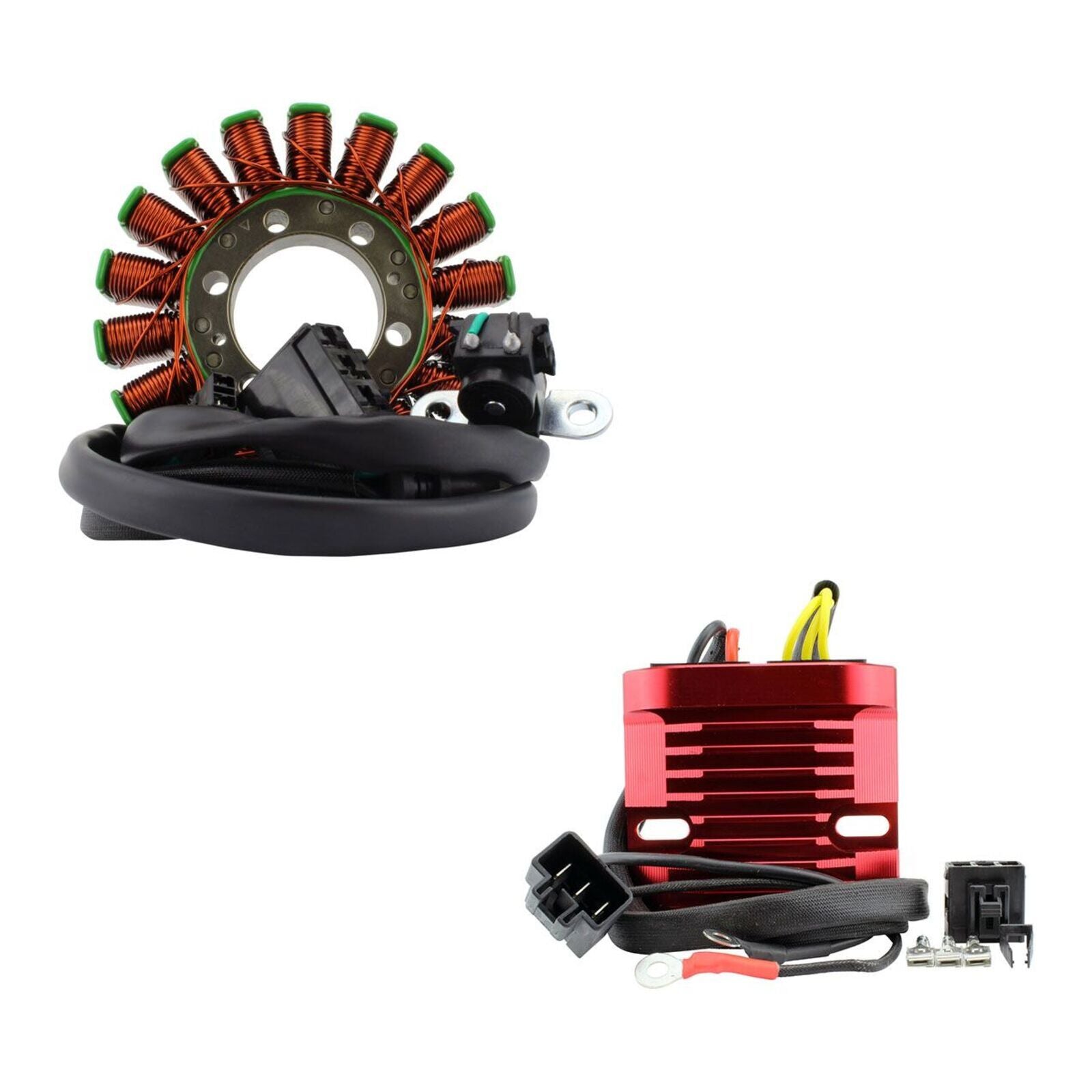

Kit Generator Stator + Mosfet Regulator Rectifier

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

Brand new aftermarket stator

Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

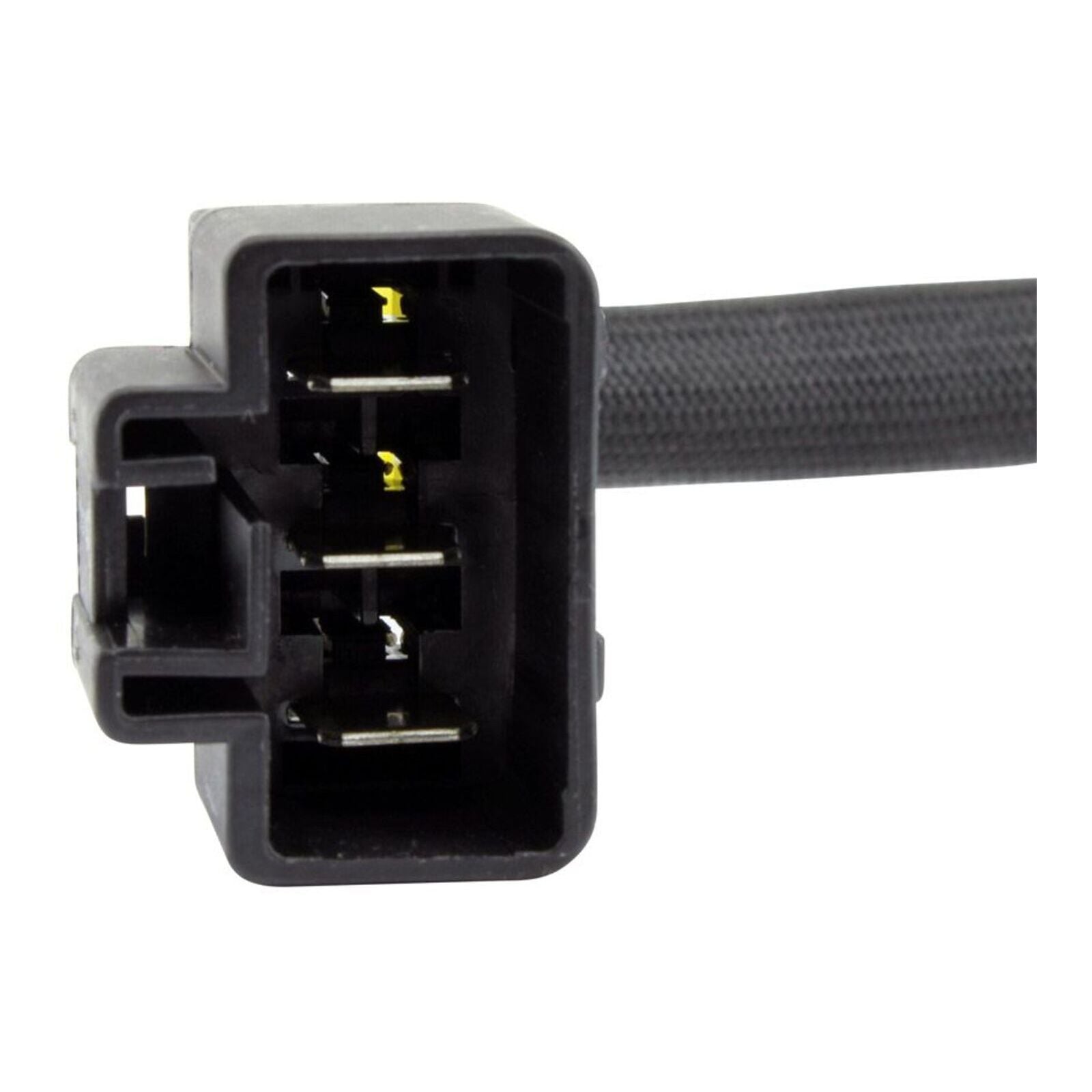

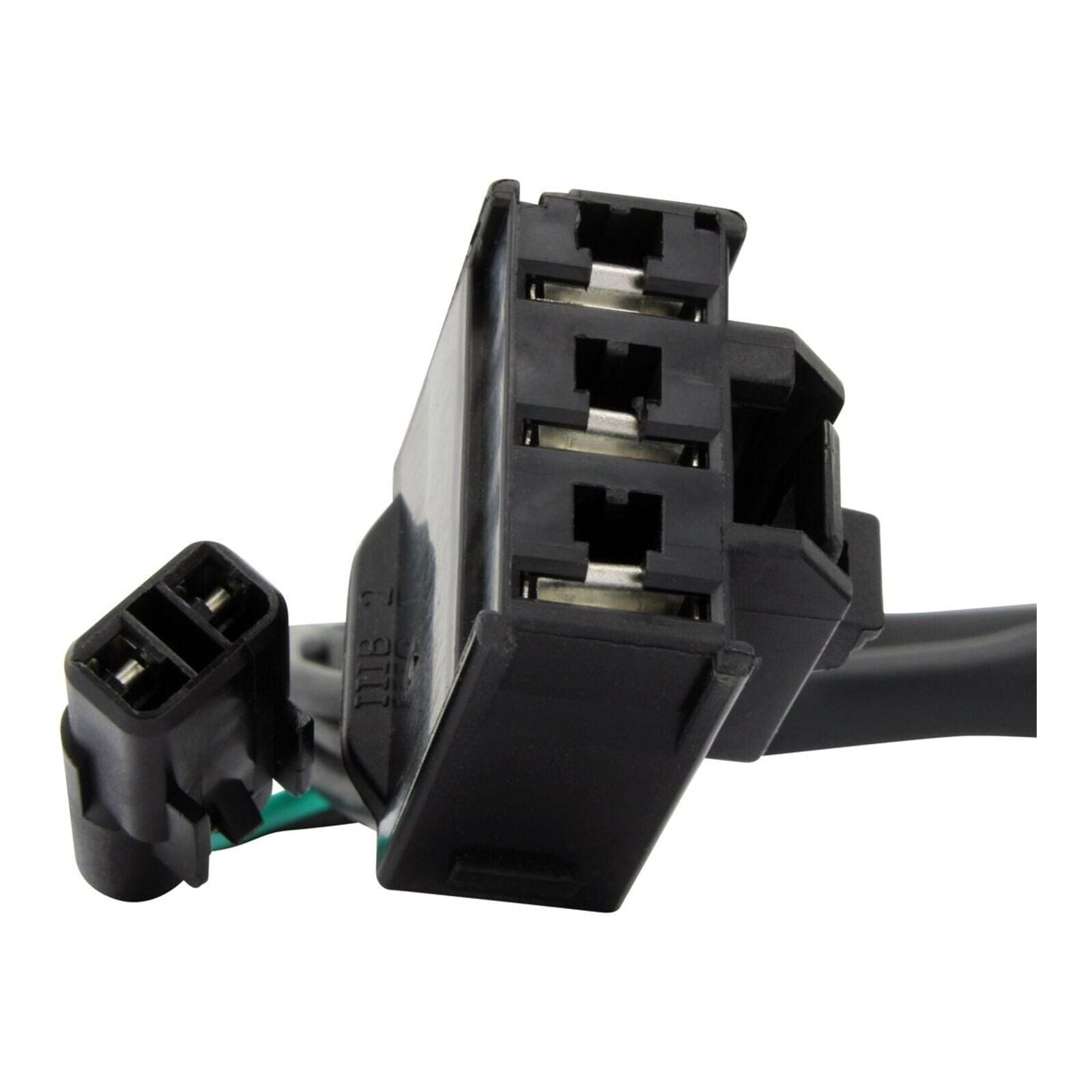

Connector included
Rubber grommet included

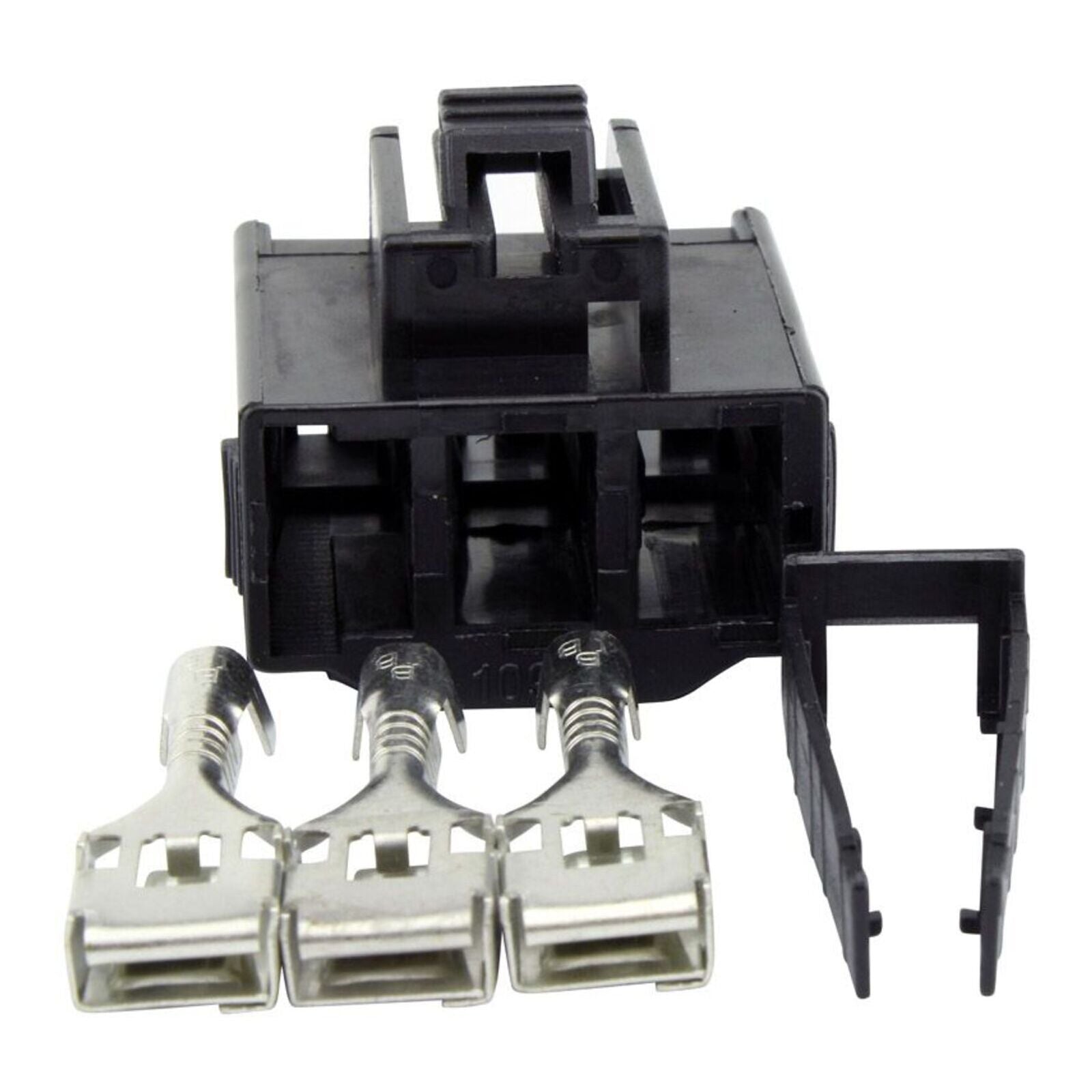

We have even included the opposite connector (main harness side), as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Brand new Mosfet voltage regulator rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Plug-and-play, direct fit, easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components

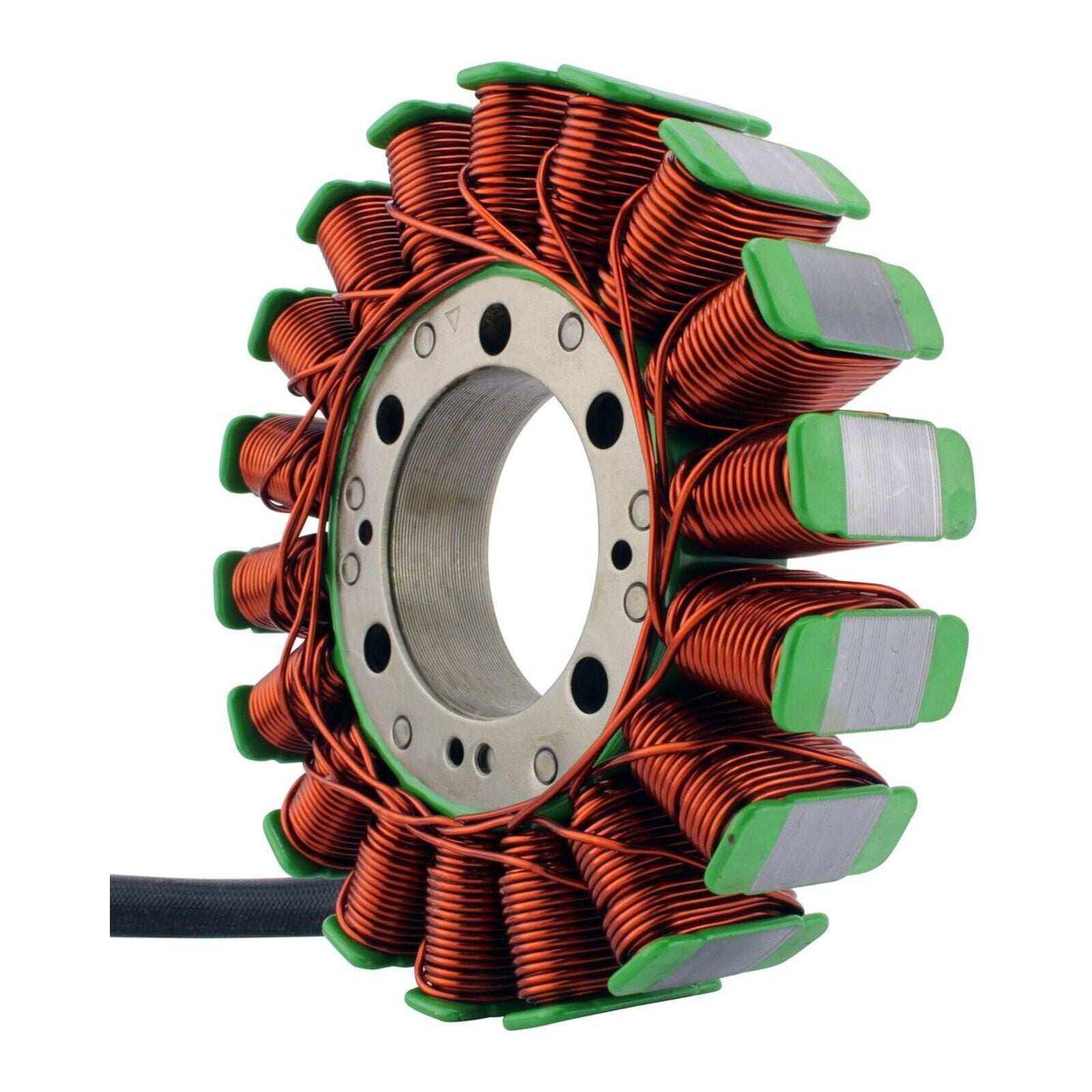

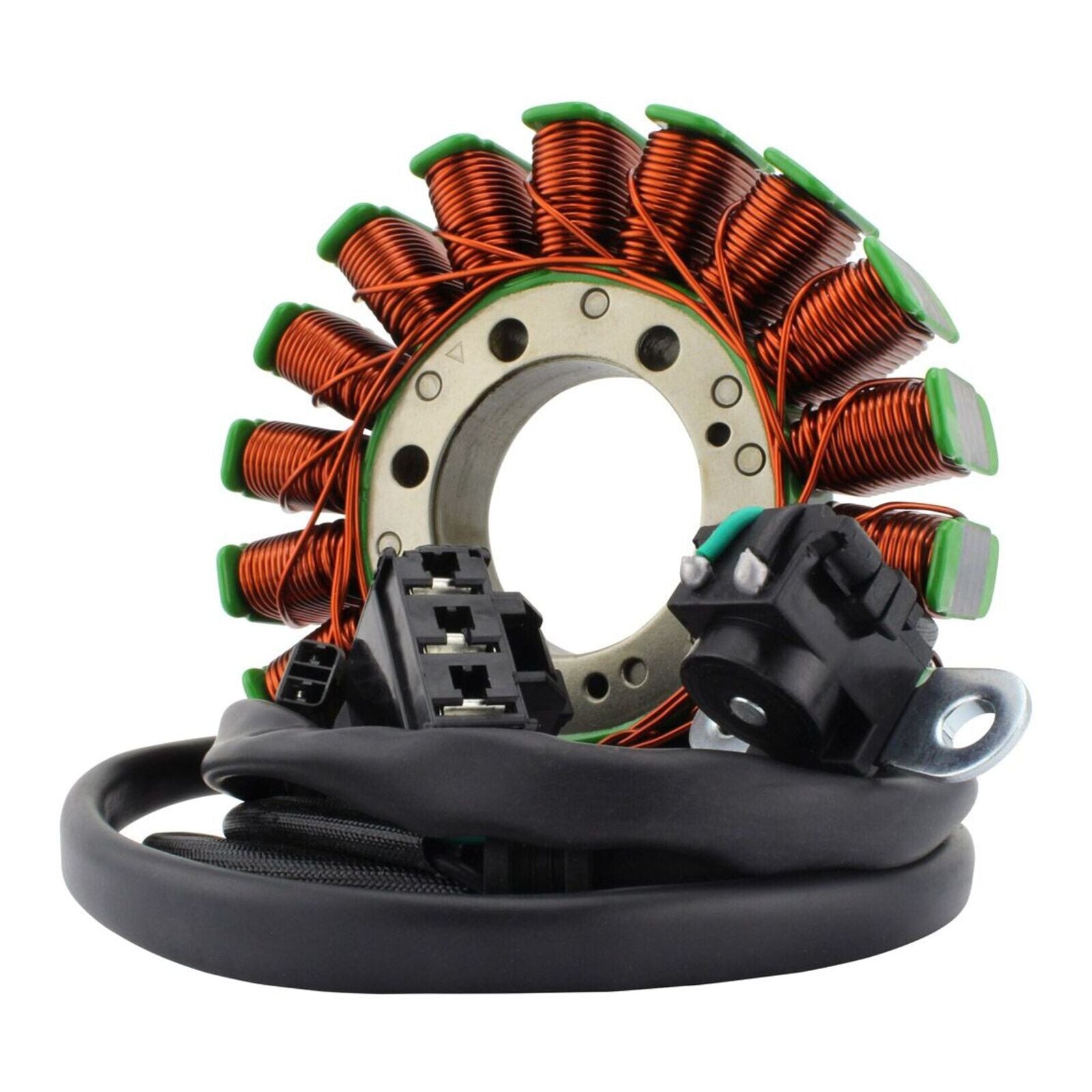

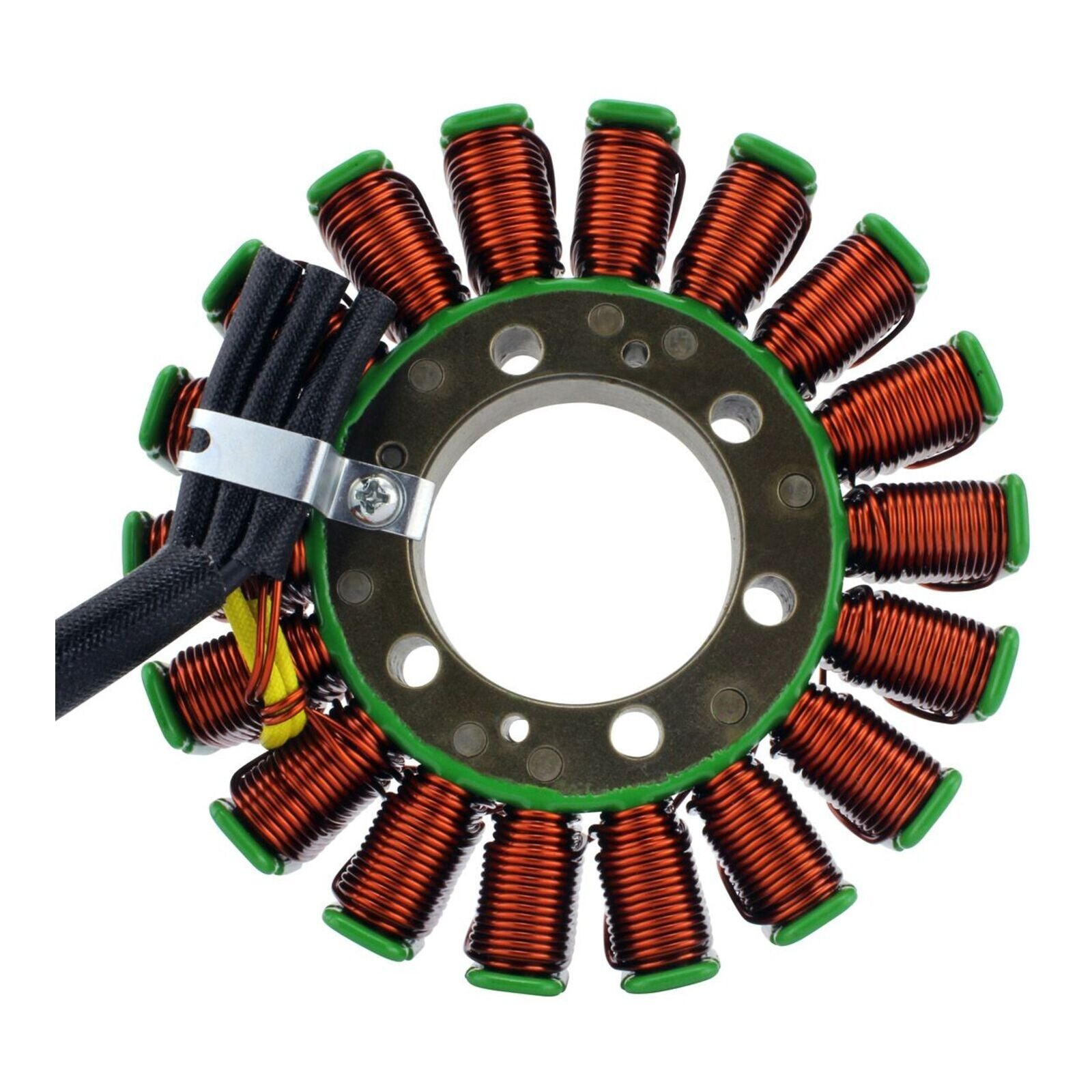

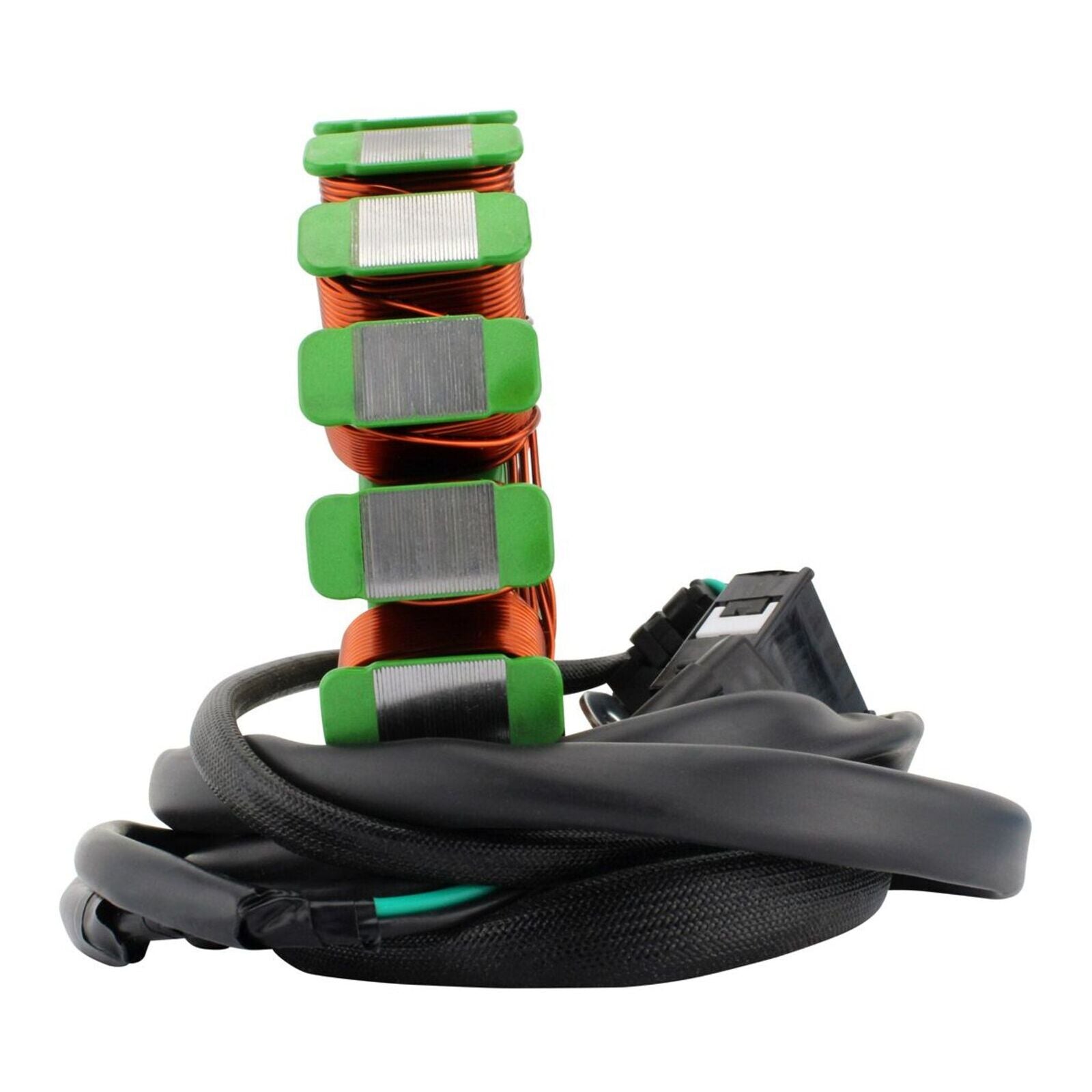

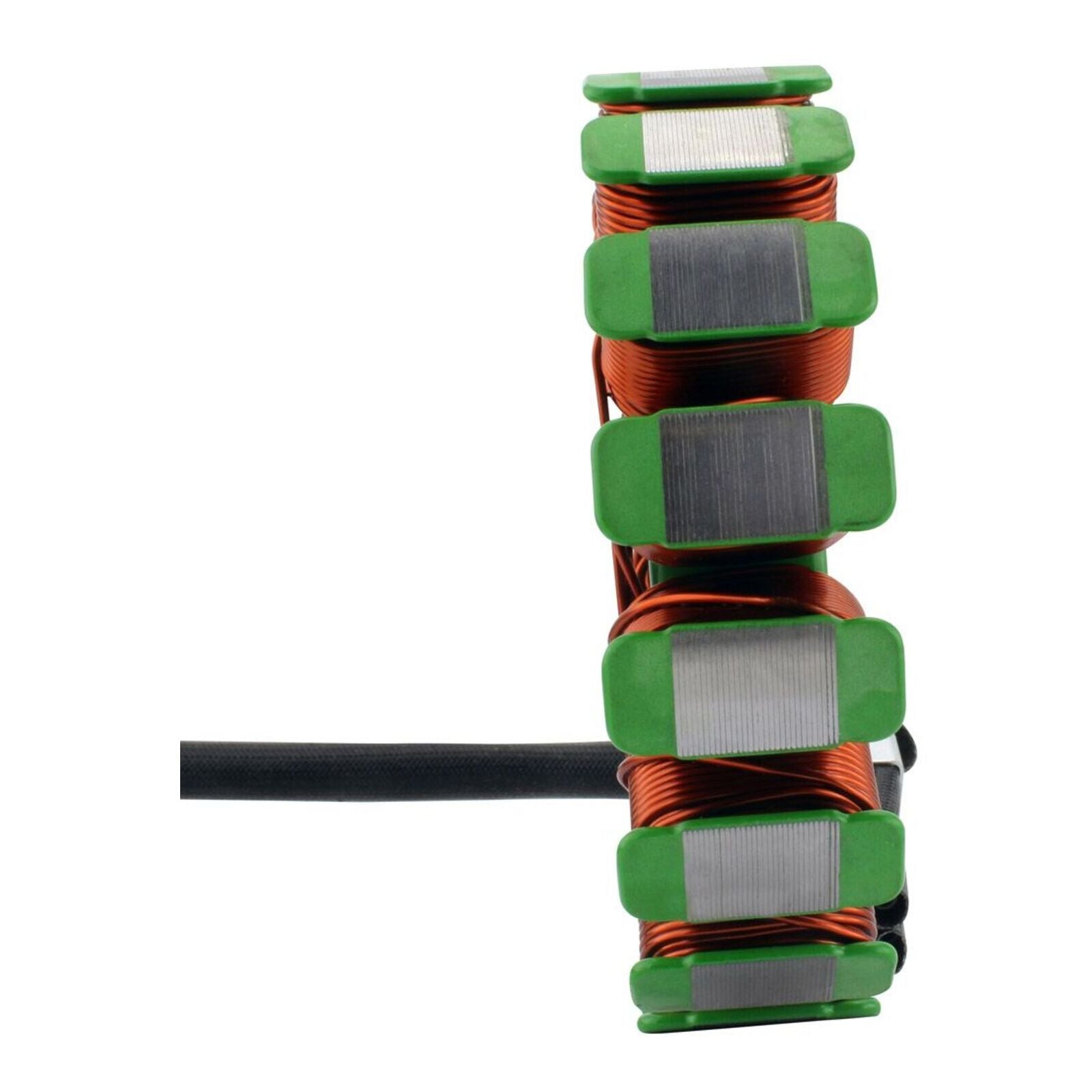

Generator Stator

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 18 mm
Length of wires stator to grommet: 240 mm
Length of wires grommet to plug: 190 mm & 880 mm
Length of pickup coil's wire to grommet: 270 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L
Pickup: Green to black = 240 ohms +-20%

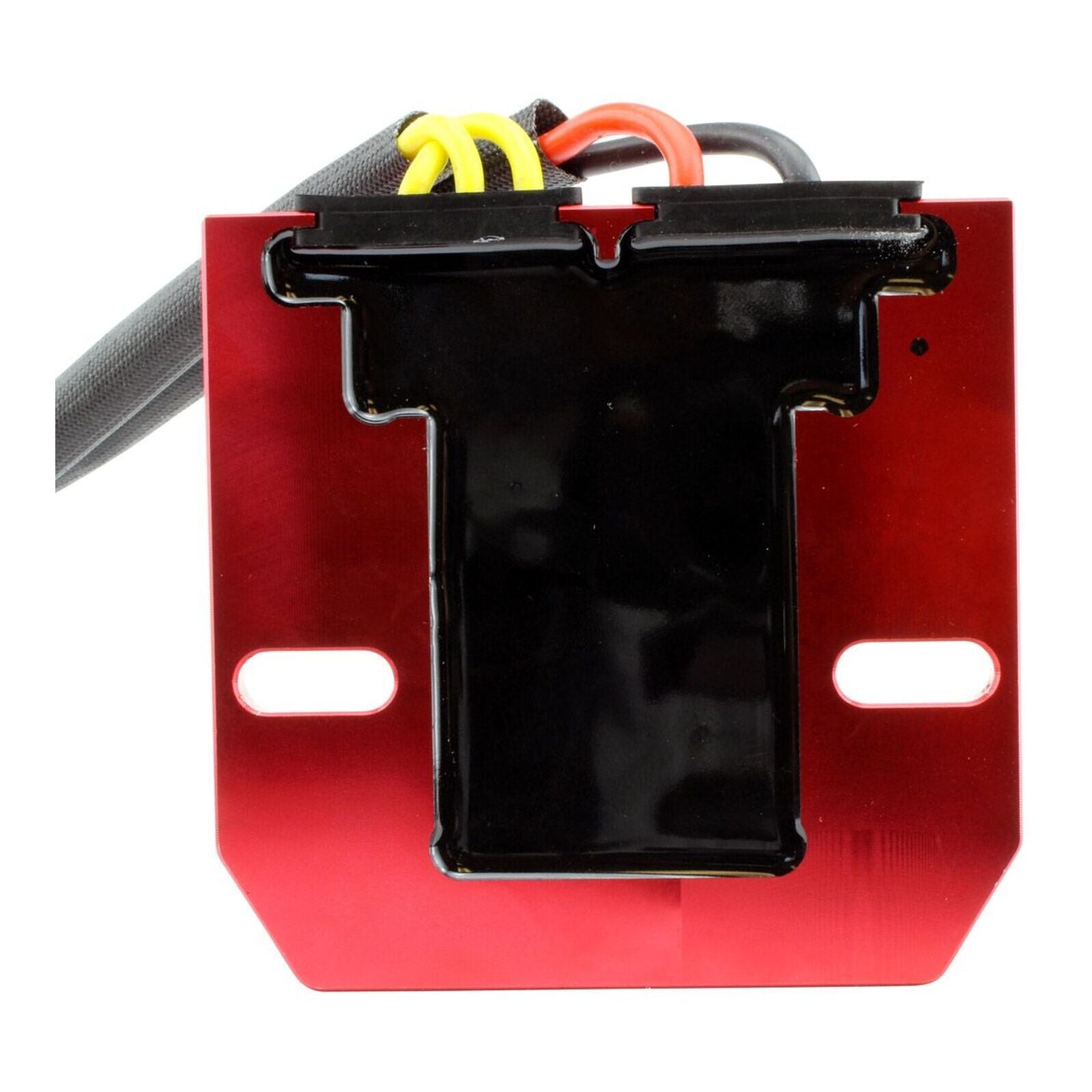

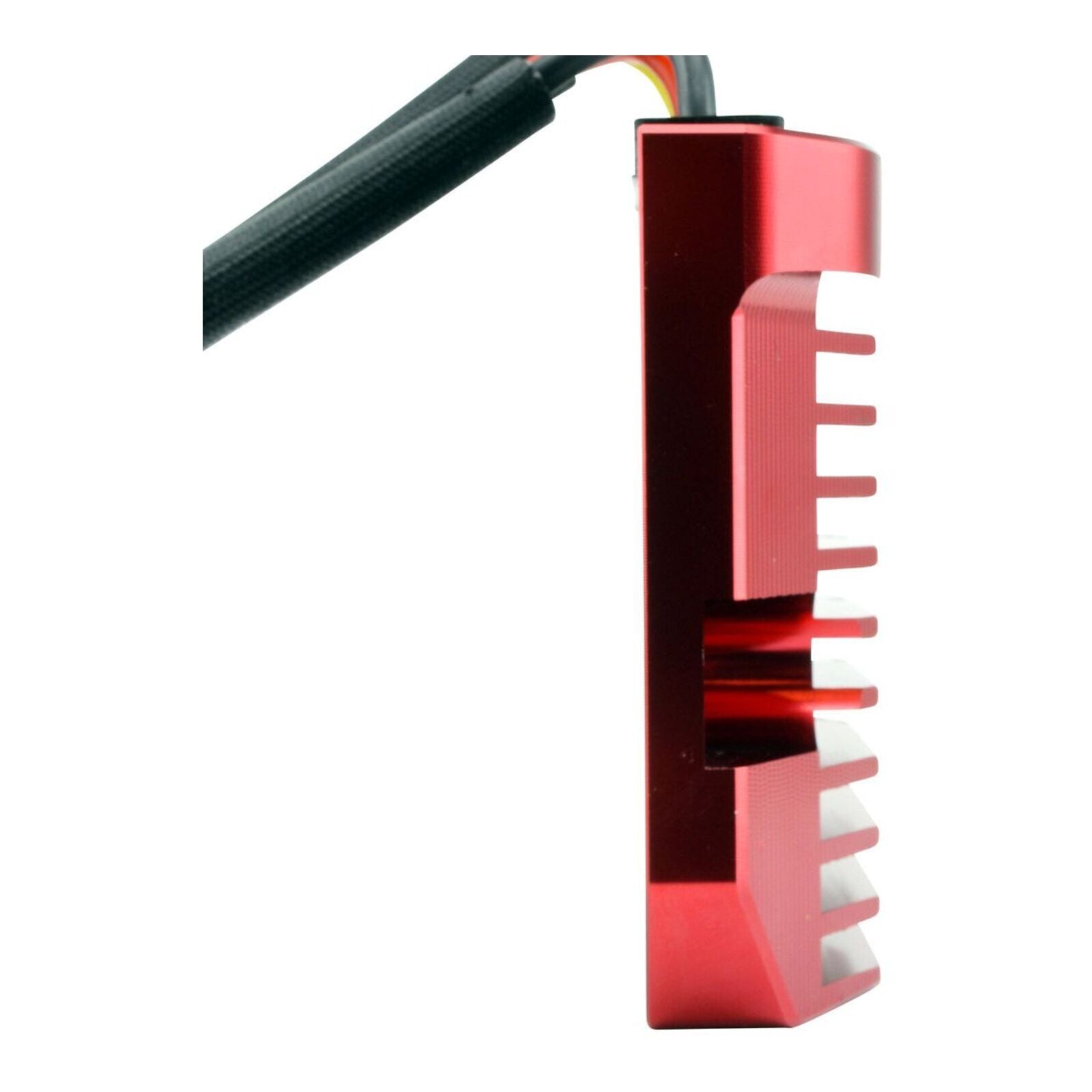

RMSTATOR Red Machined Aluminum Mosfet Regulator

Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 1010 mm & 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
