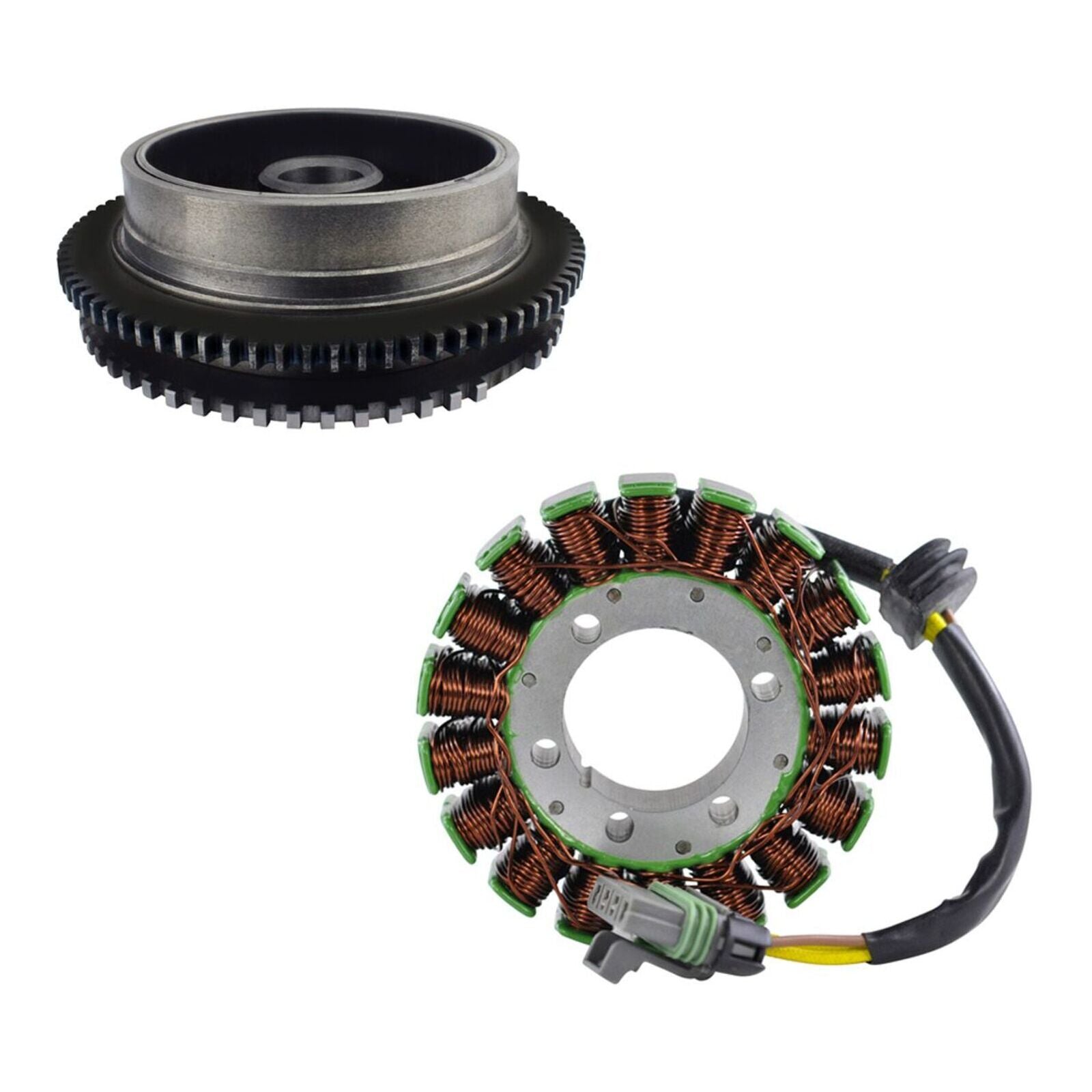

DT800 Charging Kit Assorted Polaris Models (Refer to Fitments) (RMS900-108154)

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

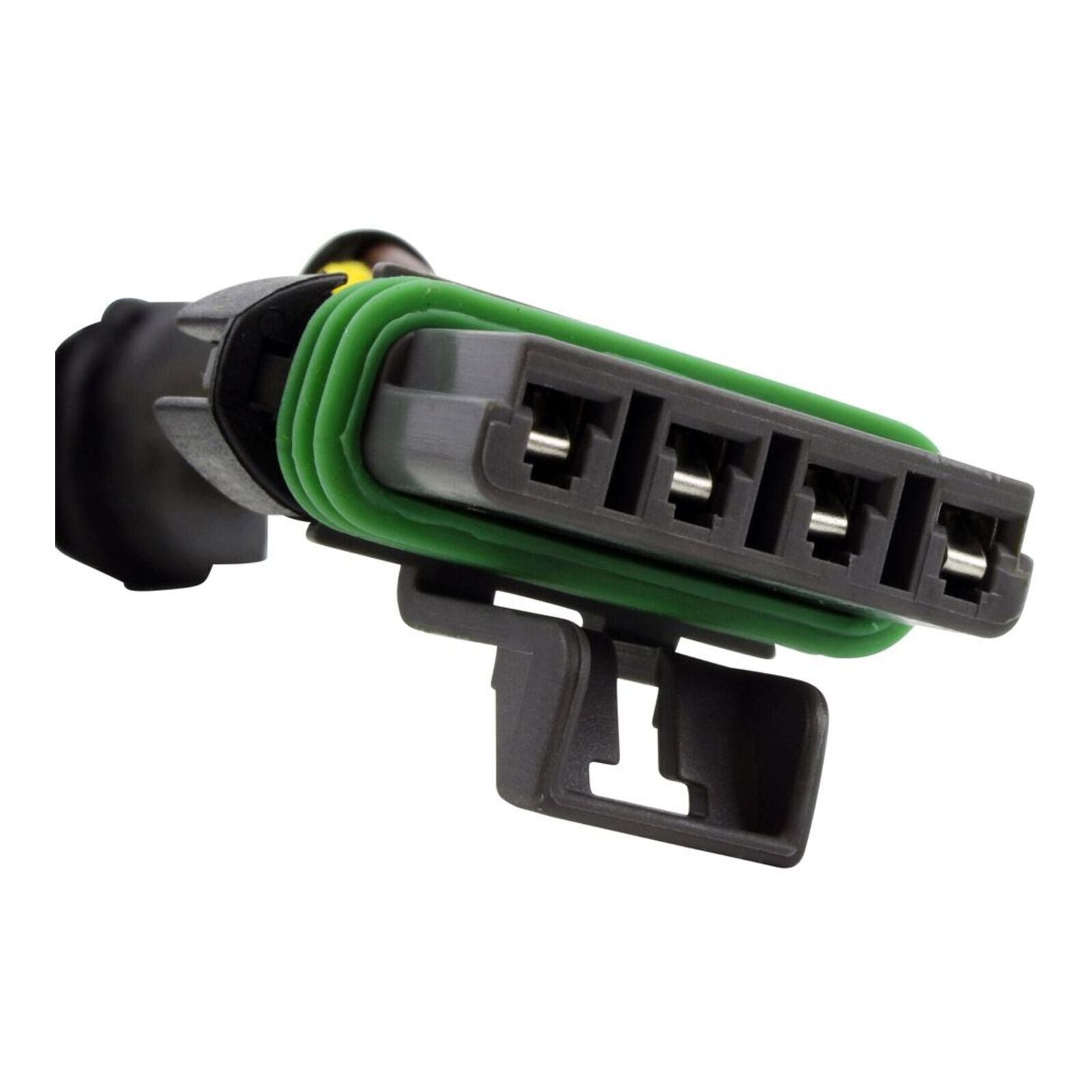

• Connector included
• Rubber grommet included
• All product shipped are tested

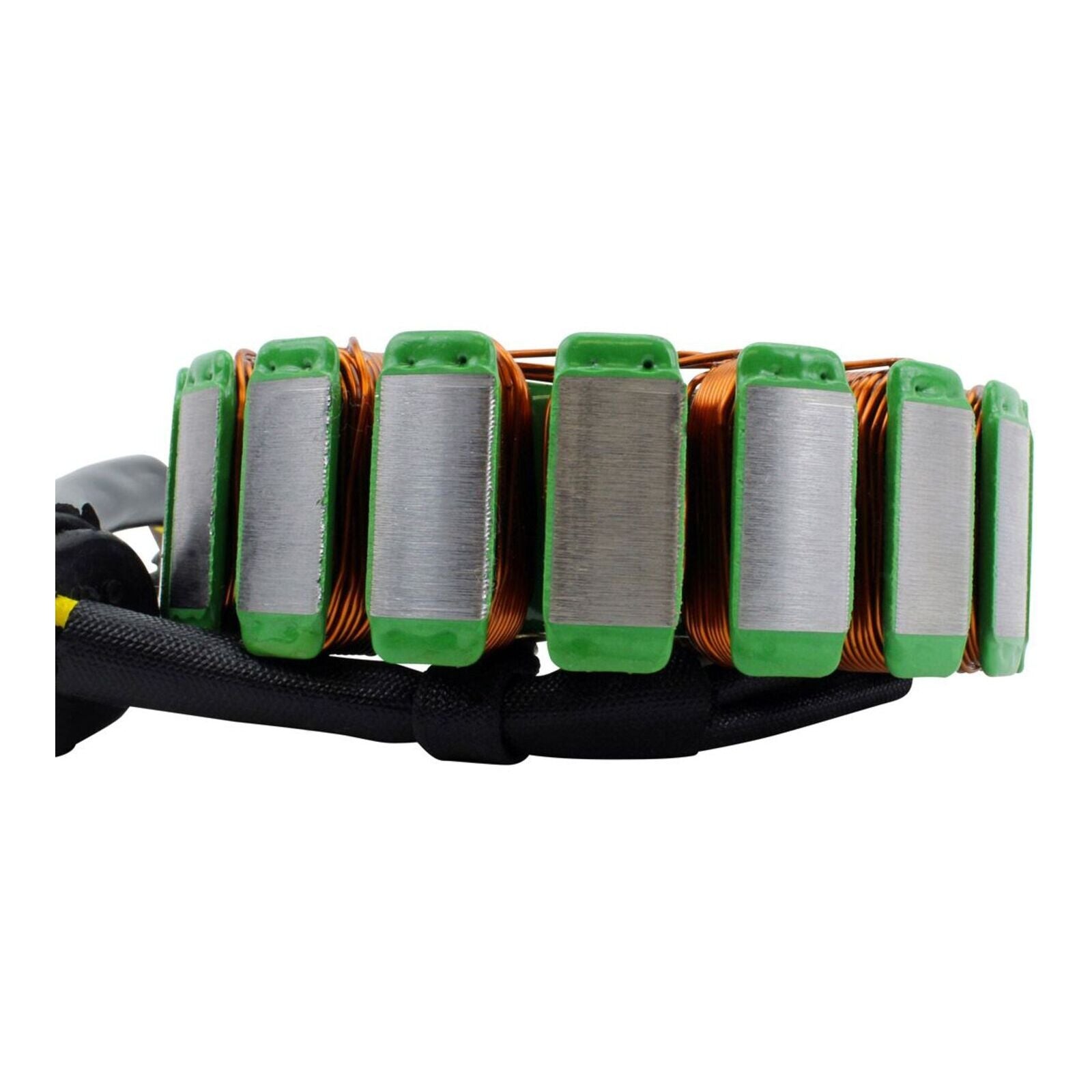

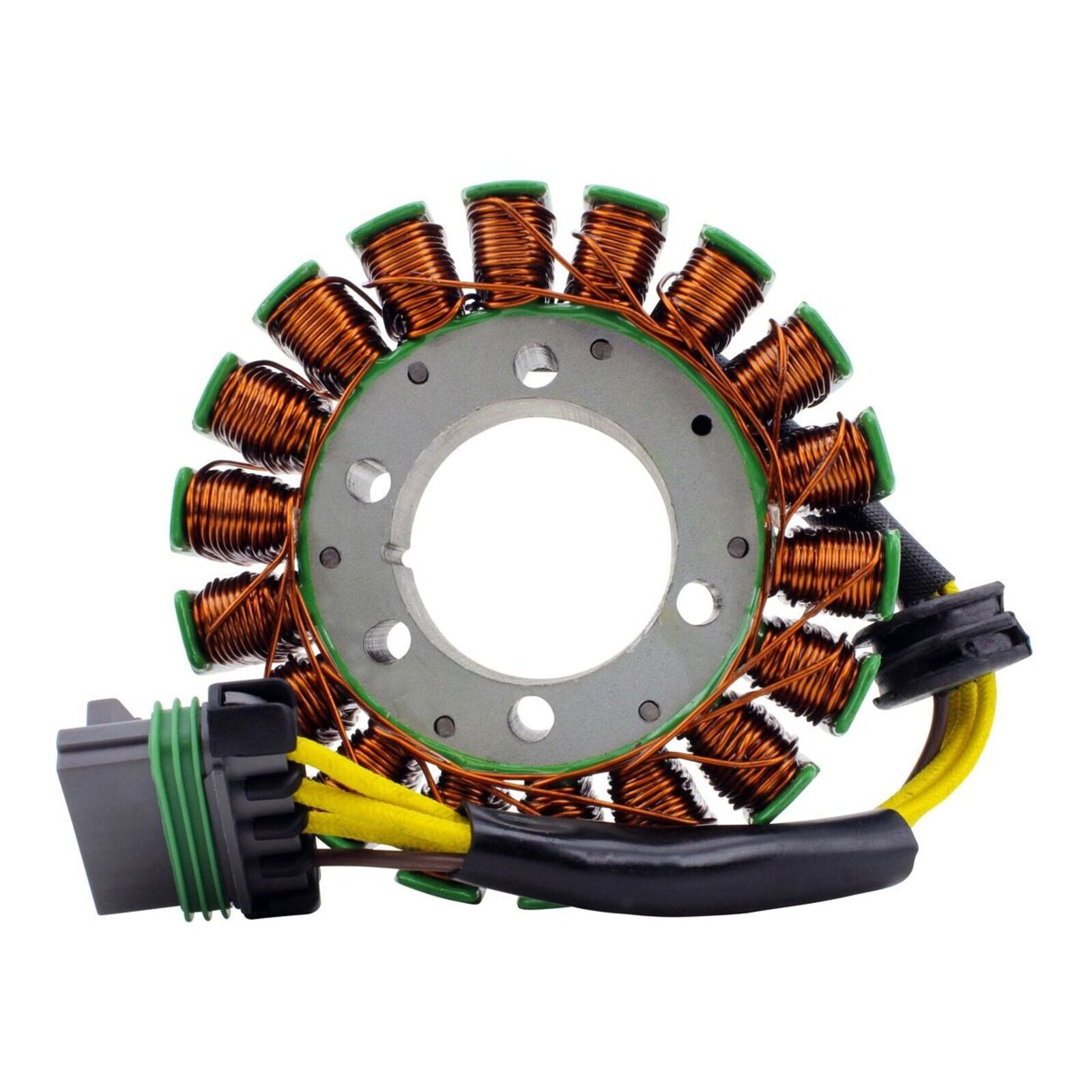

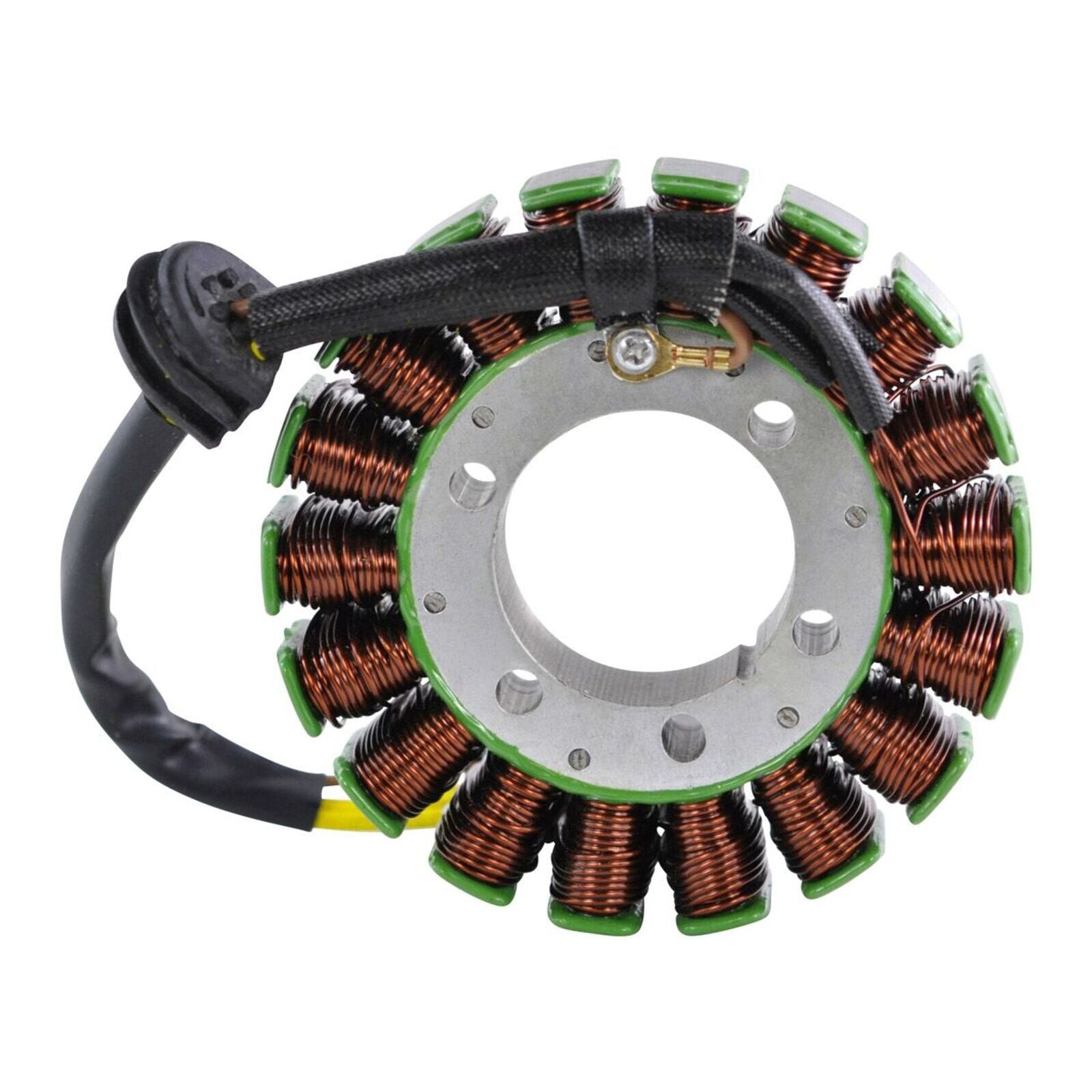

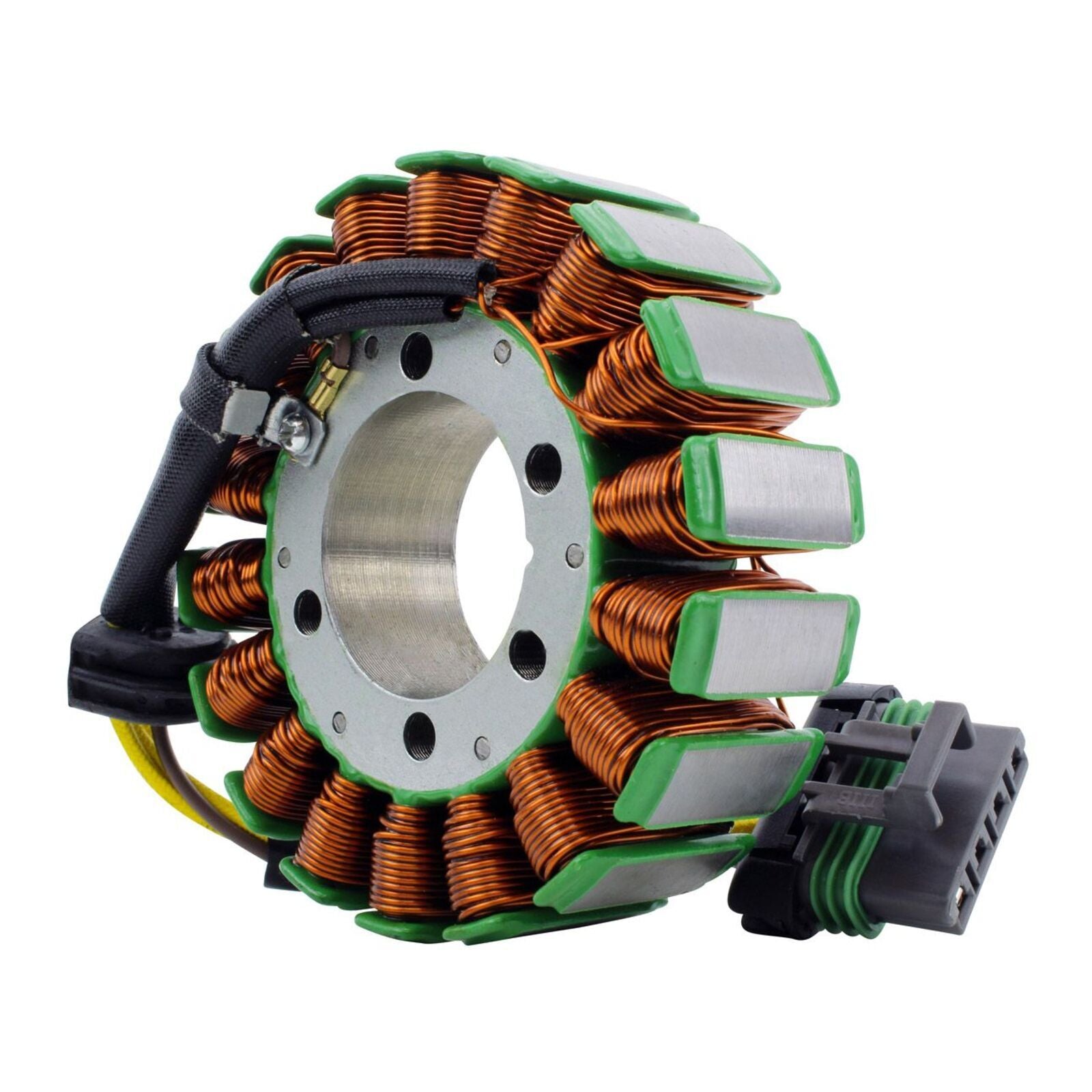

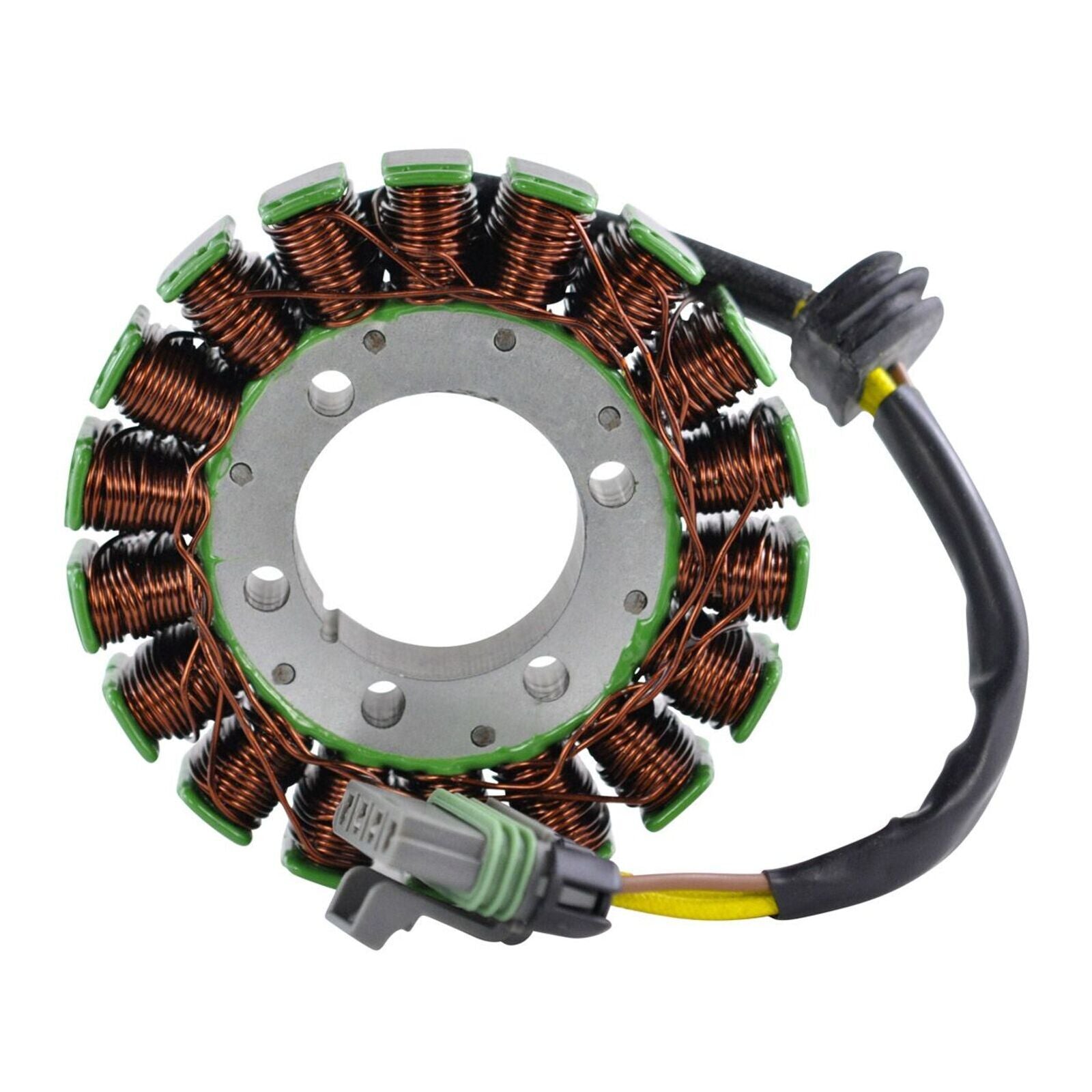

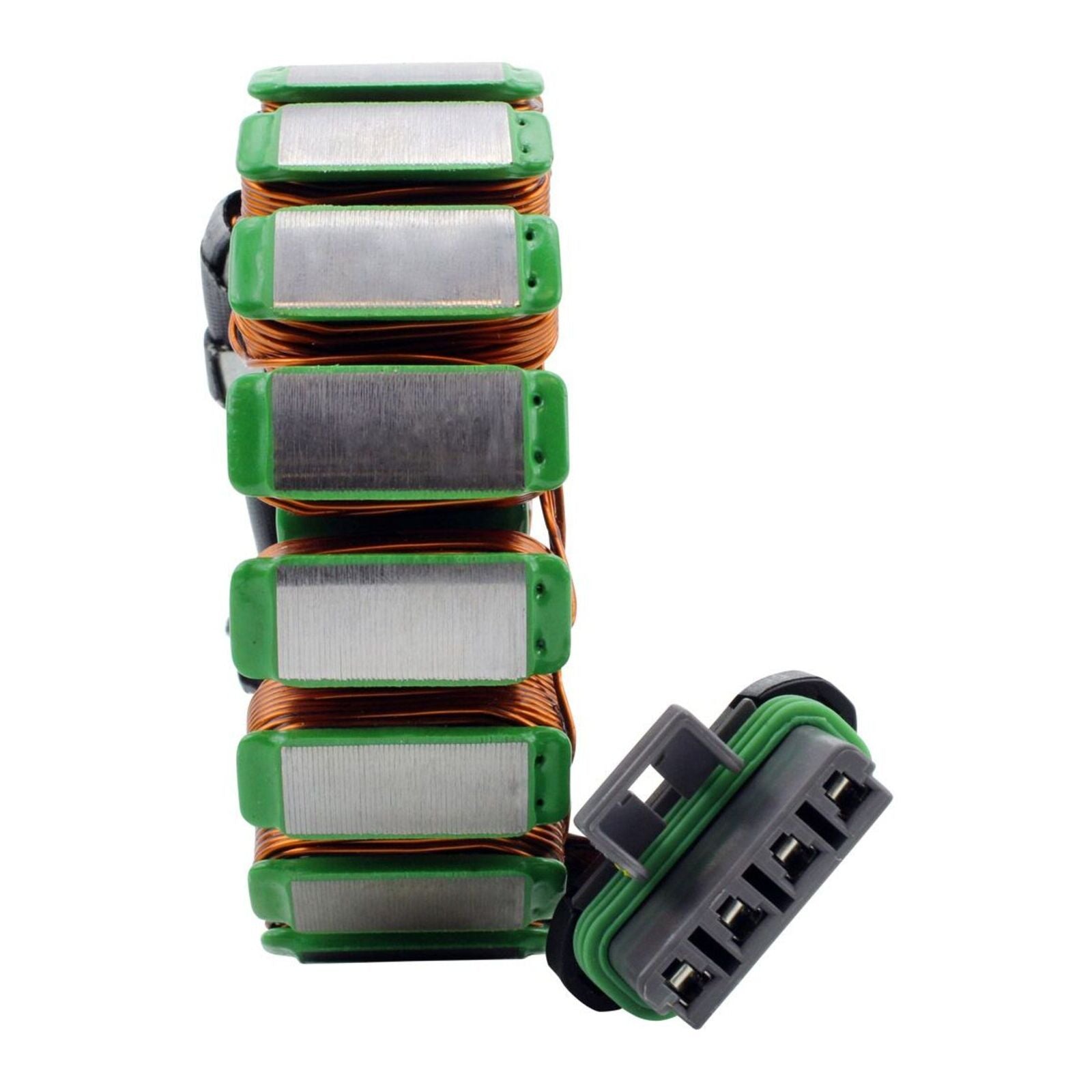

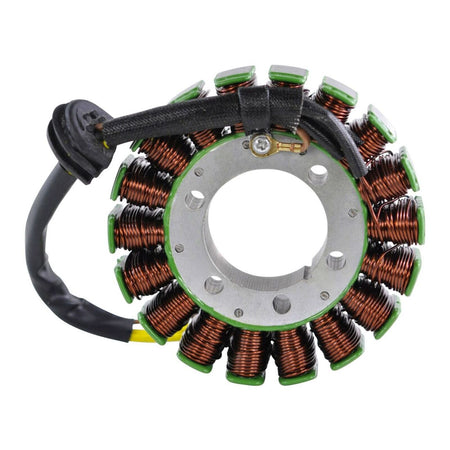

Specifications of Stator:

• Dimensions:
  • Int erior diameter: 40 mm
  • Exterior diameter: 106 mm
  • Thickness: 24 mm
  • Length of wires stator to grommet: 45 mm
  • Length of wires grommet to plug: 100 mm
• Other specifications:
  • Number of wires: 4

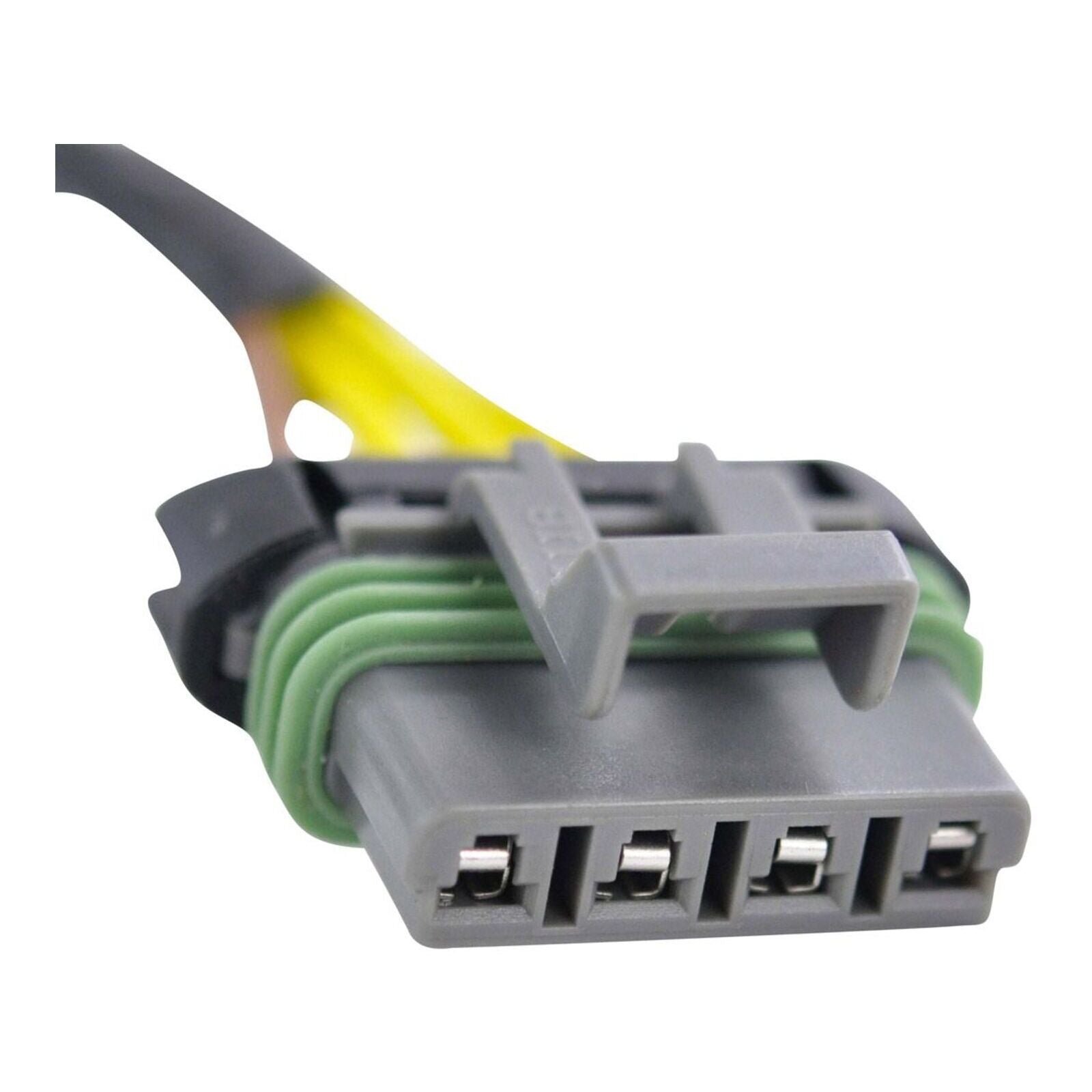

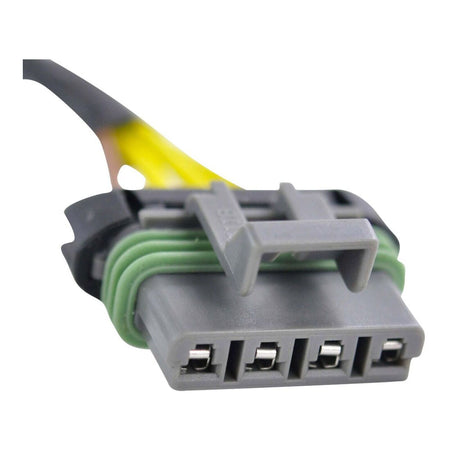

  • Number of plugs: 1
  • Number of pins: 4
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.4 ohms +/-20%

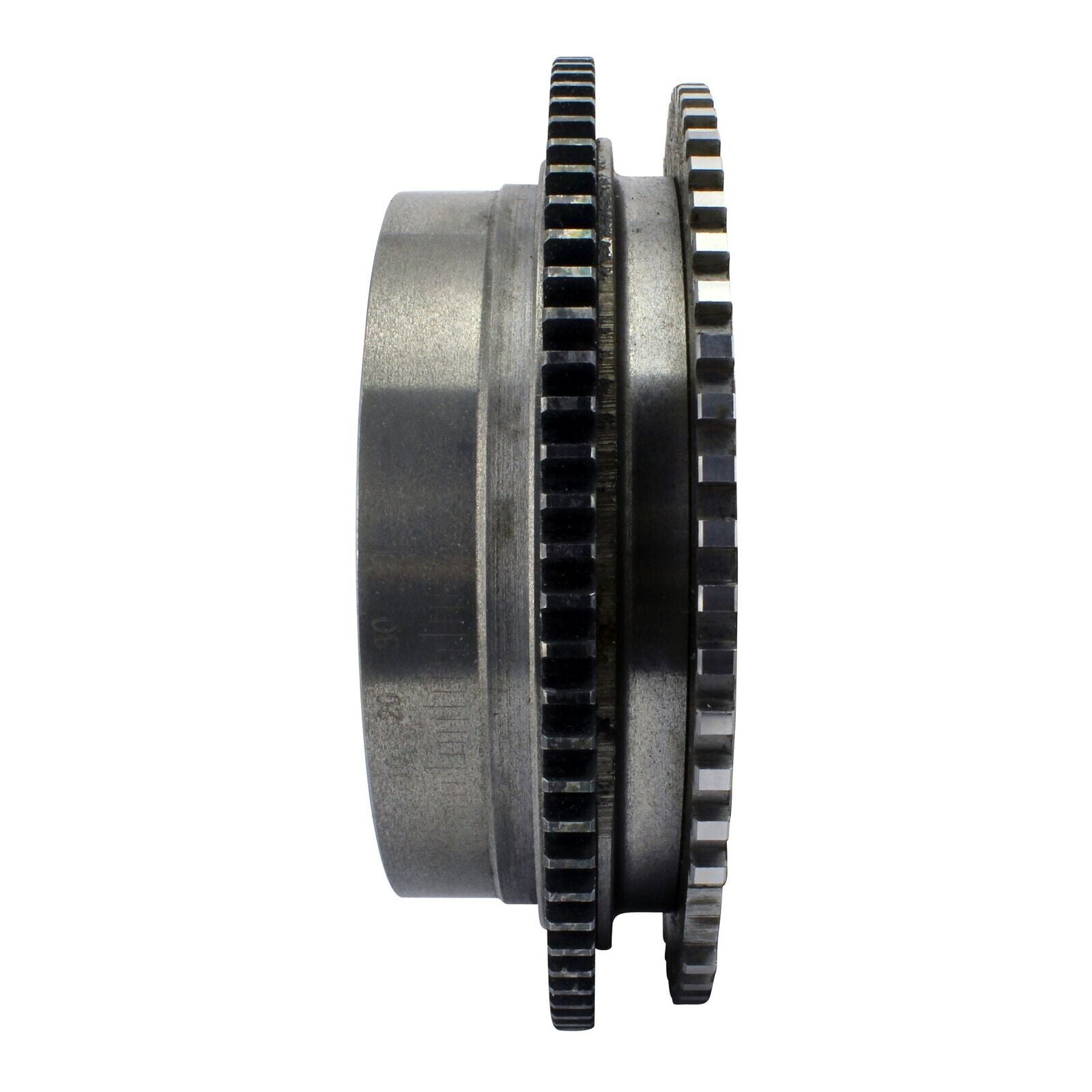

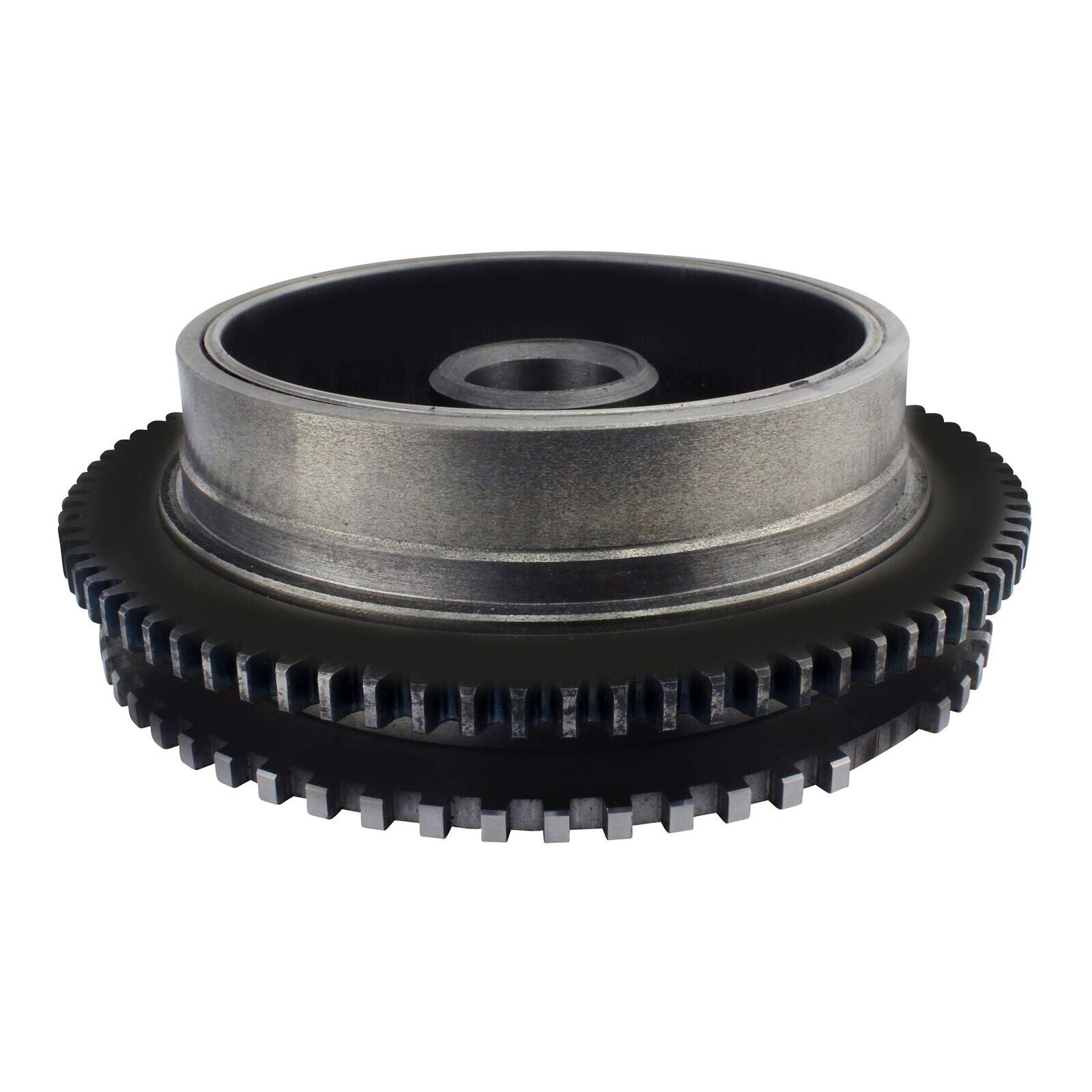

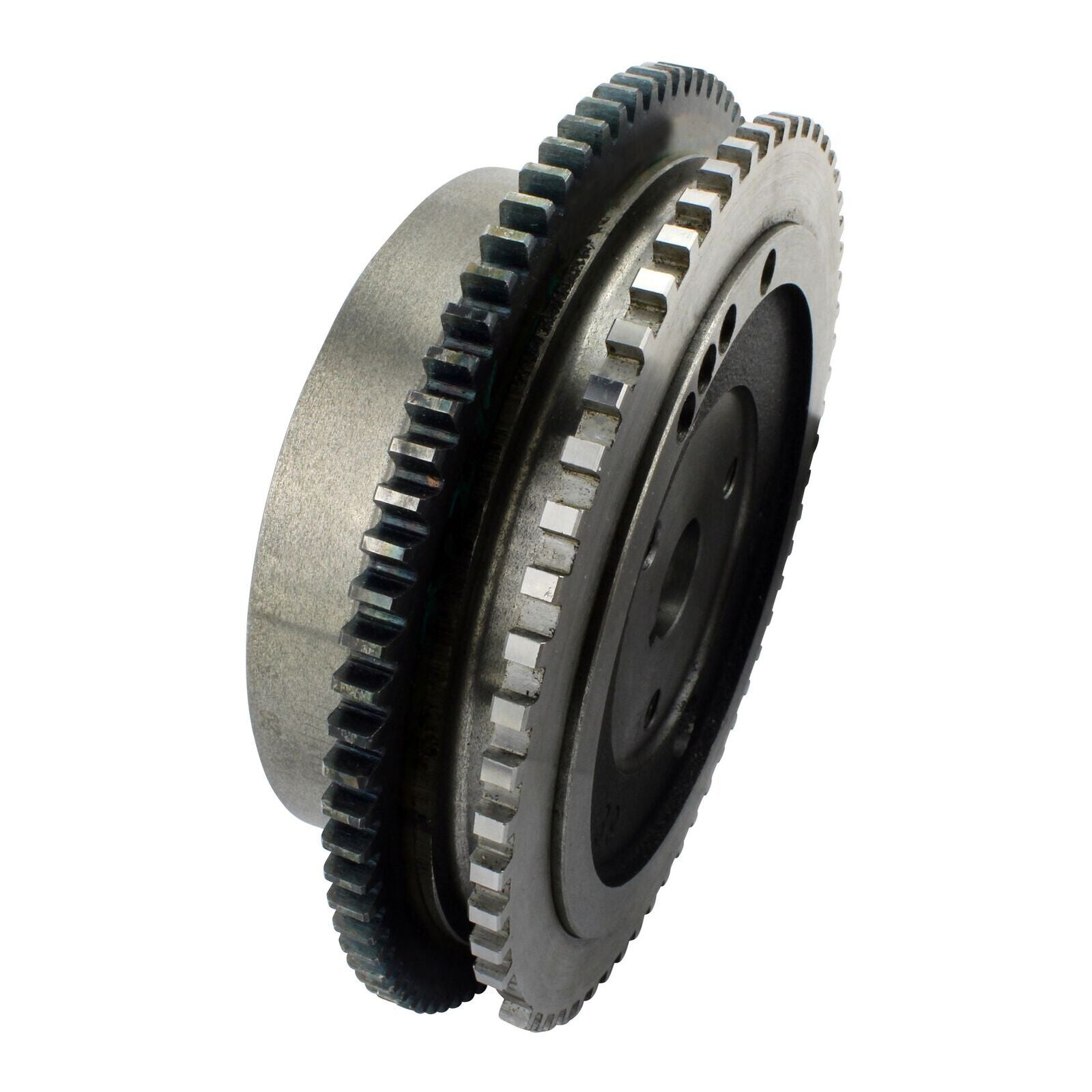

Specifications of Flywheel:

• Dimensions:
  • E xterior Diameter: 167 mm
  • Interior Diameter: 109 mm
  • Interior Diameter Center Housing: 27 mm
  • Exterior Diameter Center Housing: 40 mm
  • Thickness (exterior): 54 mm
  • Thickness (interior): 43 mm
