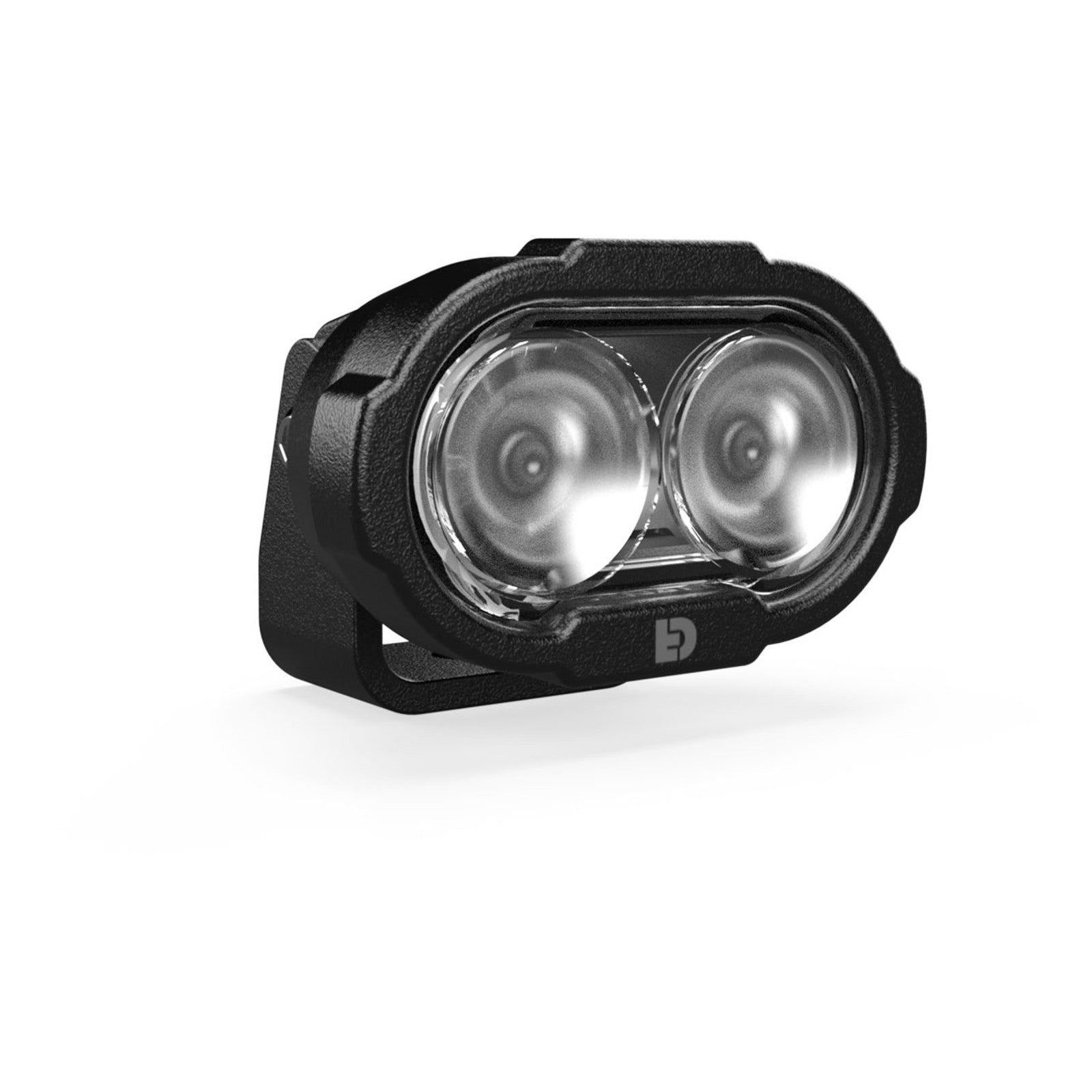

Denali DL2 Driving Light - DataDim Technology, 2-LED, 60° Symetrical Flood Beam

Introducing the brightest and most durable motorcycle driving lights that won’t break the bank. Engineered from over a decade of customer feedback, the DL Series Driving Lights deliver best-in-class beam performance, unmatched durability, and DENALI’s signature dimming technology at a more accessible price point for new riders and global customers.

Thanks to the single-piece TIR optic and robotically sealed construction, part count and assembly time are reduced without sacrificing LED quality, circuitry, or optical design. The result is an indestructible, submersible light pod that delivers more light per dollar than the competition. All DL Series lamps are available in white, amber, or selective yellow beam options and are plug-and-play compatible with all DENALI lighting harnesses and controllers.

The DL2 is the smallest light in the range and the only model to feature a visibility beam that delivers a wide flood pattern at night while appearing brightest to oncoming drivers during daytime riding.

Features:

• HiDrive LEDs (3,400 lumens per pair) – Top-bin CREE LEDs driven at 8 watts each deliver a powerful beam in a compact 2-LED housing.
• Oversized TIR optics – Proprietary optics distribute light more efficiently than reflectors, delivering unmatched distance and width from a compact housing.
• DataDim™ plug-and-play dimming – Dedicated dimming wire ensures reliable operation with all DENALI harnesses, DialDim, and CANsmart controllers.
• DrySeal™ sealed beam construction – Robotically sealed lens and internally potted cable entry ensure 100% waterproof submersible performance.
• Overbuilt, not overpriced – 4mm powder-coated steel brackets, robust heatsink, and UV-hardened polycarbonate lenses deliver a 21grms vibration rating.
• ECE-compliant driving beam – Certified for street-legal use as a primary or auxiliary high beam in the EU (amber and yellow lenses not street-legal).

Specifications (Single/Pair):

• LEDs: Cree XPL2 HD (8W each)
• Watts: 16W | 32W
• Amp draw: 1.3A | 2.7A
• Raw lumens: 1,700 | 3,400
• Beam distance: 130 ft (40 m) | 173 ft (53 m)
• Beam width: 85 ft (26 m) | 113 ft (35 m)
• Connector: DataDim-compatible 3-wire DT
• Colour temperature: 6000K
• Operating voltage: 9–32 VDC
• Pod size: 2" × 3" rectangle × 2" deep
• Pod weight: 0.8 lb | 1.6 lb
• IP rating: IP68 & IP69K waterproof, submersible, high-pressure spray
• EMC: R10, CISPR 25, CE, UKCA compliant

Wiring & Switching Options

Choose the best harness and control option for your vehicle and budget. Add one of the options below to complete your DENALI lighting kit.

• Standard Powersports Harness – Waterproof low-profile switch, ideal for basic single-intensity installations
• Standard Automotive Harness – Added length with a flush-mount illuminated rocker switch for dashboards
• Premium Powersports Harness – Over-moulded wire with premium illuminated handlebar-mounted switch
• DataDim Module – Enables automatic light dimming synced with your factory high beam
• DialDim Lighting Controller – Full dual-light control with dimming, syncing, strobe, flash, and voltage monitoring

What’s Included

• Single light pod includes:
  • (1×) Light pod with mounting hardware
  • (1×) 3-wire pigtail
• Pair of light pods includes:
  • (2×) Light pods with mounting hardware and pigtails

Light pods and harness options are packaged separately in their respective retail packaging.

DL Series lamps are not compatible with DENALI fender mount LAH.00.10700.B.
