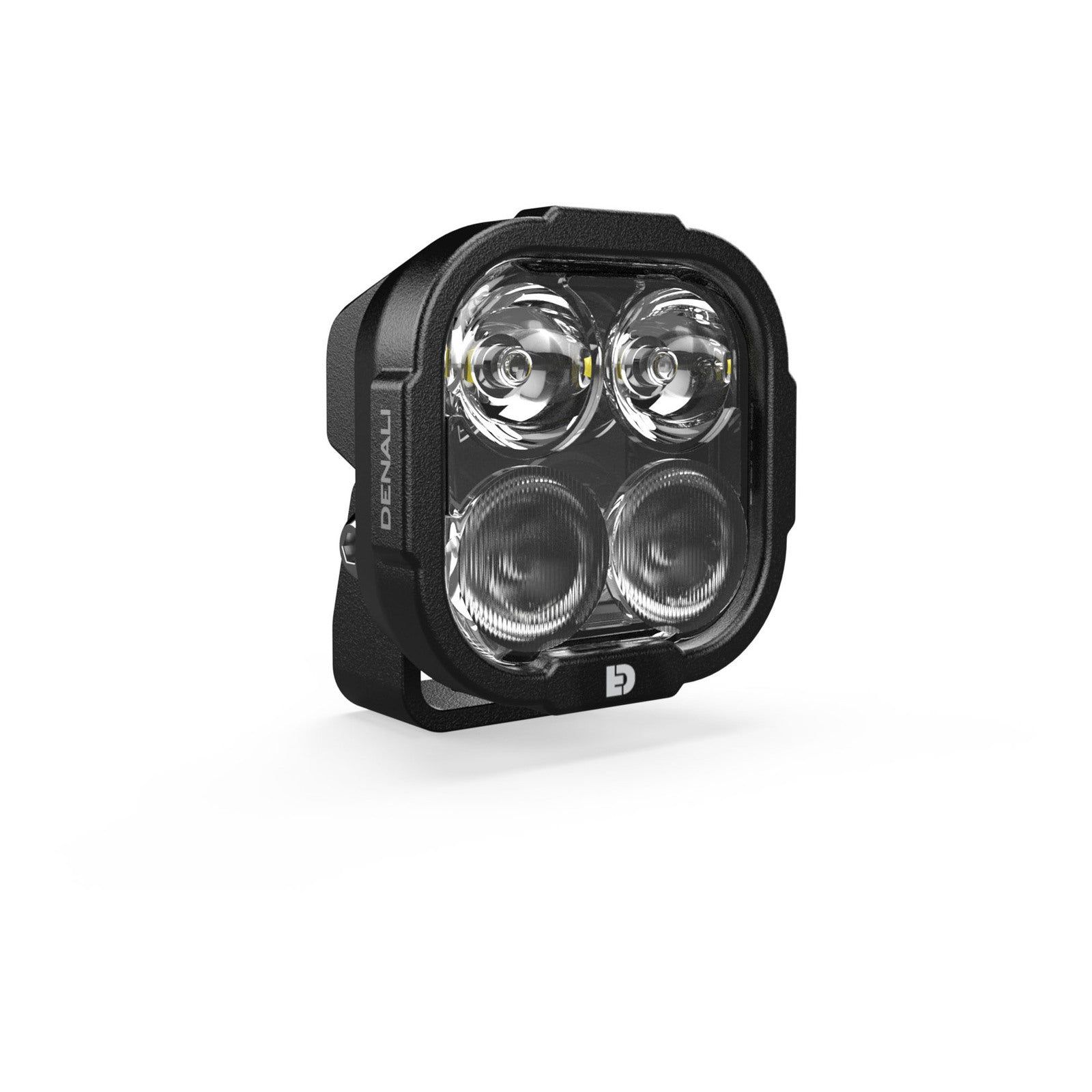

Denali DL4 Driving Light - DataDim Technology, 4-LED, Elliptical Hybrid Beam

Introducing the brightest and most durable motorcycle driving lights that won’t break the bank. Engineered from over a decade of customer feedback, the DL Series Driving Lights deliver best-in-class beam performance, unmatched durability, and DENALI’s signature dimming technology at a more accessible price point for new riders and a growing international customer base.

Thanks to the single-piece TIR optic and robotically sealed construction, we reduce part count and assembly time without sacrificing LED quality, circuitry, or optical design. The result is an indestructible, submersible light pod that delivers more light per dollar than the competition. All DL Series lamps are available in white, amber, or selective yellow beam options and are plug-and-play compatible with all DENALI lighting harnesses and controllers.

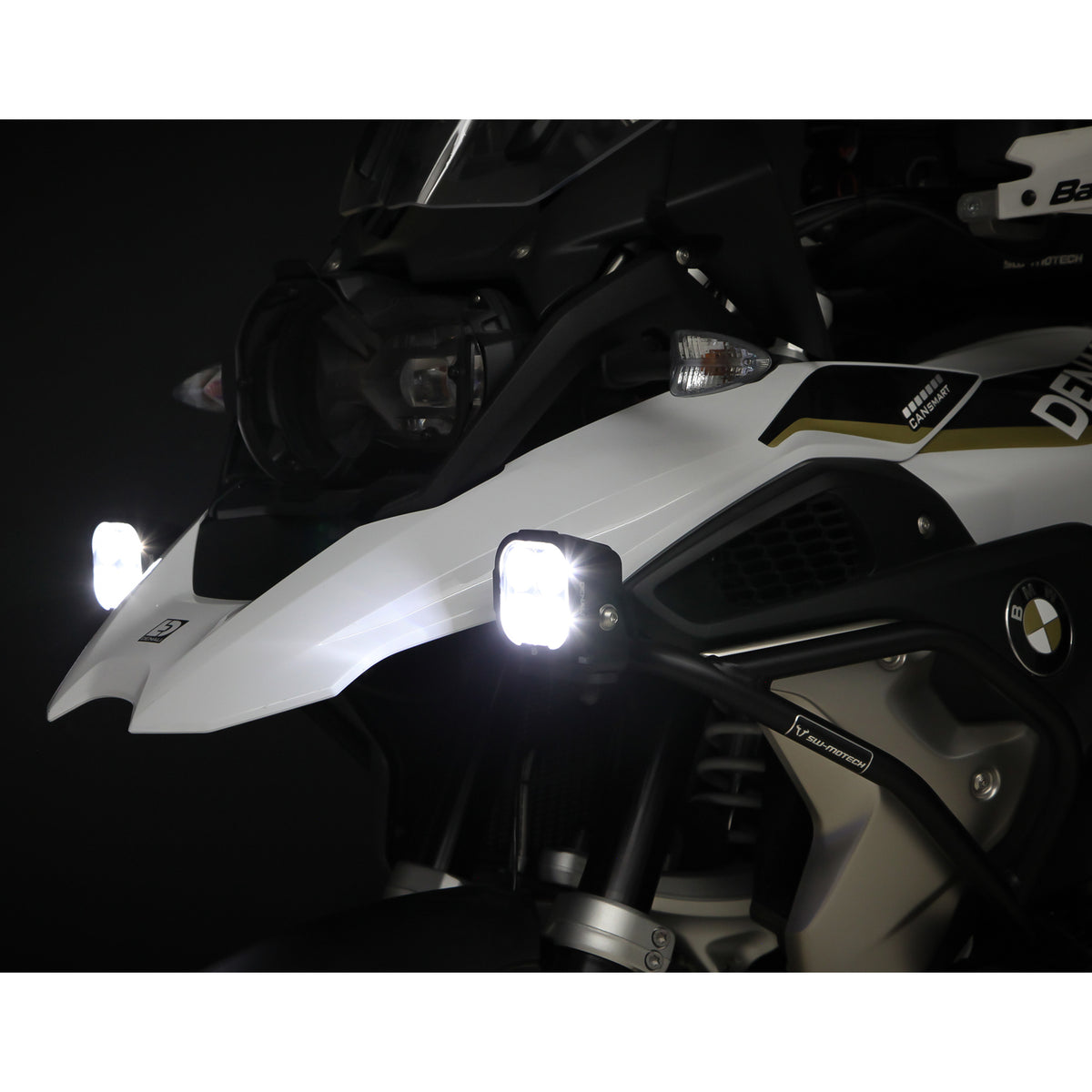

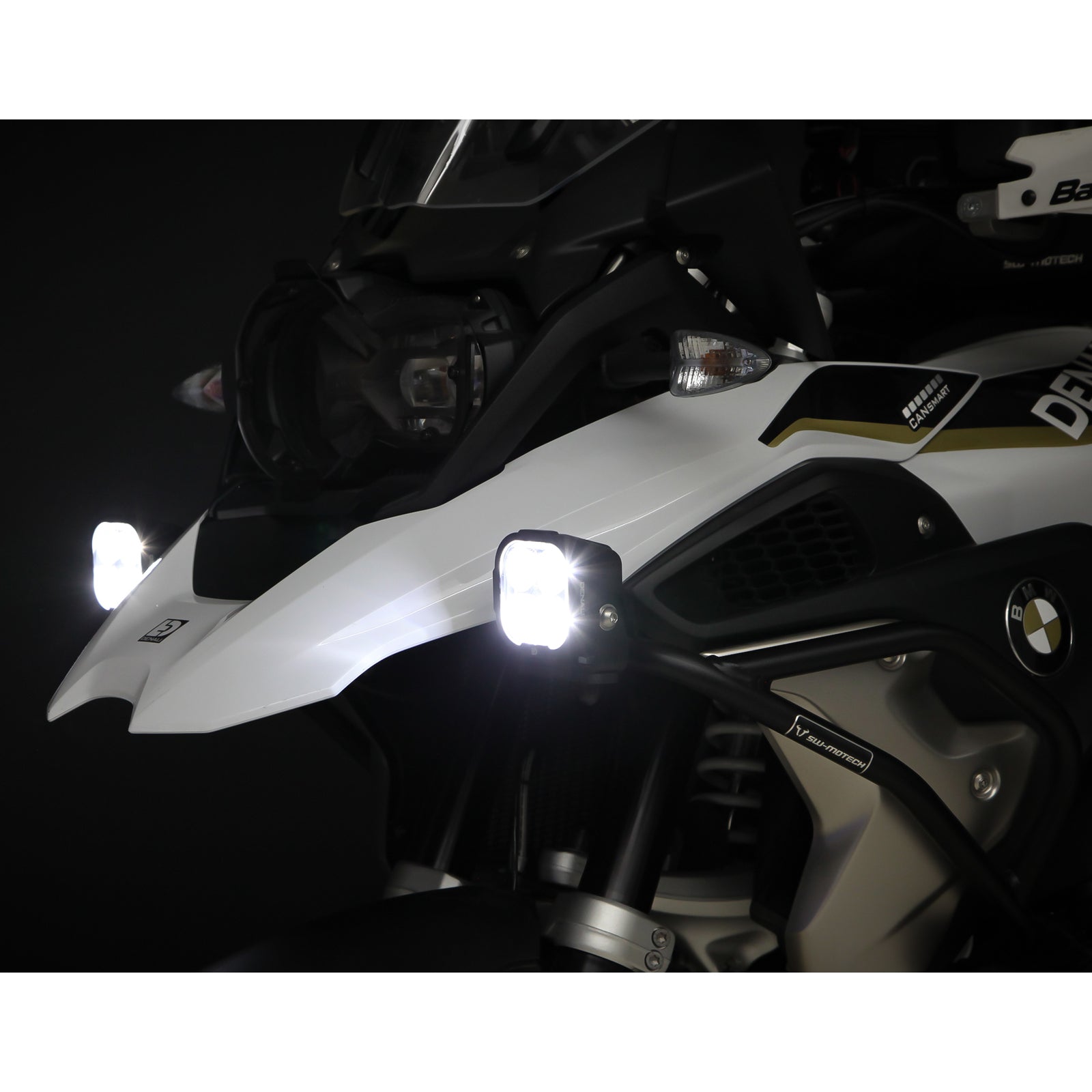

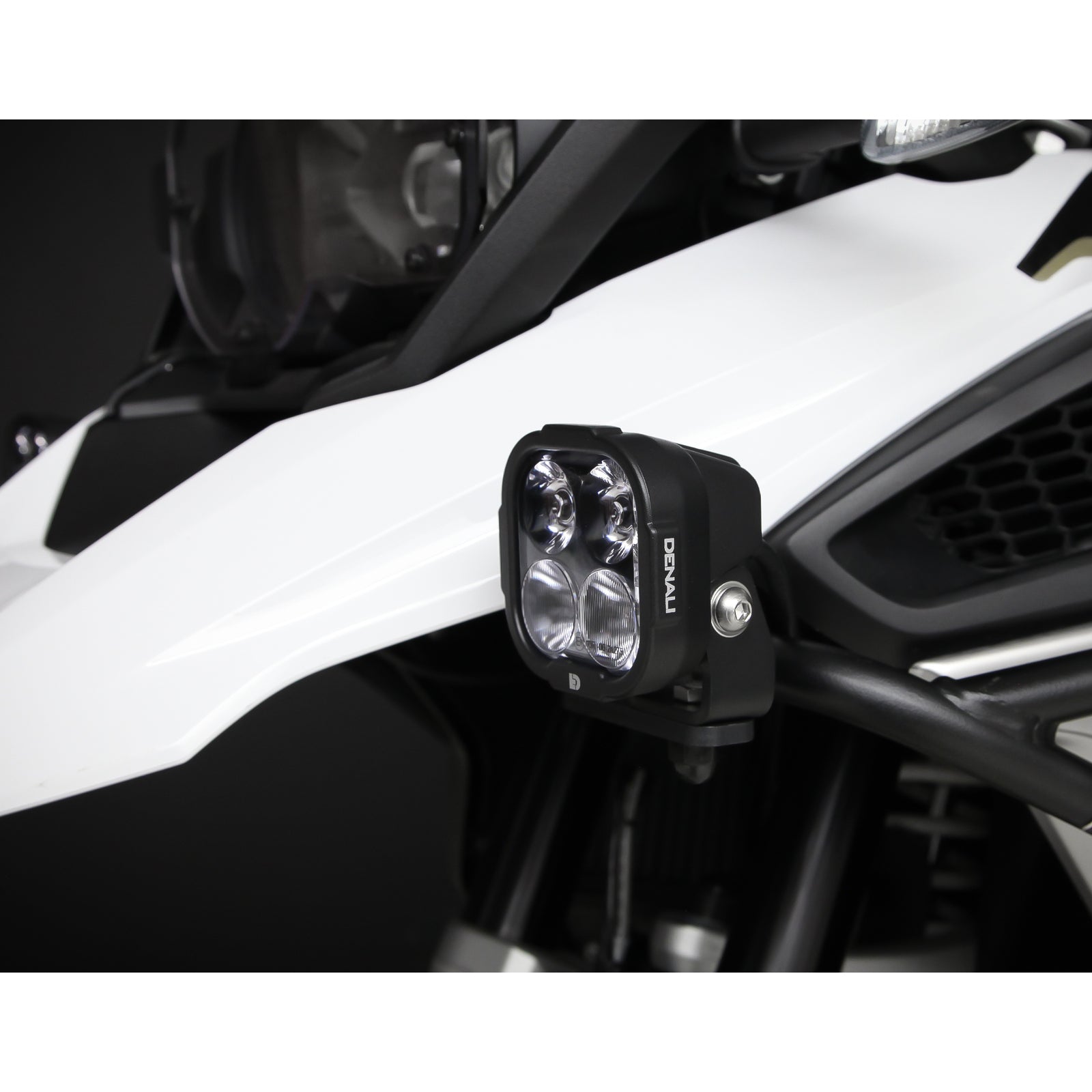

The DL4 features a perfected hybrid driving beam and is ideal as a primary auxiliary driving light on small to medium-sized bikes. It is also compact and lightweight enough for lower fender mounting on larger adventure bikes.

Features:

• HiDrive LEDs (6,800 lumens per pair) – Top-bin CREE LEDs driven at 8 watts each deliver a powerful beam in a 9-LED square housing.
• Oversized TIR optics – Proprietary optics distribute light more efficiently than reflectors, delivering exceptional distance and width from a compact housing.
• DataDim™ plug-and-play dimming – Dedicated dimming wiring ensures reliable operation with all DENALI harnesses, DialDim, and CANsmart controllers.
• DrySeal™ sealed beam construction – Robotically sealed lens and internally potted cable entry guarantee 100% waterproof submersible performance.
• Overbuilt, not overpriced – 4mm powder-coated steel brackets, robust heatsink, and UV-hardened polycarbonate lenses deliver a 21grms vibration rating.
• ECE-compliant driving beam – Certified for street-legal use as a primary or auxiliary high beam in the EU (amber and yellow lenses not street-legal).

Specifications (Single / Pair)

• LEDs: Cree XPL HI (8W each)
• Watts: 32W | 64W
• Amp draw: 2.7A | 5.4A
• Raw lumens: 3,400 | 6,800
• Beam distance: 820 ft (250 m) | 1,091 ft (333 m)
• Beam width: 157 ft (48 m) | 209 ft (64 m)
• Connector: DataDim-compatible 3-wire DT
• Colour temperature: 6000K
• Operating voltage: 9–32 VDC
• Pod size: 3" × 3" square × 2" deep
• Pod weight: 1.2 lb | 2.4 lb
• IP rating: IP68 and IP69K waterproof, submersible, high-pressure spray
• Beam certification: ECE R149 driving beam (auxiliary high beam)
• EMC: R10, CISPR 25, CE, UKCA compliant

Wiring and Switching Options

Choose the best harness and lighting control option to suit your vehicle and budget. Add one of the options below to complete your DENALI lighting kit.

• Standard Powersports Harness – Waterproof low-profile switch for basic single-intensity installations
• Standard Automotive Harness – Added length with flush-mount illuminated rocker switch for dashboards
• Premium Powersports Harness – Over-moulded wire with premium illuminated handlebar-mounted switch
• DataDim Module – Enables automatic dimming synced with your factory high beam
• DialDim Lighting Controller – Full dual-light control with dimming, syncing, strobe, flash, and voltage monitoring

What’s Included

• Single light pod includes:
  • (1×) Light pod with mounting hardware
  • (1×) 3-wire pigtail
• Pair of light pods include:
  • (2×) Light pods with mounting hardware and pigtails

Light pods and harness options are packaged separately in their respective retail packaging.

DL Series lamps are not compatible with DENALI fender mount LAH.00.10700.B.
