Ram Motorcycle Brake / Clutch Reservoir Ball Base

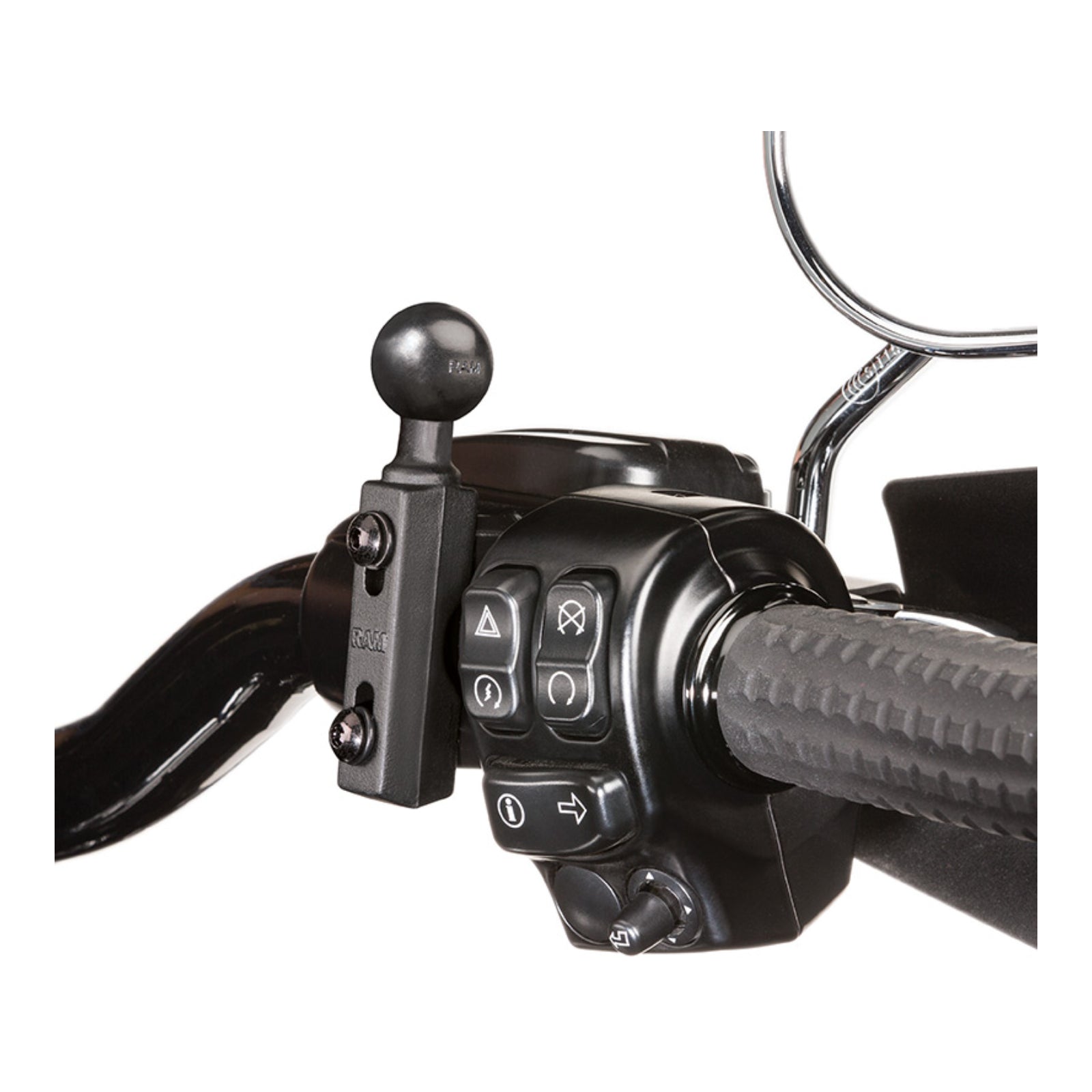

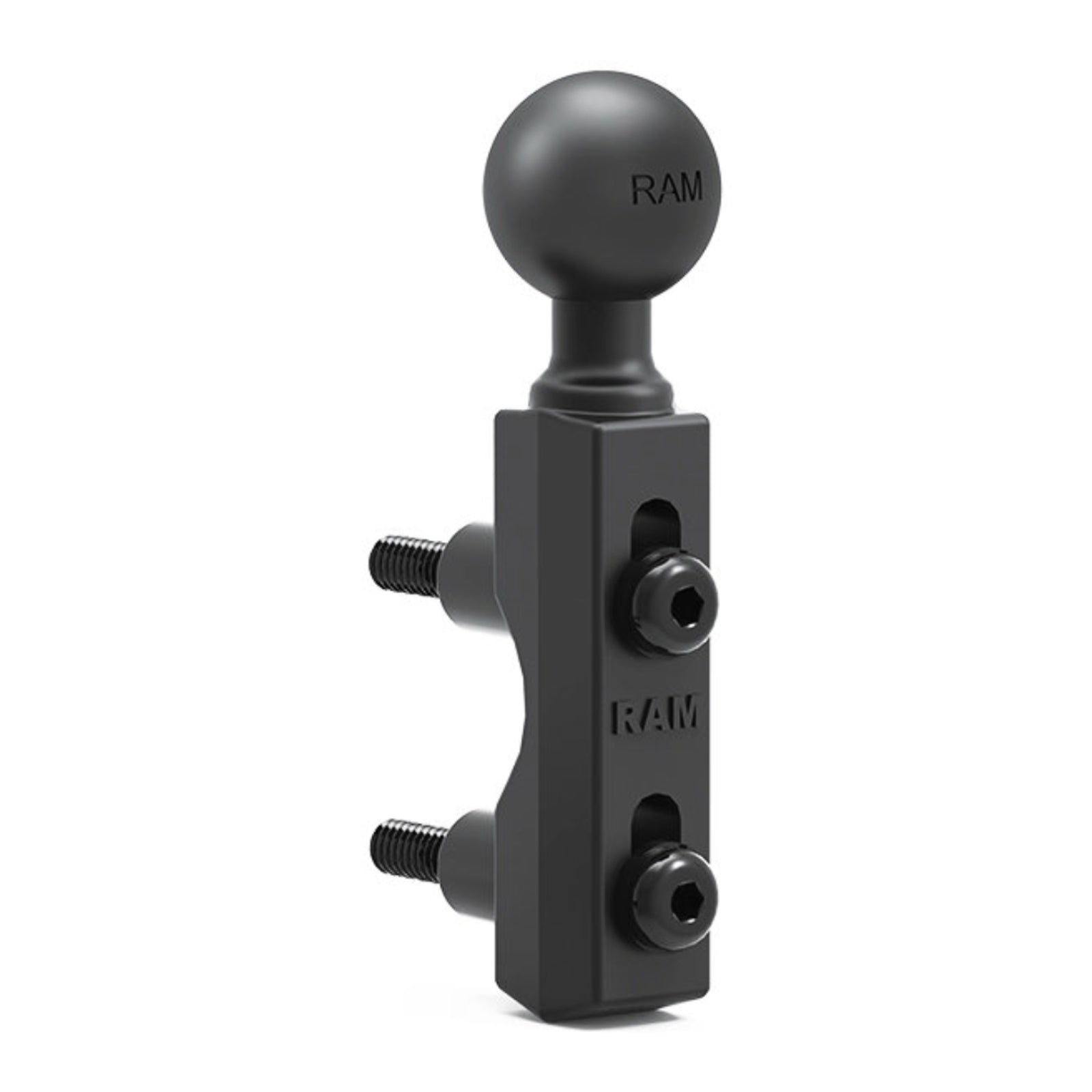

The RAM-B-309-1U attaches to your motorcycle's handlebar clutch/brake clamp and features one B size 1" rubber ball. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1U base is compatible with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centers have a minimum width of 0.94" and a maximum of 1.58".

Features:

• Connects to your handlebar clutch/brake clamp with provided 40mm x 6mm stainless steel hardware
• Compatible with any B size RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x2 M6 x 55mm Hex Bolts
• x2 #1/4-20 x 2" Hex Bolts
• x2 1/4"-20 x 2.5" Hex Bolts
• x2 1/2" Spacers
• x2 1/4" Split Lock Washers
