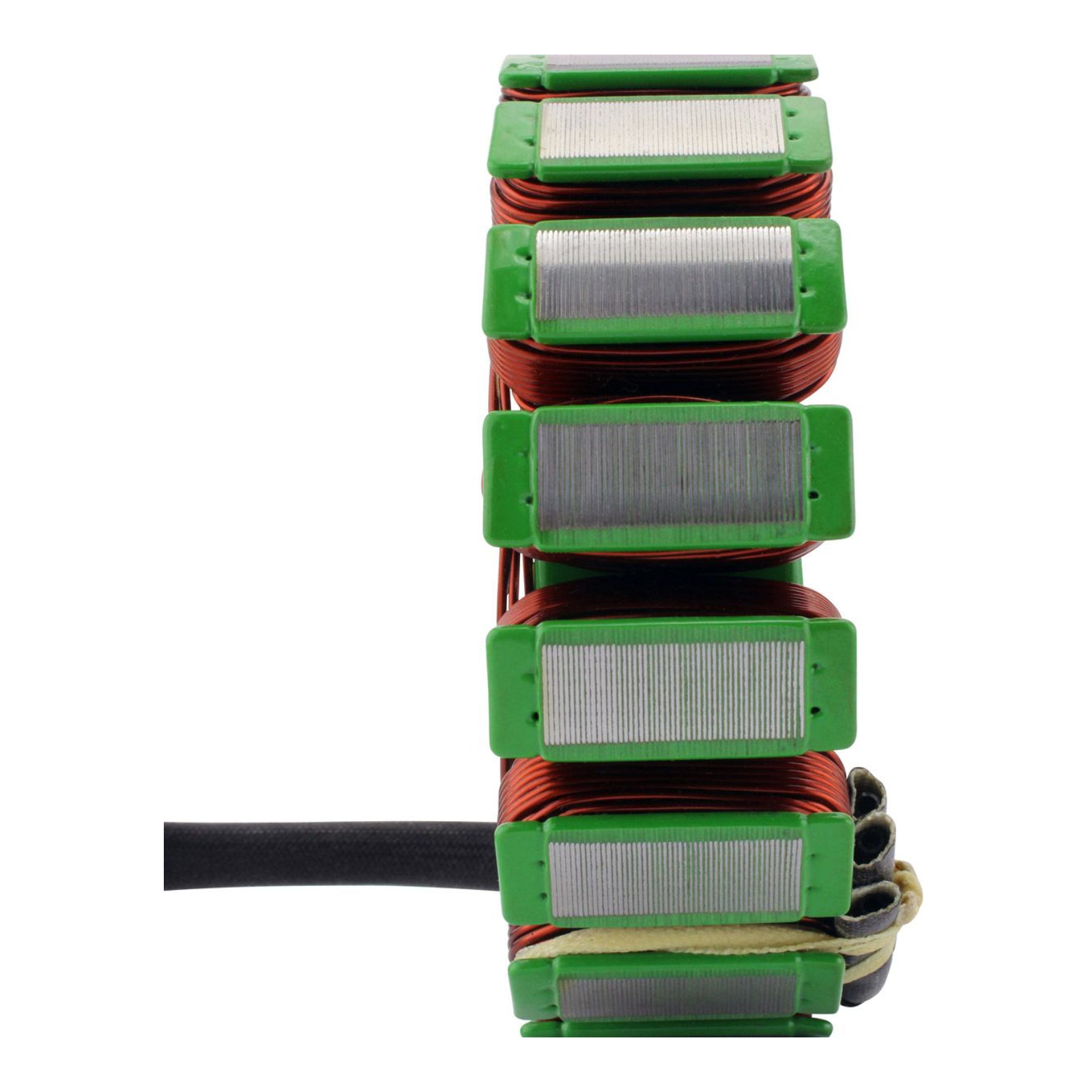

GENERATOR STATOR SUZU DL VSTROM 14-16' 18-19'
Regular price
$429.99

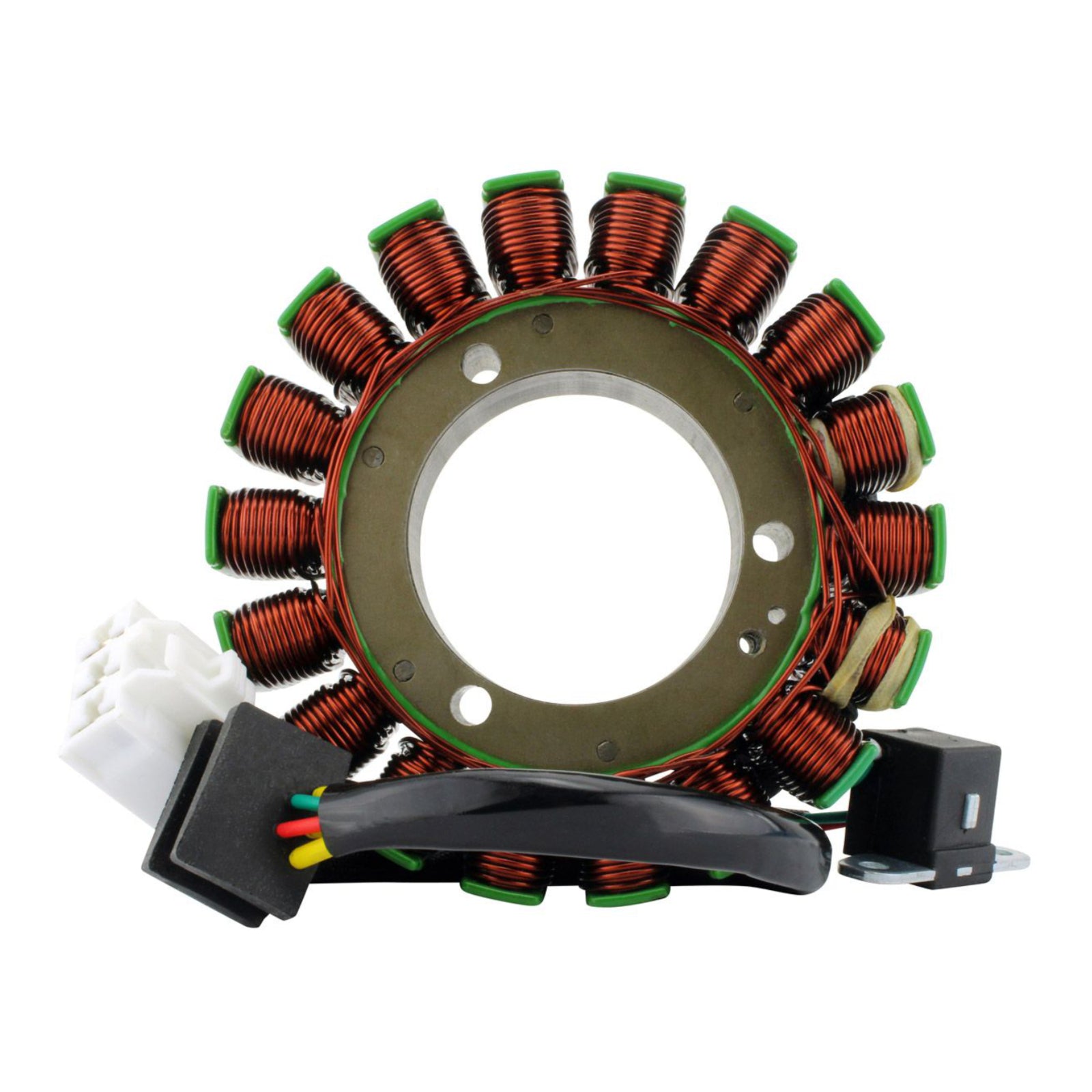

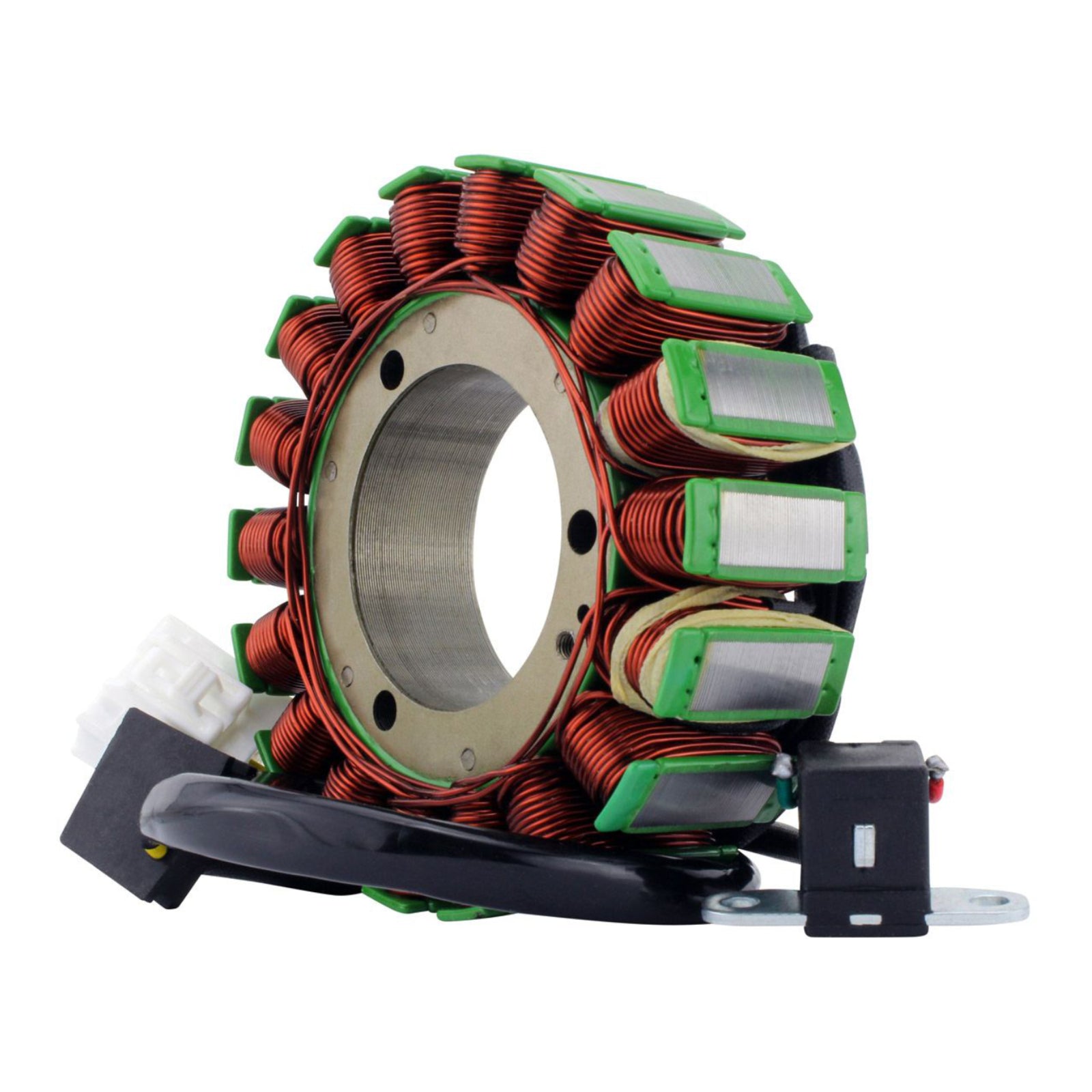

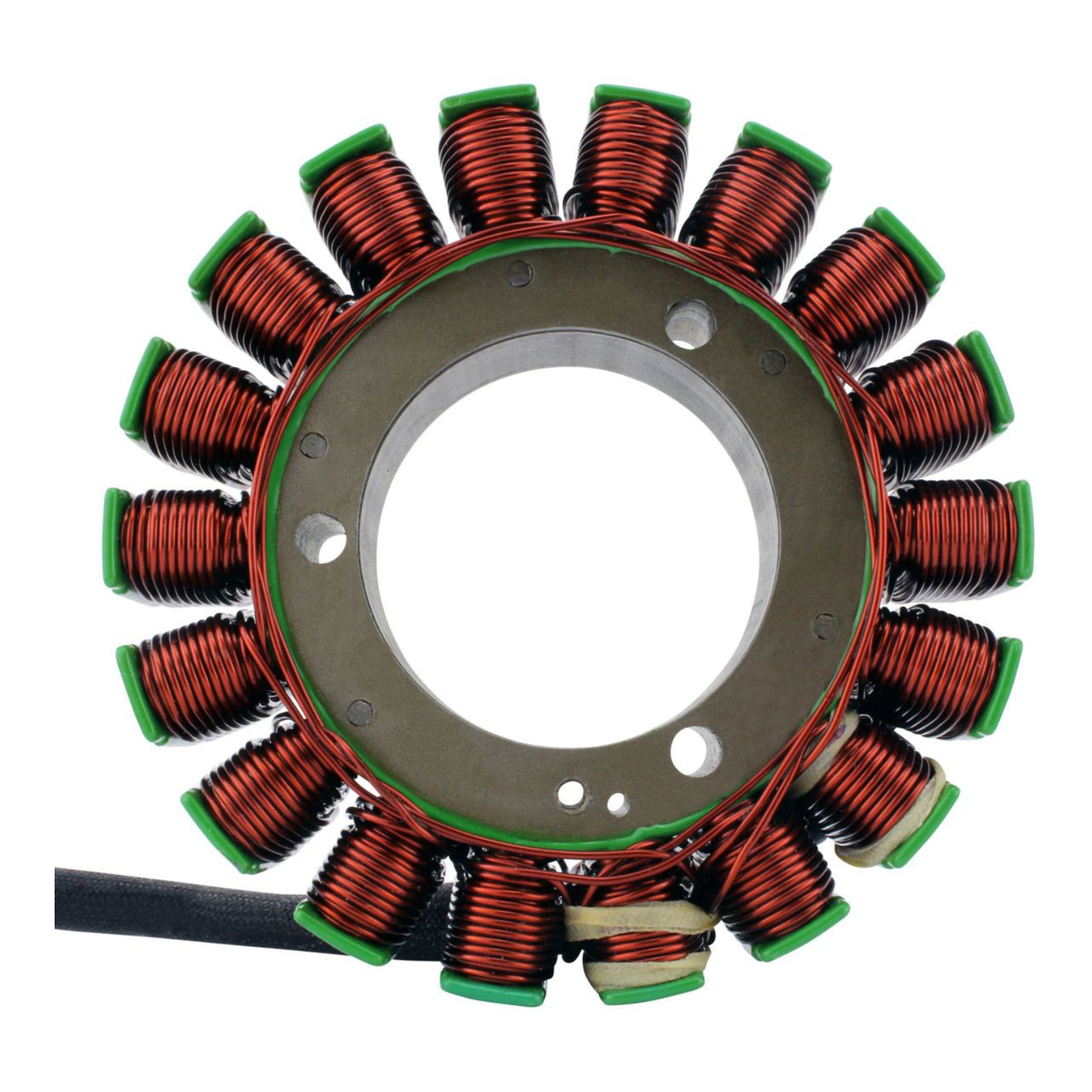

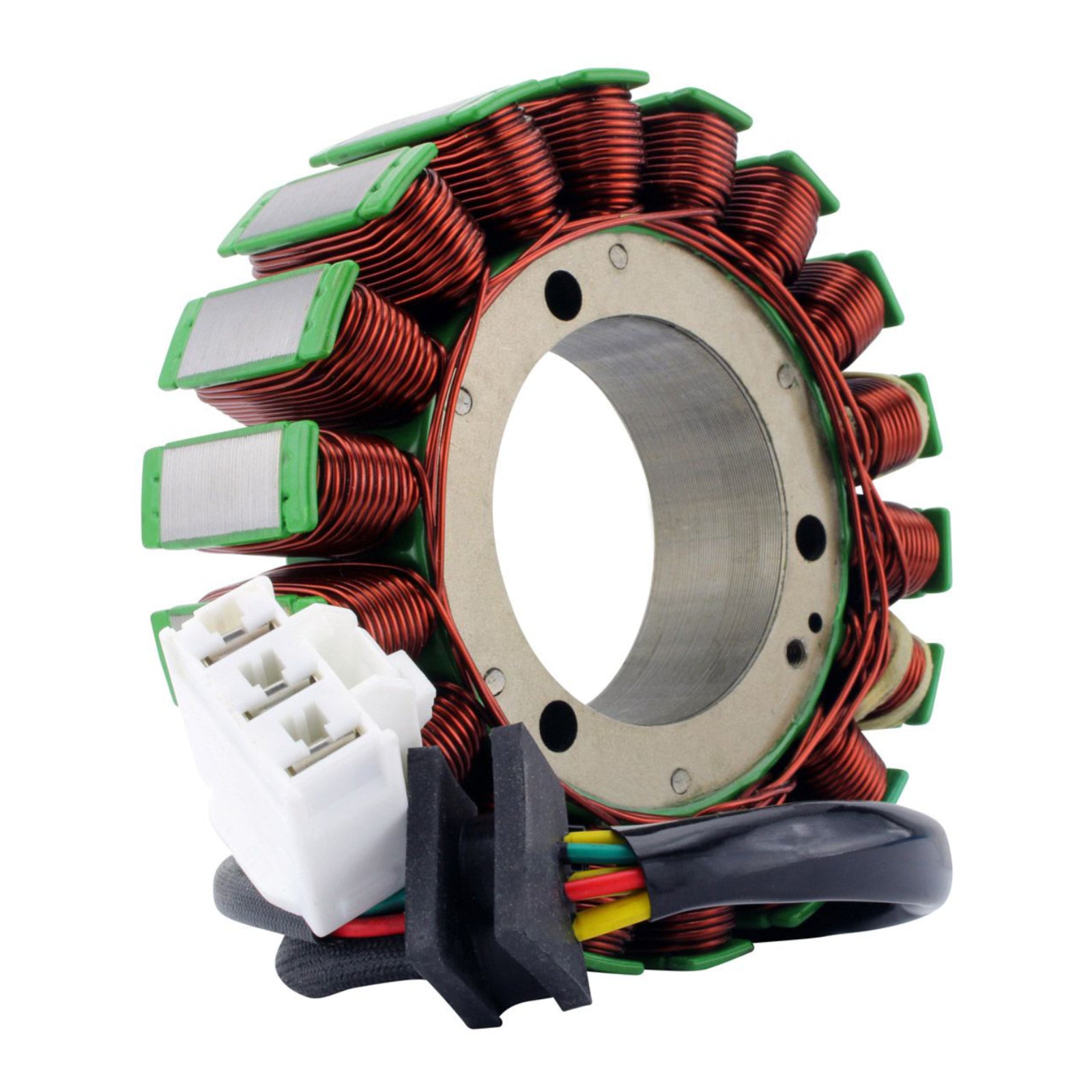

Plug-and-play replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 54mm
- Exterior diameter: 119mm
- Thickness: 26mm
- Length of wires stator to grommet: 170mm
- Length of wires grommet to plug: 270mm
- Length of pickup coil's wire to grommet: 150mm
Other specifications:
- Number of wires: 5

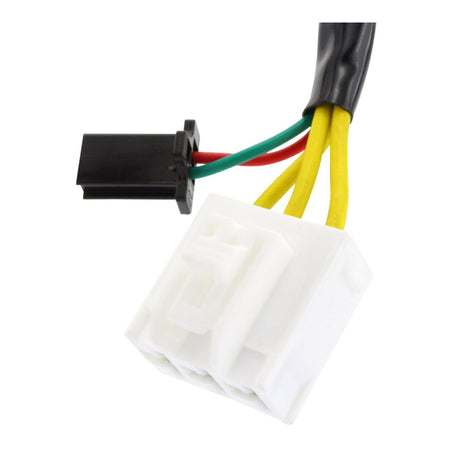

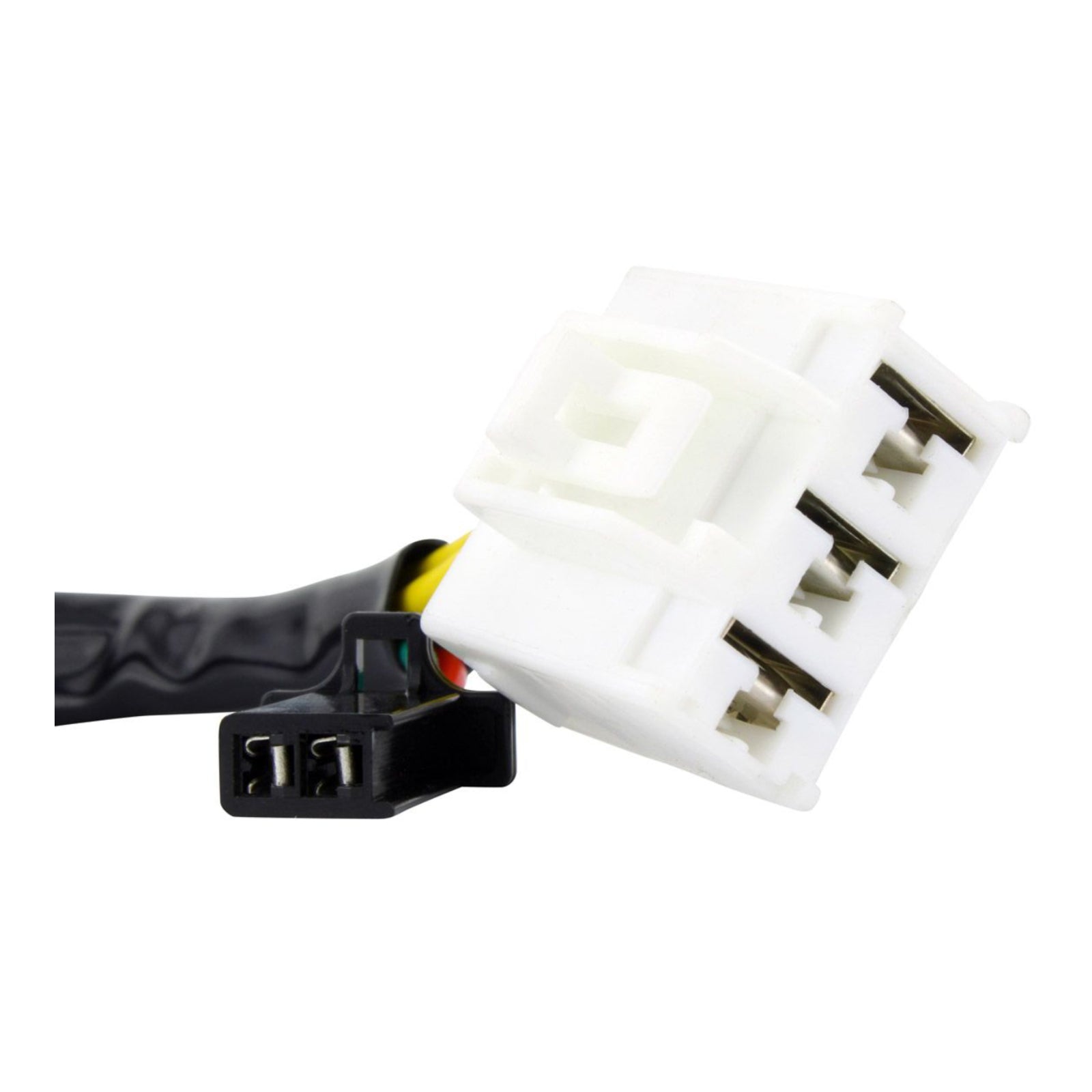

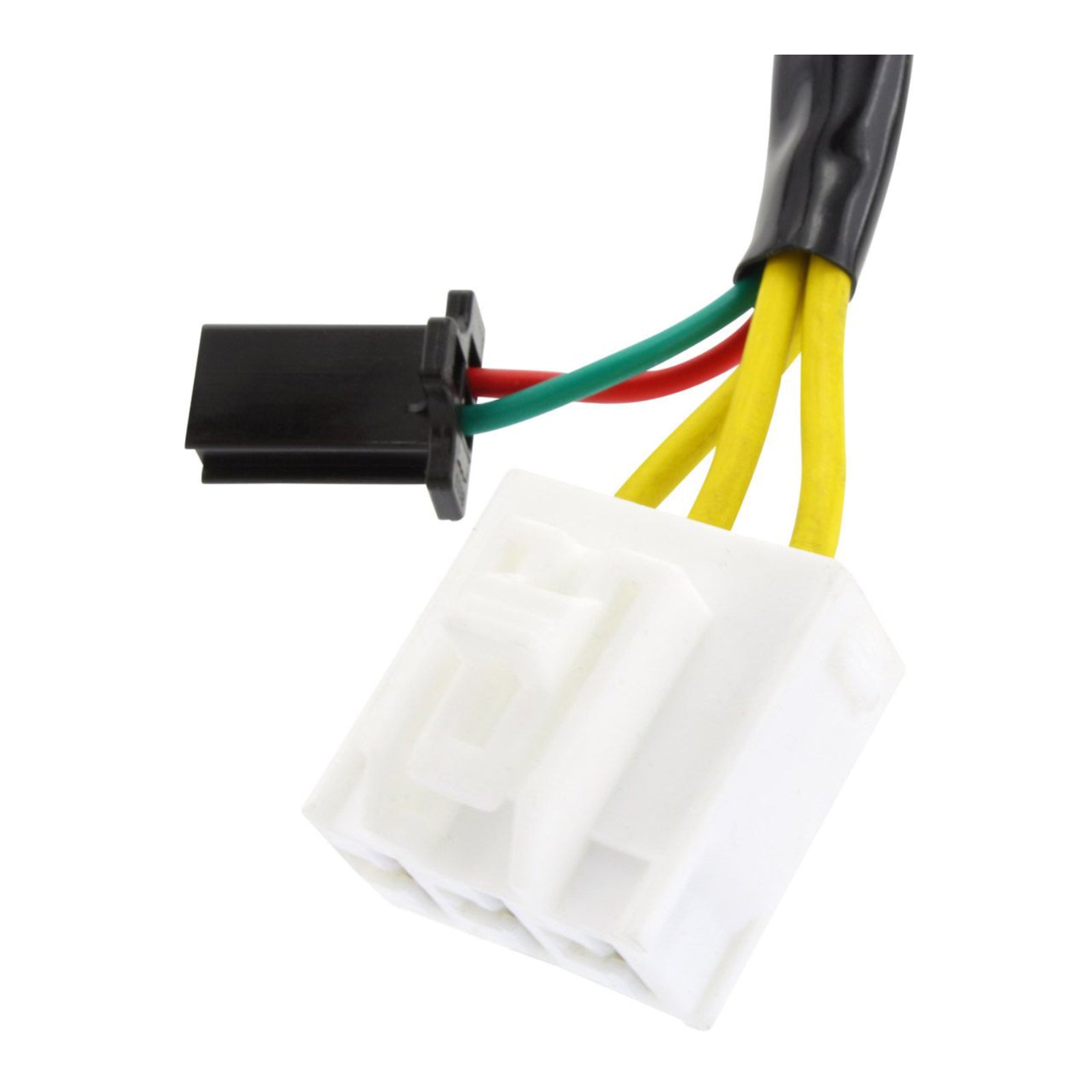

- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Yellow to Yellow = 0.6 ohms +-20%
- Alternator: Yellow to ground = O.L
- Pickup: Green to Red = 192 ohms +-20%
Details:
- < li>Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included

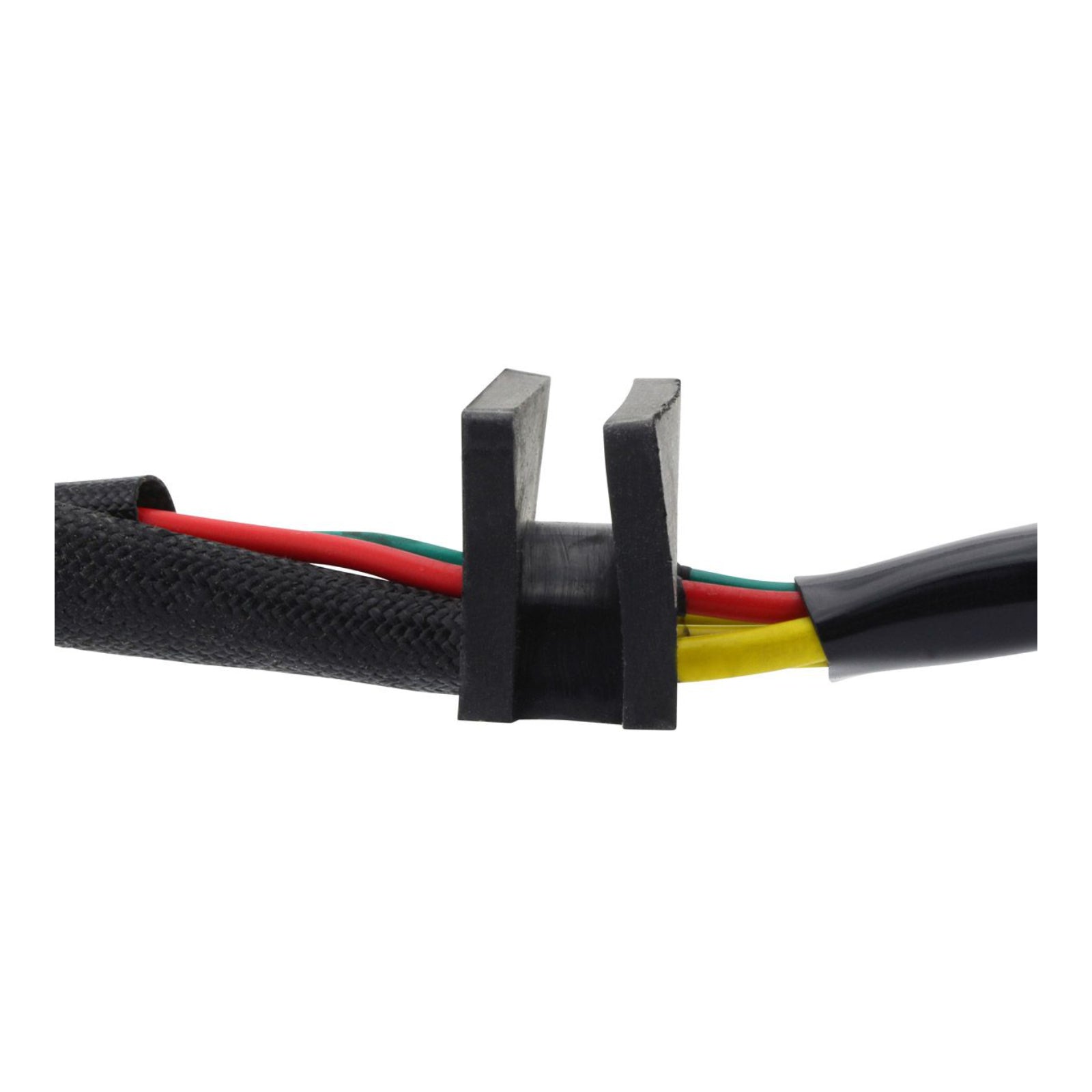

- Rubber grommet included
- All products shipped are tested
